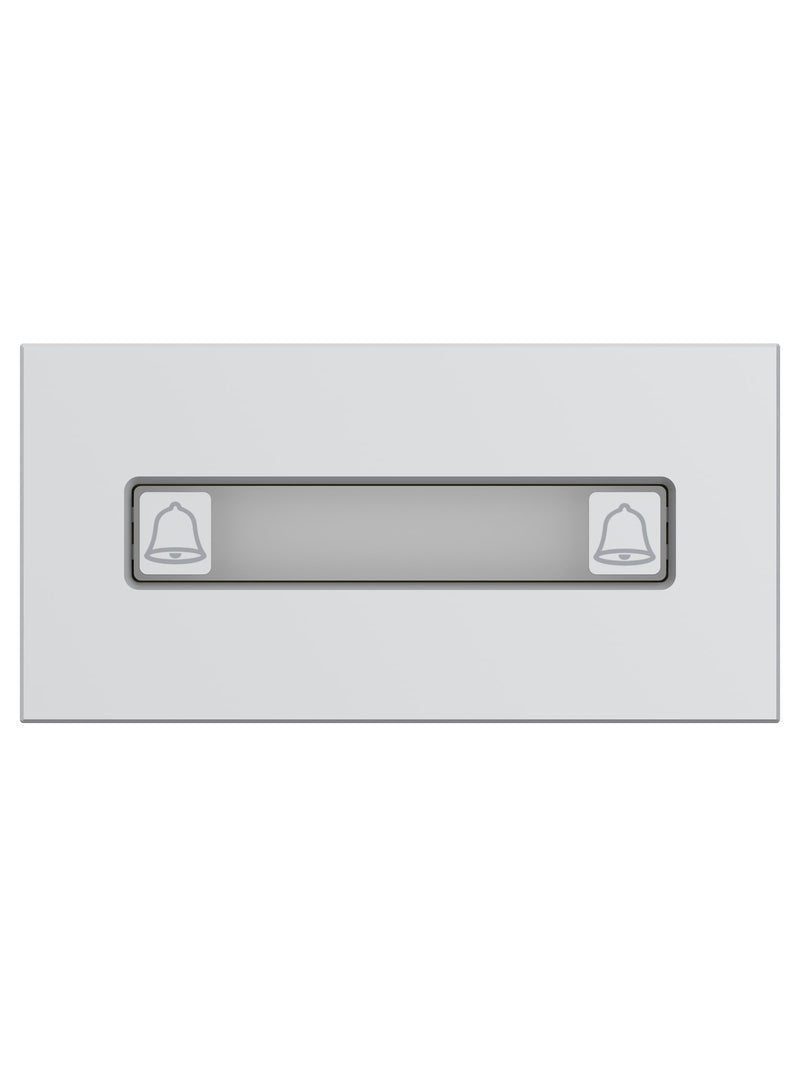

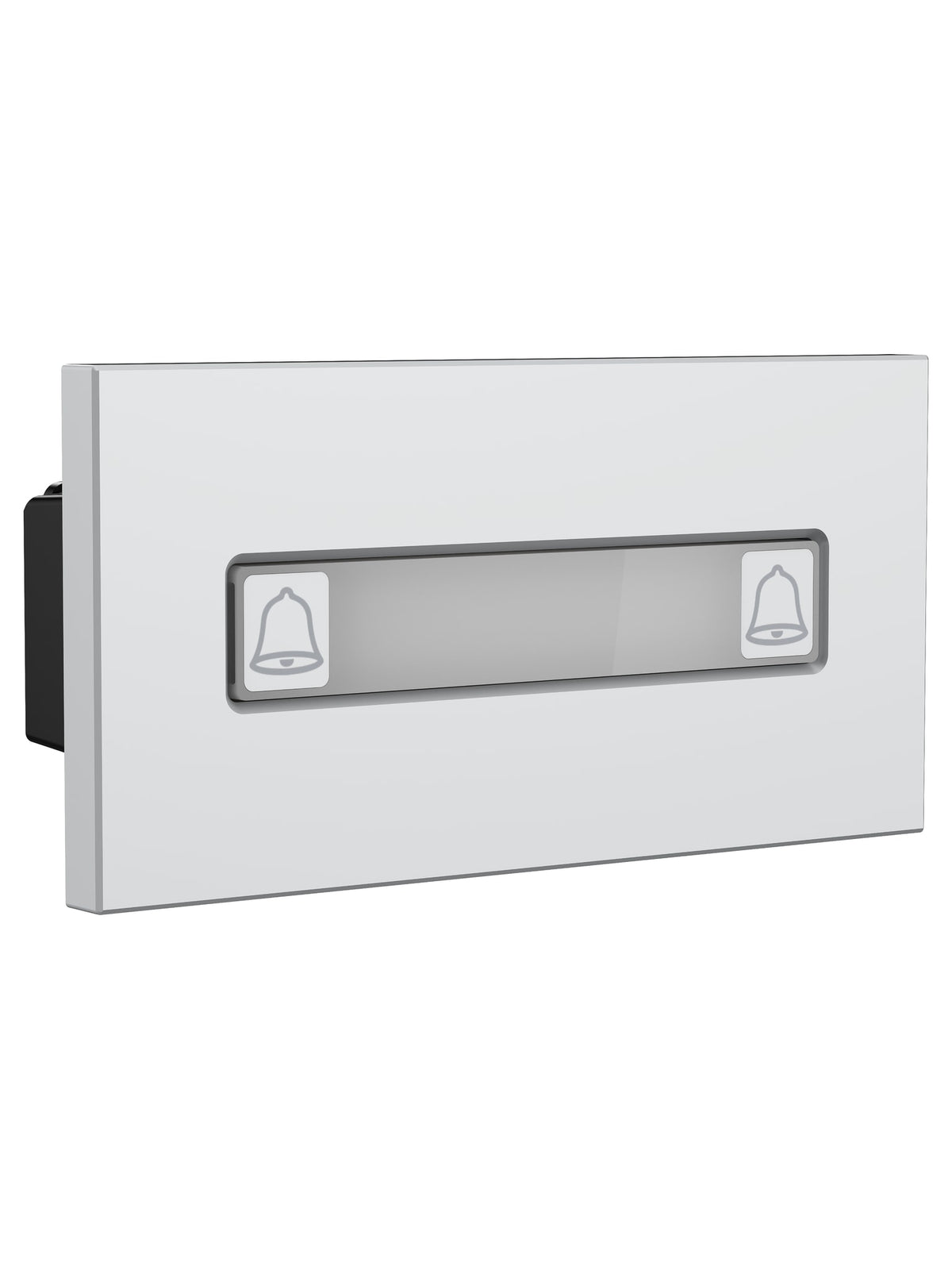

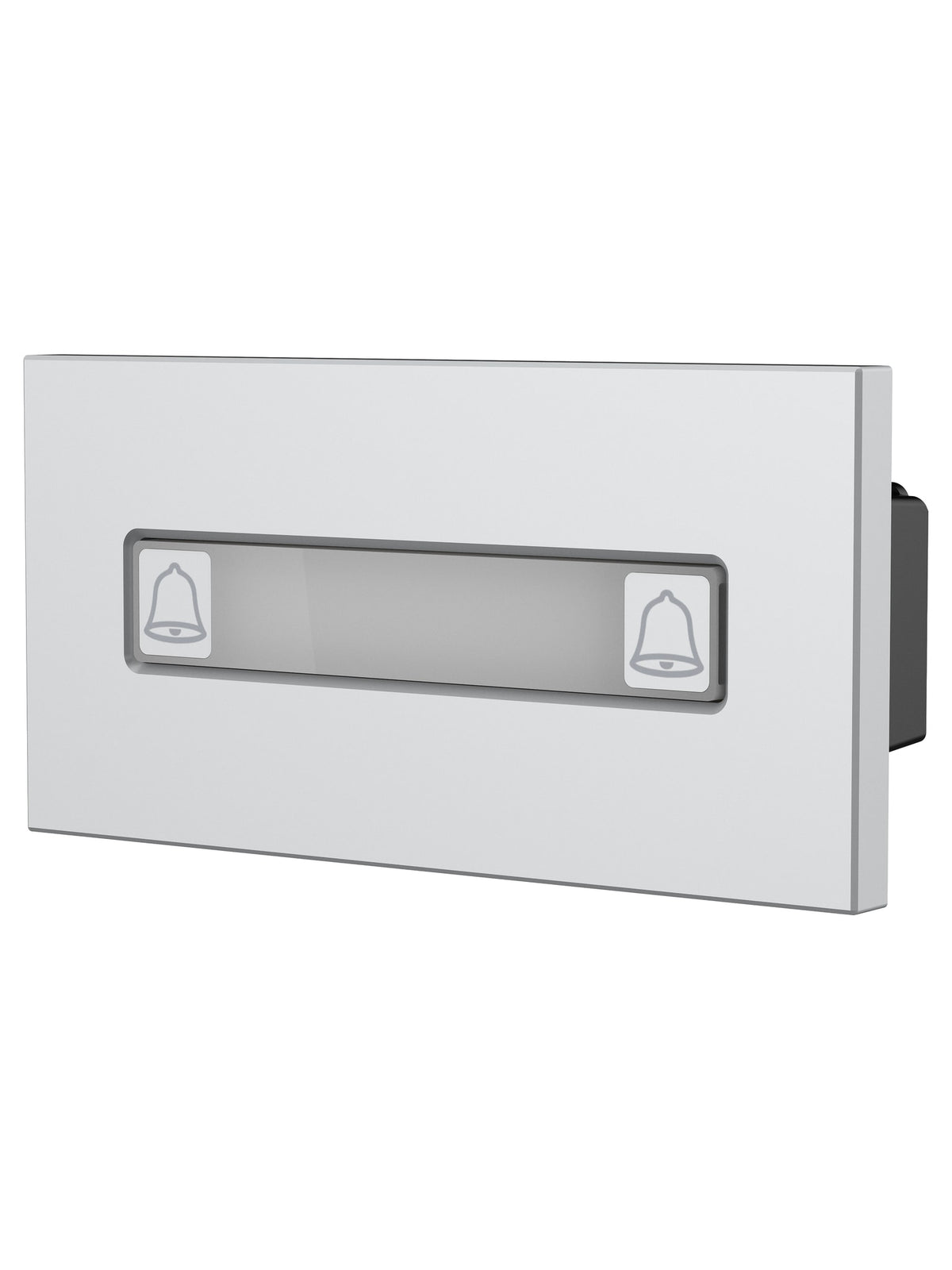

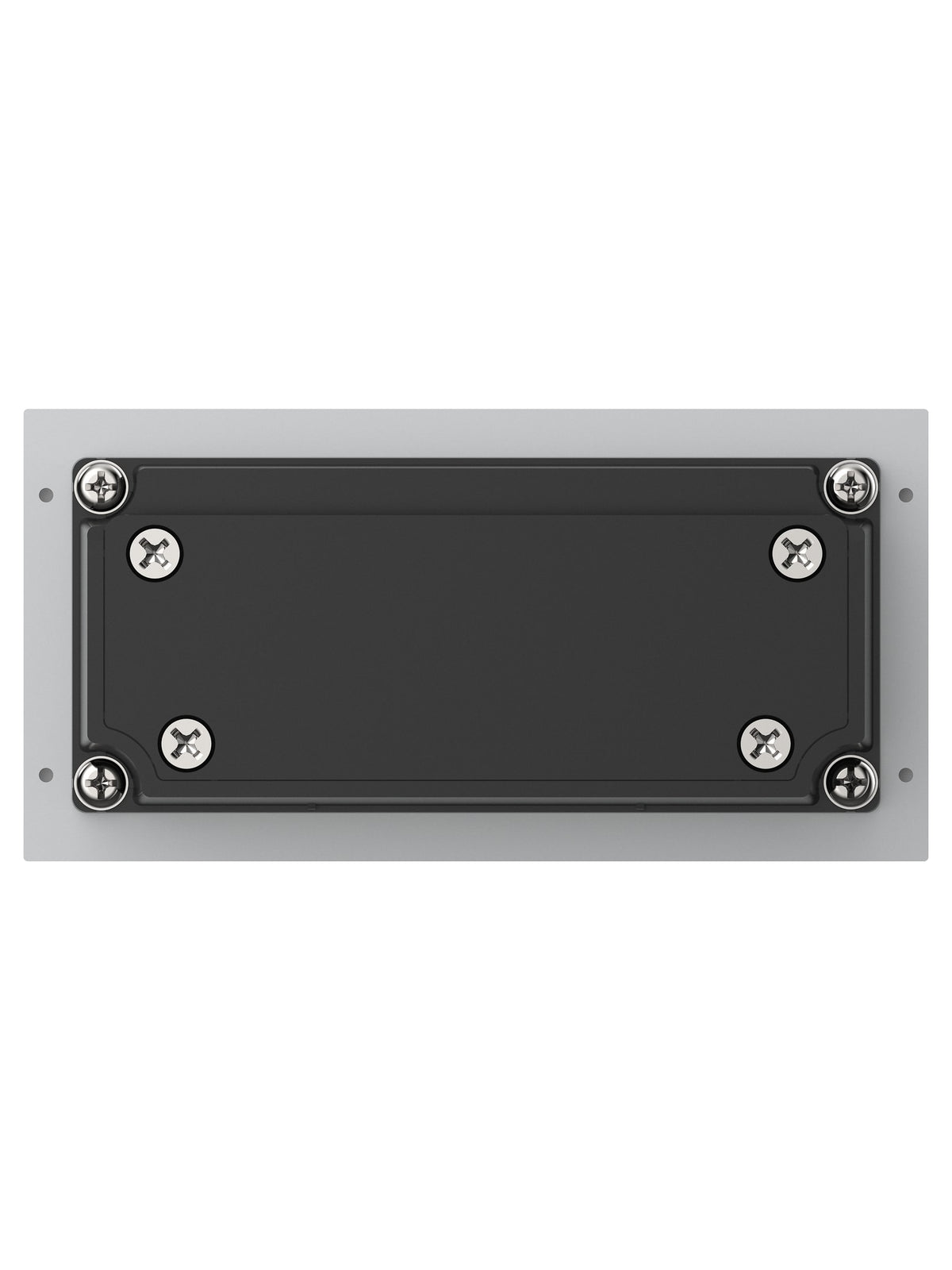

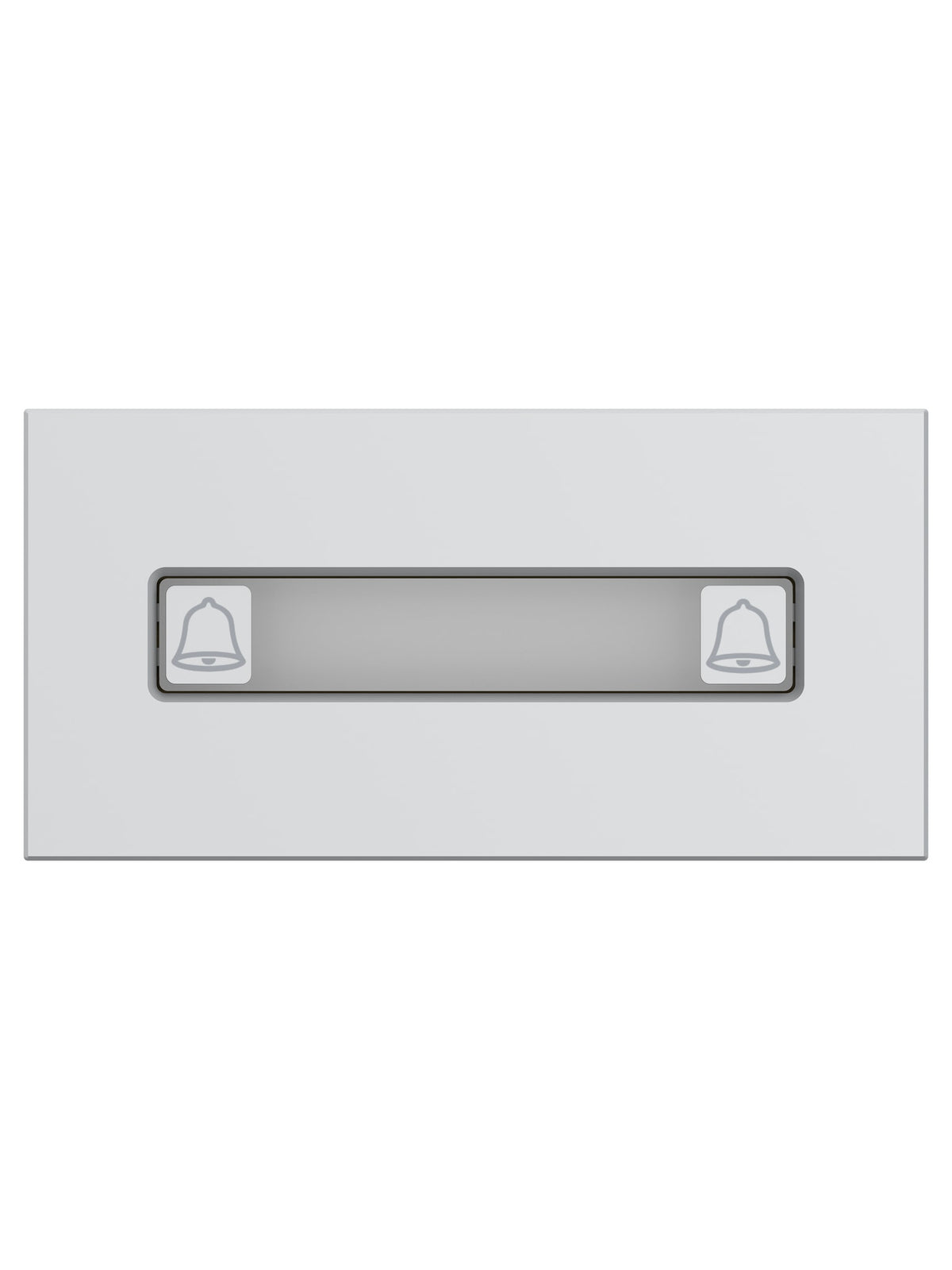

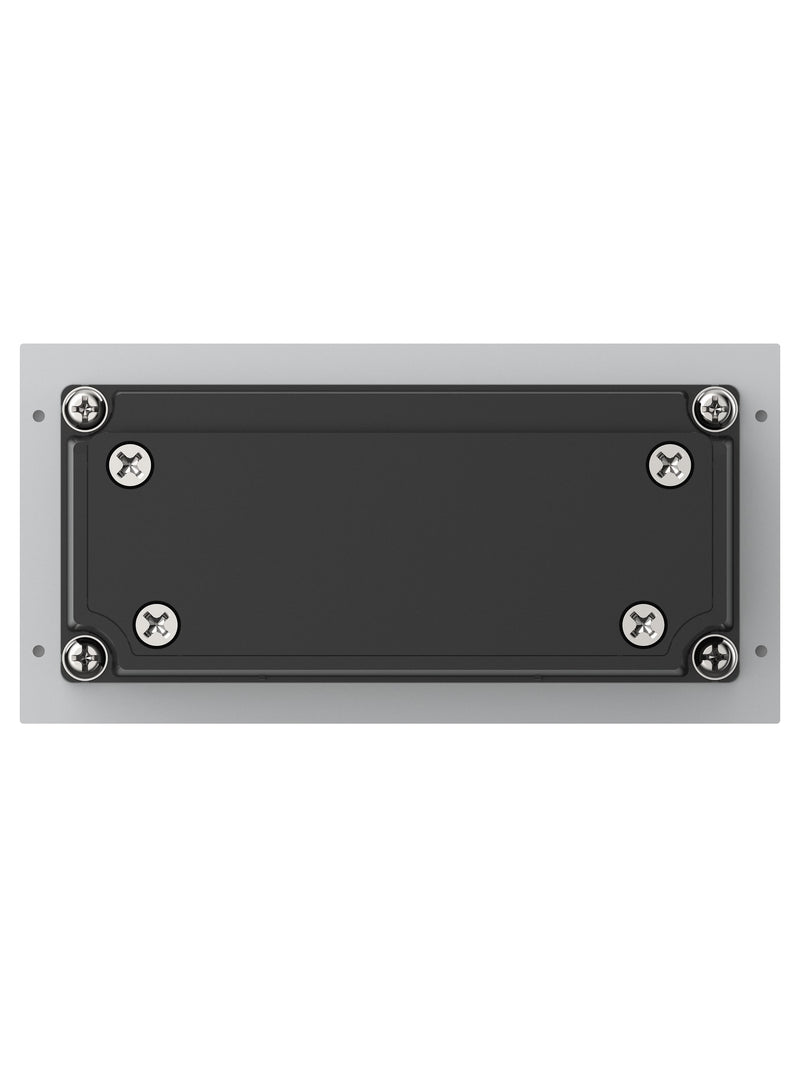

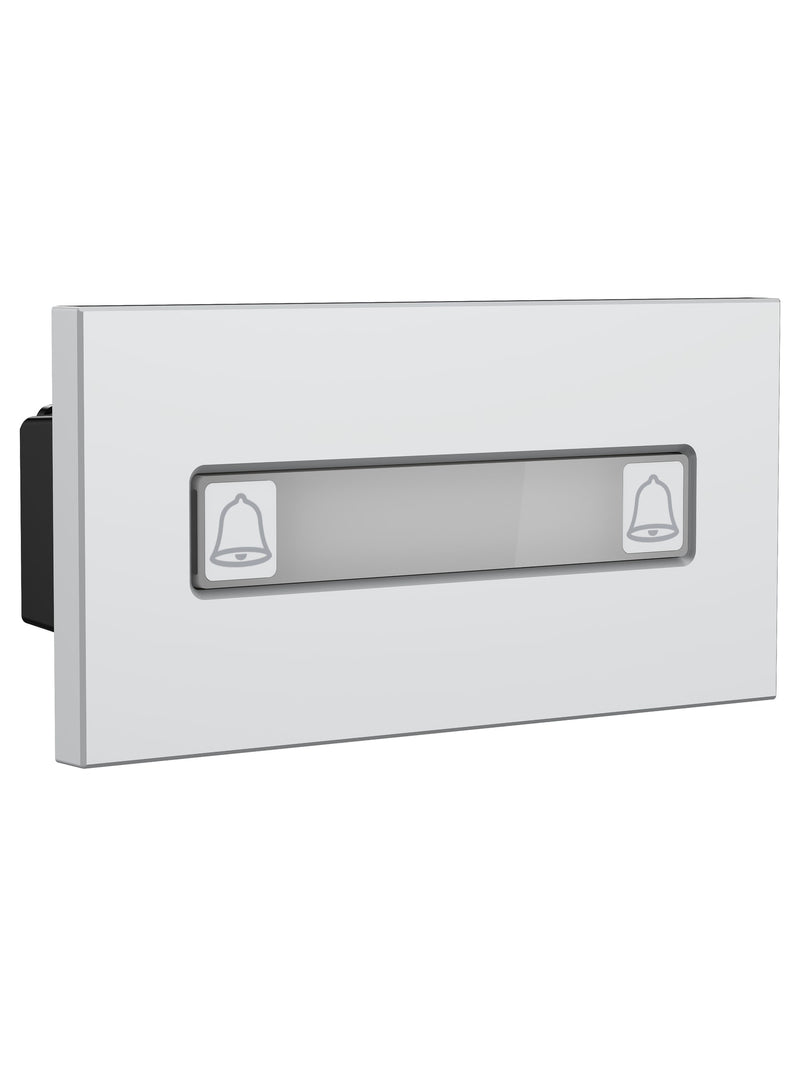

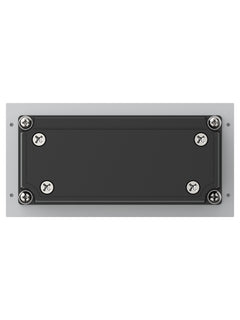

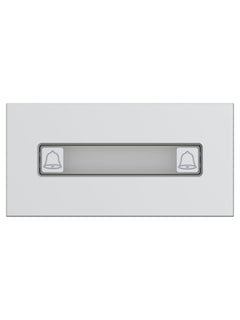

Dahua VTO4202F-MDB2 2-Wire IP 2-Button Module for VTO4202F Door Station
Dahua VTO4202F-MDB2 aluminum 2-call-button module for 2-wire IP VTO4202F modular door stations, IP65 / IK07, 100 x 50 mm, powered by the other modules.
Read MoreSpecs
Brand
Dahua
Model
DHI-VTO4202F-MDB2
Product Type
Door station button module (2-wire IP)
Buttons
2, mechanical
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Dahua VTO4202F-MDB2 2-Wire IP 2-Button Module for VTO4202F Door Station
The Dahua VTO4202F-MDB2 is a two call-button module for the Dahua VTO4202F 2-wire IP modular door station. It combines two mechanical buttons, an aluminum alloy body and 5 V power from the neighbouring modules, with IP65 / IK07 protection for outdoor use. It suits duplexes and small buildings with two apartments on a 2-wire system.
Main Specs
- 2 mechanical call buttons
- For 2-wire IP VTO4202F modular door stations
- Aluminum alloy, silver
- Power: 5 V DC from the other modules
- IP65 (with silicone sealant) and IK07, outdoor
- Power consumption: 0.2 W standby, 0.6 W working
- Size: 100 x 50 x 26 mm, 0.23 kg
- Operating temperature: -30 °C to +60 °C
- CE EMC and CE LVD
- Ideal for two-flat buildings on a 2-wire intercom
Main Characteristics
Brand
Dahua
Model
DHI-VTO4202F-MDB2
Product Type
Door station button module (2-wire IP)
Buttons
2, mechanical
Compatibility
VTO4202F-X modular series (2-wire IP)
Casing
Aluminum alloy, silver
Power Supply
5 V DC (provided by other modules)
Power Output
5 V DC (for other modules)
Power Consumption
0.2 W standby, 0.6 W working
Protection
IK07, IP65 (silicone sealant needed)
Dimensions
100 x 50 x 26 mm
Gross Weight
0.23 kg
Operating Temperature
-30 °C to +60 °C
Certifications
CE EMC, CE LVD
