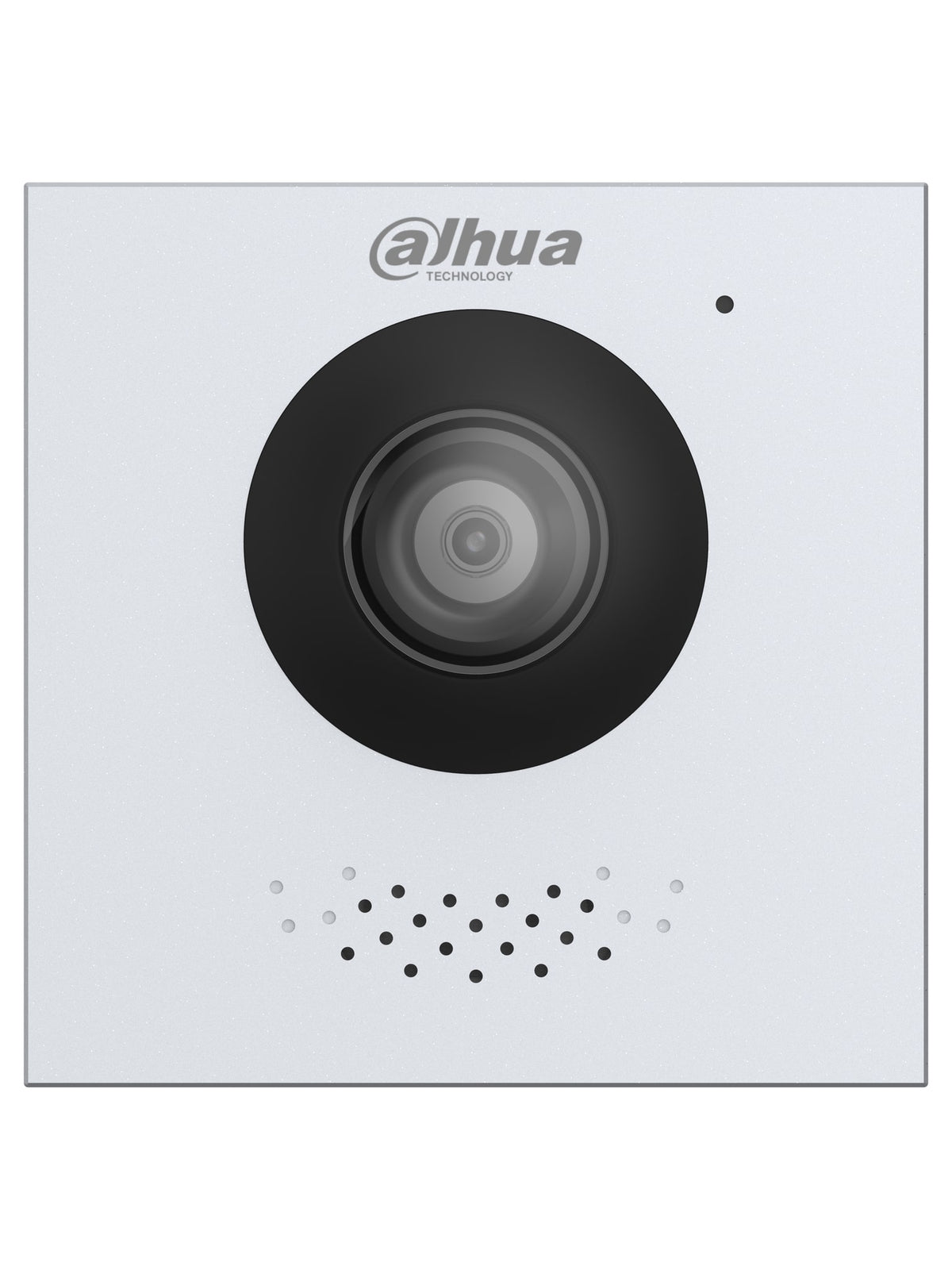

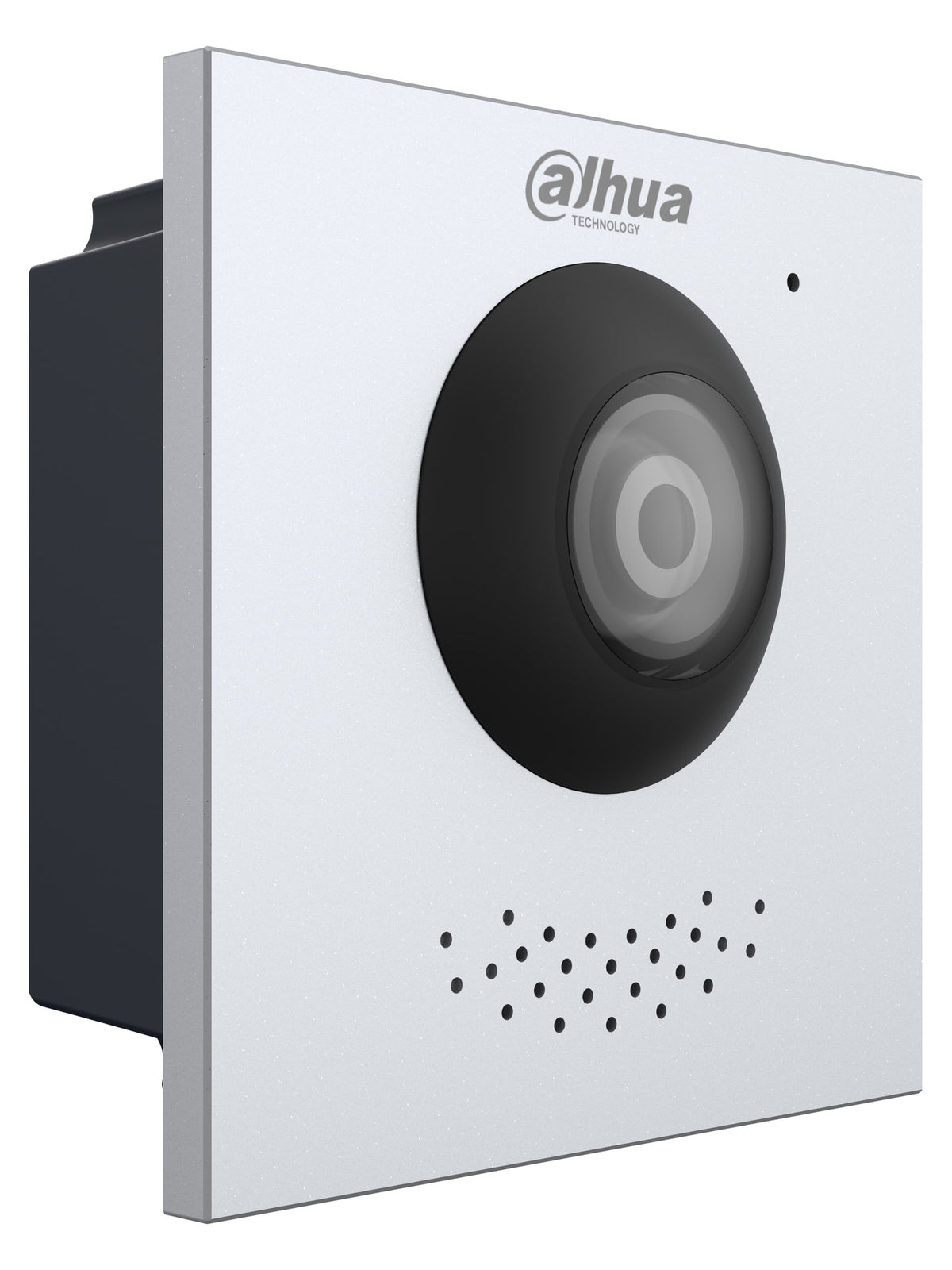

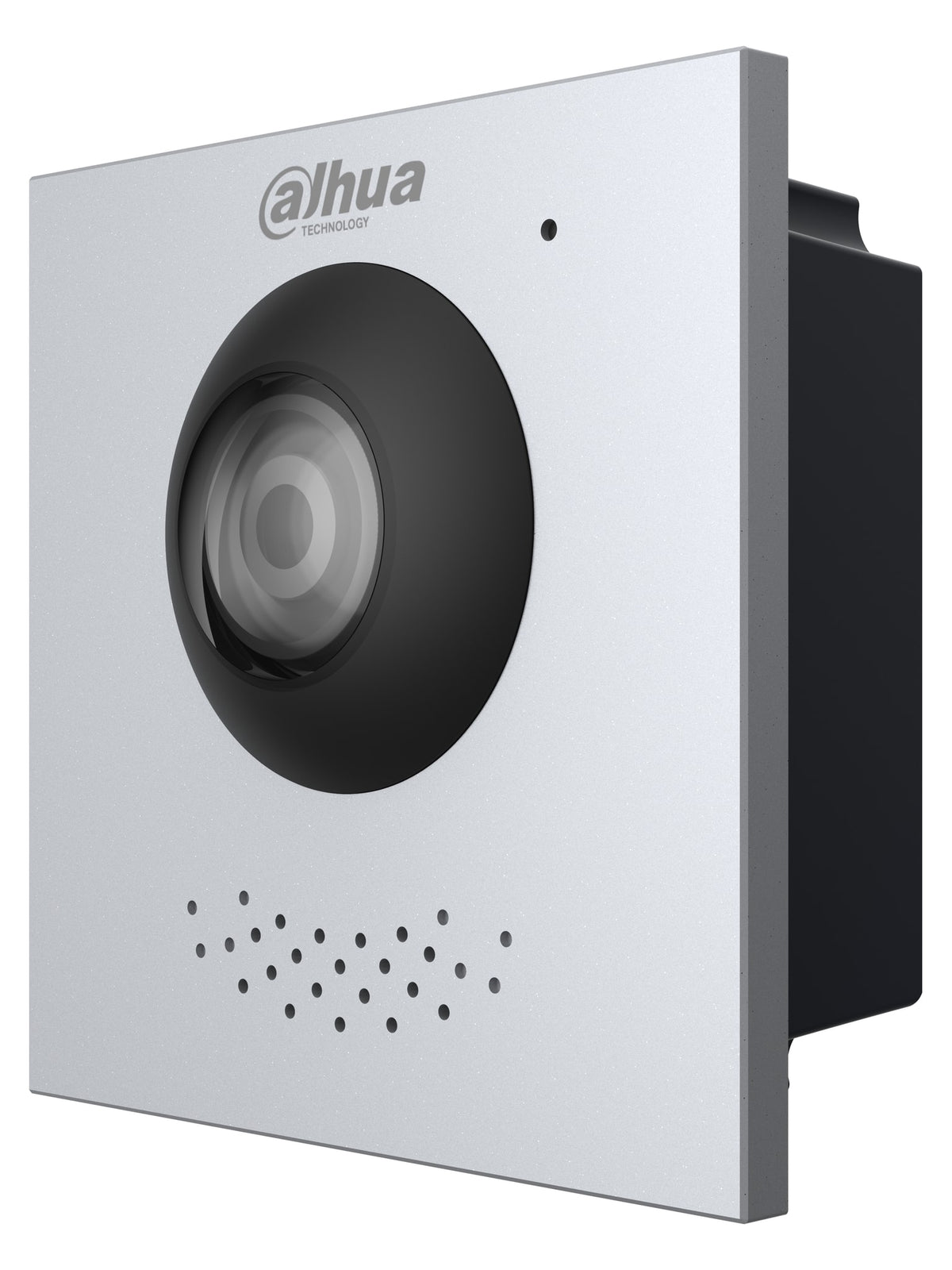

Dahua VTO4202F-P-S3 2-Wire IP Modular Door Station Camera Module, 2MP 168°
Dahua VTO4202F-P-S3 modular door station camera module with 2 MP 168.6° fisheye camera, IR and 120 dB WDR, 2-wire IP or PoE power, IP65 / IK07.
Read MoreSpecs
Brand
Dahua
Model
DHI-VTO4202F-P-S3
Product Type
2-wire IP modular door station (camera module)
Camera
1/2.9" 2 MP CMOS
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Dahua VTO4202F-P-S3 2-Wire IP Modular Door Station Camera Module, 2MP 168°
The Dahua VTO4202F-P-S3 is the main camera module of the Dahua VTO4202F modular apartment door station. It combines a 2 MP 168.6° fisheye camera with IR and 120 dB WDR, two-way audio, lock and exit-button ports and power over Dahua 2-wire switches or standard PoE in an IP65 / IK07 aluminum module. It suits apartment buildings and villas that build their door panel from button, card and blank modules.
Main Specs
- 2 MP 1/2.9" CMOS, 168.6° fisheye view
- Auto IR, 120 dB WDR, 3D noise reduction
- Digital 2-wire IP or standard PoE (802.3af/at)
- Dahua 2-wire switch power up to 50 m

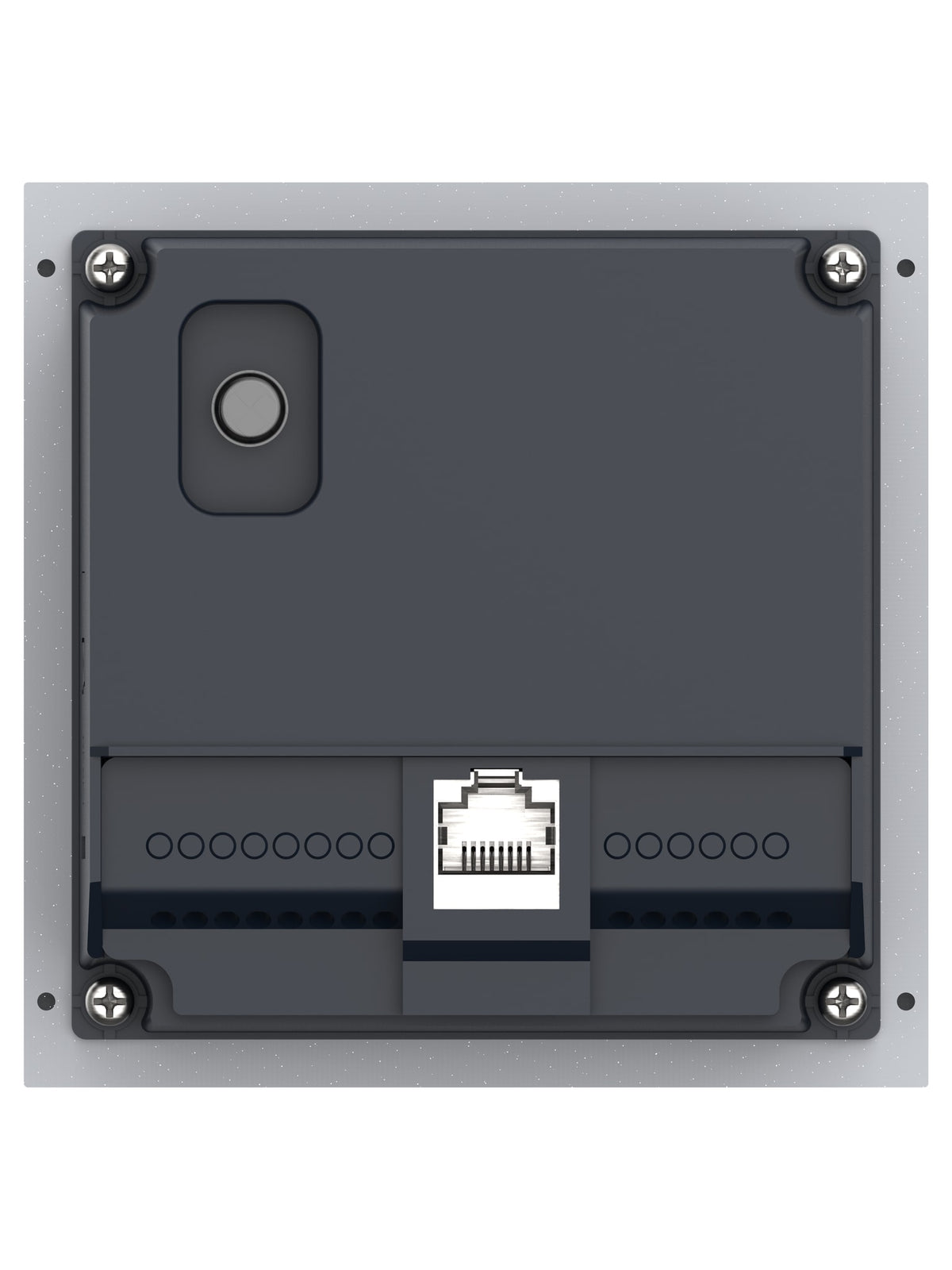

- Ports: lock, exit button, door sensor, alarm output, RS-485
- microSD up to 256 GB
- Powers and links VTO4202F button / card / blank modules
- IP65 and IK07, aluminum, -30 °C to +60 °C
- Module size: 100 x 100 x 49.4 mm, silver
- Ideal for building modular apartment door panels
Main Characteristics
Brand
Dahua
Model
DHI-VTO4202F-P-S3
Product Type
2-wire IP modular door station (camera module)
Camera
1/2.9" 2 MP CMOS
Field of View
H 168.6°, V 87.1°, D 176.7°
WDR
120 dB
Night Vision
Auto IR
Video Compression
H.265, H.264
Audio
Two-way, echo suppression
Communication Mode
Digital 2-wire
Unlock Mode
Remote
Ports
RS-485, alarm output, 12 V 600 mA power output, exit button, door status, lock control, RJ-45 10/100
Storage
microSD up to 256 GB
Power Supply
Dahua 2-wire switch (up to 50 m), 48 V DC 1 A, PoE (802.3af/at)
Power Consumption
≤ 5 W working
Casing
Aluminum, silver
Protection
IP65, IK07
Dimensions
100 x 100 x 49.4 mm
Gross Weight
0.43 kg
Installation
Flush mount, surface mount (boxes optional)
Operating Temperature
-30 °C to +60 °C
Certifications
CE
