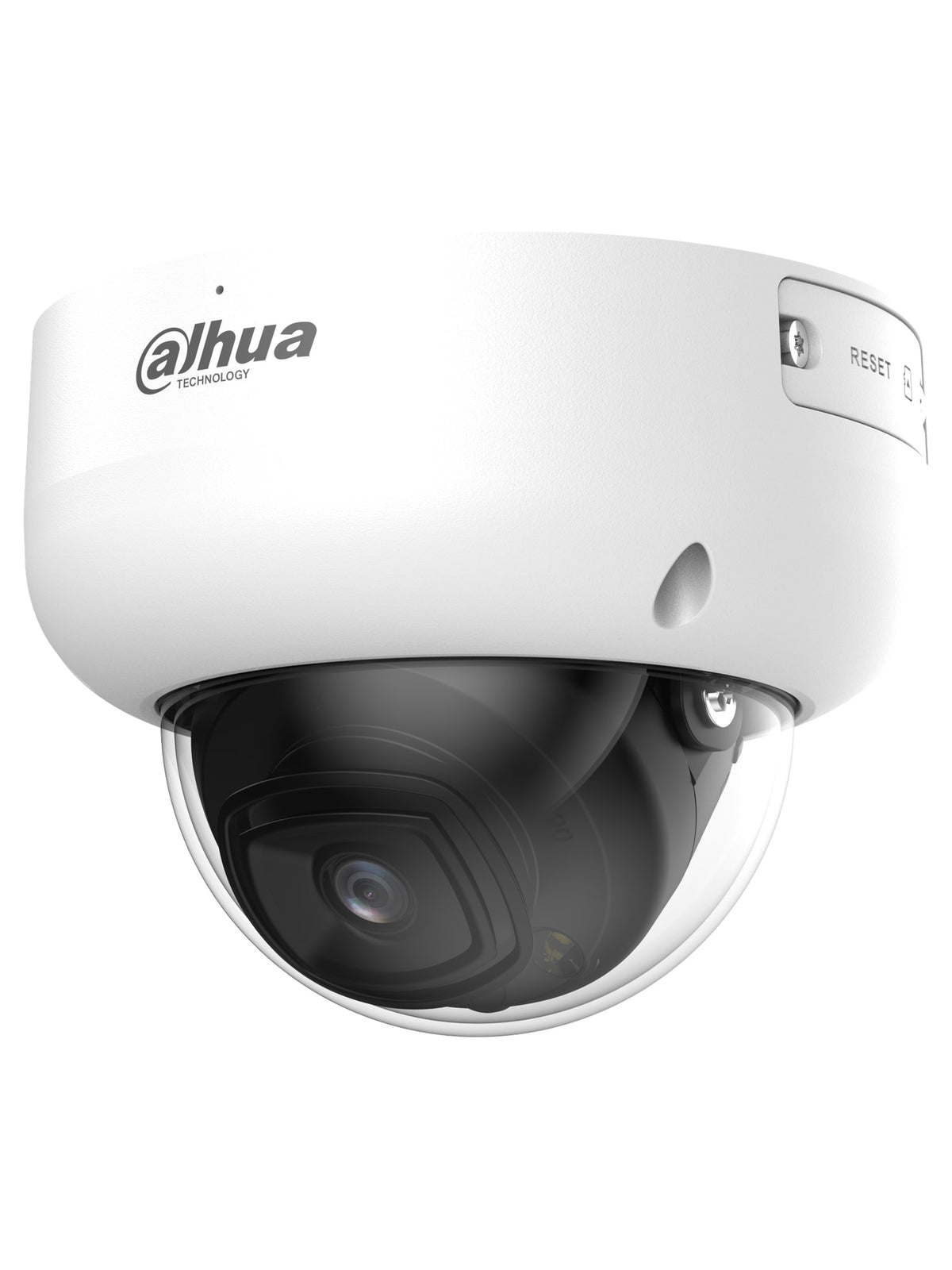

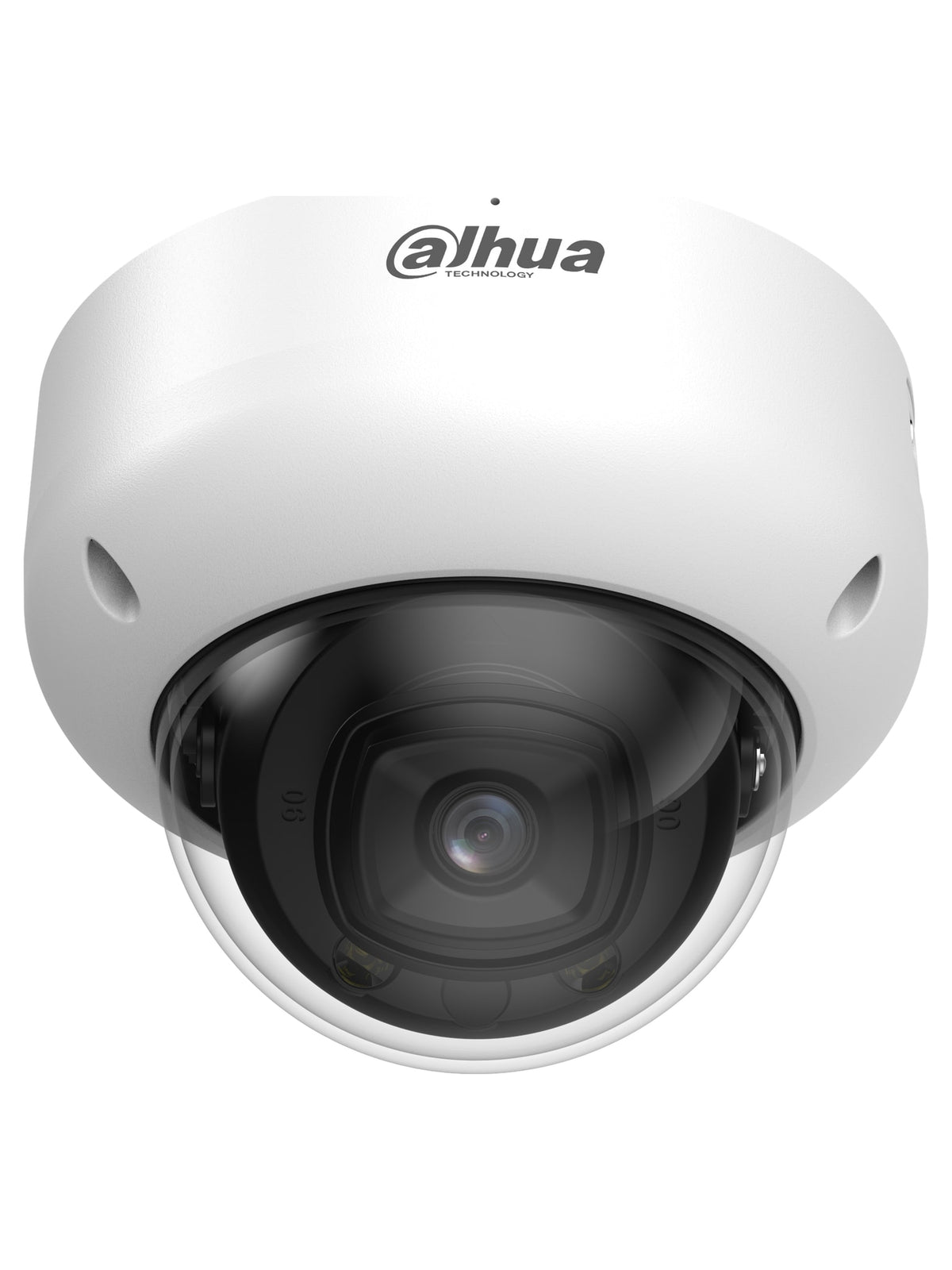

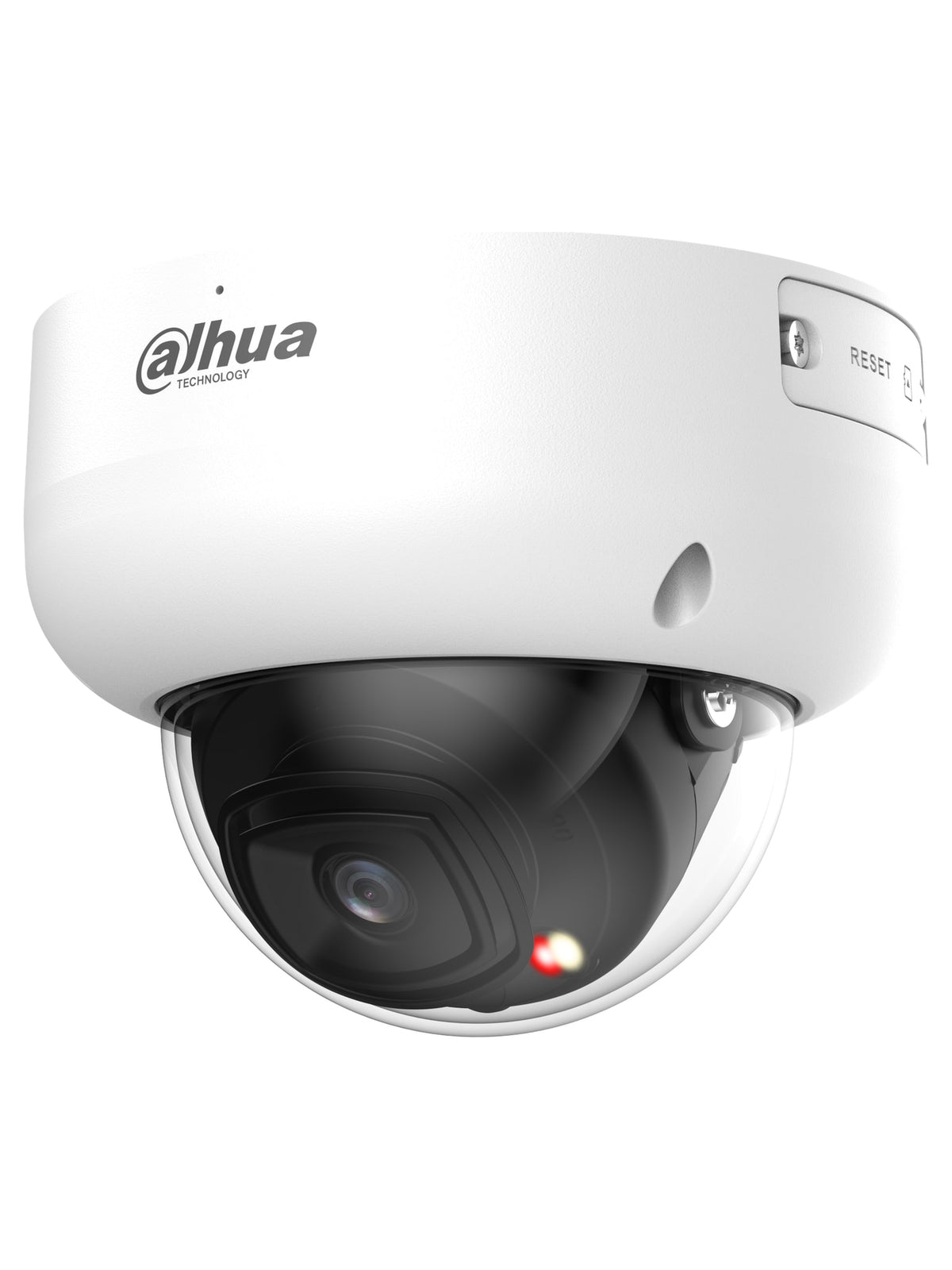

Dahua WizMind 5MP Smart Dual Light Dome IP Camera, 50m, IK10, ePoE - DH-IPC-HDBW5559R-ASE-IL
5MP WizMind AI dome IP camera with Smart Dual Light up to 50 m, IVS with human/vehicle/animal classification, SMD 4.0, mic, audio/alarm ports, PoE+/ePoE.
Read MoreSpecs
Brand
Dahua
Model
DH-IPC-HDBW5559R-ASE-IL
Product Type
IP Dome Camera
Series
WizMind 5
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Dahua WizMind 5MP Smart Dual Light Dome IP Camera, 50m, IK10, ePoE - DH-IPC-HDBW5559R-ASE-IL
The Dahua IPC-HDBW5559R-ASE-IL is a 5MP WizMind 5 series AI dome network camera with Smart Dual Light illumination. It combines a 5MP sensor, IR and warm light up to 50 m, deep-learning IVS that classifies humans, vehicles and animals, SMD 4.0, a built-in mic, audio and alarm ports, and ePoE for long cable runs. It suits professional projects that need accurate analytics and evidence-grade video.
Main Specs
- 5MP resolution (2960 × 1668), 1/2.7" CMOS sensor
- Lens: Fixed-focal (2.8 mm, 3.6 mm or 6 mm version)
- Smart Dual Light: IR and warm light up to 50 m (2.8 mm and 3.6 mm versions)
- H.265 video compression
- Smart detection: Intrusion, tripwire, fast moving (human/vehicle/animal/other classification); loitering detection
- Active deterrence: sound warning (built-in sounds)
- Built-in microphone, audio input, audio output
- MicroSD card slot, up to 1 TB
- Power: 12 VDC (±30%) / PoE+ (802.3at) / ePoE
- Ideal for professional projects that need accurate AI analytics
Main Characteristics
Brand
Dahua
Model
DH-IPC-HDBW5559R-ASE-IL
Product Type
IP Dome Camera
Series
WizMind 5
Resolution
5MP, 2960 × 1668
Image Sensor
1/2.7" CMOS
Lens
Fixed-focal (2.8 mm, 3.6 mm or 6 mm version)
Field of View
2.8 mm: H: 108.4°; V: 60°; D: 127.1°; 3.6 mm: H: 90.3°; V: 47.8°; D: 108.6°; 6 mm: H: 56°; V: 30.3°; D: 65.4°
Aperture
F1.6
Illumination Range
IR and warm light up to 50 m (2.8 mm and 3.6 mm versions)
Min. Illumination
0.0009 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on)
WDR
120 dB
Compression
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Features
IVS: Intrusion, tripwire, fast moving (human/vehicle/animal/other classification); loitering detection, people gathering, parking detection; SMD 4.0; Face detection
Active Deterrence
sound warning (built-in sounds)
Audio
built-in mic; audio in: 1 channel (RCA port); audio out: 1 channel (RCA port)
Storage
FTP; SFTP; Micro SD card (support max. 1 TB); NAS
Network
RJ-45 (10/100 Enhancement Base-T)
Power/PoE
12 VDC (±30%); PoE+ (802.3at); ePoE
Power Consumption
Basic: 4.2 W (12 VDC); 6.3 W (PoE); Max. (H.265 + WDR+ warm light + intelligence on): 13.3 W (12 VDC); 15.6 W (PoE)
Protection
IP67
Operating Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Housing
Metal
Dimensions
94 mm × Φ122 mm
Weight
713 g
