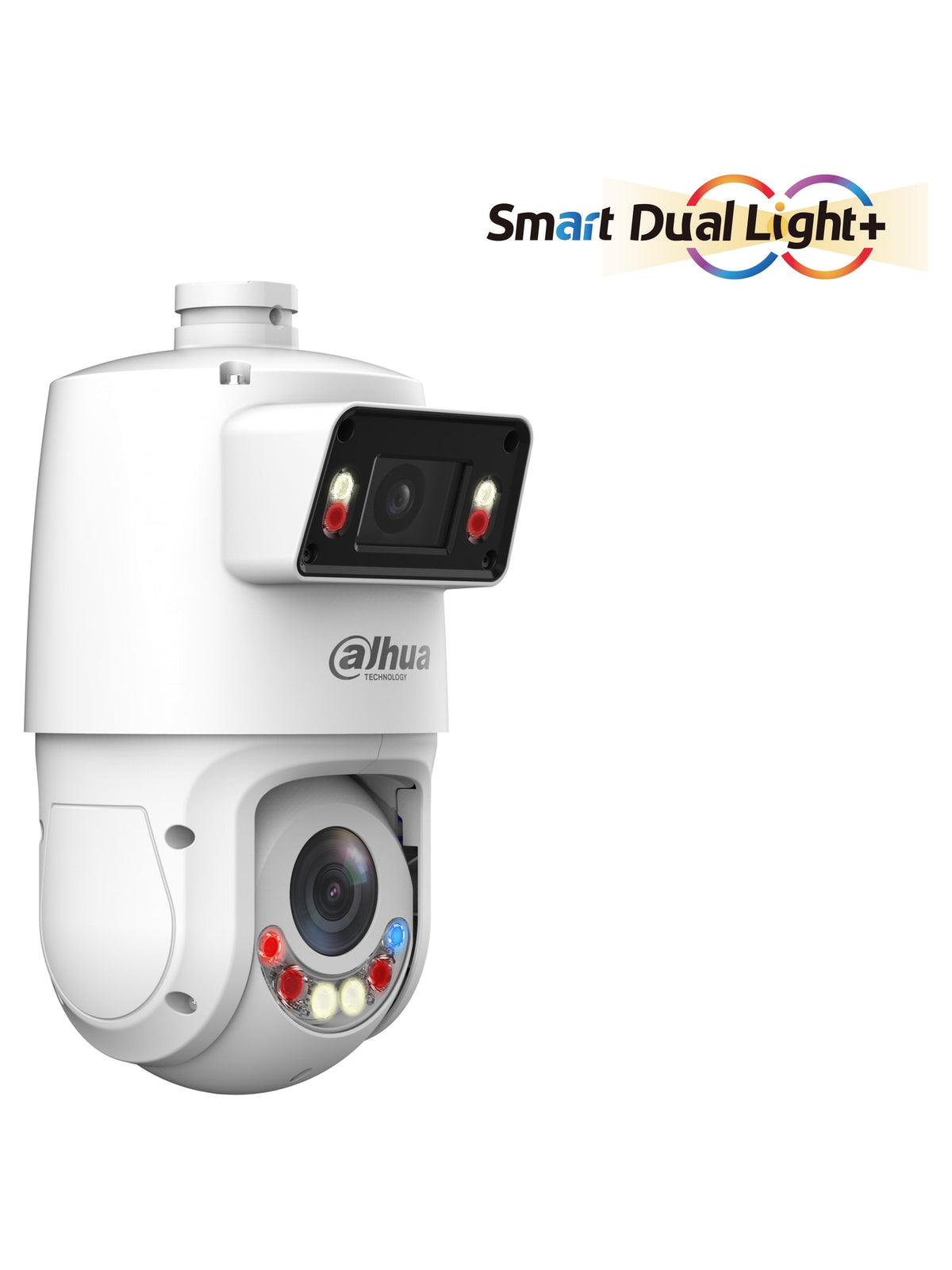

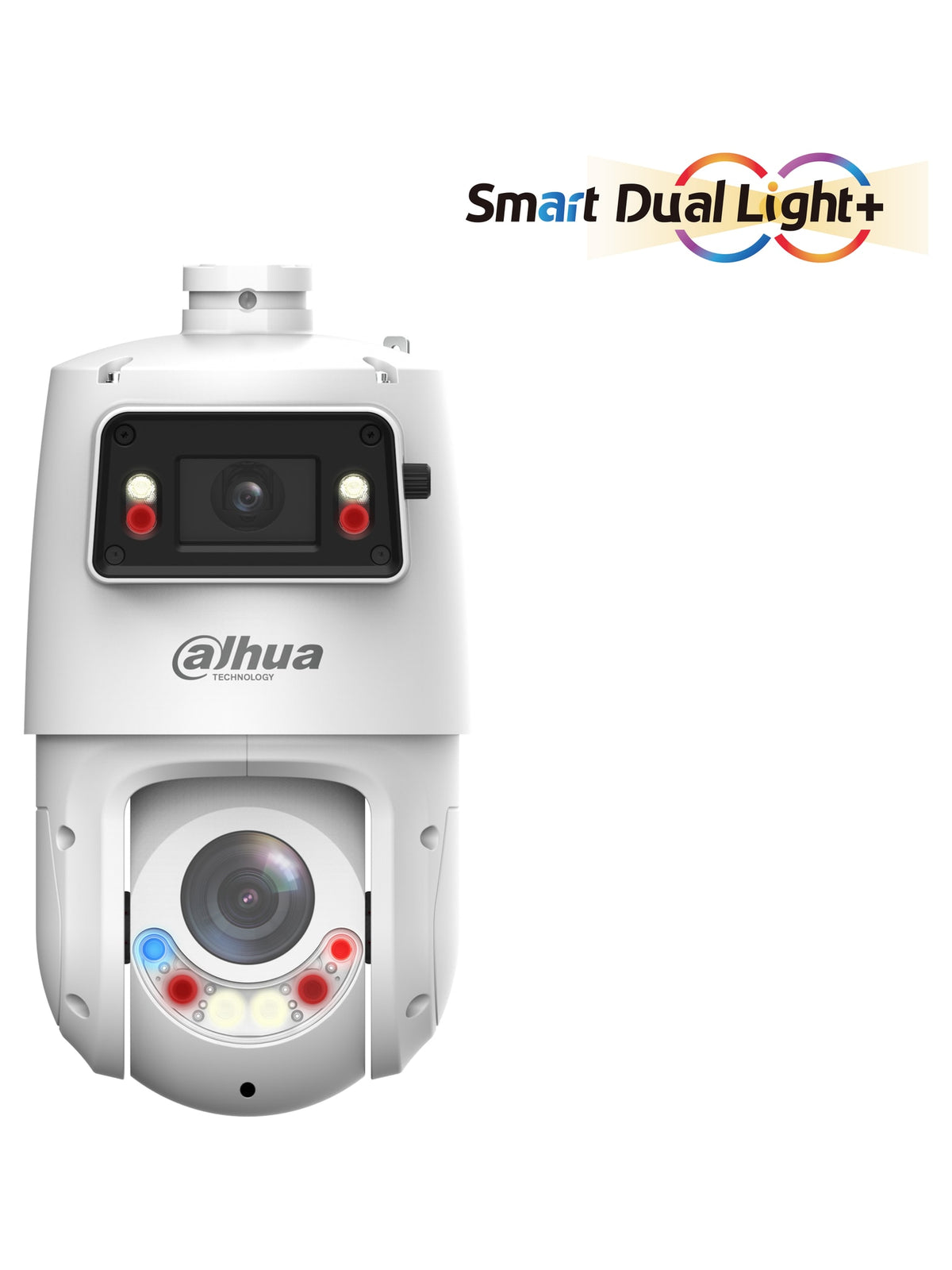

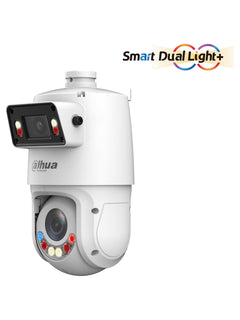

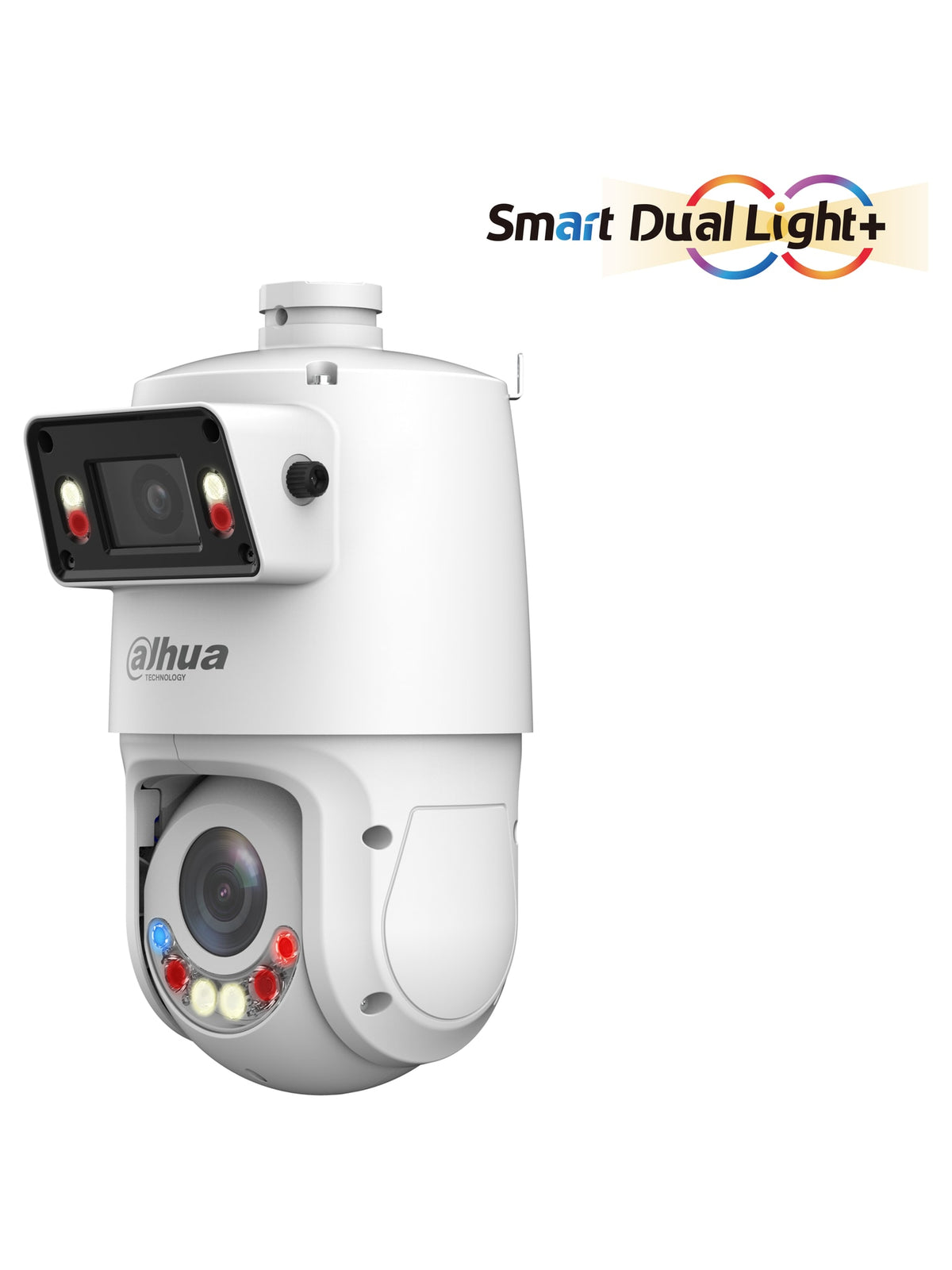

Dahua X-Spans 4MP + 4MP 25x Dual-Lens PTZ IP Camera, Active Deterrence, PoE+ - DH-SDT4E425-4F-GB-A-PV1-0400
Dual-lens PTZ camera with a 4MP panoramic lens and a 4MP 25x zoom lens, IR 100 m, IVS, siren and red-blue light deterrence, PoE+ and IP66.
Read MoreSpecs
Brand
Dahua
Model
DH-SDT4E425-4F-GB-A-PV1-0400
Product Type
Dual-Lens PTZ IP Camera
Series
X-Spans
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Dahua X-Spans 4MP + 4MP 25x Dual-Lens PTZ IP Camera, Active Deterrence, PoE+ - DH-SDT4E425-4F-GB-A-PV1-0400
The Dahua SDT4E425-4F-GB-A-PV1 is an X-Spans PTZ camera that combines a fixed 4MP panoramic lens with a 4MP 25x zoom PTZ lens. It pairs IR up to 100 m and warm light, IVS perimeter protection with human and vehicle classification, and a siren with red-blue lights for active deterrence. It suits compounds, car parks and warehouses where one camera must watch a whole area and zoom in on intruders.
Main Specs
- Two channels: 4MP panorama (2560 × 1440) + 4MP PTZ detail (2560 × 1440), both 1/2.8" CMOS
- Lens: Panorama: fixed lens; Detail: 5 mm–125 mm (25× optical zoom)
- Illumination: Panorama: 30 m (IR); 30 m (white light); Detail: 100 m (IR) 50 m (white light)
- H.265 / H.264 with Smart H.265+ / H.264+ to save bandwidth and storage
- Smart detection: Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving
- Active deterrence: red-blue light warning + sound warning (built-in sounds)
- Audio input, audio output, built-in speaker for two-way talk
- MicroSD card slot, up to 512 GB
- Power: 12 VDC, 3 A ± 10% / PoE+ (802.3at)
- Ideal for whole-area monitoring with zoom and deterrence in one camera
Main Characteristics
Brand
Dahua
Model
DH-SDT4E425-4F-GB-A-PV1-0400
Product Type
Dual-Lens PTZ IP Camera
Series
X-Spans
Resolution
4MP + 4MP, Panorama: 2560 × 1440; Detail: 2560 × 1440
Image Sensor
Panorama: 1/2.8" CMOS; Detail: 1/2.8" CMOS
Lens
Panorama: fixed lens; Detail: 5 mm–125 mm (25× optical zoom)
Field of View
Panorama: H: 101°; V: 53°; D: 120°; Detail: H: 51.9°–3.0°; V: 39.7°–2.2°; D: 63.1°–3.7°
Aperture
Panorama: F1.0; Detail: F1.6–F3.6
Optical Zoom
Panorama: NA; Detail: 25×
Illumination Range
Panorama: 30 m (IR); 30 m (white light); Detail: 100 m (IR) 50 m (white light)
Min. Illumination
Panorama: 0.001 lux@F1.0 (Color, 30 IRE); 0.0005 lux@F1.0 (B/W, 30 IRE); 0 lux (illuminator on); Detail: 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W
WDR
120 dB
Compression
H.265; H.264B; H.264; H.264H; MJPEG(Sub Stream 1); smart H.265+; smart H.264+
Smart Features
IVS: Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; SMD4.0
Active Deterrence
red-blue light warning + sound warning (built-in sounds)
Audio
audio in: 1 channel (LINE IN, bare wire); audio out: Audio Output: 1 channel (LINE OUT, bare wire); built-in speaker (mutually exclusive)
Storage
Micro SD card (512 GB); FTP/SFTP; NAS
Network
RJ-45 (10/100 Base-T)
Power/PoE
12 VDC, 3 A ± 10%; PoE+ (802.3at)
Power Consumption
Basic: 12 W Max. (Basic power consumption + illuminator+sound and light warning +PTZ operation + Heater ): 25 W (12 VDC)
Protection
TVS 6000 V lightning proof;IP66; surge protection; voltage transient protection
Operating Temperature
–40 °C to +65 °C (–40 °F to +149 °F)
Dimensions
160.0 mm × 184.4 mm × 304.6 mm(L × W × H)
Weight
3.41 kg
