DeepCool GamerStorm PQ1200G 1200W 80 Plus Gold ATX 3.1 Fully Modular Power Supply
The GamerStorm PQ1200G by DeepCool is a 1200W ATX 3.1 power supply rated 80 Plus Gold, Cybenetics Gold and PPLP Gold. It uses full Japanese electrolytic capacitors, a 120mm fluid-dynamic-bearing fan and a sleeved 16AWG 12V-2x6 cable that delivers up to 600W, in a compact 140mm-long body. It suits flagship gaming and workstation PCs with the most demanding graphics cards.
Main Specs
- 1200W ATX12V V3.1, fully modular
- Efficiency: 80Plus Gold/Cybenetics Gold/PPLP Gold
- ≥90% Under Typical Load (50% Loading)
- Active PFC + Half Bridge SRC LLC + DC to DC
- Full Japanese Electrolytic Capacitors
- 120×120×25mm FDB (Fluid Dynamic Bearing) fan
- Connectors: 24-pin (20+4) ATX, CPU 4+4-pin, PCIe 6+2-pin, 12V-2x6 (16-pin) x1, SATA x3 + 4Pin Peripheral x 1
- Protections: OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
- Size 150×140×86mm, MTBF 100,000 Hours
- Ideal for gaming and desktop PC builds
Available Options

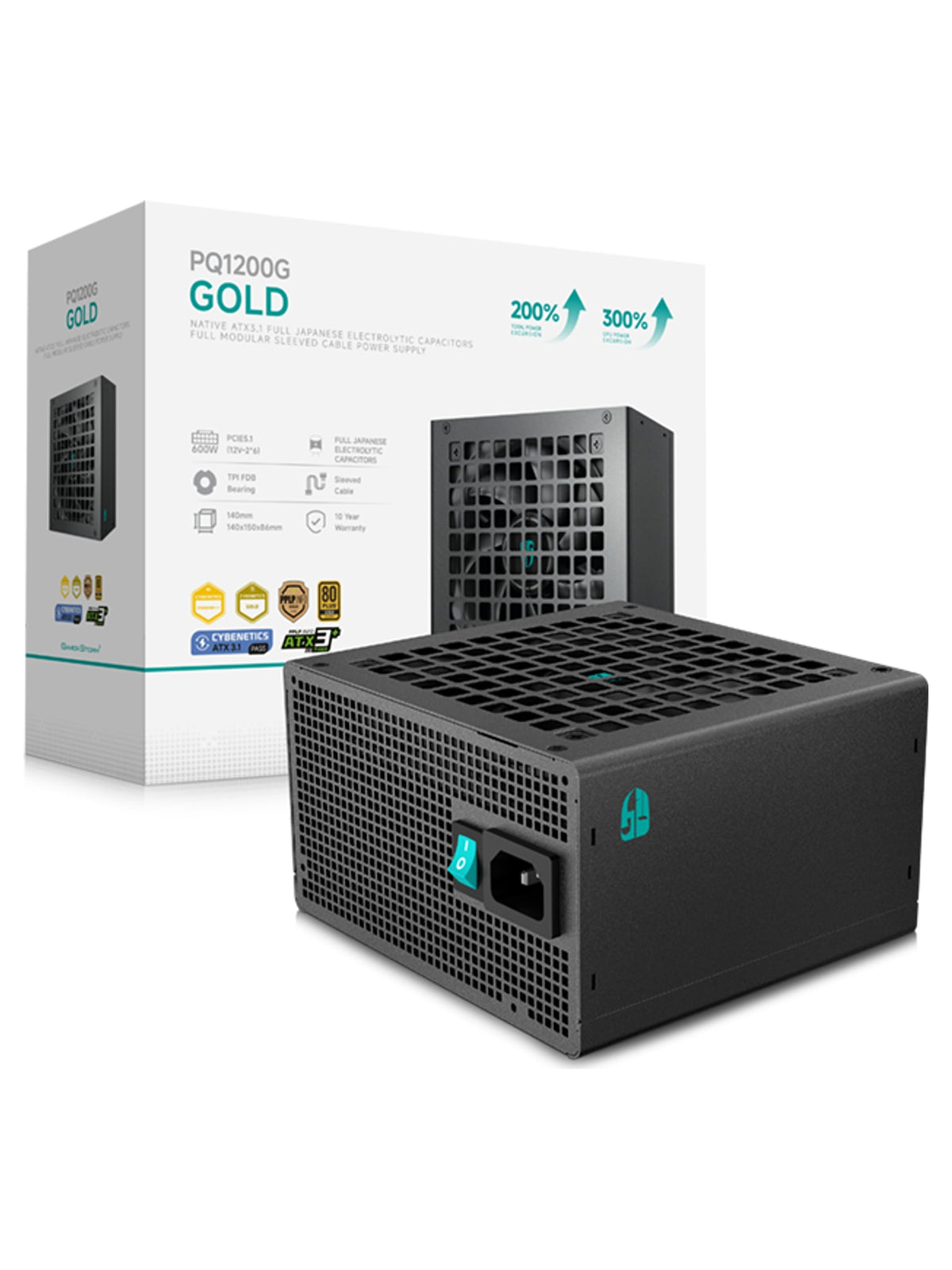

- Black

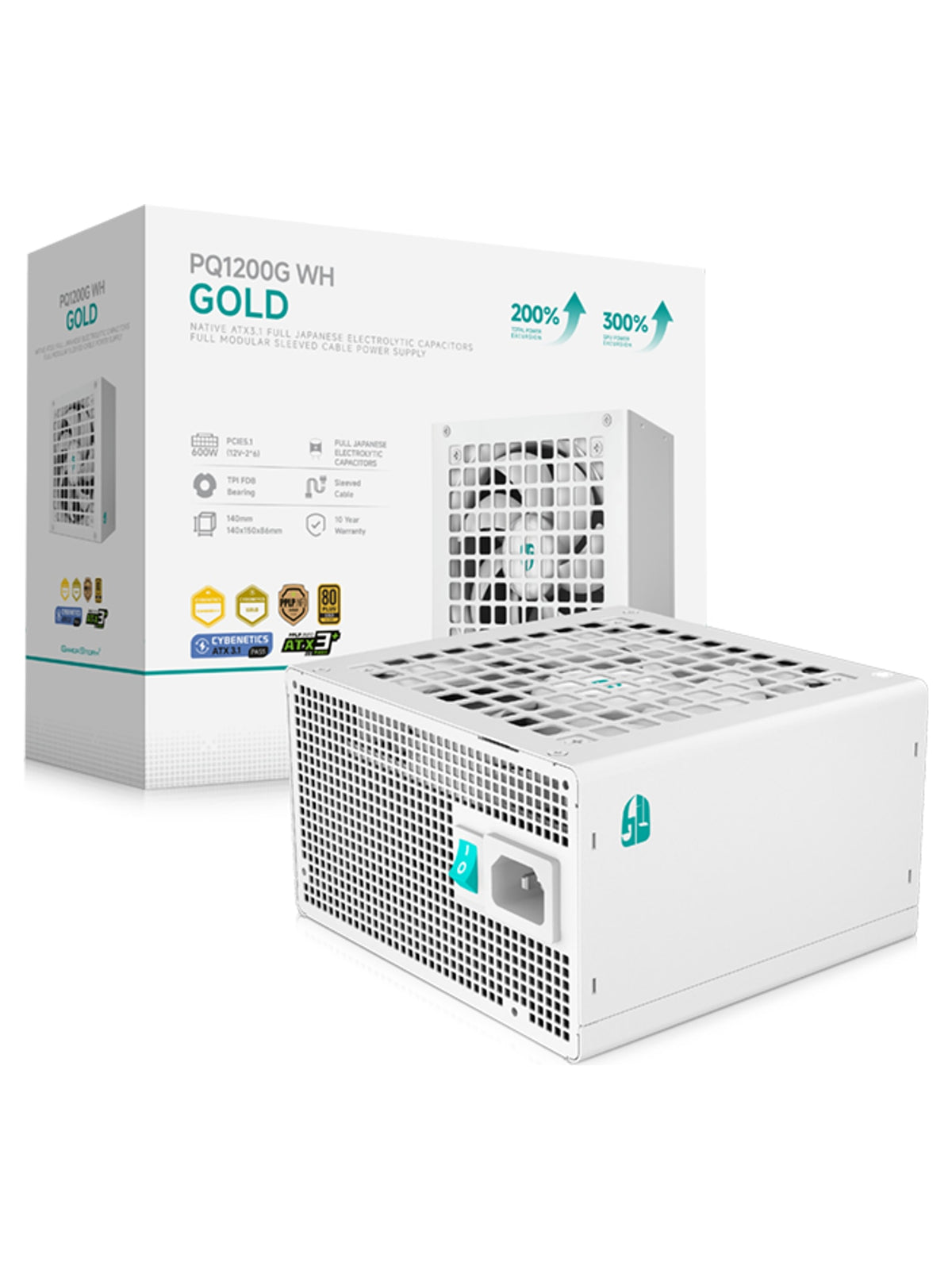

- White
Main Characteristics
Brand
DeepCool
Series
GamerStorm
Model
PQ1200G
Product Type
Power Supply Unit
Color
Black / White
Wattage
1200W
Modularity
Fully Modular
Type
ATX12V V3.1
Product Dimensions
150×140×86mm
Efficiency certification
80Plus Gold/Cybenetics Gold/PPLP Gold
Fan Size
120×120×25mm
Fan Bearing
FDB (Fluid Dynamic Bearing)
Topology
Active PFC + Half Bridge SRC LLC + DC to DC
Capacitors
Full Japanese Electrolytic Capacitors
Power Good Signal
100-150ms
Hold Up Time
≥16ms Full load
Efficiency
≥90% Under Typical Load (50% Loading)
Protection
OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
Operation Temperature
0-40°C
MTBF
100,000 Hours
Connectors
24-pin (20+4) ATX, CPU 4+4-pin, PCIe 6+2-pin, 12V-2x6 (16-pin) x1, SATA x3 + 4Pin Peripheral x 1
