DeepCool GamerStorm PQ850G 850W 80 Plus Gold ATX 3.1 Fully Modular Power Supply
The GamerStorm PQ850G by DeepCool is an 850W ATX 3.1 power supply rated 80 Plus Gold and Cybenetics Platinum. It uses full Japanese electrolytic capacitors, a 120mm fluid-dynamic-bearing fan and a native 12V-2x6 cable for the graphics card, in a compact 140mm-long body. It suits mid to high-end gaming PCs with current GPUs.
Main Specs
- 850W ATX12V V3.1, fully modular
- Efficiency: 80Plus Gold/Cybenetics PLATINUM/PPLP Gold
- ≥90% Under Typical Load (50% Loading)
- Active PFC + Half Bridge SRC LLC + DC to DC
- Full Japanese Electrolytic Capacitors
- 120×120×25mm FDB (Fluid Dynamic Bearing) fan
- Connectors: 24-pin (20+4) ATX, CPU 4+4-pin, PCIe 6+2-pin, 12V-2x6 (16-pin) x1, SATA x3 + 4Pin Peripheral x 1
- Protections: OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
- Size 150×140×86mm, MTBF 100,000 Hours
- Ideal for gaming and desktop PC builds
Available Options

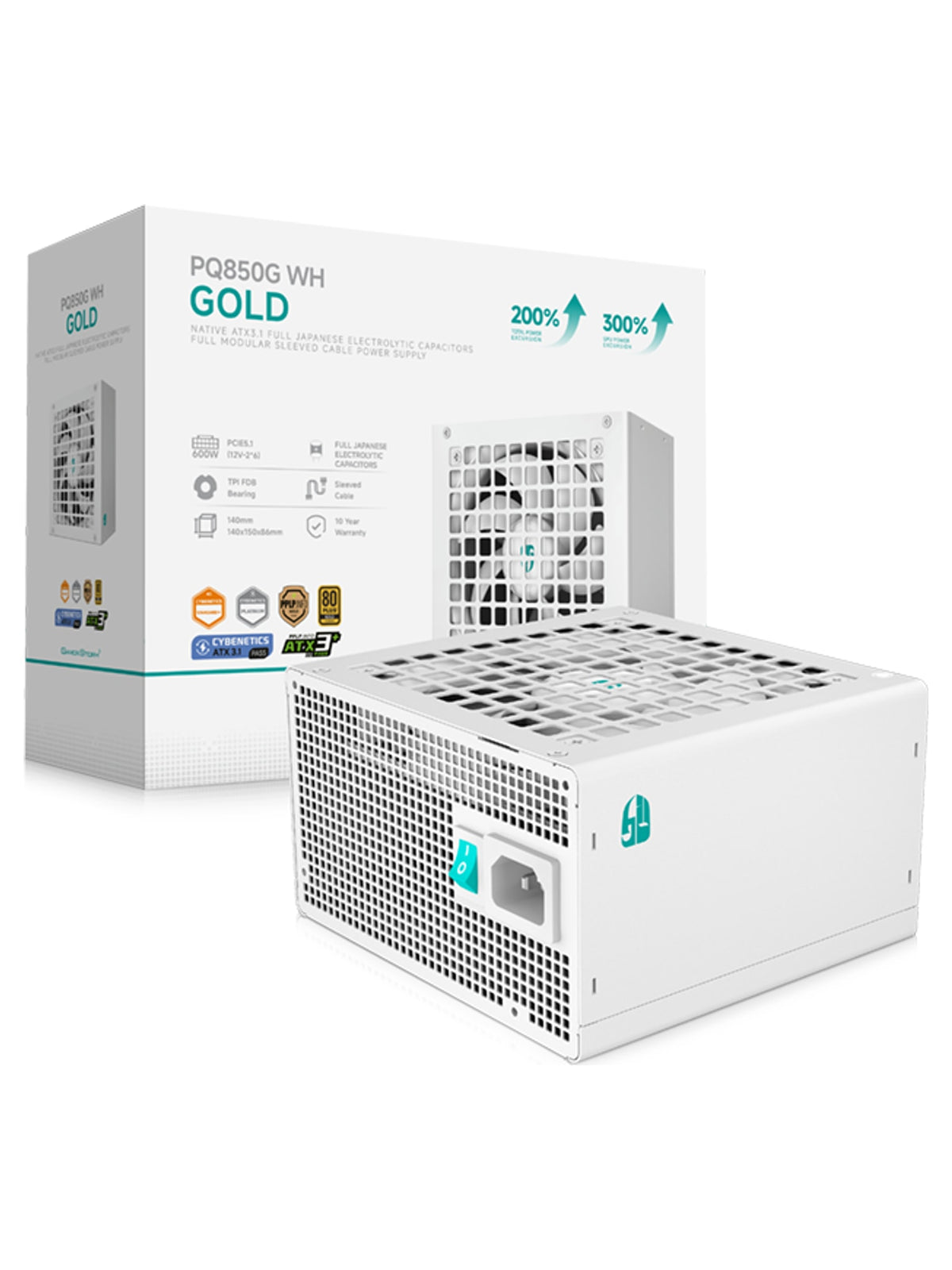

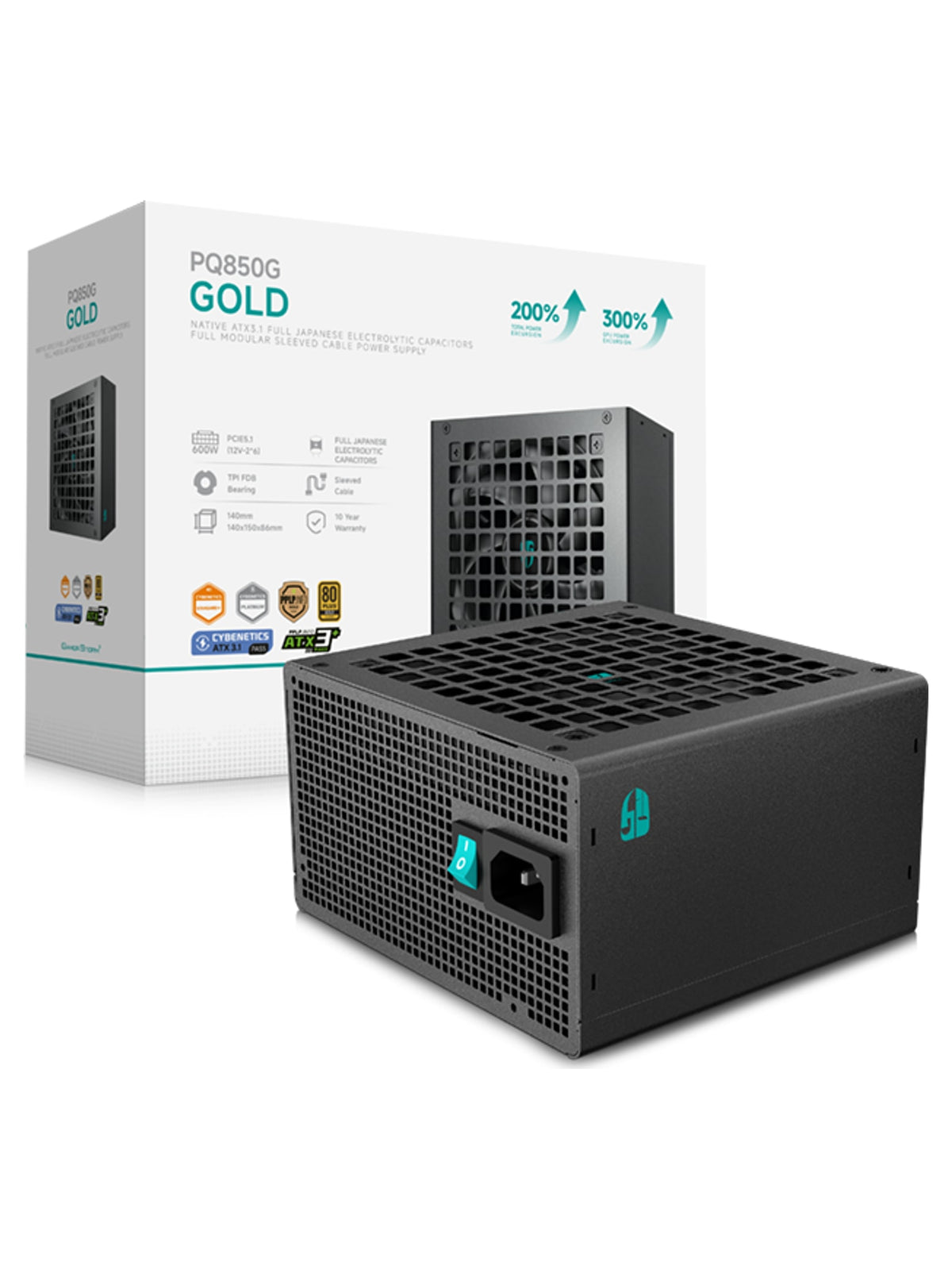

- Black
- White
Main Characteristics
Brand
DeepCool
Series
GamerStorm
Model
PQ850G
Product Type
Power Supply Unit
Color
Black / White
Wattage
850W
Modularity
Fully Modular
Type
ATX12V V3.1
Product Dimensions
150×140×86mm
Efficiency certification
80Plus Gold/Cybenetics PLATINUM/PPLP Gold
Fan Size
120×120×25mm
Fan Bearing
FDB (Fluid Dynamic Bearing)
Topology
Active PFC + Half Bridge SRC LLC + DC to DC
Capacitors
Full Japanese Electrolytic Capacitors
Power Good Signal
100-150ms
Hold Up Time
≥16ms Full load
Efficiency
≥90% Under Typical Load (50% Loading)
Protection
OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
Operation Temperature
0-40°C
MTBF
100,000 Hours
Connectors
24-pin (20+4) ATX, CPU 4+4-pin, PCIe 6+2-pin, 12V-2x6 (16-pin) x1, SATA x3 + 4Pin Peripheral x 1
