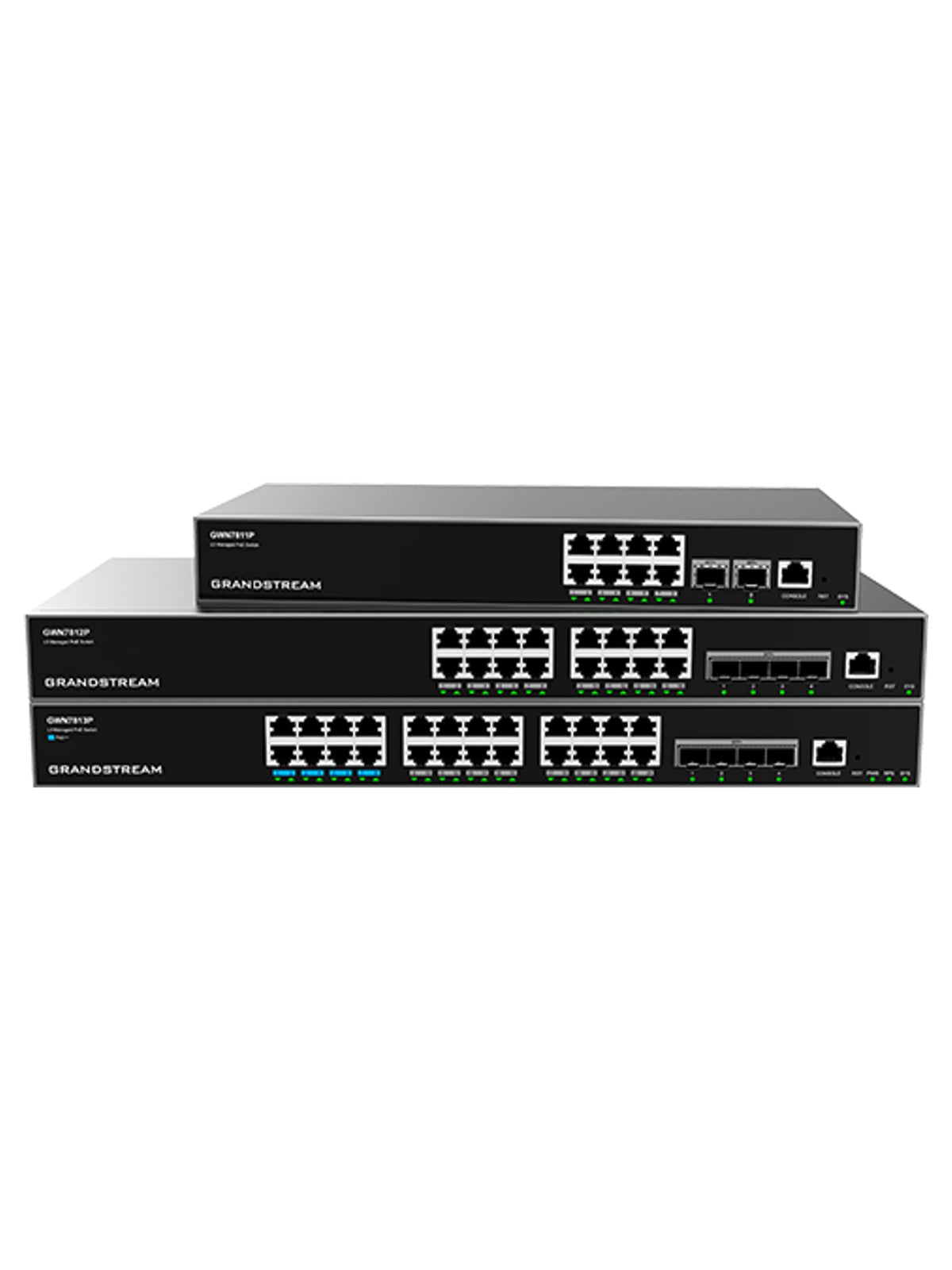

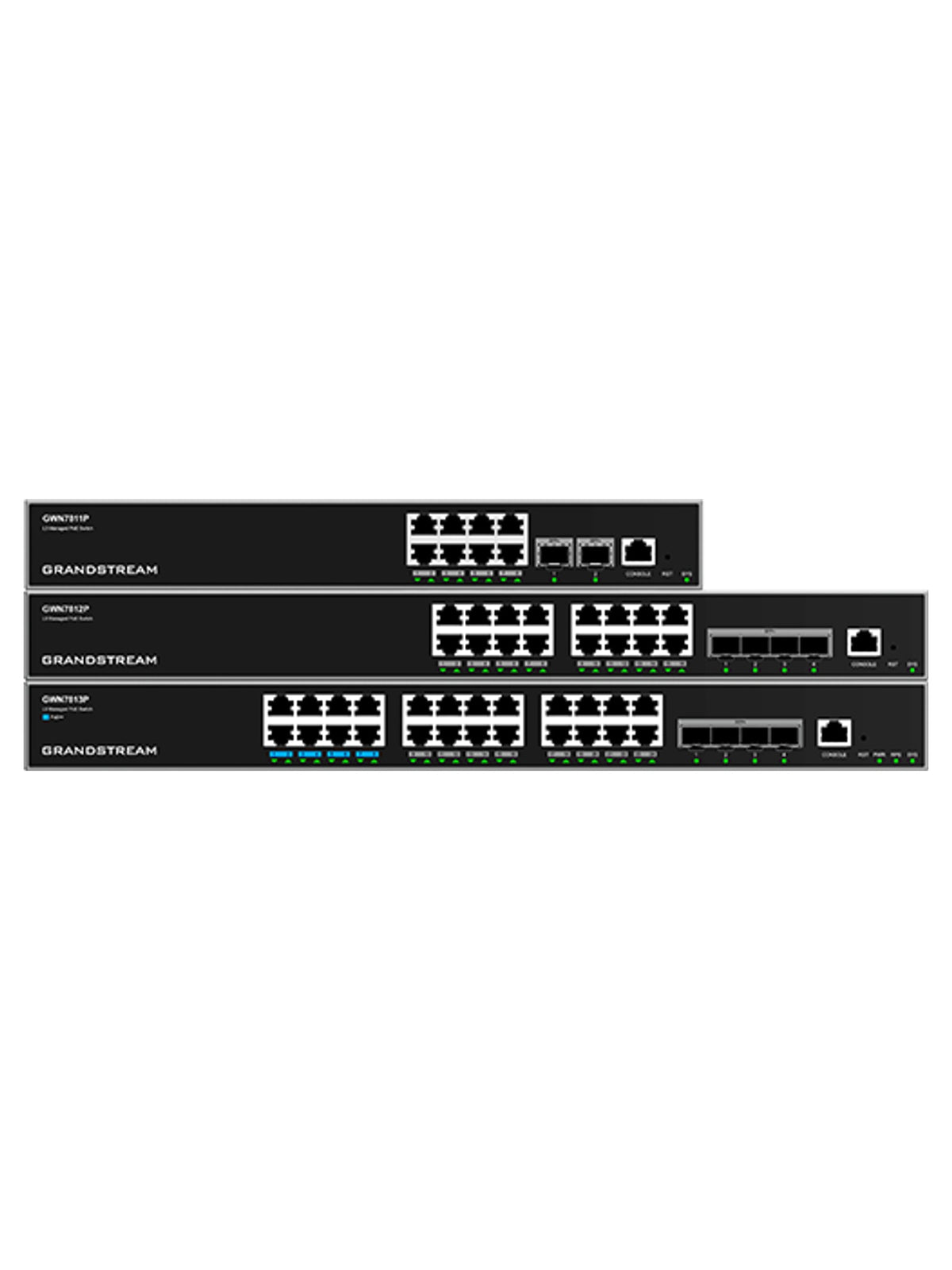

Grandstream GWN7813P 24-Port Gigabit Layer 3 Managed PoE Switch, 4x 10G SFP+, 370W
Layer 3 managed switch with 24 Gigabit PoE ports (8 PoE++ at 60 W), 4 10G SFP+ uplinks, 370 W budget, stacking and cloud management.
Read MoreSpecs
Brand
Grandstream
Model
GWN7813P
Product Type
Layer 3 Managed PoE Switch
Gigabit Ports
24x 10/100/1000 Mbps RJ45
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3β5 Business Days)
15
Standard delivery with in-store pickup, 3β5 business days.
Express 1β2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1β2 business days.
Grandstream GWN7813P 24-Port Gigabit Layer 3 Managed PoE Switch, 4x 10G SFP+, 370W
The Grandstream GWN7813P is an enterprise Layer 3 managed switch with 24 Gigabit PoE ports. It combines 4x 10G SFP+ uplinks, a 370 W PoE budget with PoE++ up to 60 W on ports 1-8, static and dynamic routing, advanced VLAN, QoS and security, plus stacking of up to 4 units. It suits medium and large businesses that need a powerful core or access switch for phones, cameras and Wi-Fi.
Main Specs
- 24x Gigabit Ethernet ports, all PoE
- PoE++ up to 60 W on ports 1-8, 30 W on ports 9-24
- 370 W total PoE budget, 802.3af/at/bt
- 4x 10G SFP+ uplink ports
- Layer 3: static routing, RIP, OSPF and BGP
- 128 Gbps switching capacity, 16K MAC table
- VLAN, QoS, ACL, 802.1X, DHCP snooping, ARP inspection
- Stacking up to 4 units
- Managed by web UI, CLI, GDMS Networking and GWN Manager
- Ideal for businesses that need a managed PoE core switch
Main Characteristics
Brand
Grandstream
Model
GWN7813P
Product Type
Layer 3 Managed PoE Switch
Gigabit Ports
24x 10/100/1000 Mbps RJ45
SFP+ Ports
4x 10G SFP+
Console Port
1
PoE Ports
24
PoE Standard
IEEE 802.3af/at/bt
PoE per Port
60 W (ports 1-8, PoE++), 30 W (ports 9-24)
PoE Budget
370 W
Switching Capacity
128 Gbps
Forwarding Rate
95.232 Mpps
MAC Table
16K
Memory
256 MB RAM, 128 MB NAND + 8 MB NOR flash
Packet Buffer
12 MB
Routing
Static routing, RIP, RIPng, OSPF, OSPFv3, BGP
Switching
4K VLANs, QinQ, voice VLAN, STP/RSTP/MSTP, link aggregation
Security
802.1X, MAC and RADIUS/TACACS+ authentication, DHCP snooping, ARP inspection, IP source guard, storm control
Stacking
Up to 4 units
Management
Web UI, CLI (console, Telnet, SSH), SNMP v1/v2c/v3, GDMS Networking, GWN Manager, GWN routers
Redundant Power
Optional external RPS (54 V, 300 W)
Mounting
Desktop, wall or rack mount (kits included)
Operating Temperature
0 Β°C to 45 Β°C
Dimensions
440 x 300 x 44 mm
Weight
4.69 kg
