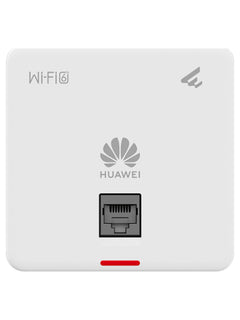

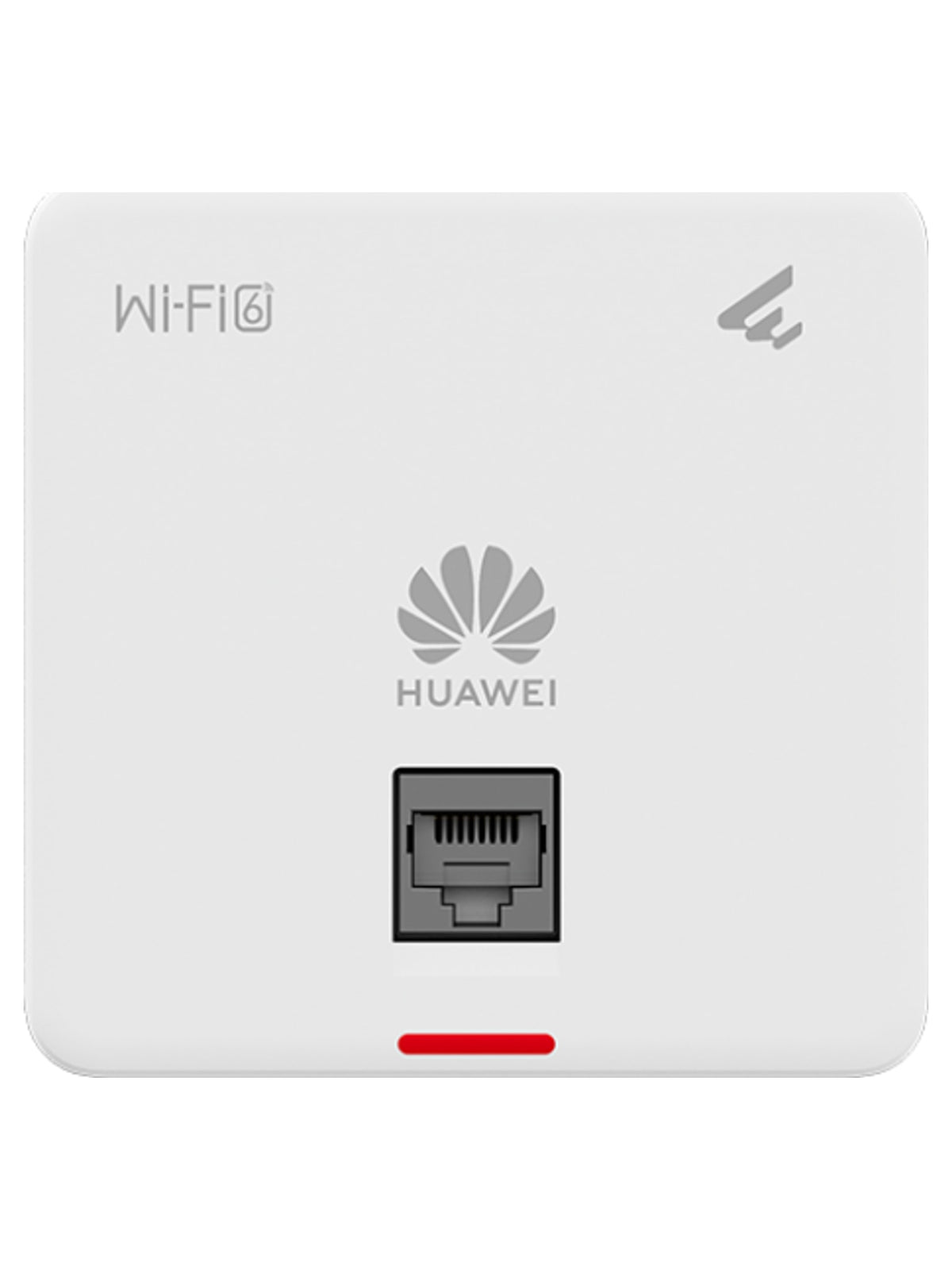

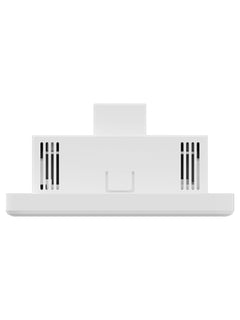

Huawei AP160 WiFi 6 Wall-Plate Access Point - Dual-Radio, 1.775 Gbps
The Huawei AP160 is a WiFi 6 access point that fits a standard 86 mm wall box, like a light switch. It combines dual-radio 2x2 WiFi up to 1.775 Gbps with smart antennas, 48 recommended users and two Gigabit RJ45 ports. It suits hotel rooms, dorms, clinics and small offices that need WiFi in every room.
Main Specs
- WiFi 6 (802.11ax), 2.4 GHz + 5 GHz dual-radio
- Up to 1.775 Gbps device rate, 2x2 MIMO on each band
- 48 users recommended, up to 128 users
- Built-in smart antennas, 20 dBm transmit power
- 2x Gigabit RJ45 ports
- PoE powered (802.3af), 9.1 W max
- Mounts in an 86 mm junction box, 86 x 86 x 42.5 mm
- About 15 m optimal coverage
- Ideal for room-by-room WiFi in hotels, dorms and offices
Main Characteristics
Brand
Huawei
Model
AP160
Product Type
Wall-plate access point
Series
AP100 Series
WiFi Standard
WiFi 6 (802.11ax)
Radios
2 (2.4 GHz 2x2, 5 GHz 2x2)
Device Rate
1.775 Gbps
Recommended Users
48
Max Users
128
Transmit Power
20 dBm (combined)
Antenna
Built-in smart antennas
Ports
2x GE RJ45
Power
PoE 802.3af
Max Power Consumption
9.1 W
Mounting
Junction box (86 mm)
Dimensions
86 x 86 x 42.5 mm
Weight
0.14 kg
Operating Temperature
0Β°C to 40Β°C
Huawei Part Number
50086816
