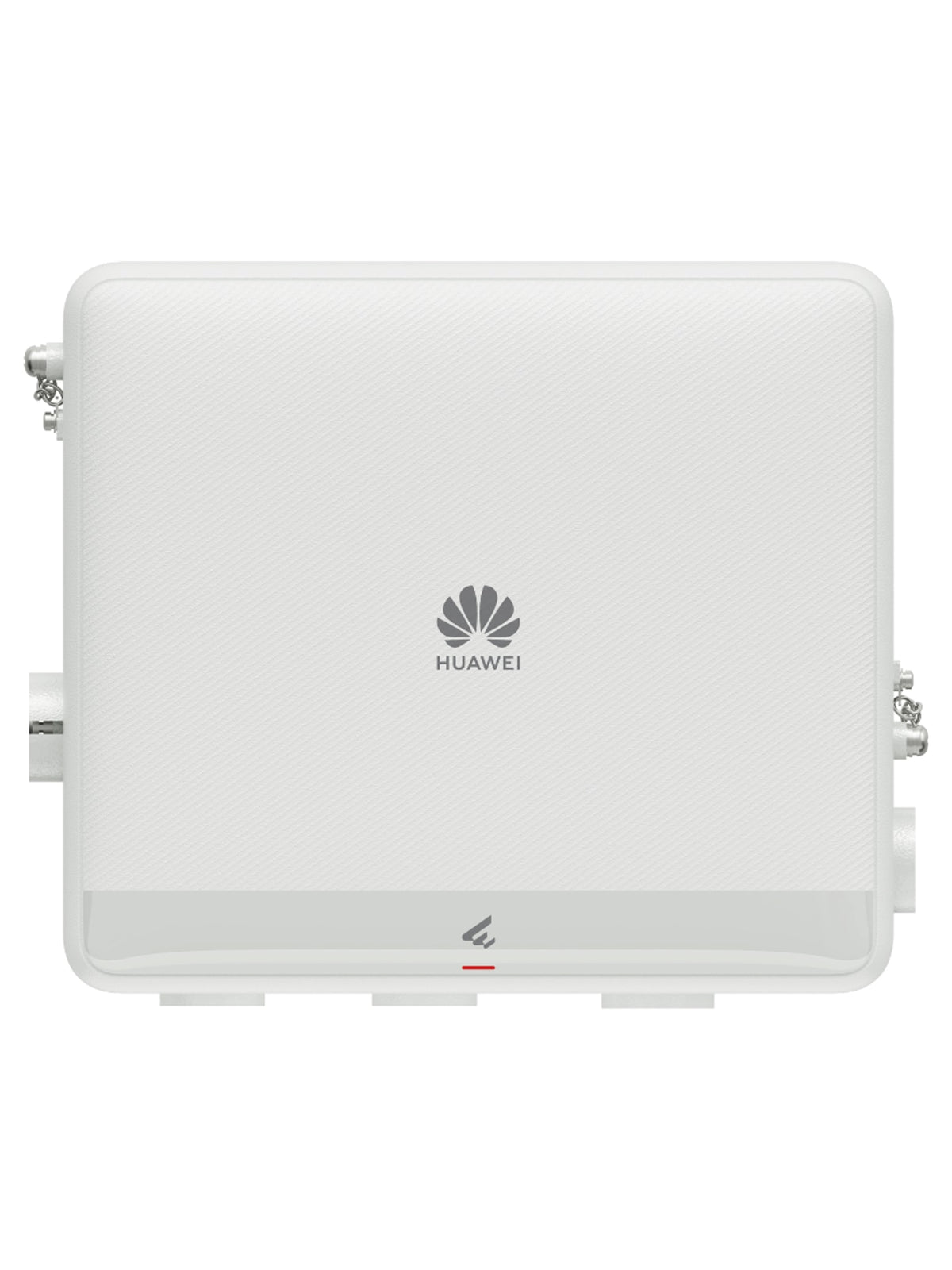

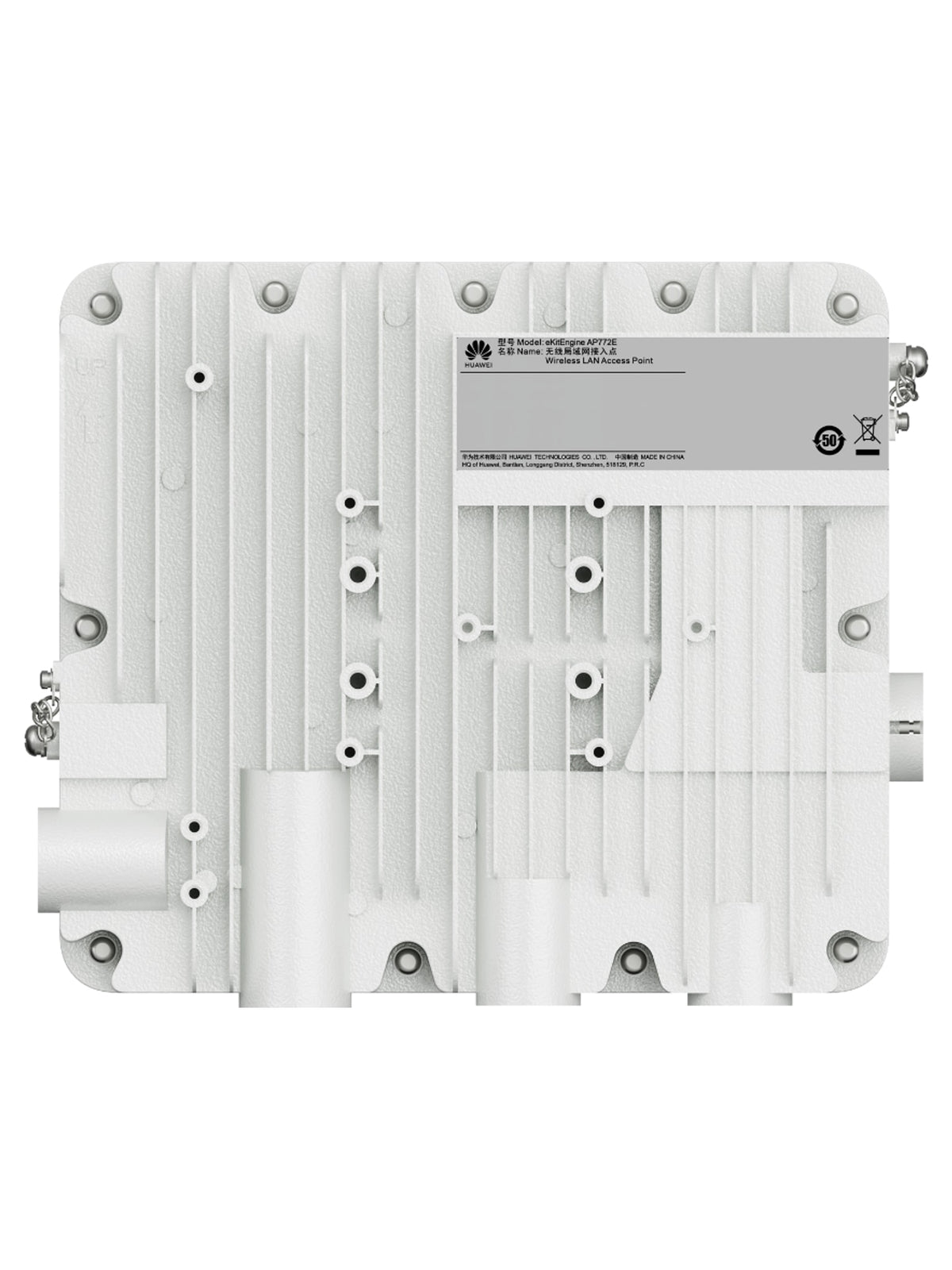

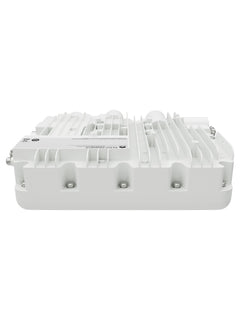

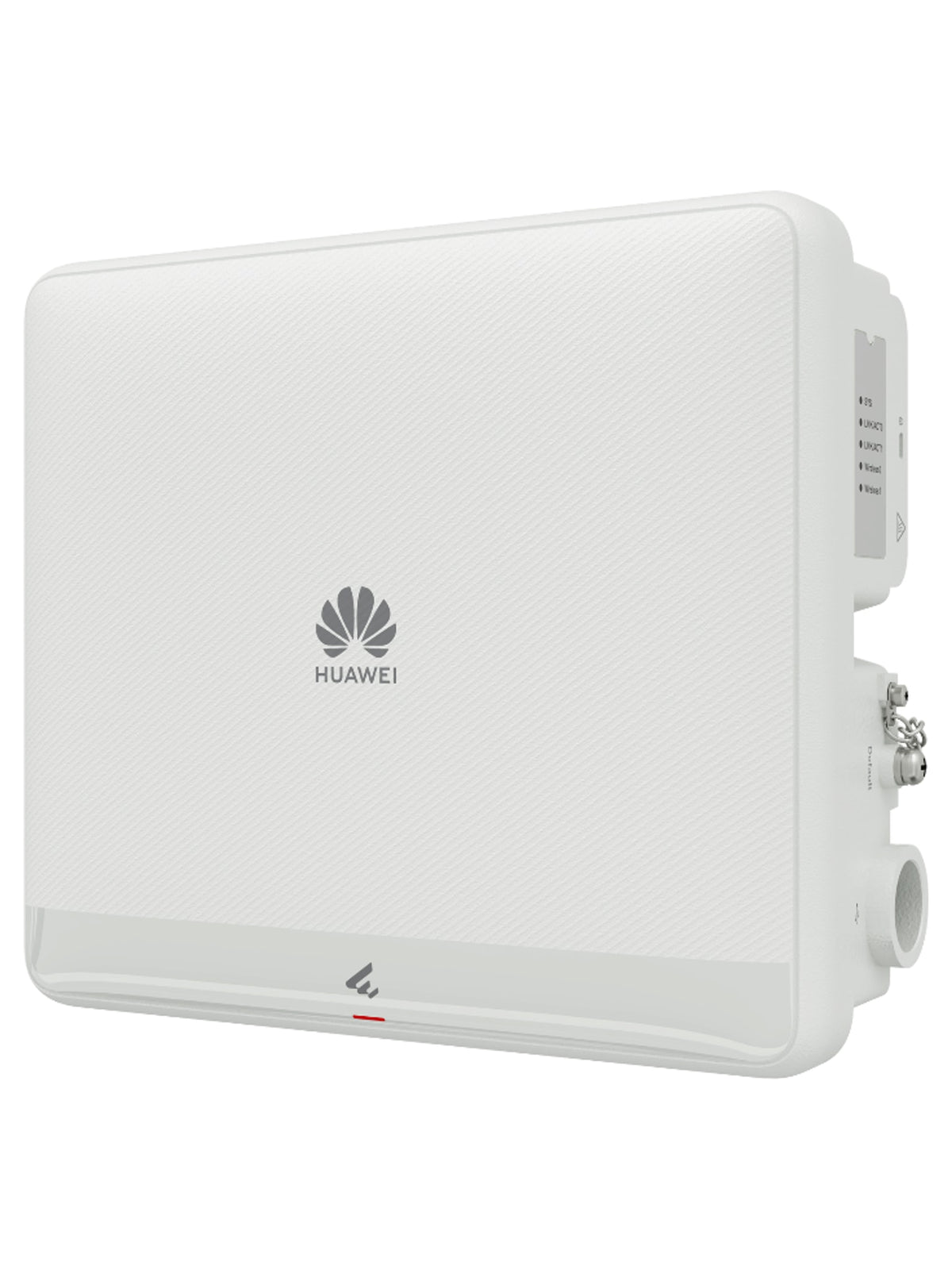

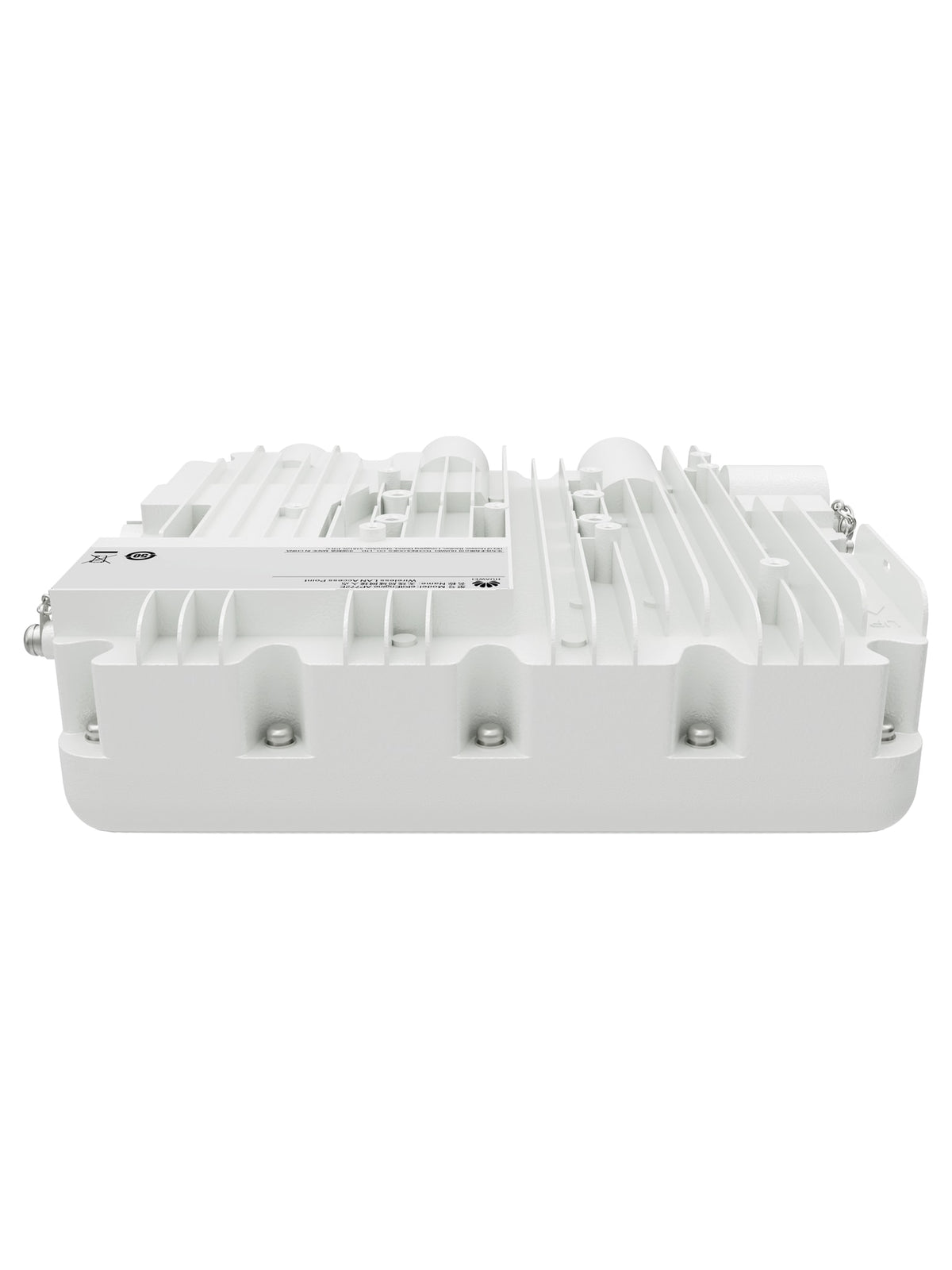

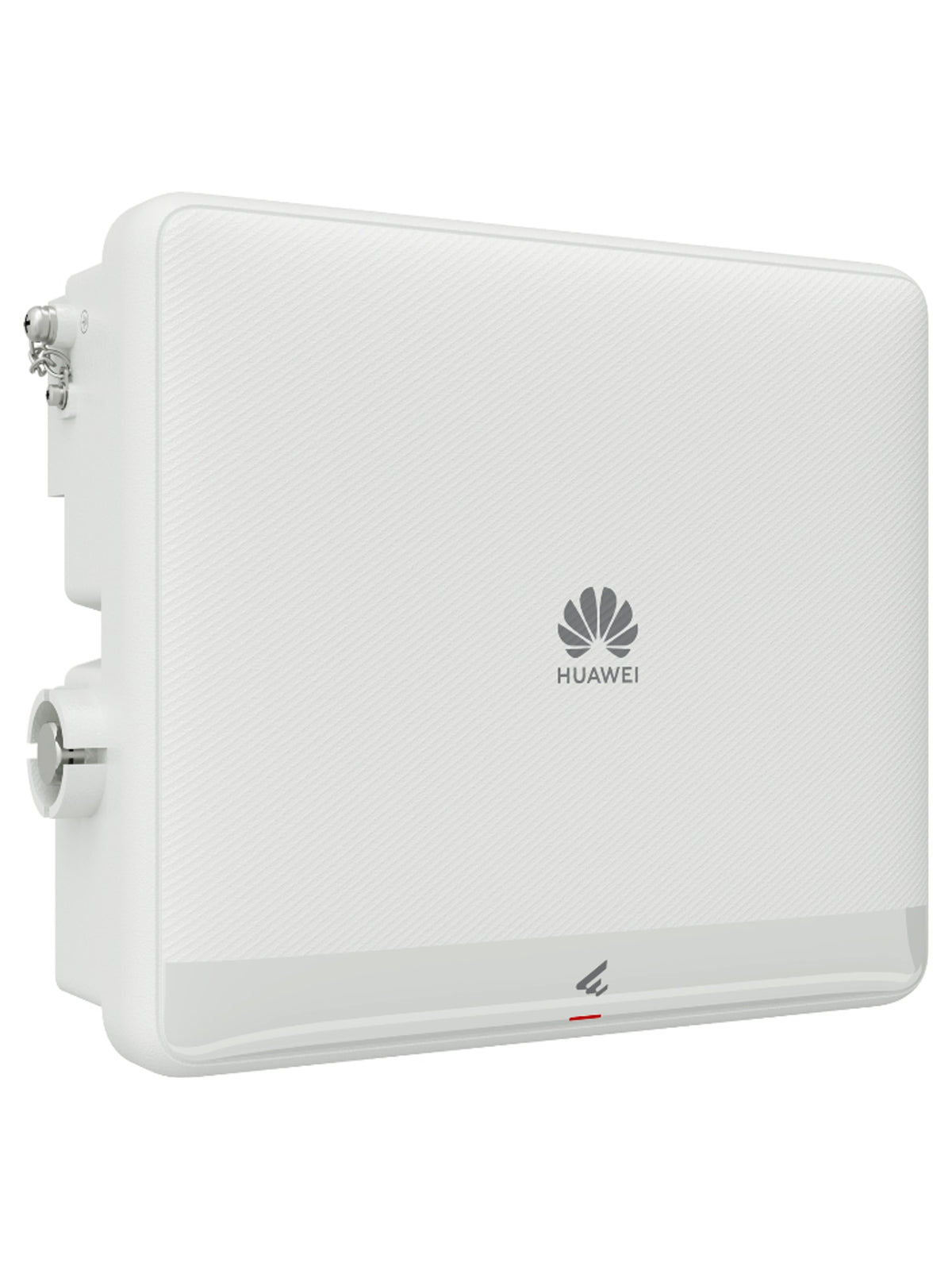

Huawei AP772E Outdoor WiFi 7 Access Point - Dual-Radio, 6.45 Gbps, IP68
The Huawei AP772E is an outdoor WiFi 7 access point in an IP68 housing for wall or pole mounting. It combines a 6.45 Gbps dual-radio device rate, built-in directional antennas, 30 dBm transmit power and 2.5GE plus 10GE SFP+ uplinks. It suits campuses, stadiums, ports and parking areas that need long-range outdoor WiFi.
Main Specs
- WiFi 7 (802.11be), dual-radio: 2.4 GHz 2x2 + 5 GHz 4x4
- Up to 6.45 Gbps device rate
- 130 users recommended, up to 1024 users
- Built-in directional antennas, up to 30 dBm transmit power
- About 250 m optimal coverage distance

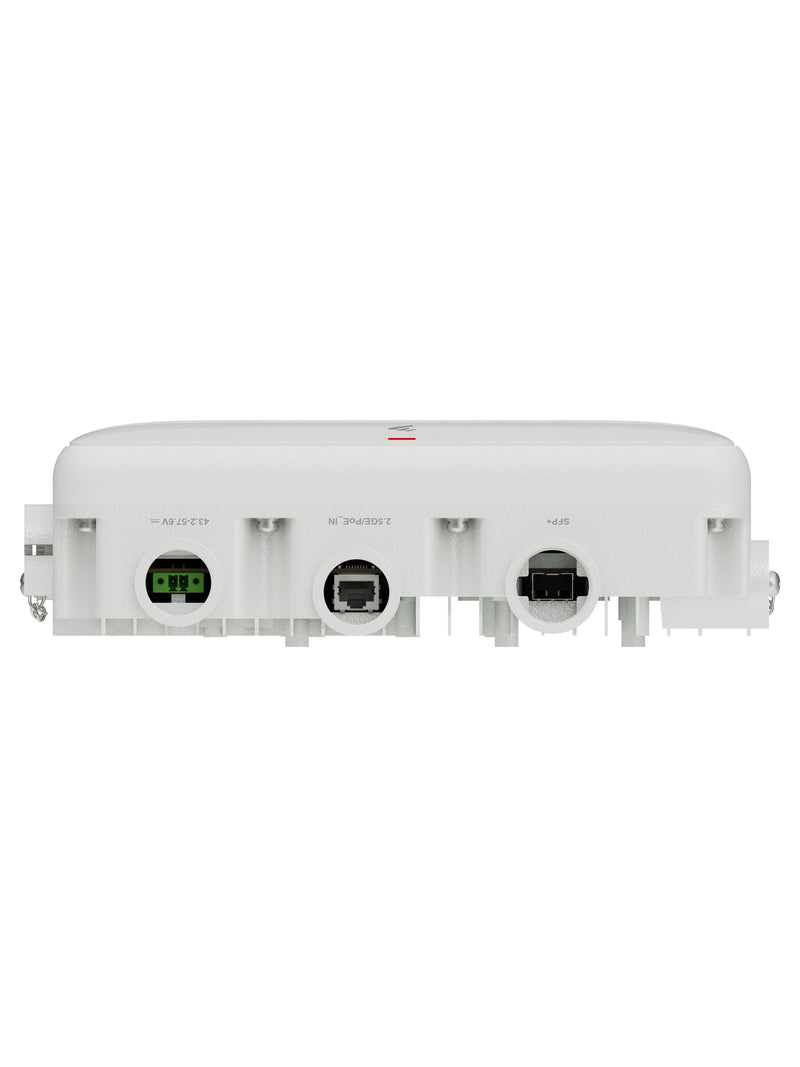

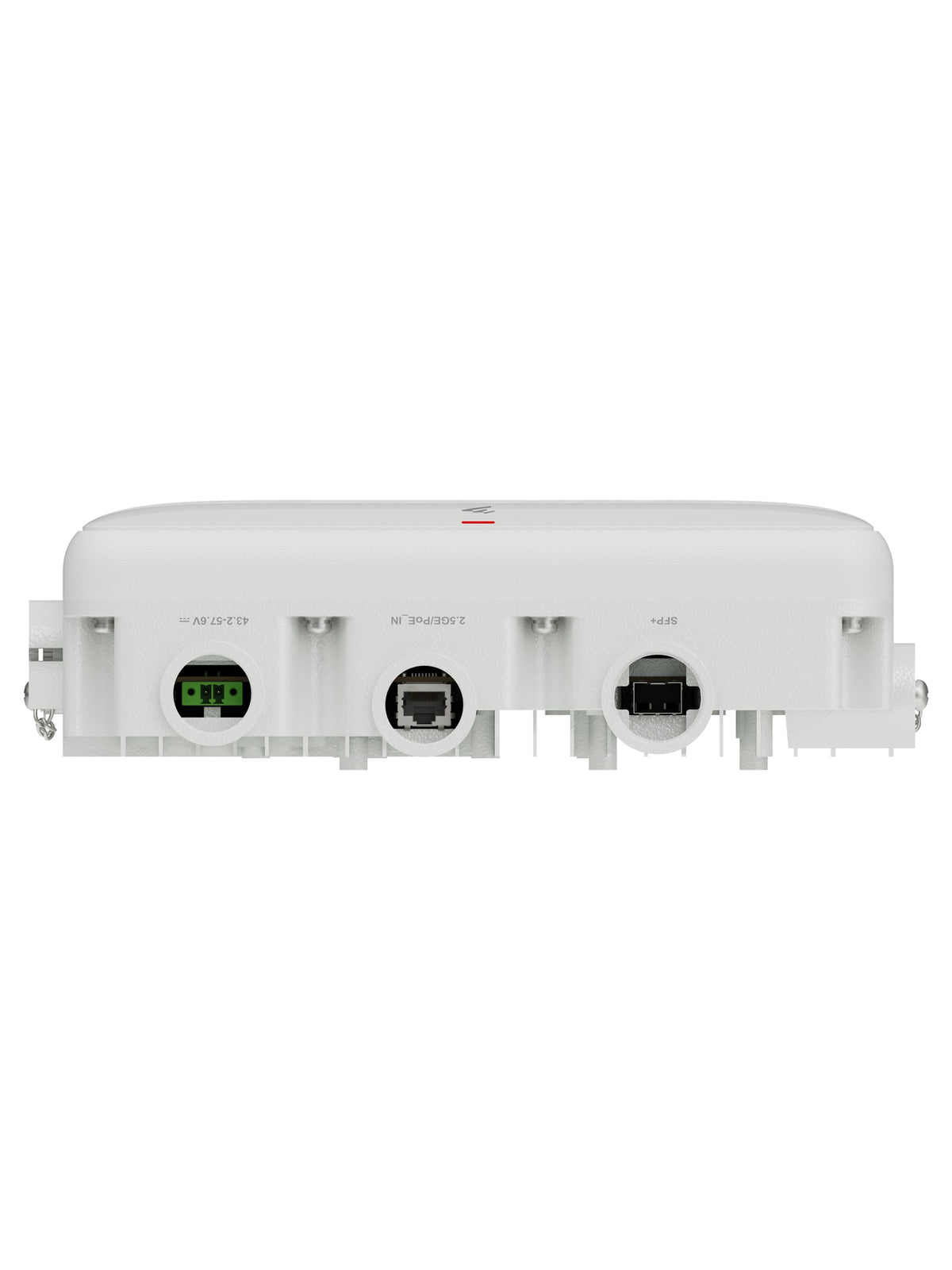

- 1x 2.5GE RJ45 + 1x 10GE SFP+ ports
- IP68 dust and water protection, -40°C to 70°C
- Powered by PoE (802.3bt/at/af) or DC, wall or pole mounting
- Ideal for campuses, stadiums and outdoor areas
Main Characteristics
Brand
Huawei
Model
AP772E
Product Type
Outdoor access point
Series
AP700 Series
WiFi Standard
WiFi 7 (802.11be)
Radios
2 (2.4 GHz 2x2, 5 GHz 4x4)
Device Rate
6.45 Gbps
Recommended Users
130
Max Users
1024
Transmit Power
Up to 30 dBm (combined)
Antenna
Built-in directional antennas
Coverage Distance
250 m (optimal)
Ports
1x 2.5GE RJ45, 1x 10GE SFP+
Power
PoE 802.3bt/at/af or 43.2-57.6 V DC
Max Power Consumption
20.4 W
Protection
IP68
Mounting
Wall, pole
Dimensions
220 x 250 x 77 mm
Weight
2.76 kg
Operating Temperature
-40°C to 70°C
Huawei Part Number
50088138
