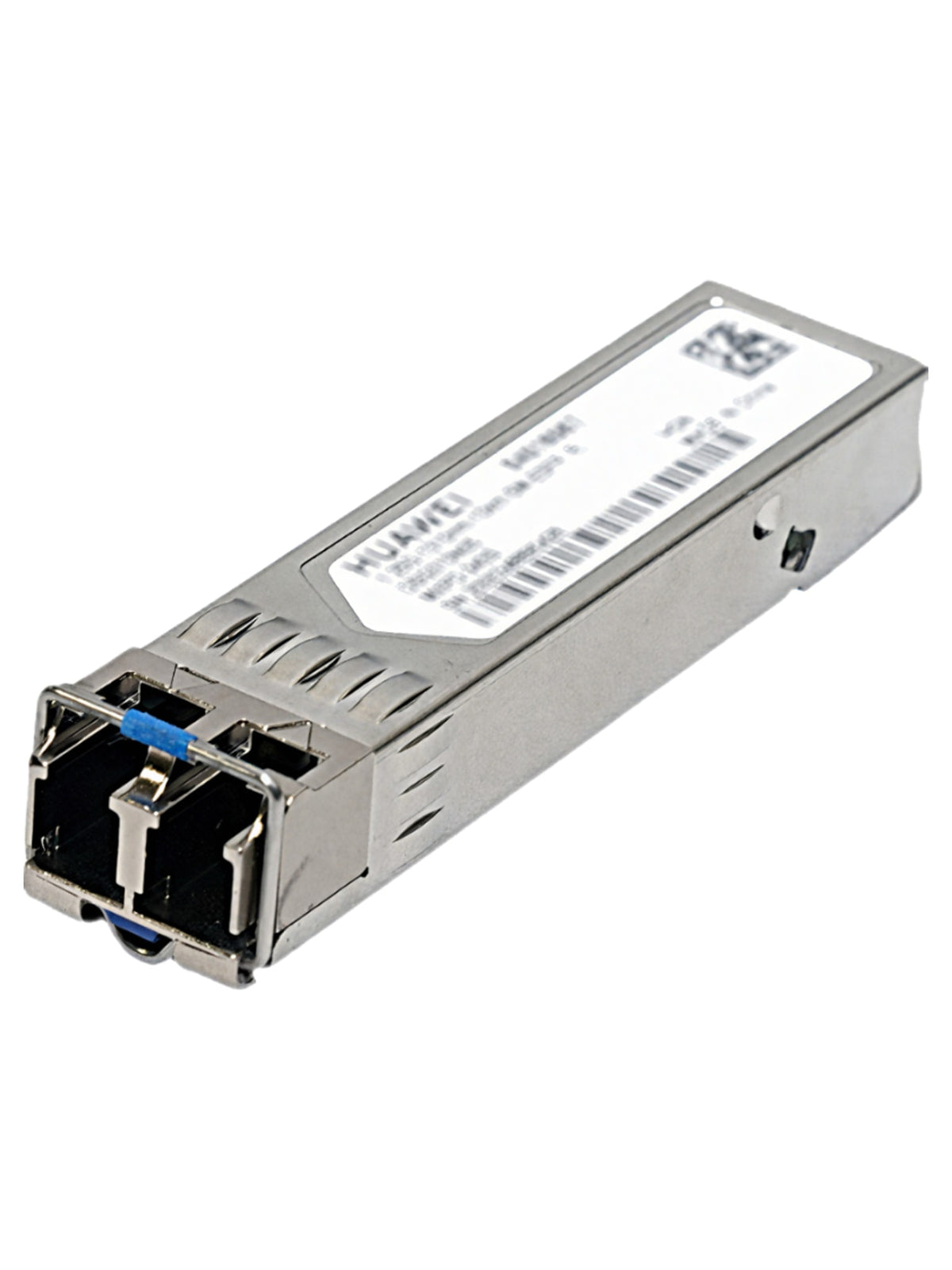

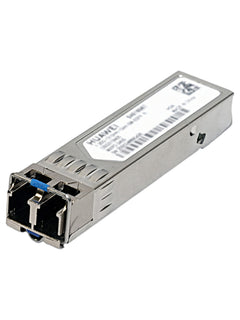

Huawei eSFP-FE-LX-SM1310 100M SFP Single-Mode Optical Transceiver - 1310nm, 15km, LC
100M/155M eSFP single-mode optical module, 1310 nm, up to 15 km, LC connector, with DDM.
Read MoreSpecs
Brand
Huawei
Model
eSFP-FE-LX-SM1310
Product Type
Optical transceiver
Part Number
02315205
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Huawei eSFP-FE-LX-SM1310 100M SFP Single-Mode Optical Transceiver - 1310nm, 15km, LC
The Huawei eSFP-FE-LX-SM1310 is a 100 Mbit/s (Fast Ethernet / 155M) optical module in the eSFP form factor for single-mode fiber. It uses a 1310 nm laser with LC connectors and reaches up to 15 km, with digital diagnostic monitoring. It suits long fiber runs to buildings or sites that only need Fast Ethernet speed.
Main Specs
- 100M / 155M Fast Ethernet optical module
- eSFP form factor, LC duplex
- Single-mode fiber, 1310 nm
- Up to 15 km
- Digital diagnostic monitoring (DDM)
- Tx power -15 to -8 dBm, Rx sensitivity -28 dBm
- Case temperature 0°C to 70°C
- Huawei part number 02315205
- Ideal for long Fast Ethernet fiber links between sites
Main Characteristics
Brand
Huawei
Model
eSFP-FE-LX-SM1310
Product Type
Optical transceiver
Part Number
02315205
Form Factor
eSFP
Data Rate
100 Mbit/s (100M/155M)
Fiber
Single-mode (SMF)
Wavelength
1310 nm
Distance
15 km
Connector
LC
DDM
Supported
Tx Power
-15.0 to -8.0 dBm
Rx Sensitivity
-28.0 dBm
Operating Temperature
0°C to 70°C (case)
