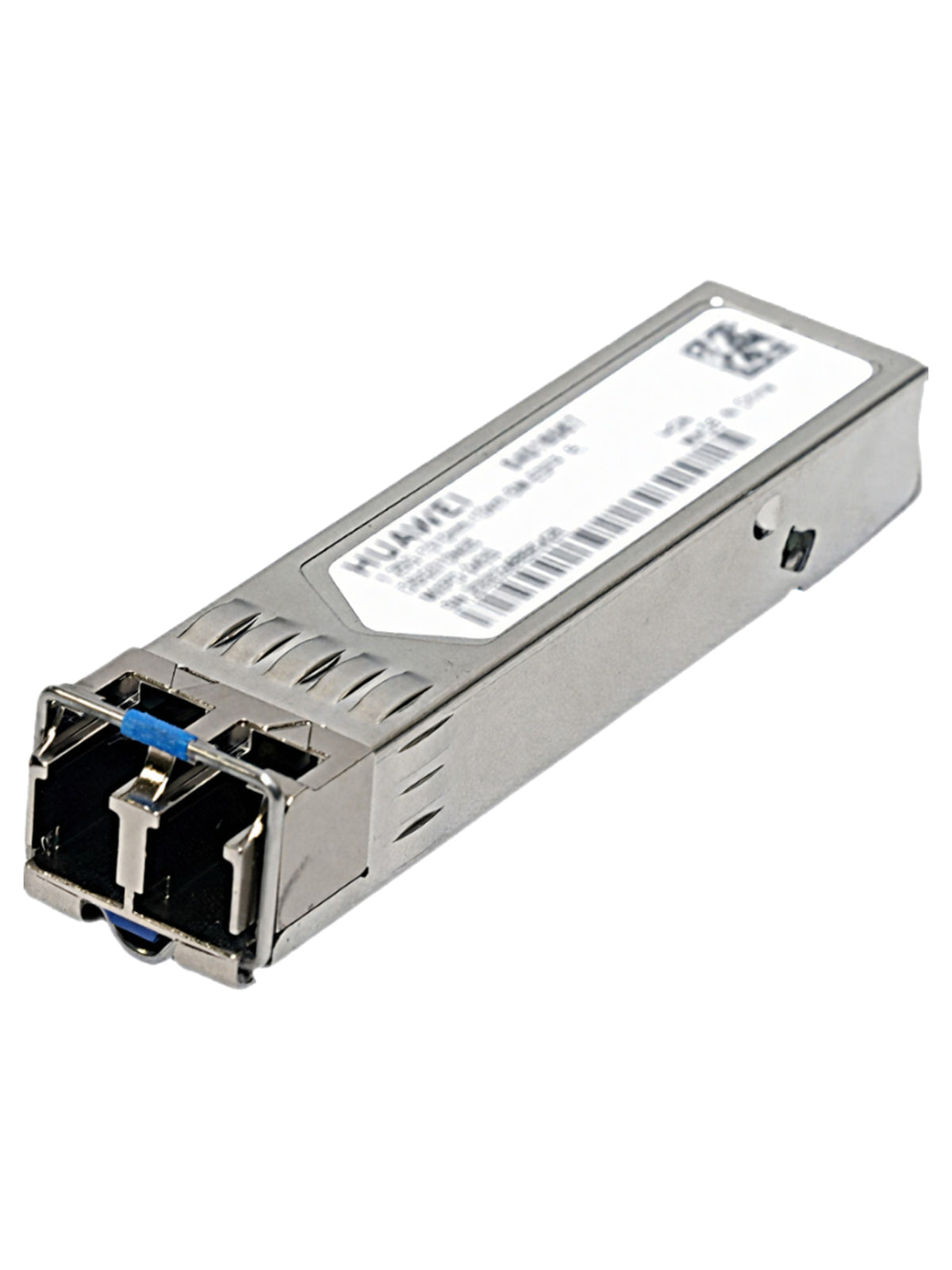

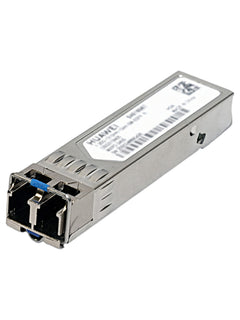

Huawei eSFP-GE-SX-MM850 1G SFP Multi-Mode Optical Transceiver - 850nm, 550m, LC
1000BASE-SX eSFP multi-mode optical module, 850 nm, up to 550 m on OM2 and 1 km on OM3/OM4, LC.
Read MoreSpecs
Brand
Huawei
Model
eSFP-GE-SX-MM850
Product Type
Optical transceiver
Part Number
02315204
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Huawei eSFP-GE-SX-MM850 1G SFP Multi-Mode Optical Transceiver - 850nm, 550m, LC
The Huawei eSFP-GE-SX-MM850 is a 1 Gbit/s 1000BASE-SX optical module in the eSFP form factor for multi-mode fiber. It uses an 850 nm laser with LC connectors and reaches 550 m on OM2 and 1 km on OM3/OM4 fiber, with digital diagnostic monitoring. It suits short fiber links between Huawei switches inside buildings.
Main Specs
- 1000BASE-SX, 1 Gbit/s
- eSFP form factor, LC duplex
- Multi-mode fiber, 850 nm
- OM1 275 m, OM2 550 m, OM3/OM4 1 km
- Digital diagnostic monitoring (DDM)
- Tx power -9.5 to -2.5 dBm, Rx sensitivity -17 dBm
- Case temperature -20°C to +85°C
- Huawei part number 02315204
- Ideal for short gigabit fiber links between switches
Main Characteristics
Brand
Huawei
Model
eSFP-GE-SX-MM850
Product Type
Optical transceiver
Part Number
02315204
Form Factor
eSFP
Standard
1000BASE-SX
Data Rate
1 Gbit/s
Fiber
Multi-mode (MMF)
Wavelength
850 nm
Distance
62.5 µm 160 MHz*km: 220 m; OM1: 275 m; 50 µm 400 MHz*km: 500 m; OM2: 550 m; OM3/OM4: 1 km
Connector
LC
DDM
Supported
Tx Power
-9.5 to -2.5 dBm
Rx Sensitivity
-17.0 dBm
Operating Temperature
-20°C to +85°C (case)
