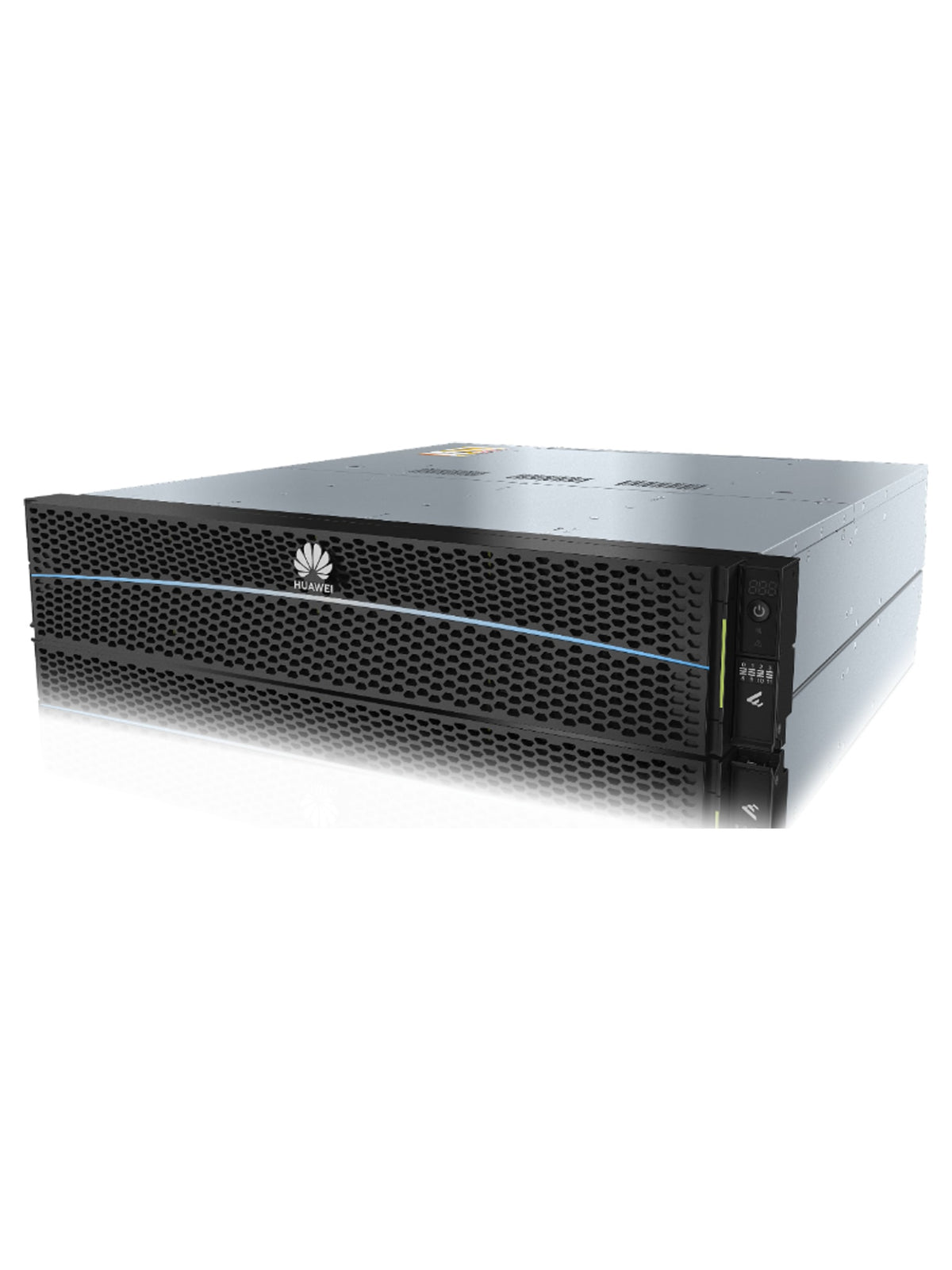

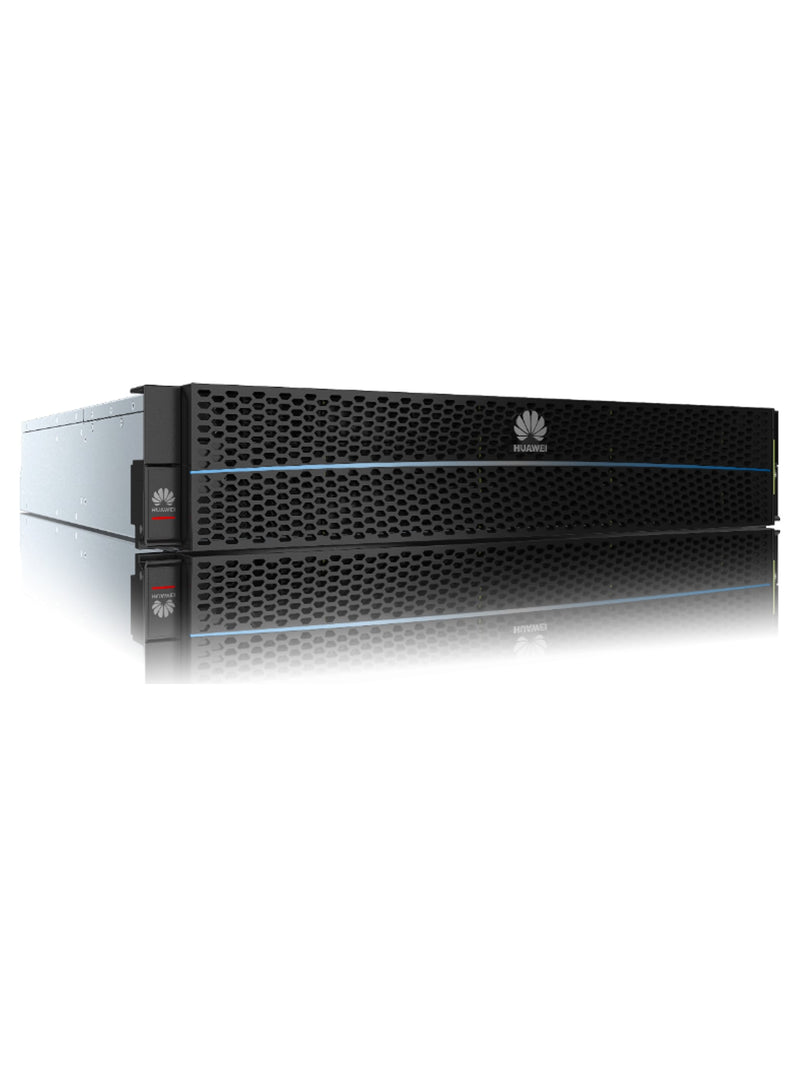

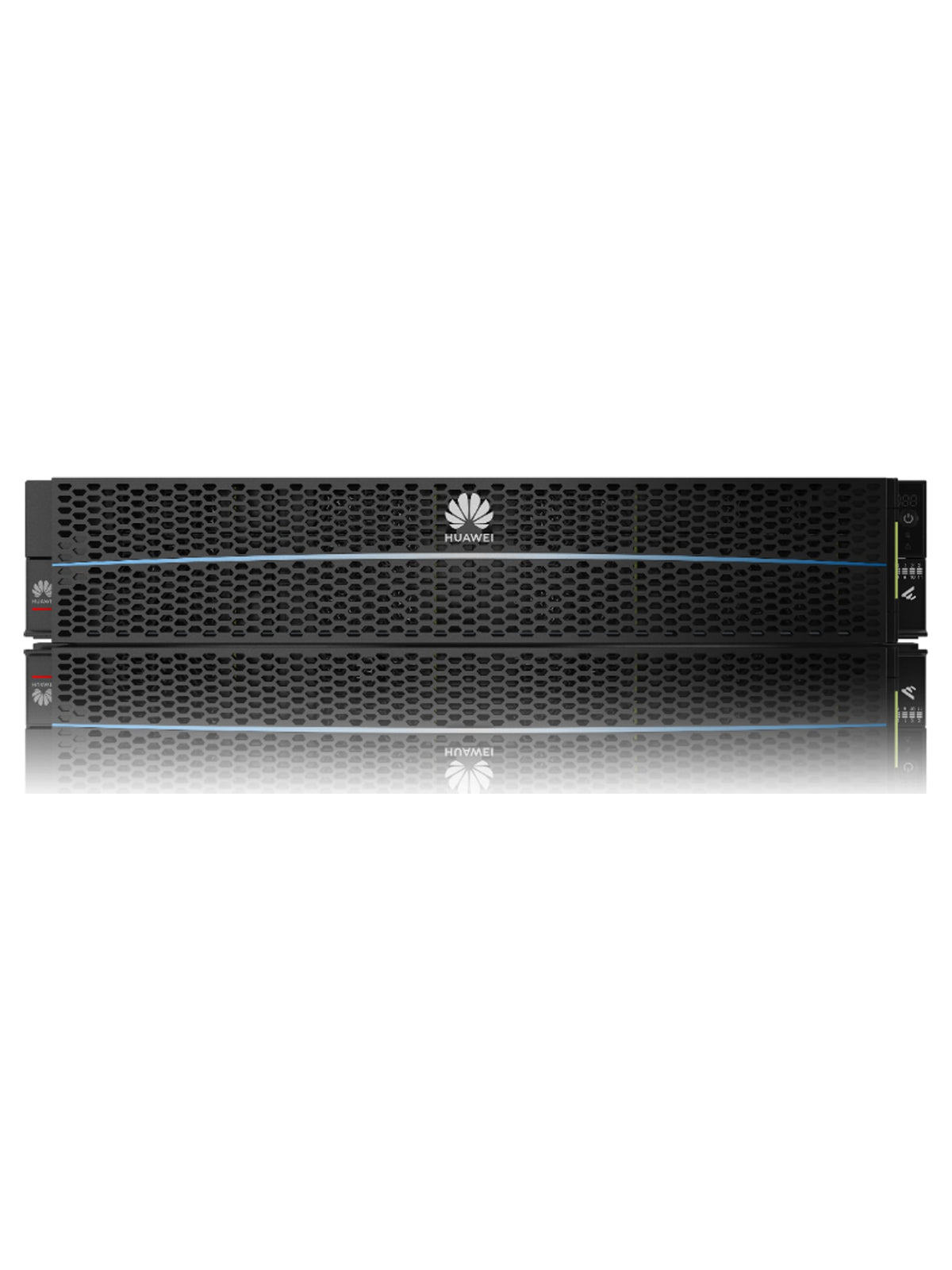

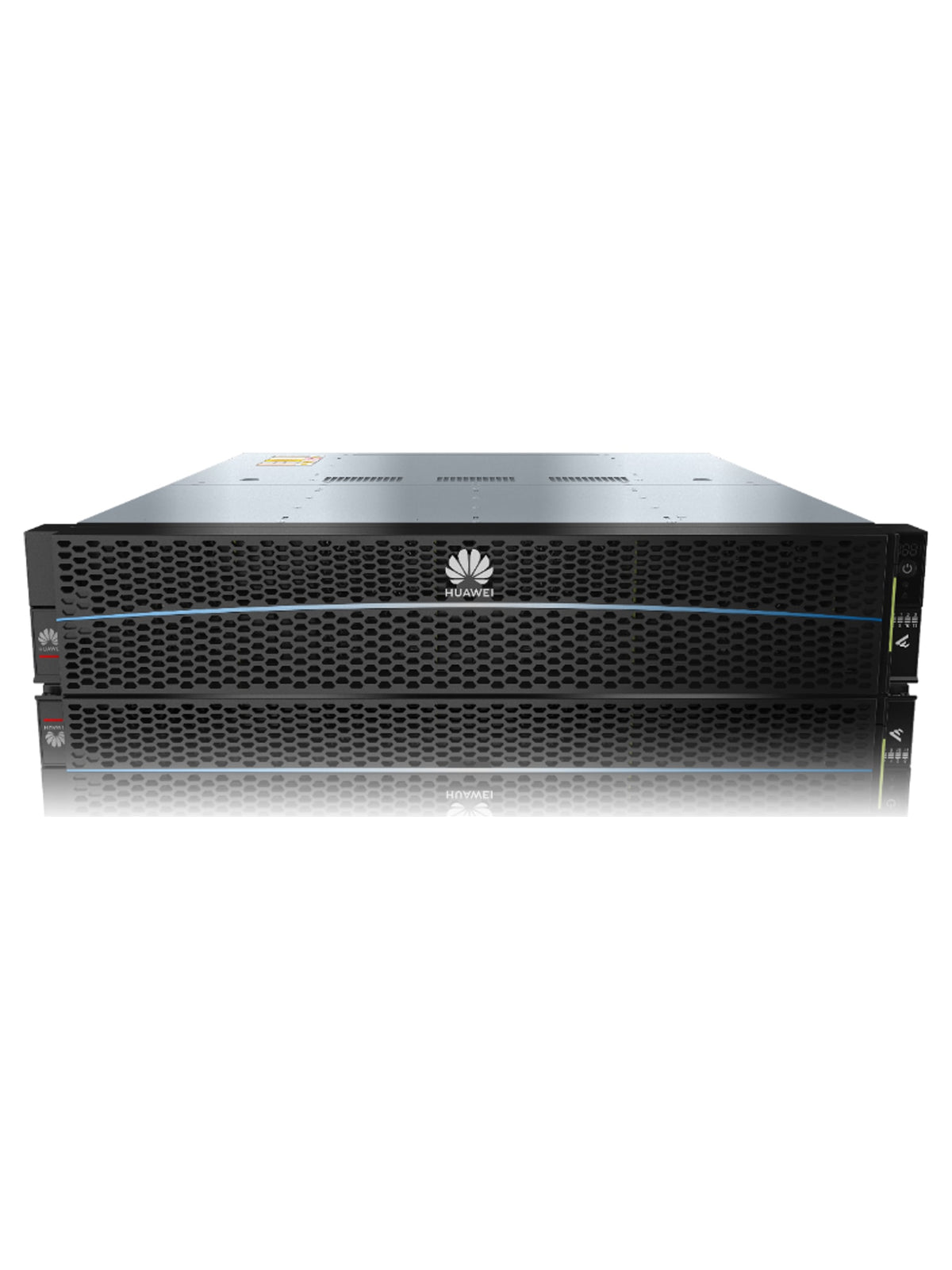

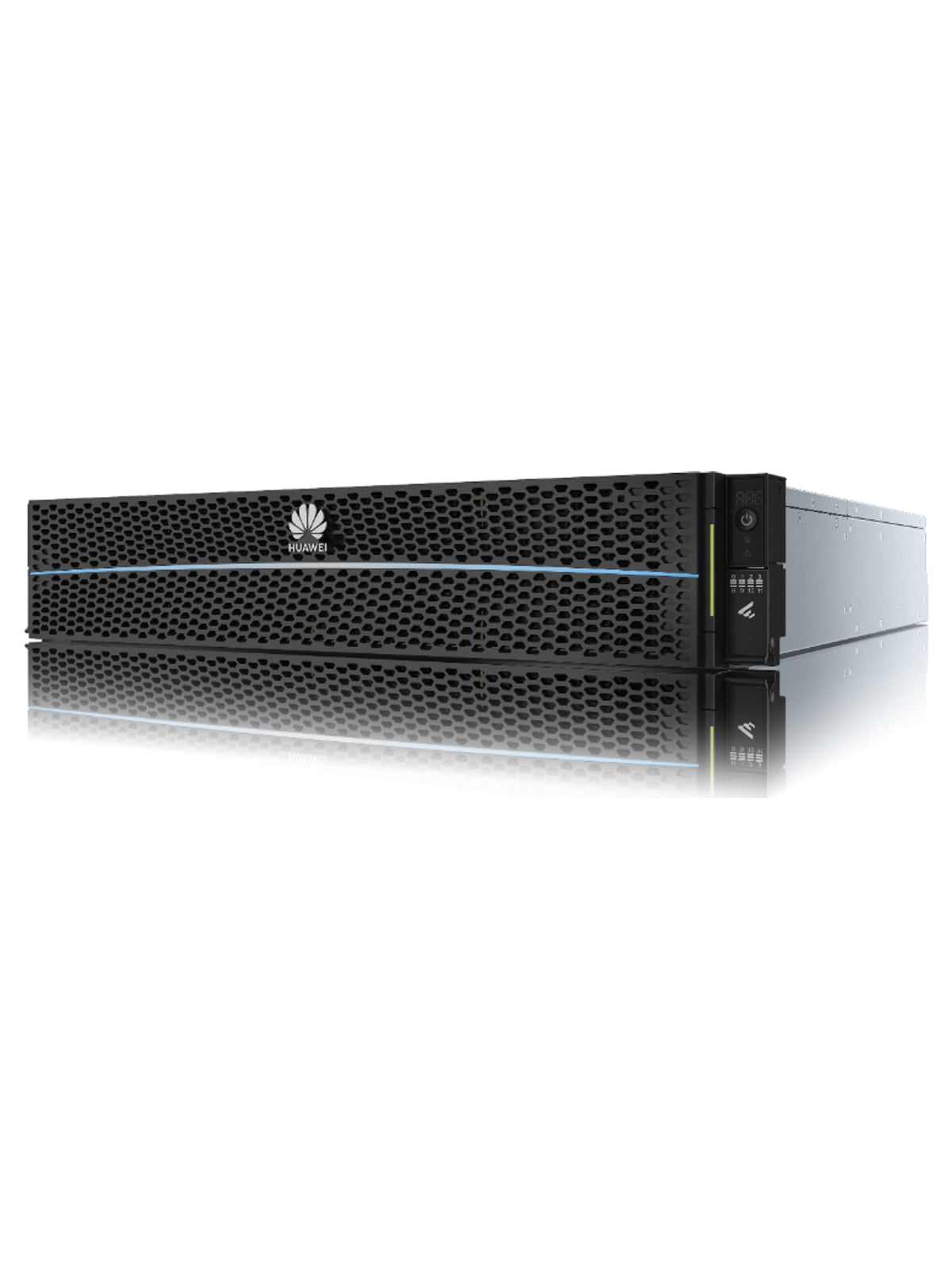

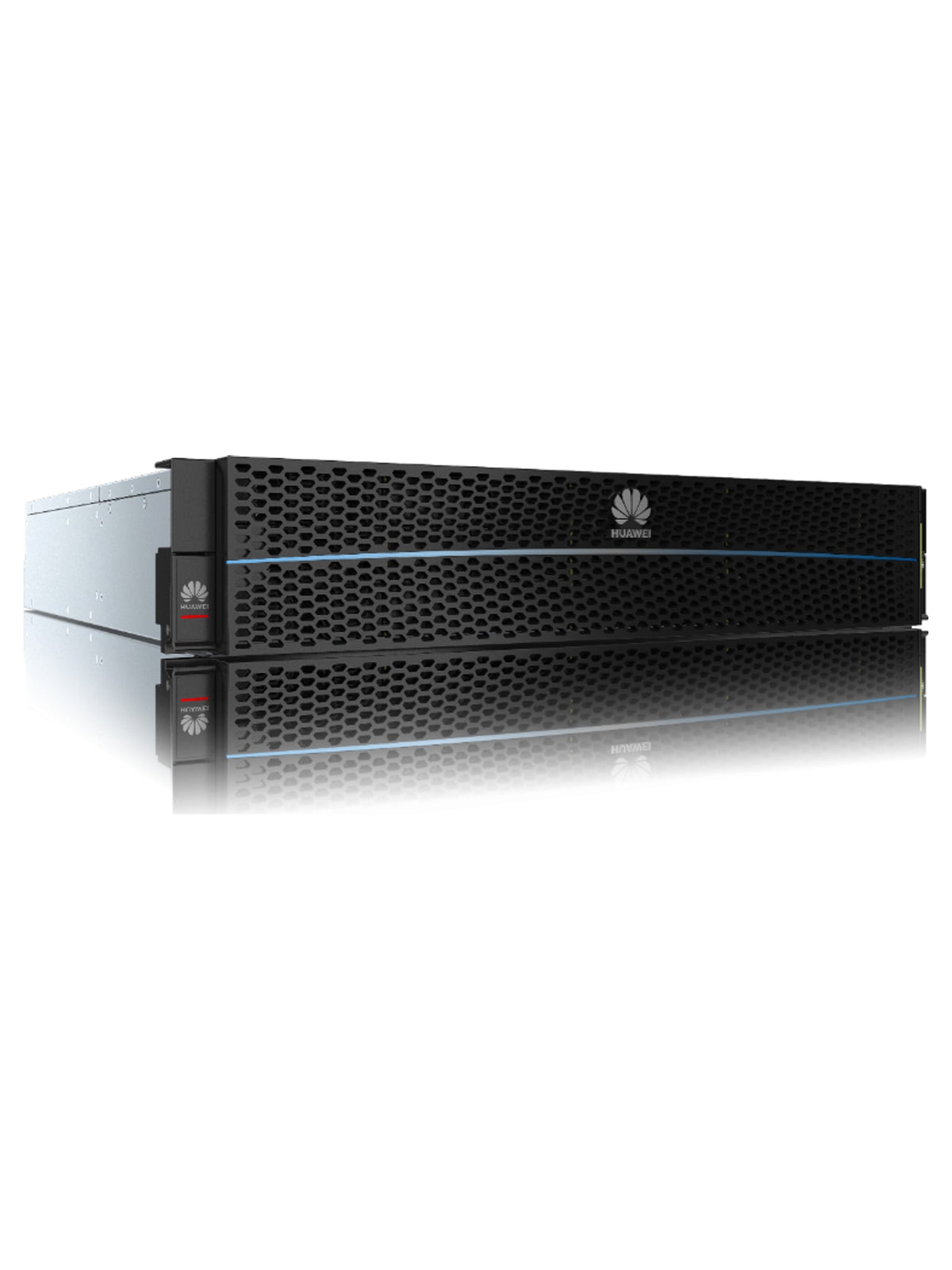

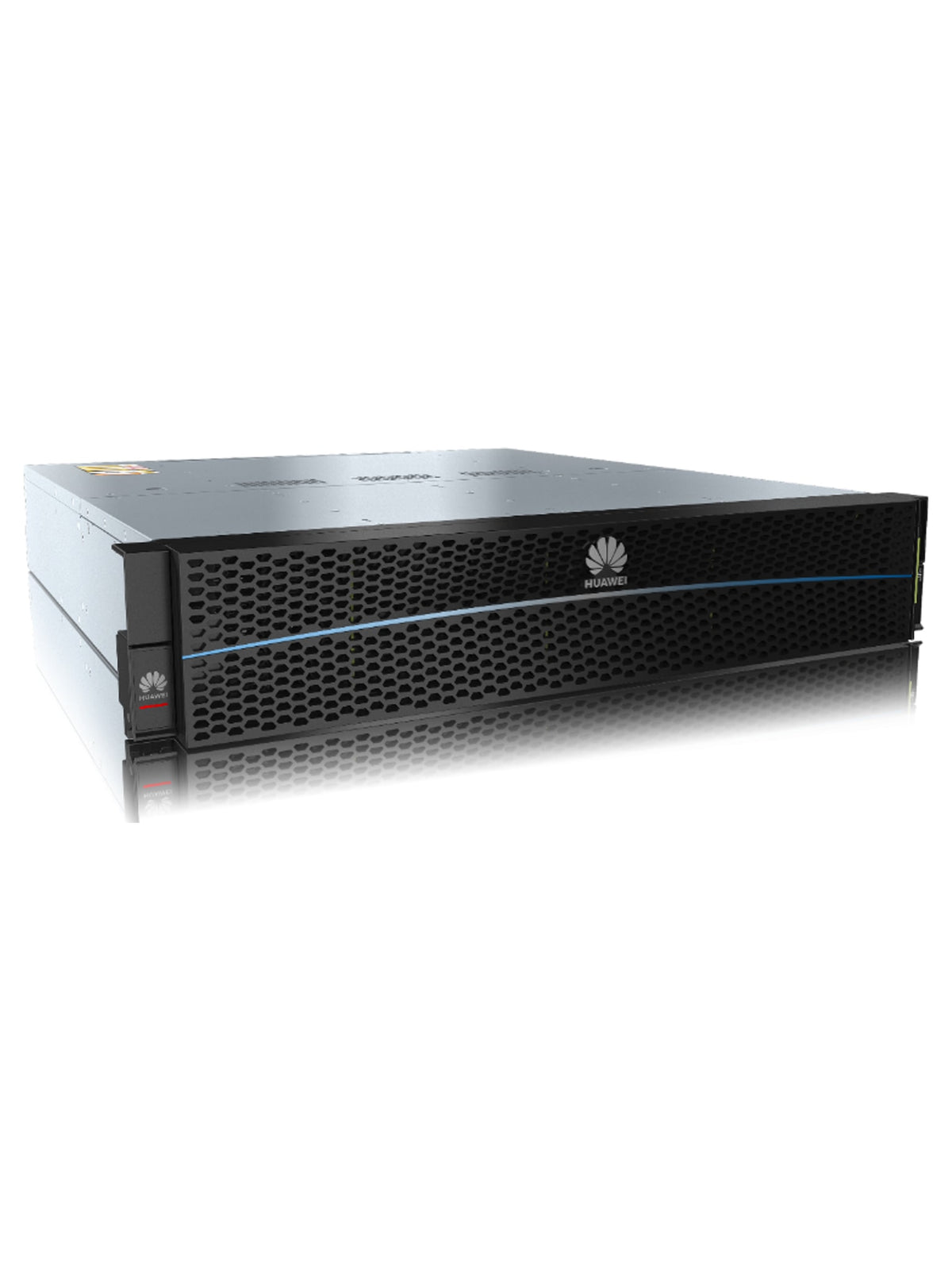

Huawei OceanStor 5120 Hybrid Flash Storage - 2U Dual Controller, 64GB Cache, 25 x 2.5" SAS, AC
OceanStor 5120 hybrid flash storage, 2U dual controllers, 64GB cache, 25 x 2.5-inch SAS bays, SAN and NAS (FC, iSCSI, NFS, CIFS).
Read MoreSpecs
Brand
Huawei
Model
OceanStor 5120 (5120-S-S-64G-AC)
Product Type
Hybrid flash storage controller enclosure
Part Number
02356FRT
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3β5 Business Days)
15
Standard delivery with in-store pickup, 3β5 business days.
Express 1β2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1β2 business days.
Huawei OceanStor 5120 Hybrid Flash Storage - 2U Dual Controller, 64GB Cache, 25 x 2.5" SAS, AC
The Huawei OceanStor 5120 is a 2U dual-controller hybrid flash storage system that runs SAN and NAS in one array. This configuration has 64GB of cache, 25 x 2.5-inch SAS disk bays, 8 x 1GbE and 4 x 10GbE ports (multi-mode SFP+ included) and 4 SAS 3.0 back-end ports, and mixes SSD, SAS and NL-SAS disks. It suits small and medium businesses that need shared block and file storage with snapshots, replication and active-active options.
Main Specs
- 2U, dual active-active controllers
- 64GB cache (dual controller)
- 25 x 2.5-inch SAS disk bays (disks not included)
- 8 x 1GbE + 4 x 10GbE ports (multi-mode SFP+ included)
- 4 x SAS 3.0 back-end ports, up to 4 I/O module slots
- SAN and NAS: FC, iSCSI, NFS, CIFS
- SSD, SAS and NL-SAS disks; RAID 5, 6, 10 and RAID-TP
- HyperSnap, HyperReplication, HyperMetro, SmartThin and more
- AC / 240 V HVDC power
- Ideal for businesses that need shared SAN and NAS storage
Main Characteristics
Brand
Huawei
Model
OceanStor 5120 (5120-S-S-64G-AC)
Product Type
Hybrid flash storage controller enclosure
Part Number
02356FRT
Form Factor
2U, dual controllers
Disk Bays
25 x 2.5-inch SAS
Supported Protocols
FC, iSCSI, NFS, CIFS
Front-End Ports (built-in)
8 x 1Gb Ethernet, 4 x 10Gb Ethernet (multi-mode SFP+ included)
Back-End Ports
4 x SAS 3.0
Front-End Port Types
8/16/32 Gbps FC, 1/10/25 Gbps Ethernet
I/O Module Slots
Up to 4 hot-swappable per controller enclosure
Max Front-End Ports
28 per controller enclosure
System Cache
64GB
Max Cache
32GB-256GB
Disk Types
SSD, SAS, NL-SAS
RAID Levels
RAID 10, RAID 5, RAID 6, RAID-TP
Management Software
UltraPath, DeviceManager, BCManager, DME IQ
Power
100 V to 240 V AC Β±10%, 192 V to 288 V DC
Operating Humidity
10% to 90% RH
Value-Added Features
SmartAcceleration, SmartThin, SmartMigration, HyperSnap, SmartQoS, HyperLock, SmartMulti-Tenant, SmartQuota, SmartErase, HyperVault, HyperMetro, HyperReplication, HyperClone, SmartVirtualization, HyperCDP, HyperEncryption, SmartCompression, SmartMobility
Dimensions
86.1 x 447 x 410 mm
Weight
16.4 kg (excl. disk units)
Operating Temperature
5Β°C to 35Β°C (cabinet) or 40Β°C (enclosure), up to 1800 m
