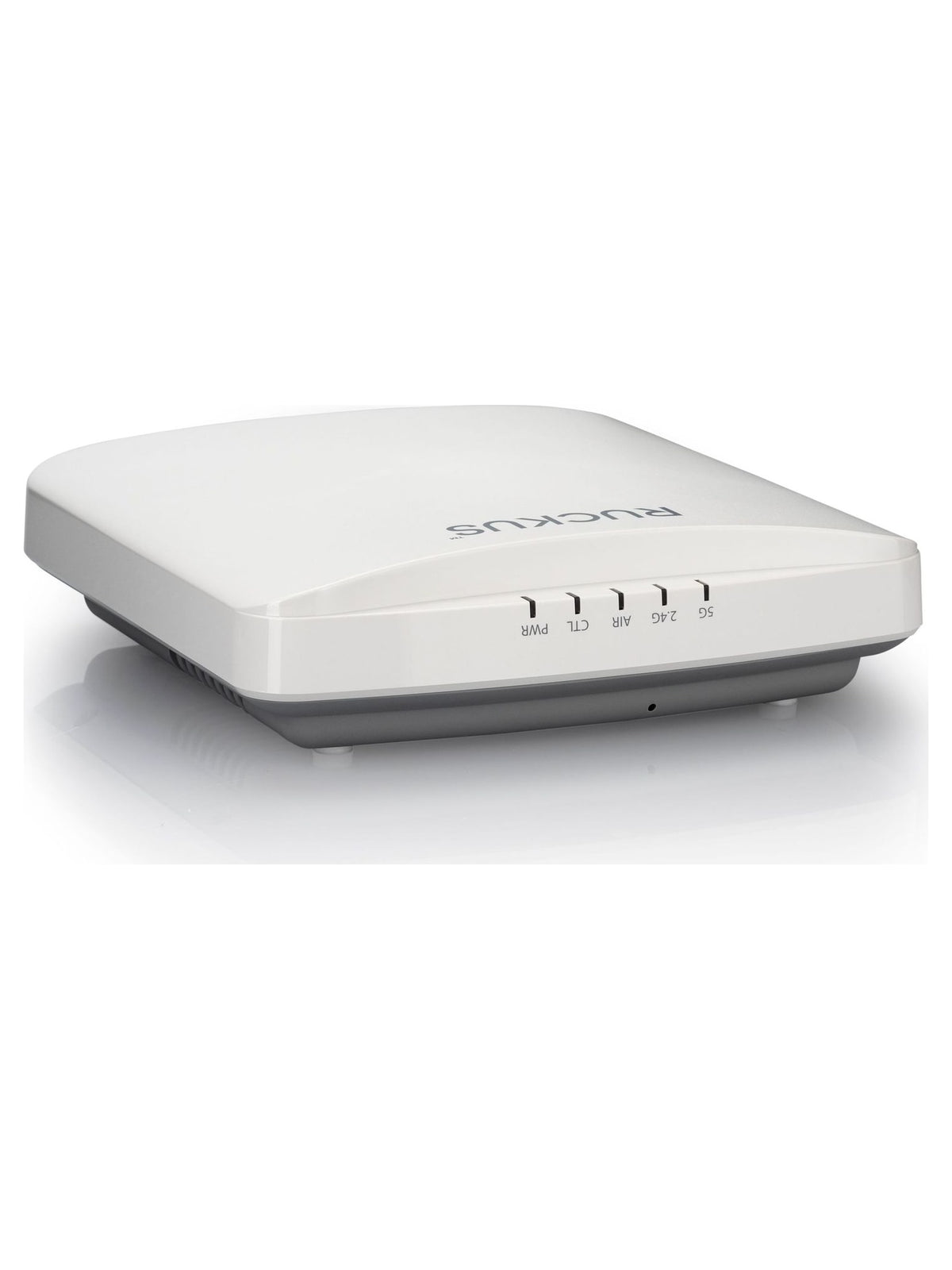

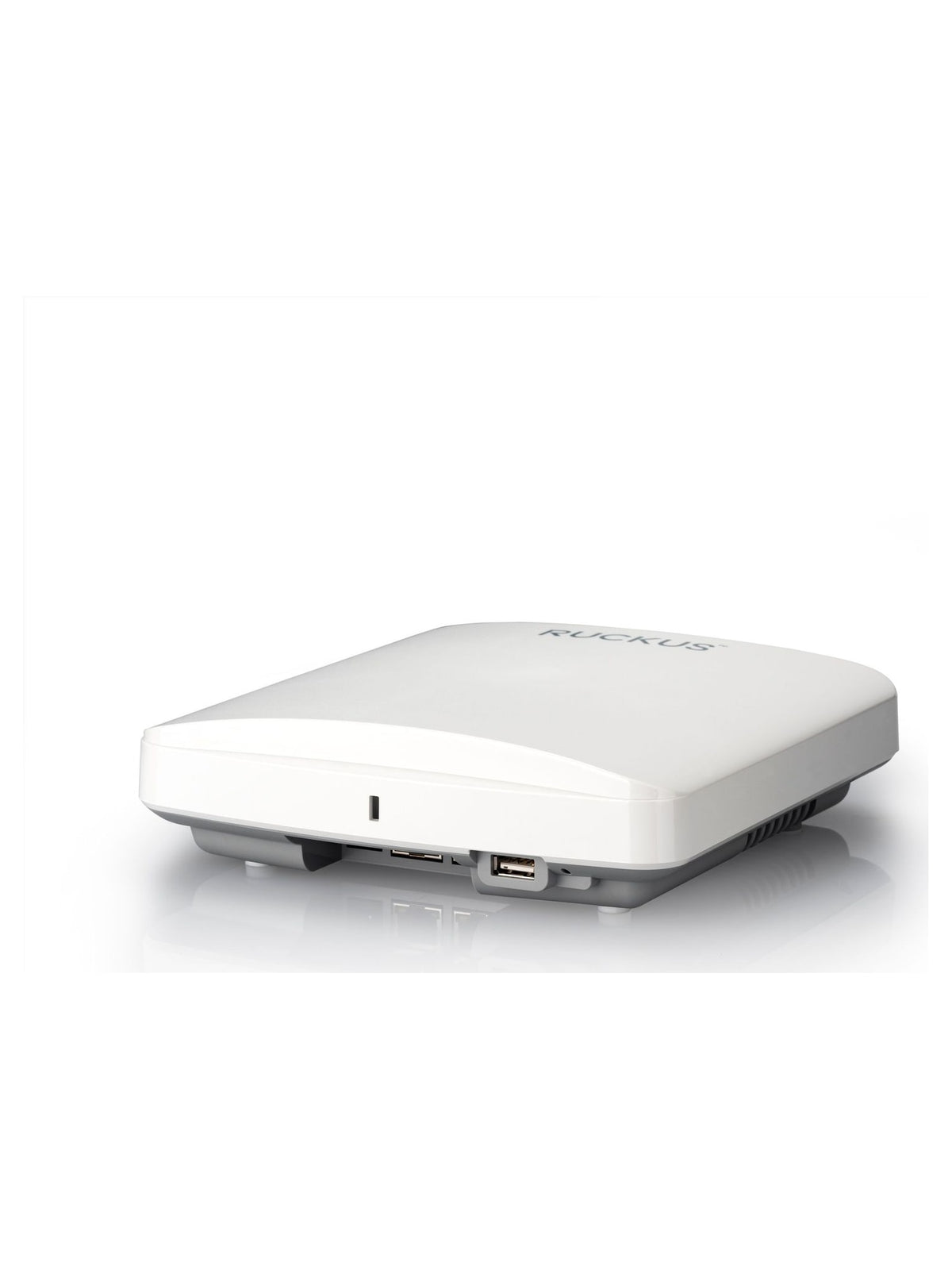

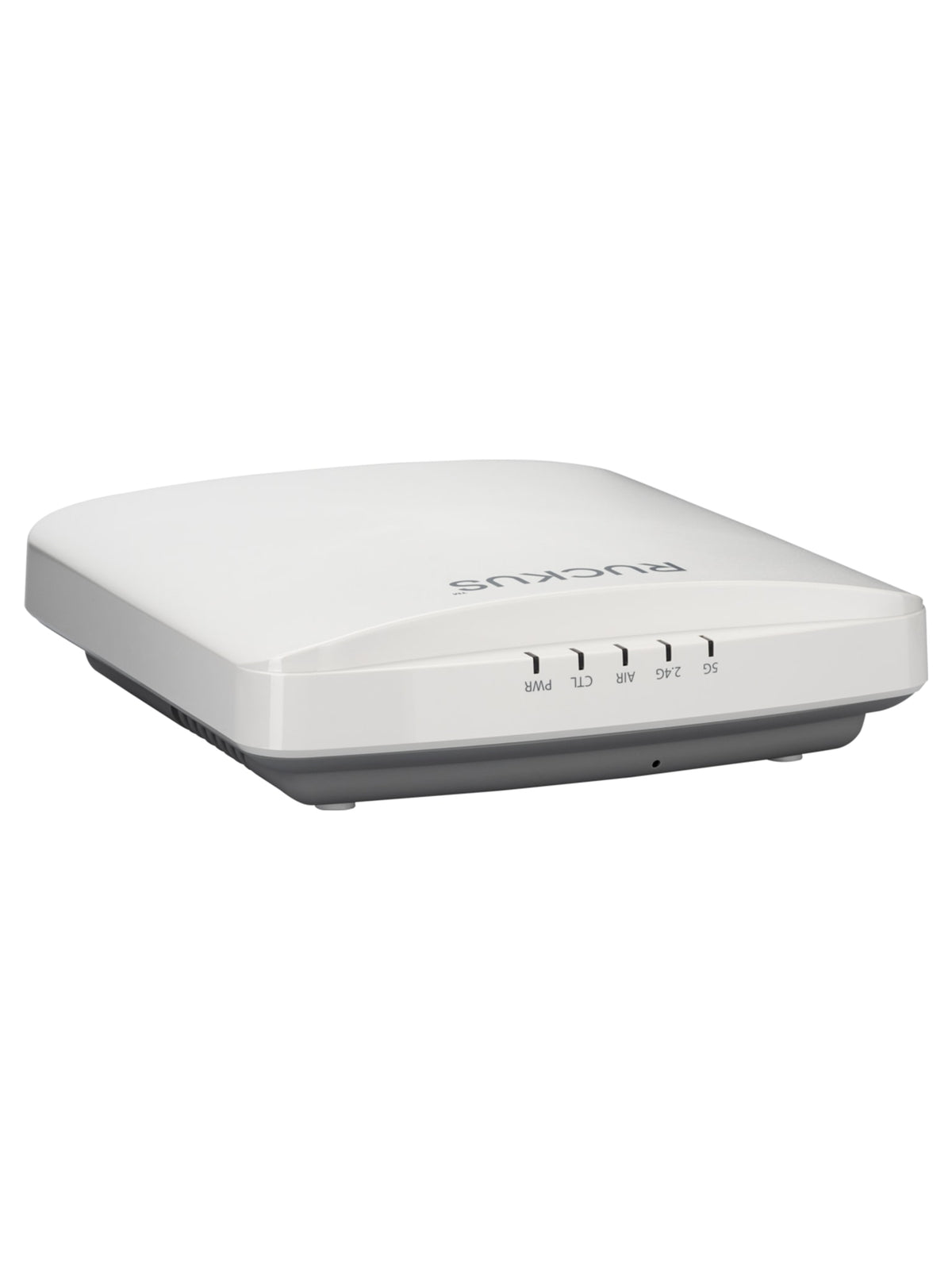

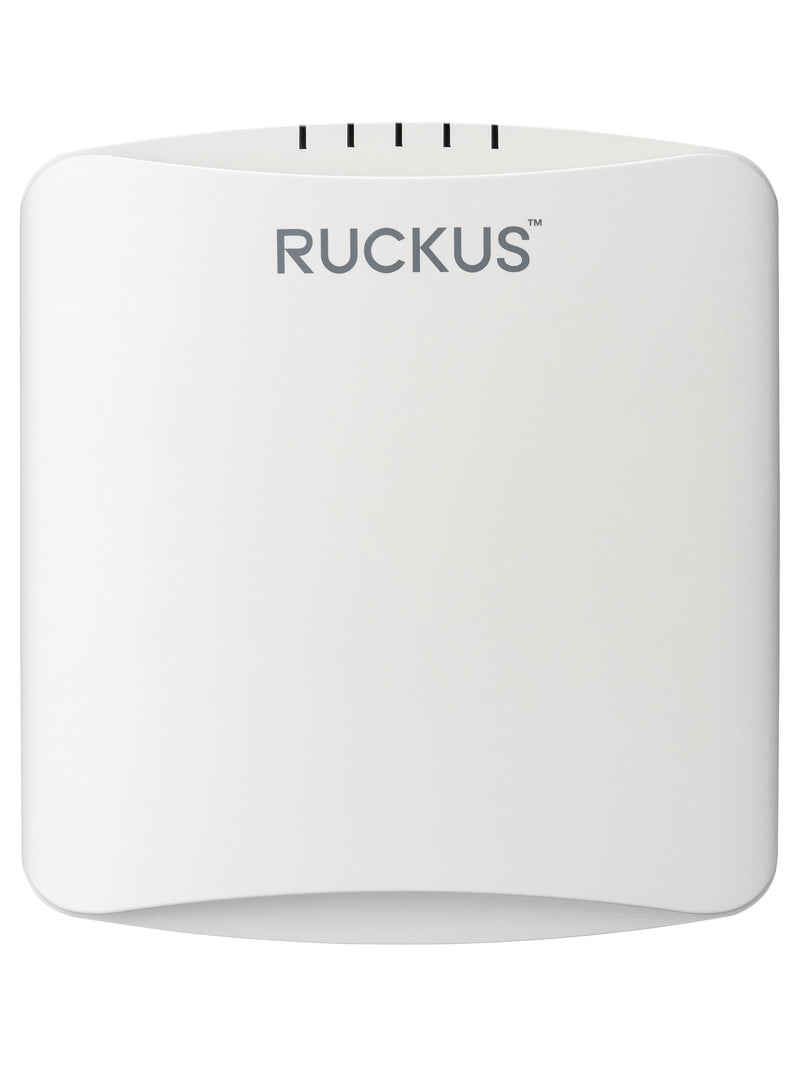

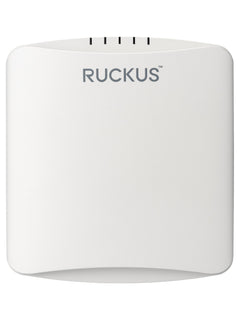

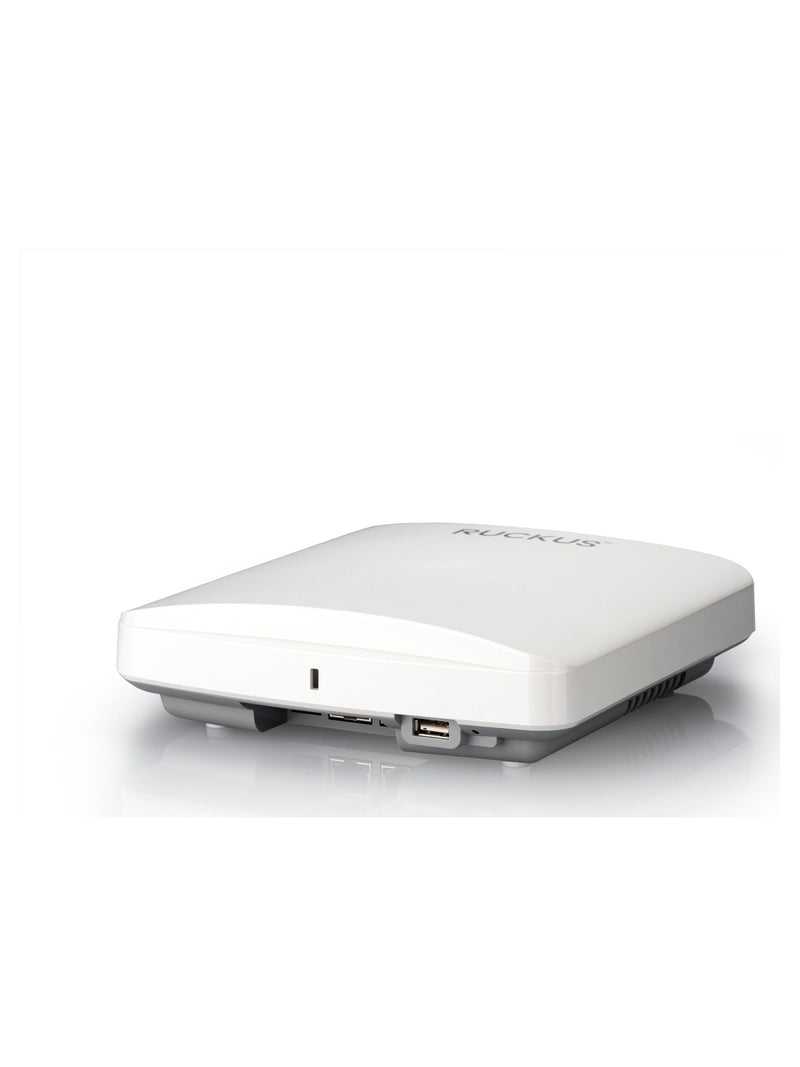

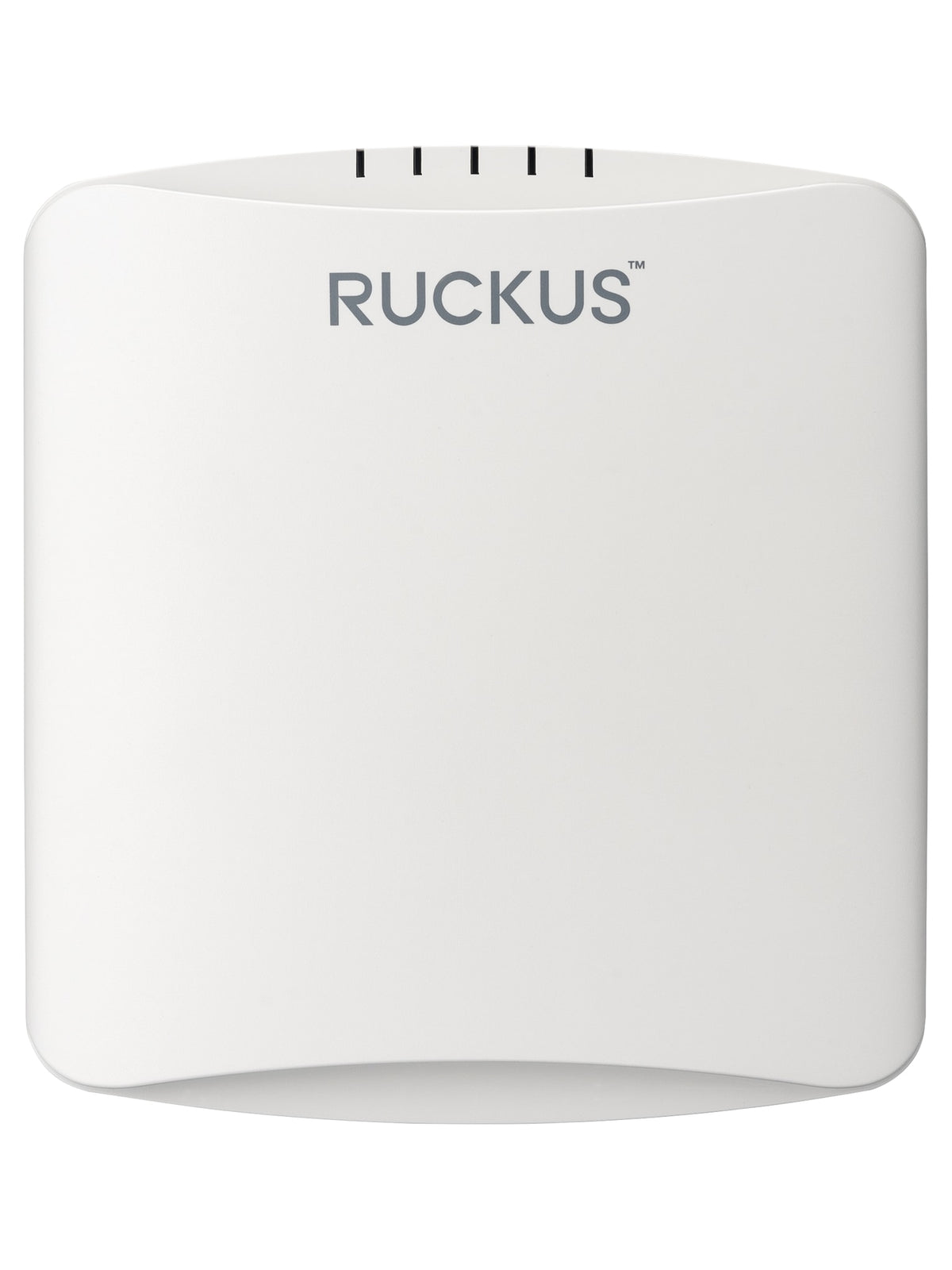

Ruckus R550 Wi-Fi 6 Indoor Access Point - Dual-Band 2x2:2, 1.77 Gbps
Indoor Wi-Fi 6 dual-band access point, 2x2:2 on 2.4 and 5 GHz, up to 1774 Mbps, 512 clients, BeamFlex+ antennas, two GbE ports, PoE and built-in BLE/Zigbee.
Read MoreSpecs
Brand
Ruckus
Model
R550
Product Type
Indoor Wi-Fi 6 Access Point
Part Number
901-R550-WW00 (worldwide)
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3β5 Business Days)
15
Standard delivery with in-store pickup, 3β5 business days.
Express 1β2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1β2 business days.
Ruckus R550 Wi-Fi 6 Indoor Access Point - Dual-Band 2x2:2, 1.77 Gbps
The Ruckus R550 is a mid-range indoor Wi-Fi 6 (802.11ax) access point with dual-band, dual-concurrent 2x2:2 radios. It combines up to 1774 Mbps peak data rate, up to 512 clients, patented BeamFlex+ adaptive antennas, two Gigabit Ethernet ports, 802.3af/at PoE and onboard BLE and Zigbee for IoT. It suits classrooms, offices, residence halls and hallways that need reliable Wi-Fi 6 in medium-density spaces.
Main Specs
- Wi-Fi 6 (802.11ax), dual-band 2.4 / 5 GHz concurrent
- 2x2:2 on each band (4 spatial streams)
- Peak PHY rate 574 Mbps (2.4 GHz) + 1200 Mbps (5 GHz)
- Up to 512 clients and 31 SSIDs per AP
- BeamFlex+ adaptive antennas with up to 64 patterns per band

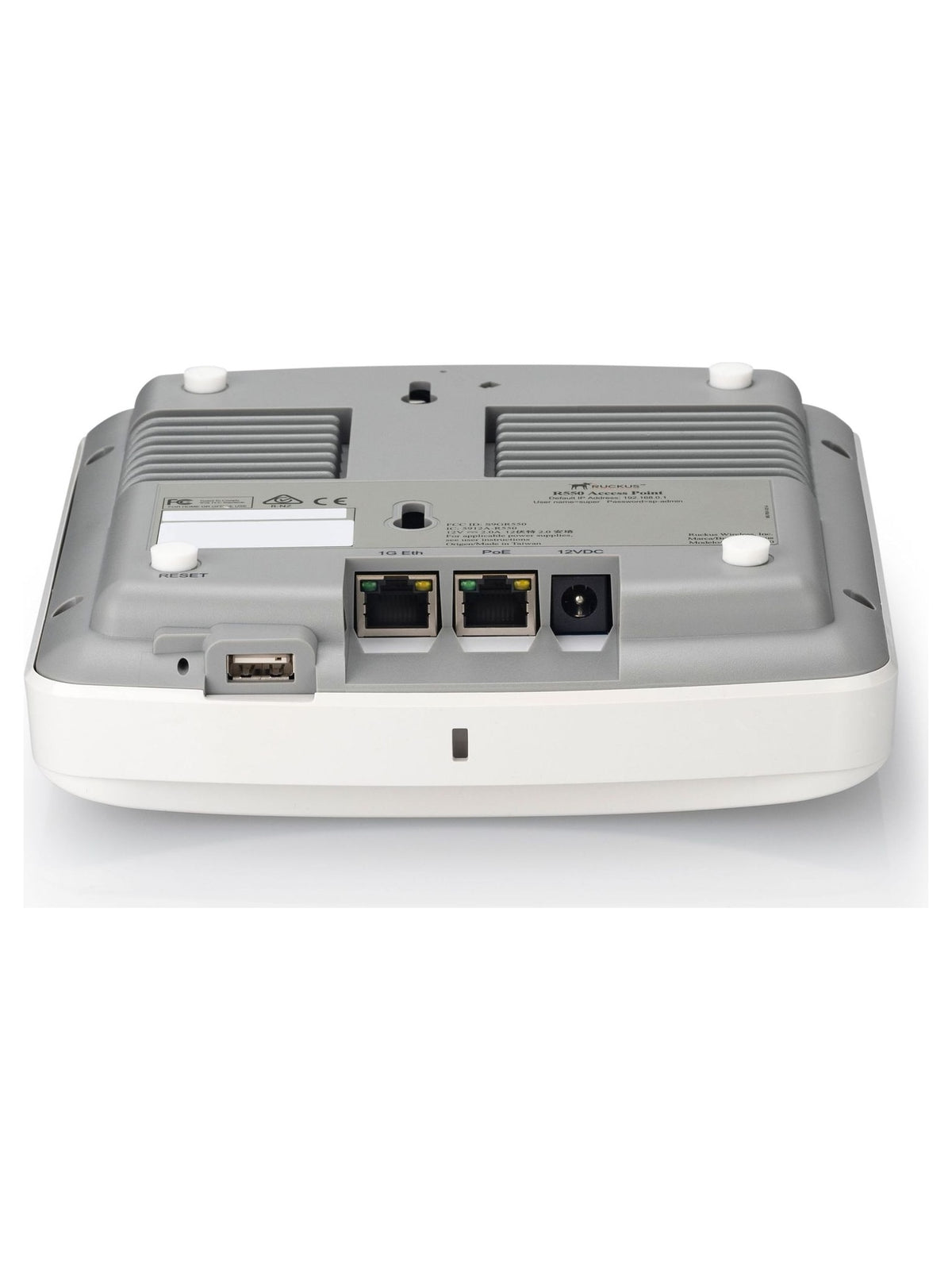

- (2) 1 GbE Ethernet ports, PoE 802.3af/at
- Onboard BLE and Zigbee, USB 2.0 port
- Works with SmartZone, ZoneDirector, Unleashed, cloud or standalone
- Ideal for classrooms, offices and medium-density venues
Main Characteristics
Brand
Ruckus
Model
R550
Product Type
Indoor Wi-Fi 6 Access Point
Part Number
901-R550-WW00 (worldwide)
Wi-Fi Standard
IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Bands
2.4 GHz and 5 GHz, dual-concurrent
Radio Chains and Streams
2x2:2 (5 GHz), 2x2:2 (2.4 GHz)
Peak PHY Rate
2.4 GHz: 574 Mbps, 5 GHz: 1200 Mbps (1774 Mbps combined)
Channel Width
20, 40, 80 MHz
Client Capacity
Up to 512 clients per AP
SSIDs
Up to 31 per AP
Antenna
BeamFlex+ adaptive antennas with polarization diversity, up to 64 patterns per band
Antenna Gain
Up to 3 dBi
Peak Transmit Power
2.4 GHz: 26 dBm, 5 GHz: 25 dBm
Ethernet
2 x 1 GbE
PoE
802.3af / 802.3at (PoE+); 12V DC input
Max Power Consumption
18.71W (PoE+)
USB
1 x USB 2.0 Type A
IoT
Integrated BLE and Zigbee
Security
WPA-PSK, WPA-TKIP, WPA2 AES, WPA3-Personal, WPA3-Enterprise, 802.11i, Dynamic PSK, OWE
Controller Support
SmartZone, ZoneDirector, Unleashed, RUCKUS Cloud, Standalone
Mounting
Wall, acoustic ceiling, desk; ceiling bracket included
Dimensions
17.60 x 19.02 x 4.78 cm (6.93 x 7.49 x 1.88 in)
Weight
0.562 kg (1.24 lbs)
Operating Temperature
0Β°C to 50Β°C (32Β°F to 122Β°F)
Operating Humidity
Up to 95%, non-condensing
In the Box
Access point and adjustable acoustic drop-ceiling bracket (power adapter not included)
Warranty
Limited lifetime warranty (Ruckus)
