Ruckus R650 Wi-Fi 6 Indoor Access Point - 4x4:4 5 GHz, 2.5GbE
Indoor Wi-Fi 6 dual-band access point with 6 spatial streams (4x4:4 5 GHz, 2x2:2 2.4 GHz), up to 2974 Mbps, 512 clients, 2.5GbE port, PoE+ and BLE/Zigbee.
Read MoreSpecs
Brand
Ruckus
Model
R650
Product Type
Indoor Wi-Fi 6 Access Point
Part Number
901-R650-WW00 (worldwide)
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3β5 Business Days)
15
Standard delivery with in-store pickup, 3β5 business days.
Express 1β2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1β2 business days.

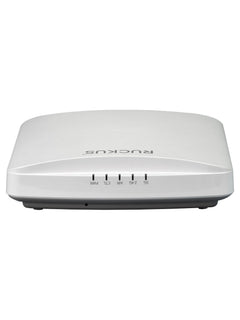

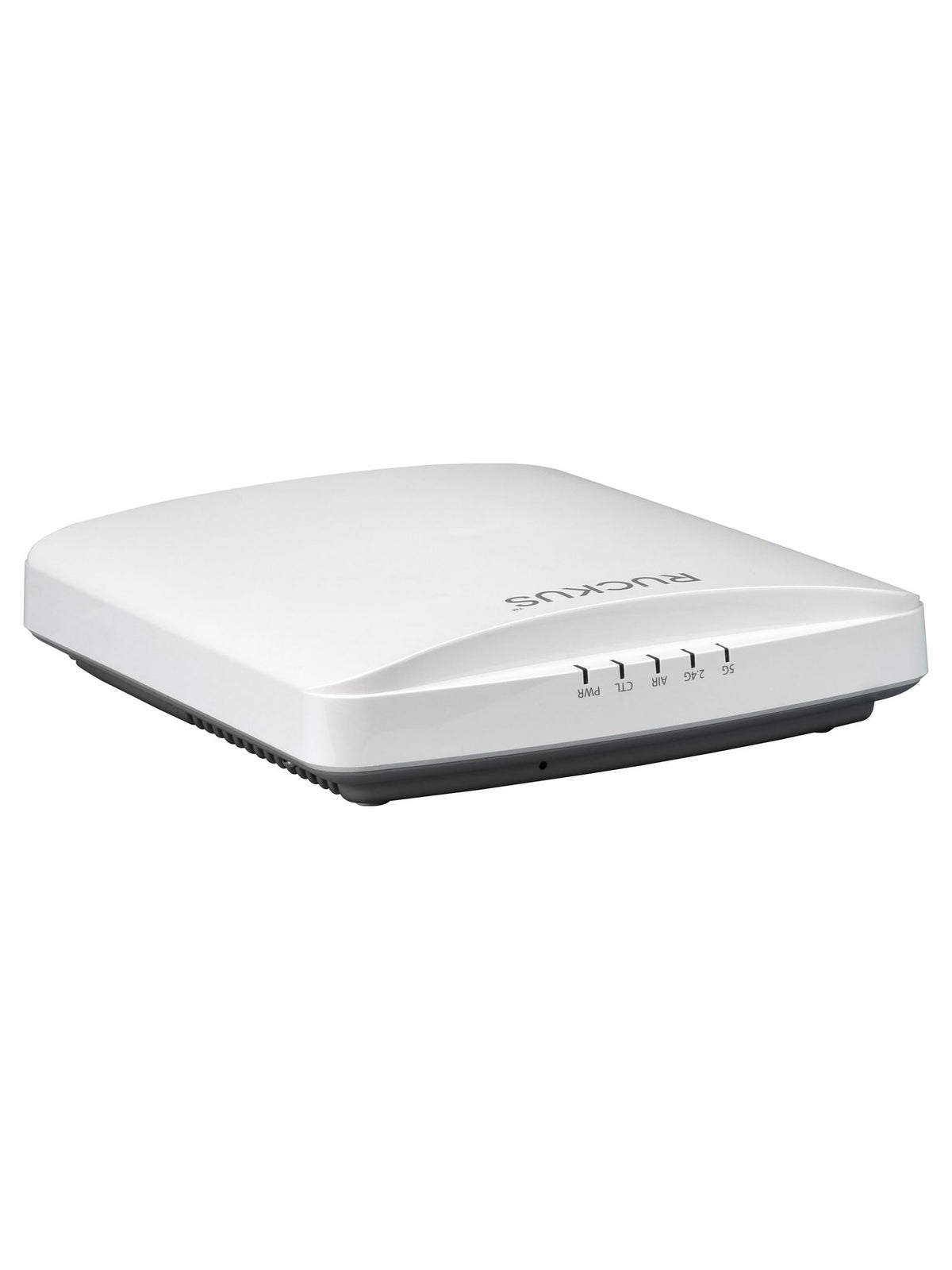

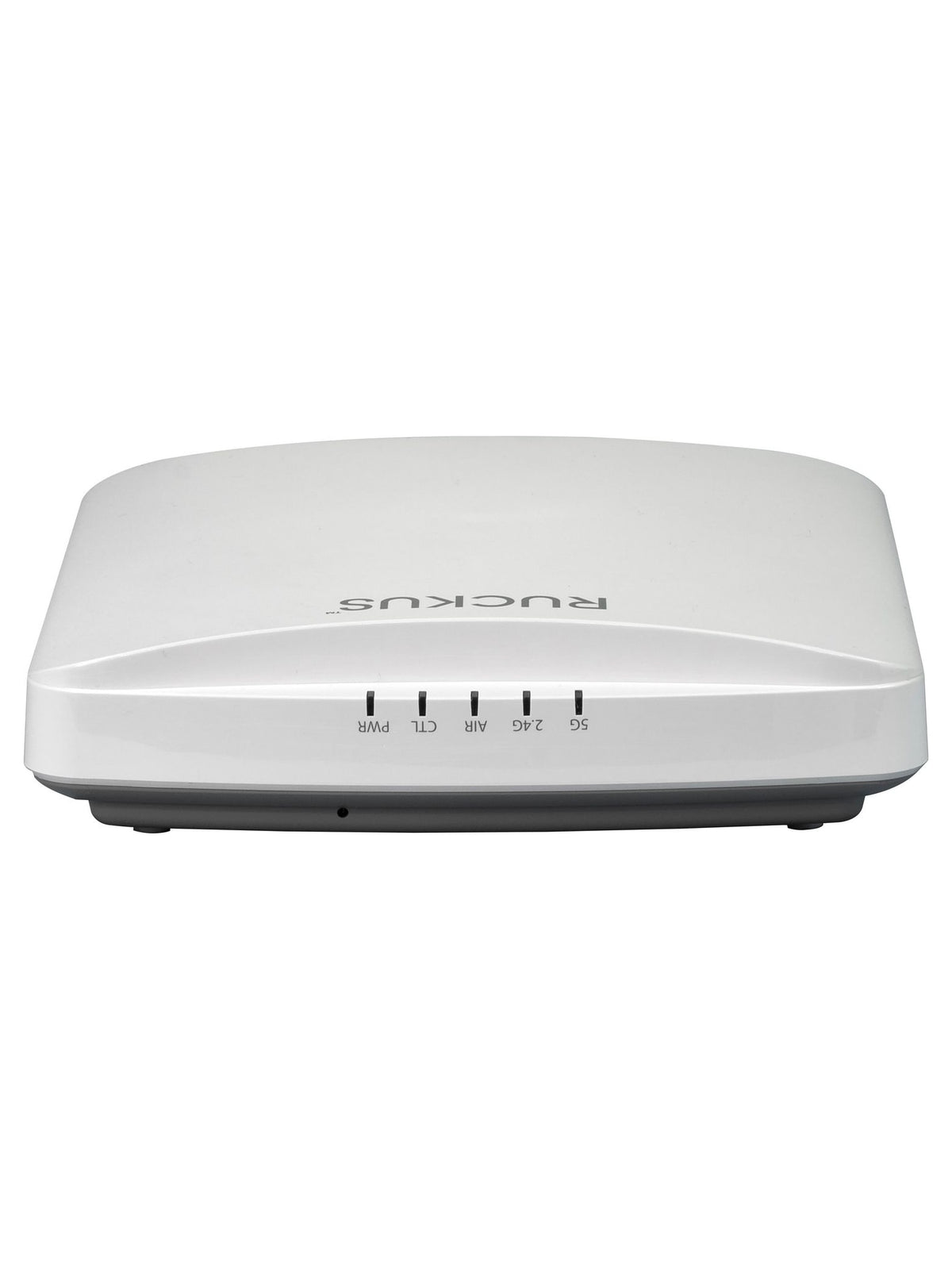

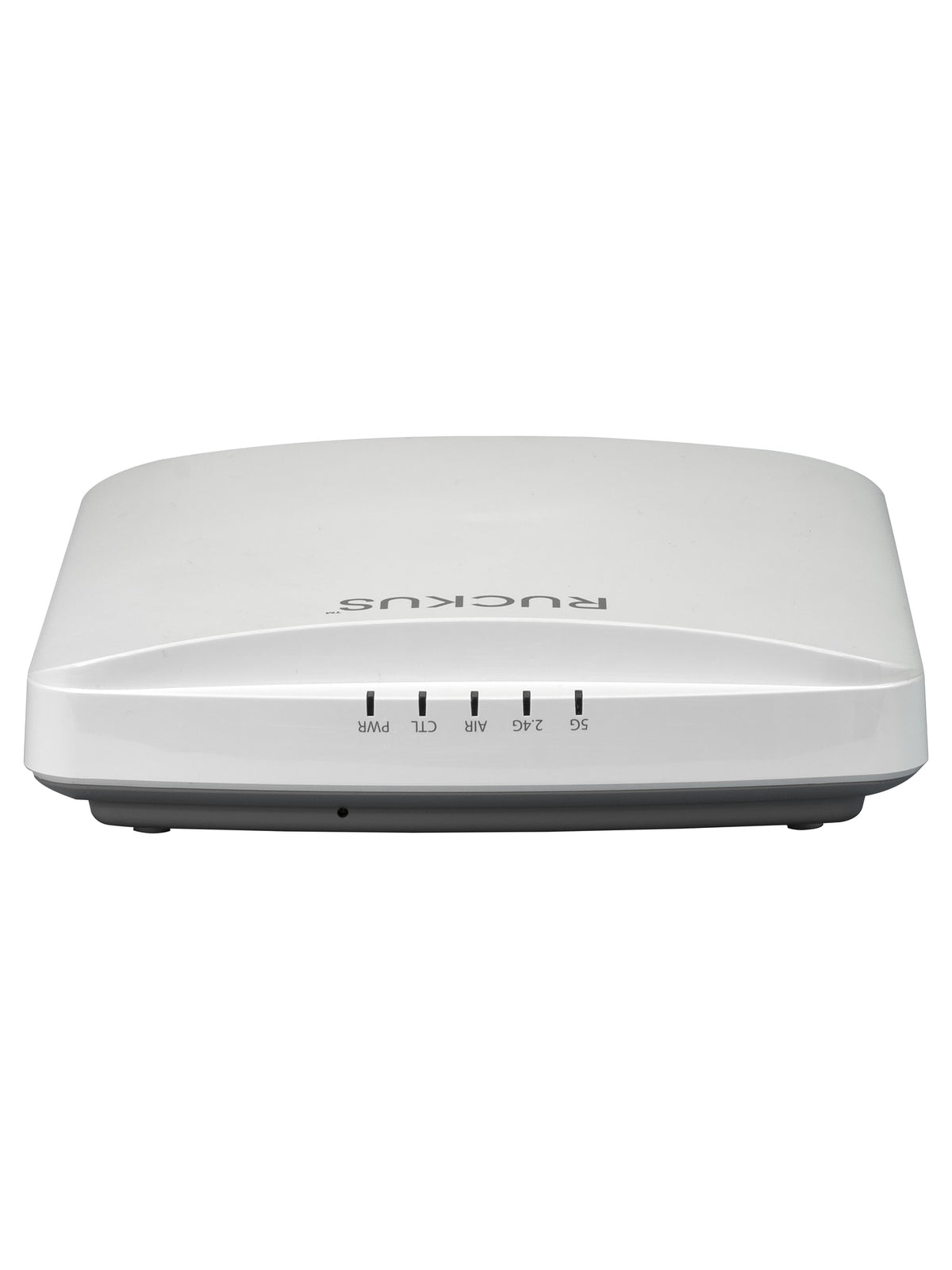

Ruckus R650 Wi-Fi 6 Indoor Access Point - 4x4:4 5 GHz, 2.5GbE
The Ruckus R650 is a mid-range indoor Wi-Fi 6 (802.11ax) access point with six spatial streams, 4x4:4 on 5 GHz and 2x2:2 on 2.4 GHz. It combines up to 2974 Mbps peak PHY rate, up to 512 clients, BeamFlex+ adaptive antennas, a 2.5 GbE plus a 1 GbE port, 802.3af/at PoE and onboard BLE and Zigbee. It suits office buildings, classrooms and retail venues with many devices and bandwidth-hungry applications.
Main Specs
- Wi-Fi 6 (802.11ax), dual-band 2.4 / 5 GHz concurrent
- 4x4:4 on 5 GHz and 2x2:2 on 2.4 GHz (6 spatial streams)
- Peak PHY rate 574 Mbps (2.4 GHz) + 2400 Mbps (5 GHz)
- Up to 512 clients and 31 SSIDs per AP
- BeamFlex+ adaptive antennas
- (1) 2.5 GbE and (1) 1 GbE Ethernet ports, PoE 802.3af/at
- Onboard BLE and Zigbee, USB 2.0 port
- Works with SmartZone, ZoneDirector, Unleashed or standalone
- Ideal for offices, classrooms and retail venues with many devices
Main Characteristics
Brand
Ruckus
Model
R650
Product Type
Indoor Wi-Fi 6 Access Point
Part Number
901-R650-WW00 (worldwide)
Wi-Fi Standard
IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Bands
2.4 GHz and 5 GHz, dual-concurrent
Radio Chains and Streams
4x4:4 (5 GHz), 2x2:2 (2.4 GHz)
Peak PHY Rate
2.4 GHz: 574 Mbps, 5 GHz: 2400 Mbps
Channel Width
20, 40, 80, 160 MHz
Client Capacity
Up to 512 clients per AP
SSIDs
Up to 31 per AP
Antenna
BeamFlex+ adaptive antennas with polarization diversity
Antenna Gain
Up to 3 dBi
Peak Transmit Power
2.4 GHz: 26 dBm, 5 GHz: 28 dBm

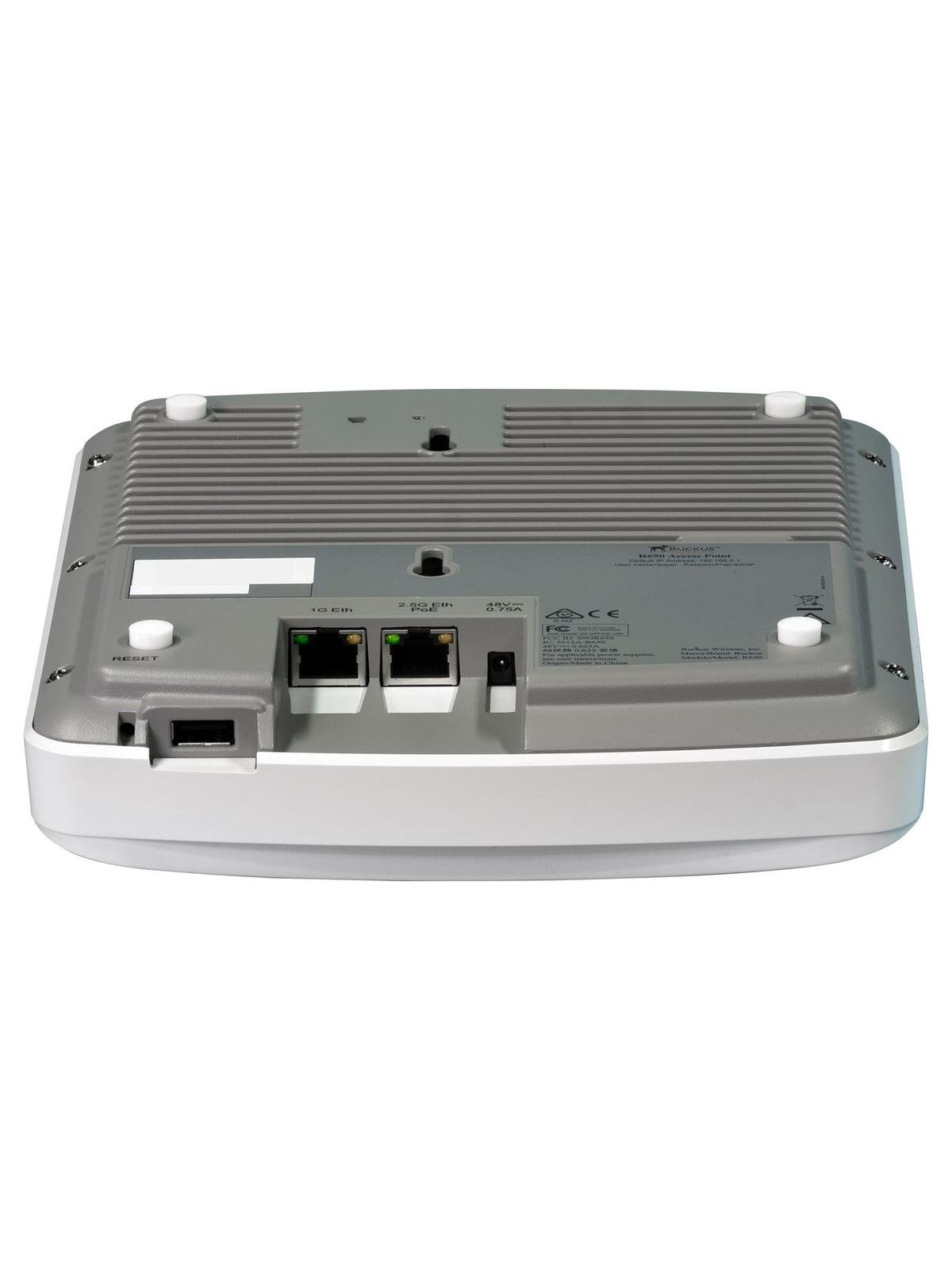

Ethernet
1 x 2.5 GbE, 1 x 1 GbE
PoE
802.3af / 802.3at (PoE+)
Max Power Consumption
21.59W (PoE+)
USB
1 x USB 2.0 Type A
IoT
Integrated BLE and Zigbee
Controller Support
SmartZone, ZoneDirector, Unleashed, Standalone
Mounting
Wall, acoustic ceiling, desk; ceiling bracket included
Dimensions
22.4 x 19.4 x 4.7 cm (8.8 x 7.6 x 1.9 in)
Weight
0.854 kg (1.88 lbs)
Operating Humidity
Up to 95%, non-condensing
In the Box
Access point and adjustable acoustic drop-ceiling bracket (power adapter not included)
Warranty
Limited lifetime warranty (Ruckus)
