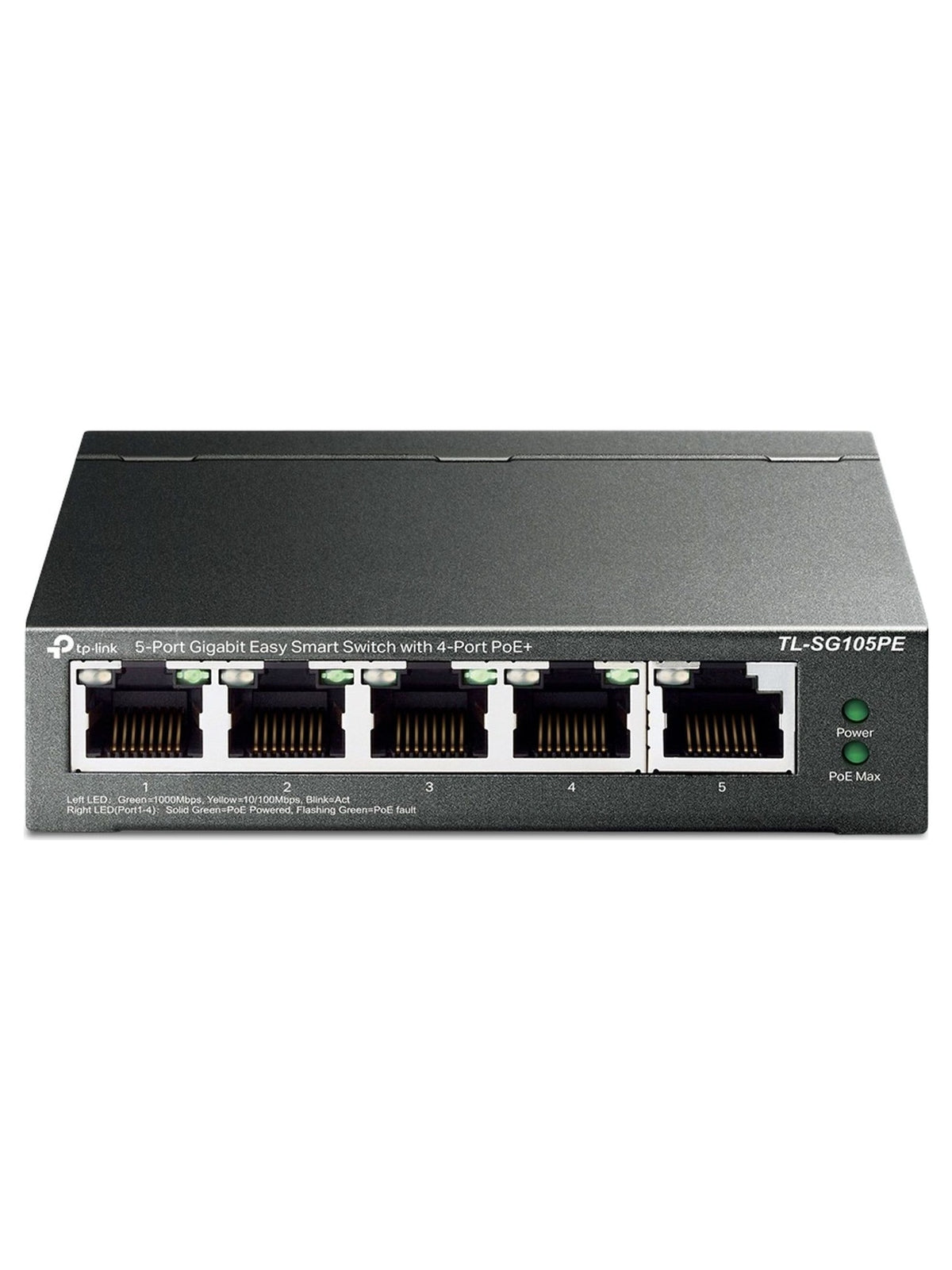

TP-Link TL-SG105PE – Switch 5Port Gigabit Easy Smart with 4-Port PoE+ (65W)
5-port Gigabit Easy Smart managed switch with 4 PoE+ ports, 65W PoE budget, VLAN, QoS, and IGMP snooping
Read MoreSpecs
Brand
TP-Link
Model
TL-SG105PE
Product Type
Easy Smart Gigabit PoE+ Switch
Ports
5 x 10/100/1000 Mbps RJ45
- Regular price
- $0.00 USD
- Sale price
- $0.00 USD
- Regular price
-
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
TP-Link TL-SG105PE – Switch 5Port Gigabit Easy Smart with 4-Port PoE+ (65W)
The TP-Link TL-SG105PE is a 5-port Gigabit Easy Smart switch with four PoE+ ports that adds simple management to a compact PoE design. It combines a 65W PoE budget with VLAN, QoS, IGMP snooping, loop prevention, cable diagnostics, and port mirroring, managed through a web interface or the Easy Smart Configuration Utility. Its fanless metal build makes it suitable for small offices and surveillance setups that need powered devices and basic network control.
Main Specs
- 5 Gigabit Ethernet RJ45 ports
- 4 PoE+ ports (802.3af/at), up to 30W per port
- 65W total PoE budget
- Easy Smart management via web UI or utility
- 802.1Q VLAN, QoS, and IGMP snooping
- Loop prevention and cable diagnostics
- Port mirroring and static link aggregation
- Fanless metal design, desktop or wall mounting
- Ideal for small offices, IP cameras, and access points
Main Characteristics
Brand
TP-Link
Model
TL-SG105PE
Product Type
Easy Smart Gigabit PoE+ Switch
Ports
5 x 10/100/1000 Mbps RJ45
PoE Ports
4 x PoE+ (Ports 1-4)
PoE Standard
IEEE 802.3af/at
PoE Budget
65 W
Max PoE per Port
30 W
Switching Capacity
10 Gbps
Packet Forwarding Rate
7.44 Mpps
MAC Address Table
2K
Jumbo Frame
16 KB
Management
Web GUI, Easy Smart Configuration Utility
VLAN
802.1Q, MTU/Port/Tag VLAN, up to 32 VLANs
QoS
Port-based, 802.1p and DSCP, 4 Priority Queues, Rate Limiting, Storm Control
Features
IGMP Snooping, Loop Prevention, Cable Diagnostics, Port Mirroring, Static Link Aggregation, PoE Auto Recovery
Power
External Adapter, 53.5 VDC / 1.31 A
Casing
Metal
Cooling
Fanless
Mounting
Desktop or Wall
Dimensions (W x D x H)
99.8 x 98 x 25 mm
