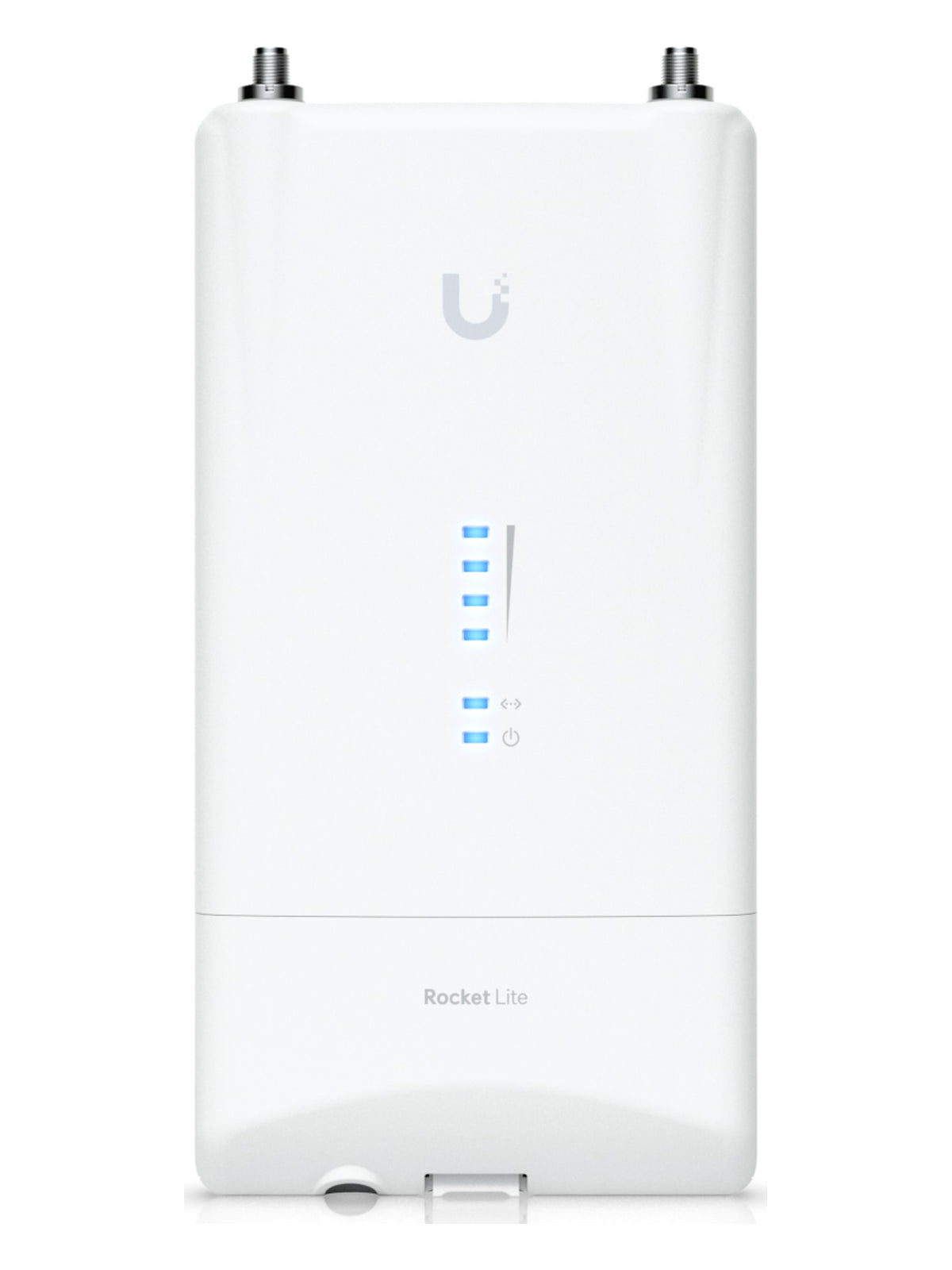

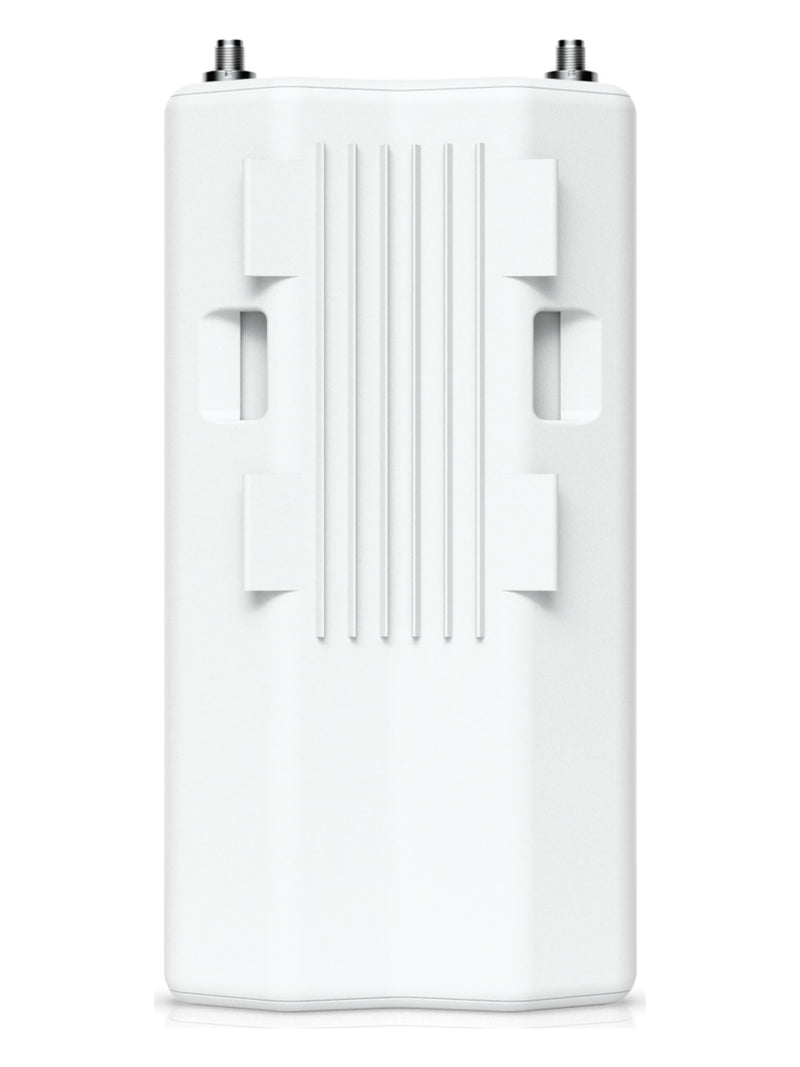

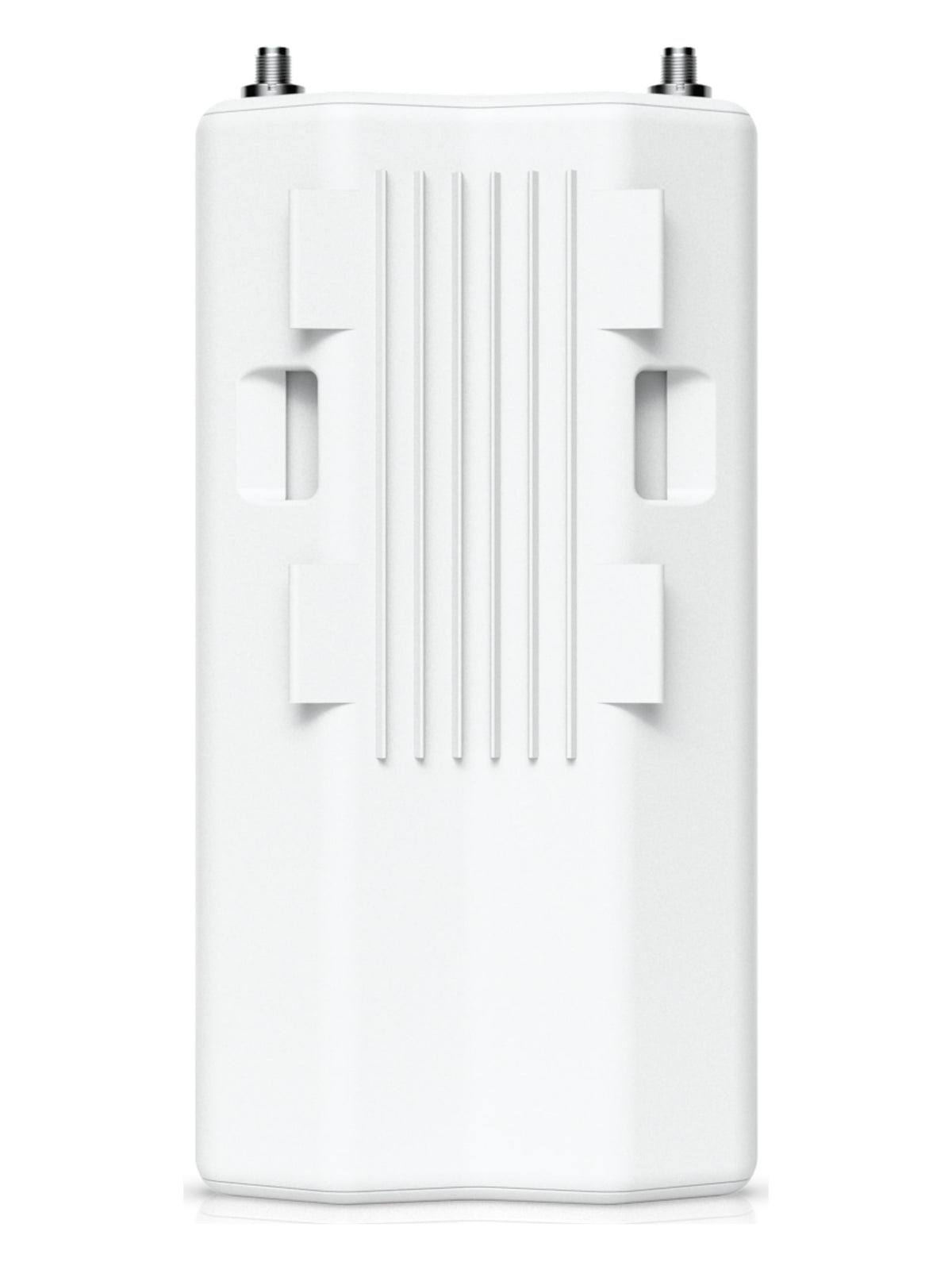

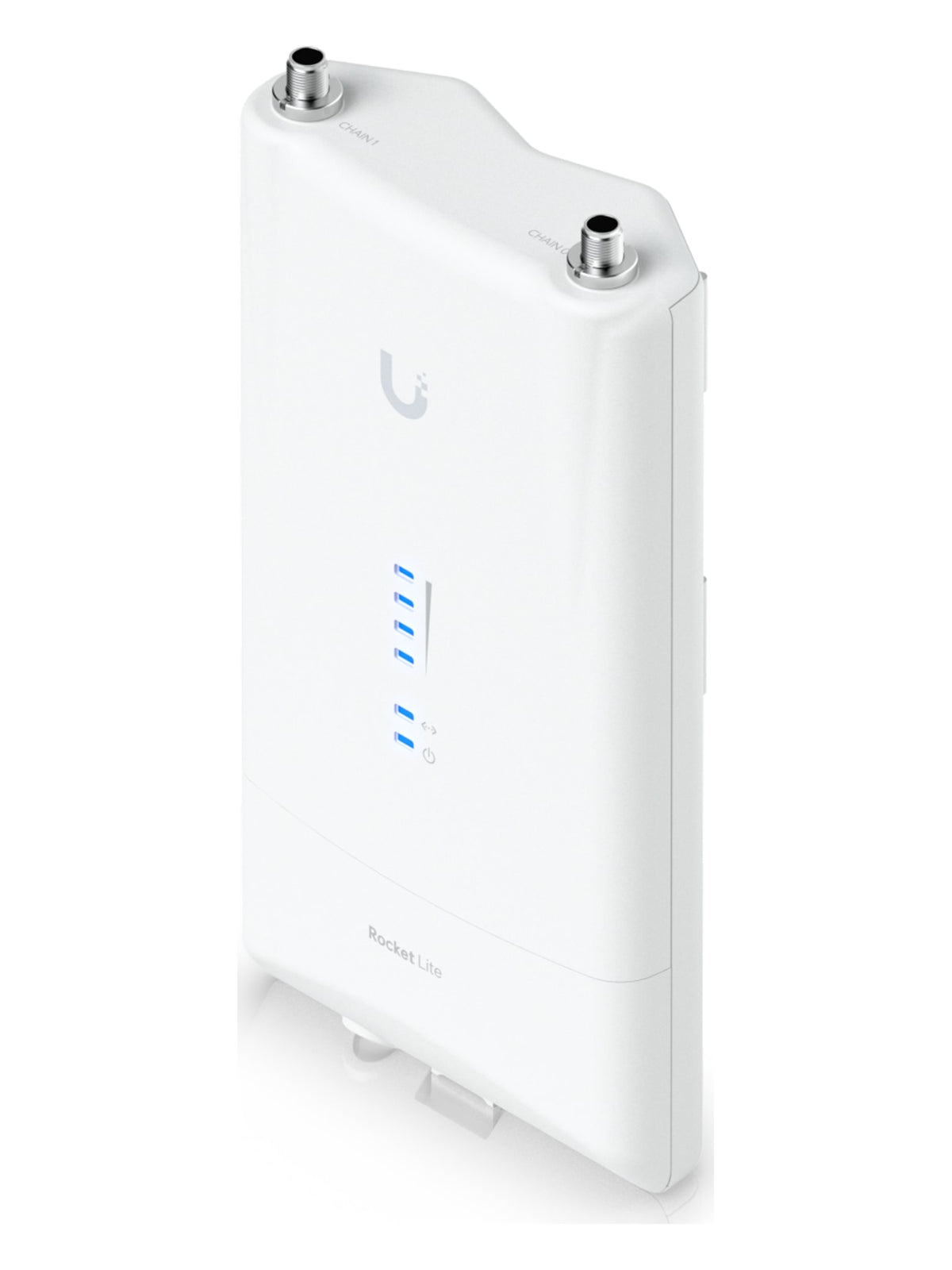

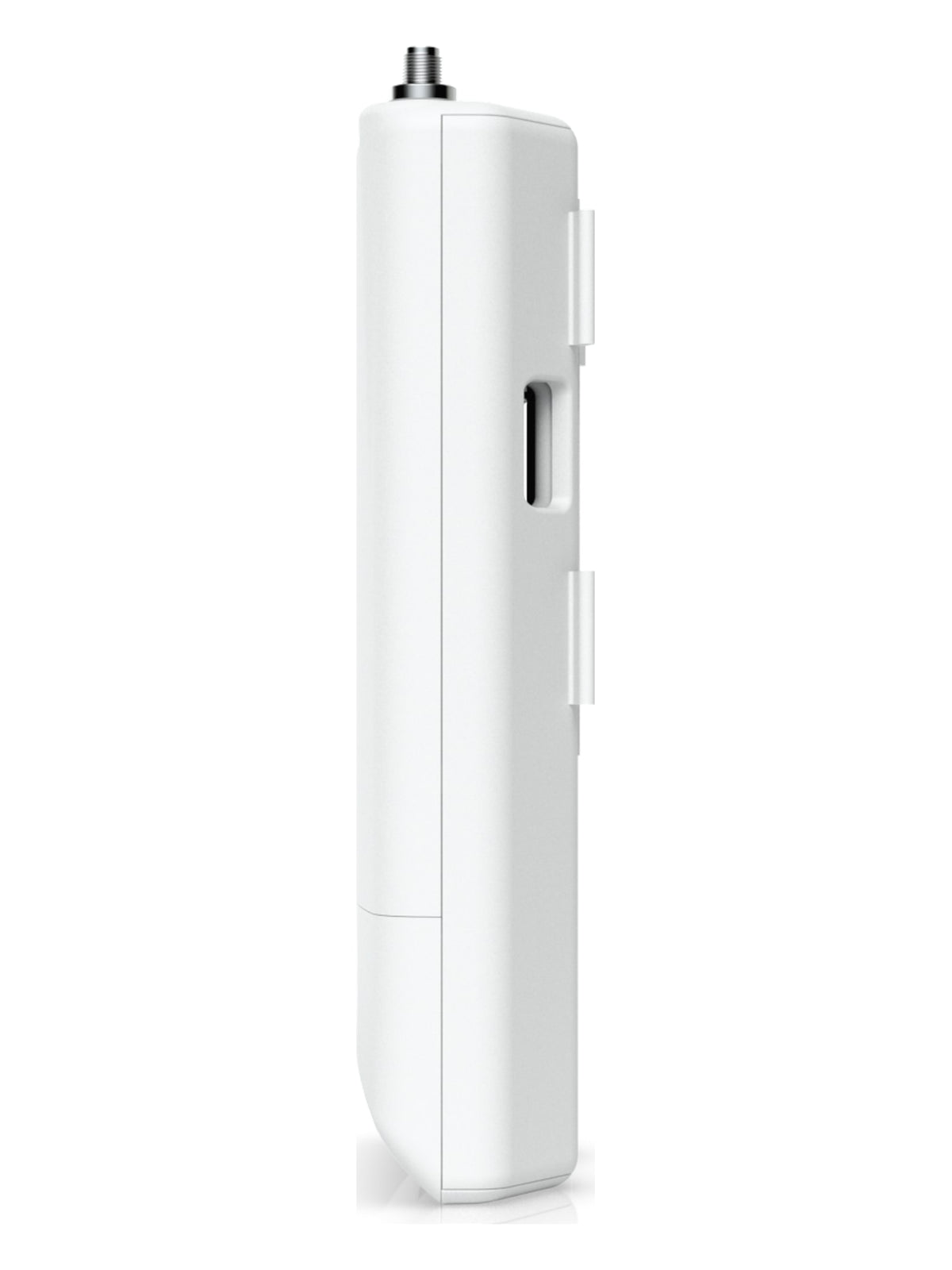

Ubiquiti airMAX Rocket 5AC Lite 5 GHz BaseStation Radio
airMAX AC 5 GHz outdoor BaseStation radio with up to 500+ Mbps throughput, a Gigabit port, two waterproof RP-SMA antenna connectors and a 24V PoE adapter included.
Read MoreSpecs
Brand
Ubiquiti
Model
R5AC-LITE
Product Type
airMAX AC BaseStation Radio
Throughput
Up to 500+ Mbps (airMAX AC)
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Ubiquiti airMAX Rocket 5AC Lite 5 GHz BaseStation Radio
The Ubiquiti airMAX Rocket 5AC Lite is a 5 GHz outdoor BaseStation radio built on airMAX AC technology. It delivers up to 500+ Mbps throughput through a Gigabit Ethernet port and two waterproof RP-SMA connectors for an external airMAX antenna, powered by the included 24V passive PoE adapter. It suits ISPs and installers building point-to-multipoint or point-to-point wireless links.
Main Specs
- airMAX AC technology, up to 500+ Mbps throughput
- 5 GHz band (5150 - 5875 MHz worldwide)
- (2) waterproof RP-SMA connectors for an external antenna
- (1) GbE RJ45 port
- Passive PoE, 24V 0.5A Gigabit PoE adapter included
- 8.5W max. power consumption
- Access Point or Station mode
- Operating temperature -40 to 80° C
- Ideal for ISPs and installers building outdoor wireless links
Main Characteristics
Brand
Ubiquiti
Model
R5AC-LITE
Product Type
airMAX AC BaseStation Radio
Throughput
Up to 500+ Mbps (airMAX AC)
Frequency Range (Worldwide)
5150 - 5875 MHz
RF Connections
(2) RP-SMA (Waterproof)

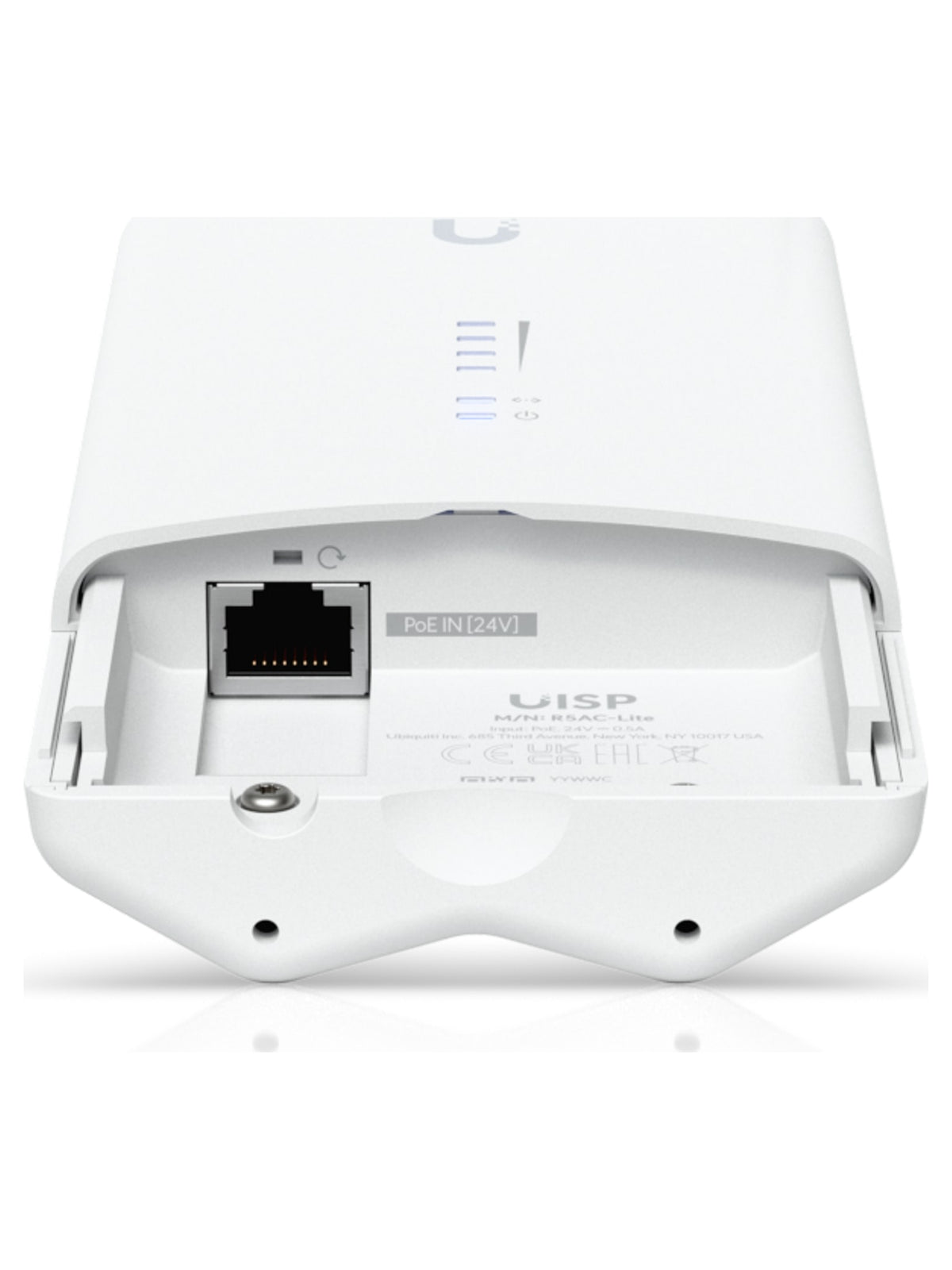

Networking Interface
(1) GbE RJ45 port
Power Method
Passive PoE 2-pair (4, 5+; 7, 8 return)
Power Supply
24V, 0.5A gigabit PoE adapter (Included)
Supported Voltage Range
20–27V DC
Max. Power Consumption
8.5W
Operating Modes
Access Point, Station
Dimensions
162 x 84 x 37 mm (6.4 x 3.3 x 1.5")
Weight
250 g (8.8 oz)
Enclosure
UV-stabilized polycarbonate
Operating Temperature
-40 to 80° C (-40 to 176° F)
Certifications
CE, FCC, IC, Anatel: 02861-15-08356
