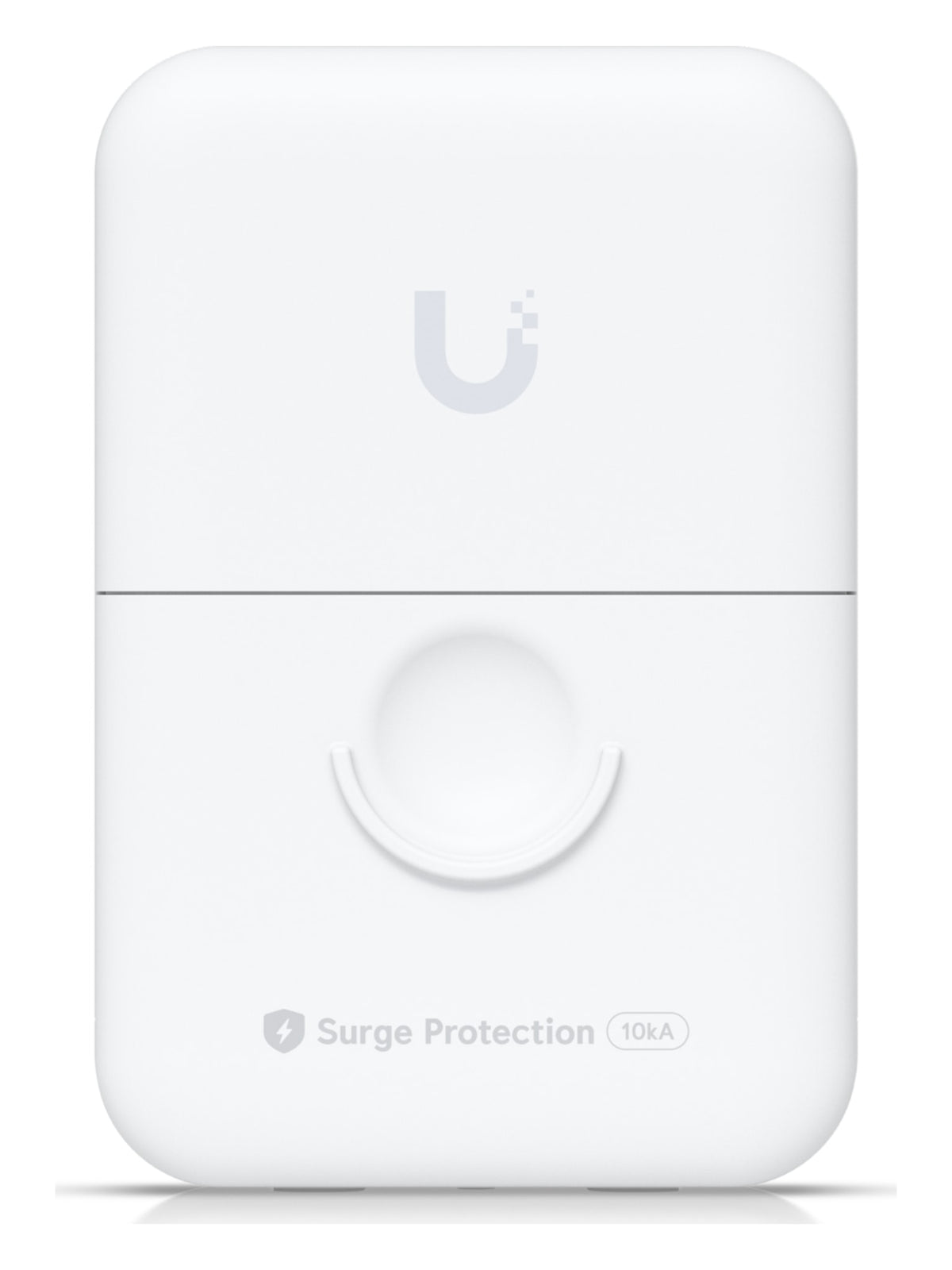

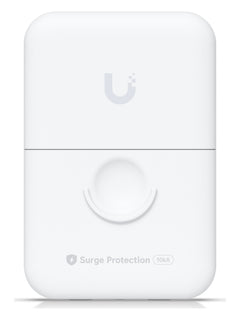

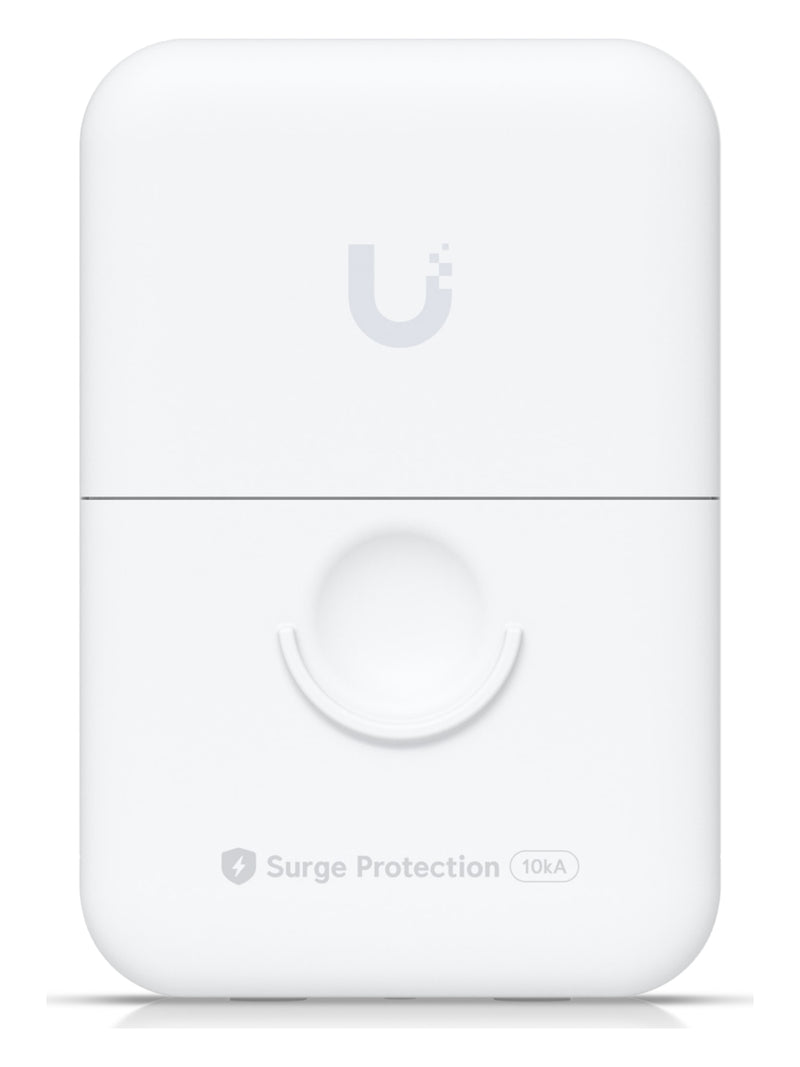

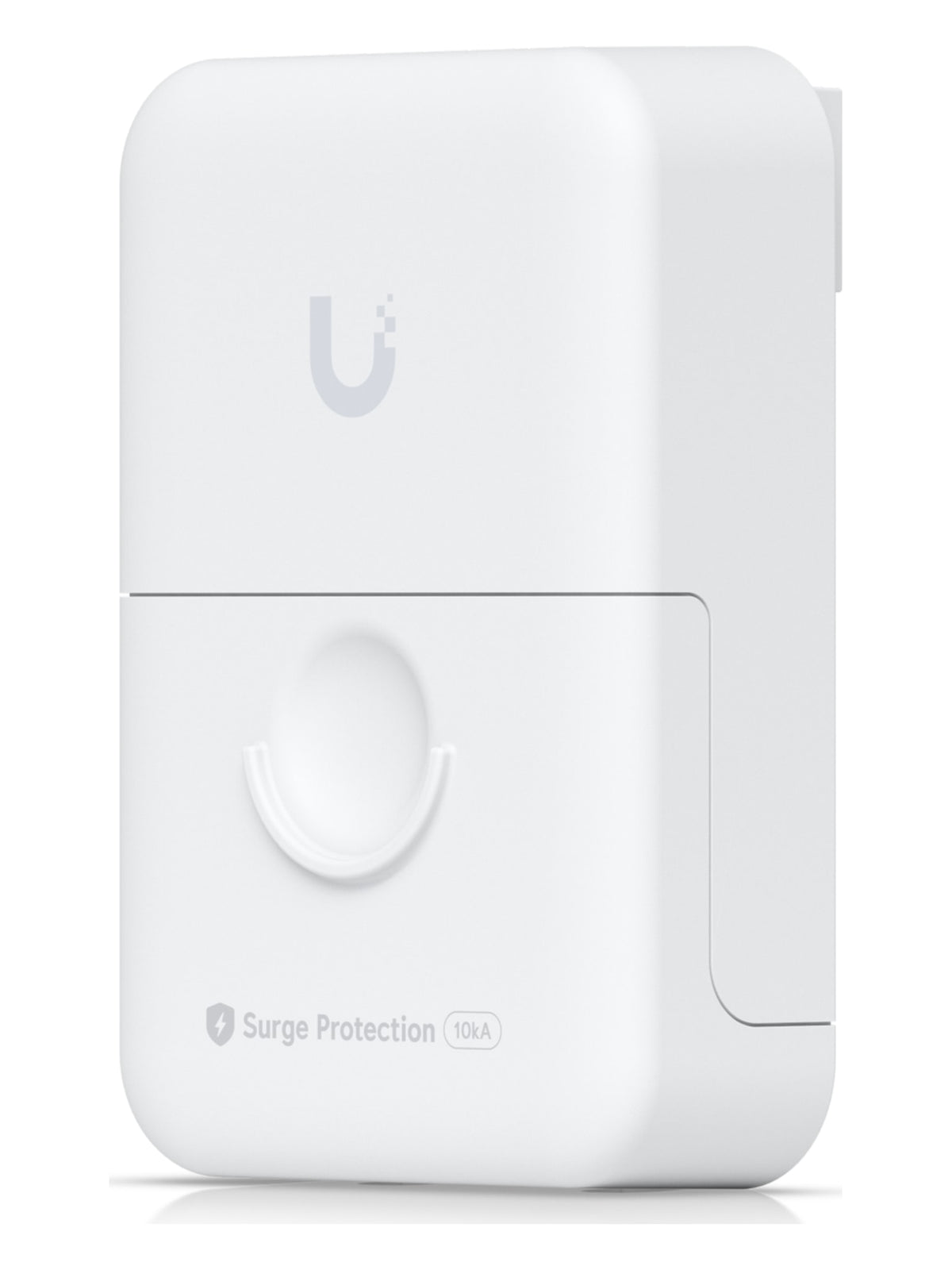

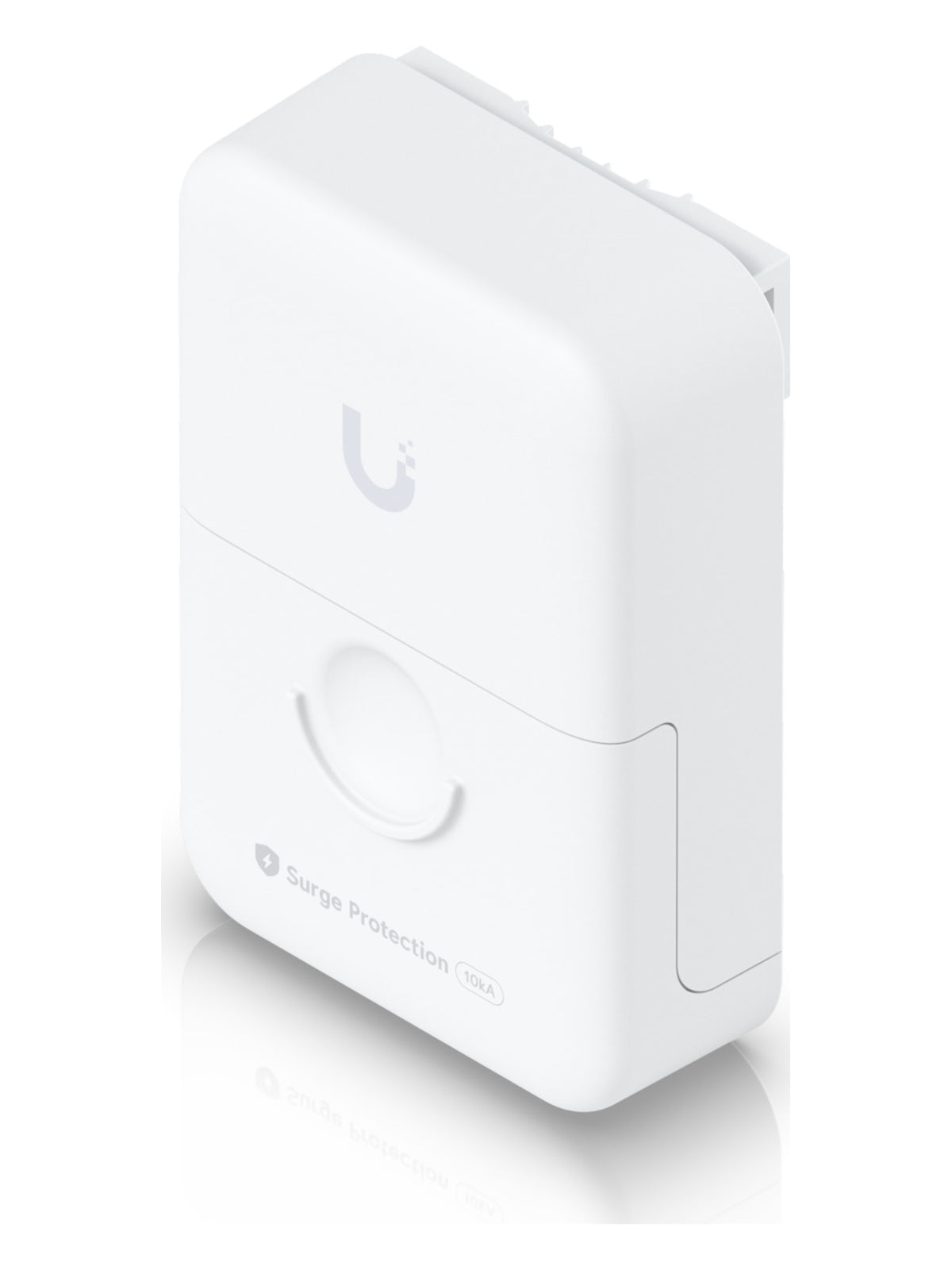

Ubiquiti Ethernet Surge Protector Outdoor (10kA) - ETH-SP-G2
Outdoor Ethernet surge protector rated up to 10kA
Read MoreSpecs
Brand
Ubiquiti
Model
ETH-SP-G2
Product
Ethernet Surge Protection Outdoor (10kA)
Dimensions
91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3")
- Regular price
- $18.00 USD
- Sale price
- $18.00 USD
- Regular price
-
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3β5 Business Days)
15
Standard delivery with in-store pickup, 3β5 business days.
Express 1β2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1β2 business days.
Ubiquiti Ethernet Surge Protector Outdoor (10kA) - ETH-SP-G2
The Ubiquiti Ethernet Surge Protection Outdoor (10kA) (ETH-SP-G2) is an outdoor Ethernet surge protector rated up to 10kA. It sits on the network cable between outdoor equipment and your network and protects both from lightning and power surges. It passes Gigabit data and PoE and mounts on walls or poles.
Main Specs
- Outdoor Ethernet surge protection up to 10kA
- Passes Gigabit Ethernet data and PoE

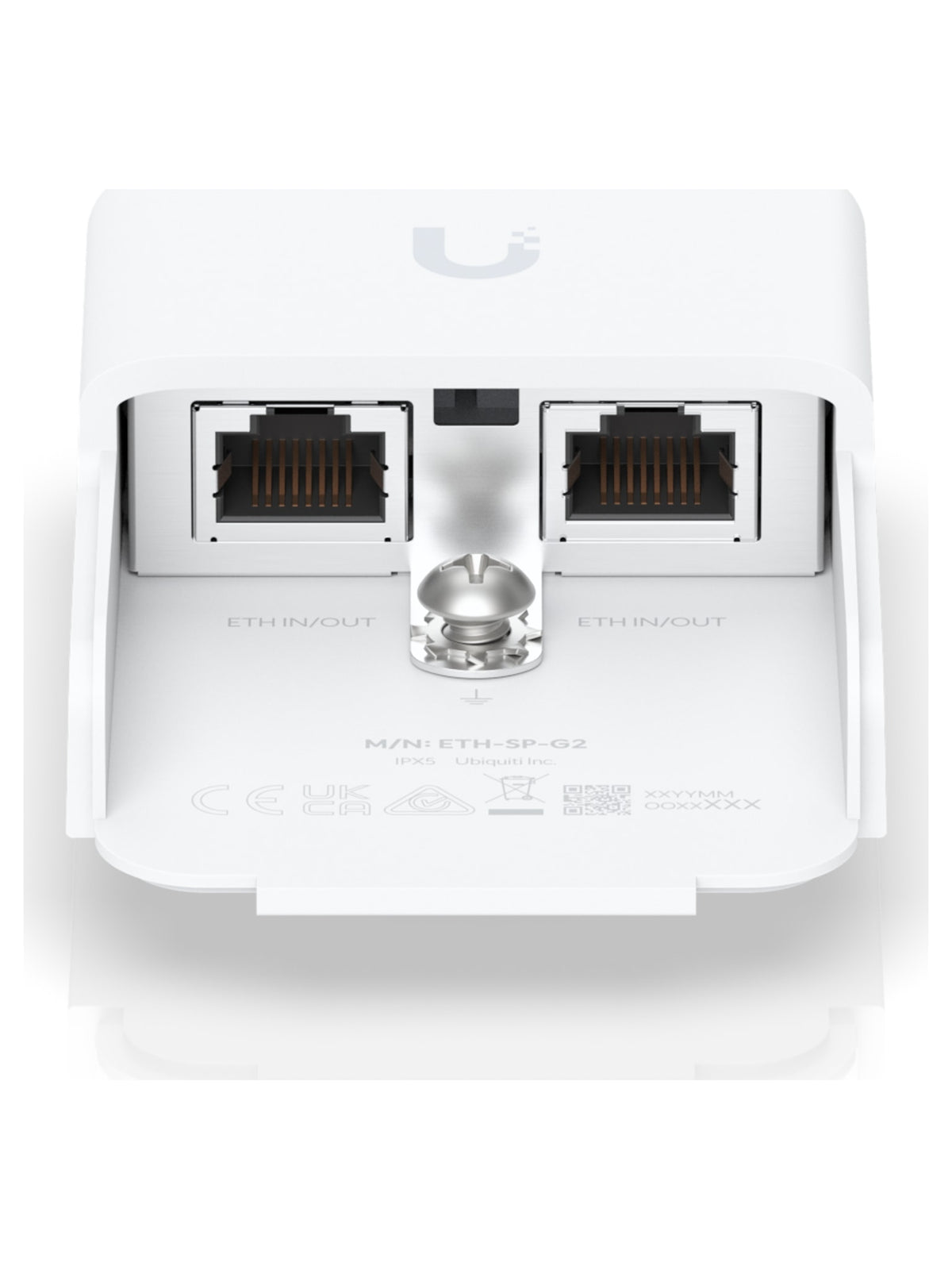

- Two shielded RJ45 connectors (in and out)
- Ground wire terminal for safe discharge
- Weatherproof outdoor enclosure
- Wall or pole mount
- Ideal for protecting outdoor access points, cameras and links
Main Characteristics
Brand
Ubiquiti
Model
ETH-SP-G2
Product
Ethernet Surge Protection Outdoor (10kA)
Dimensions
91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3")
Weight
80 g (2.8 oz)
Enclosure Material
Polycarbonate
Weatherproofing
IPX5
Networking Interface
(2) RJ45 female connectors
DC Spark-Over Voltage
90V @ 100V/s
Max. Impulse Spark-Over Voltage
700V @ 1kV/Β΅s
Discharge Current
10kA+
Insulation
Max. Resistance: 1G ohm @ 50V
Max. Capacitance
1.0 pF @ 1 MHz
Data Line Protection
Up to 2.5 Gbps
ESD Protection
Absorbing transient current with response to surge voltage from 100V/s to 1kV/Β΅s
Ambient Operating Temperature
-30 to 65Β° C (-22 to 149Β° F)
Ambient Operating Humidity
10 to 90% noncondensing
Shock and Vibration Certification
ETSI300-019-1.4 Standard
