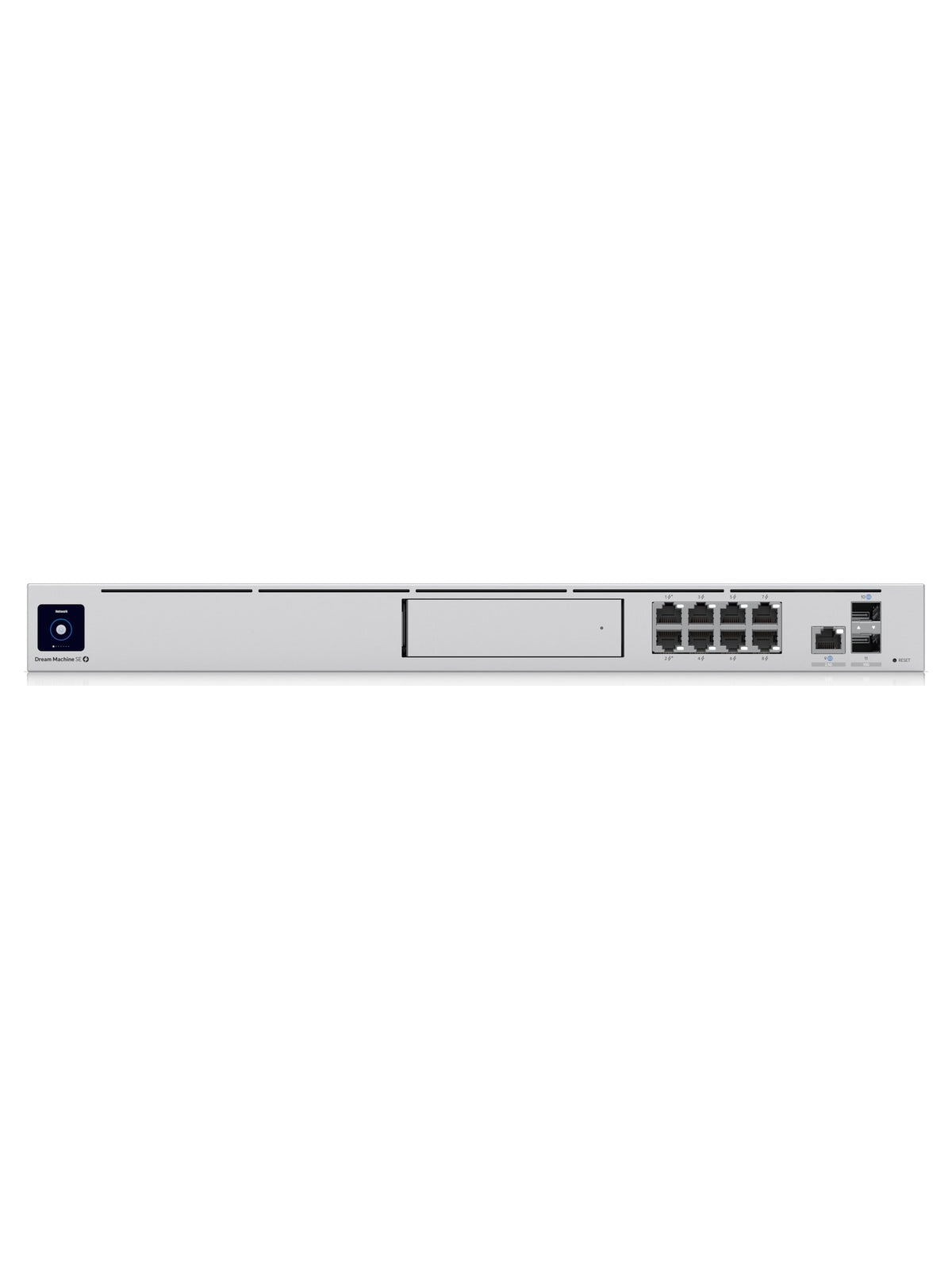

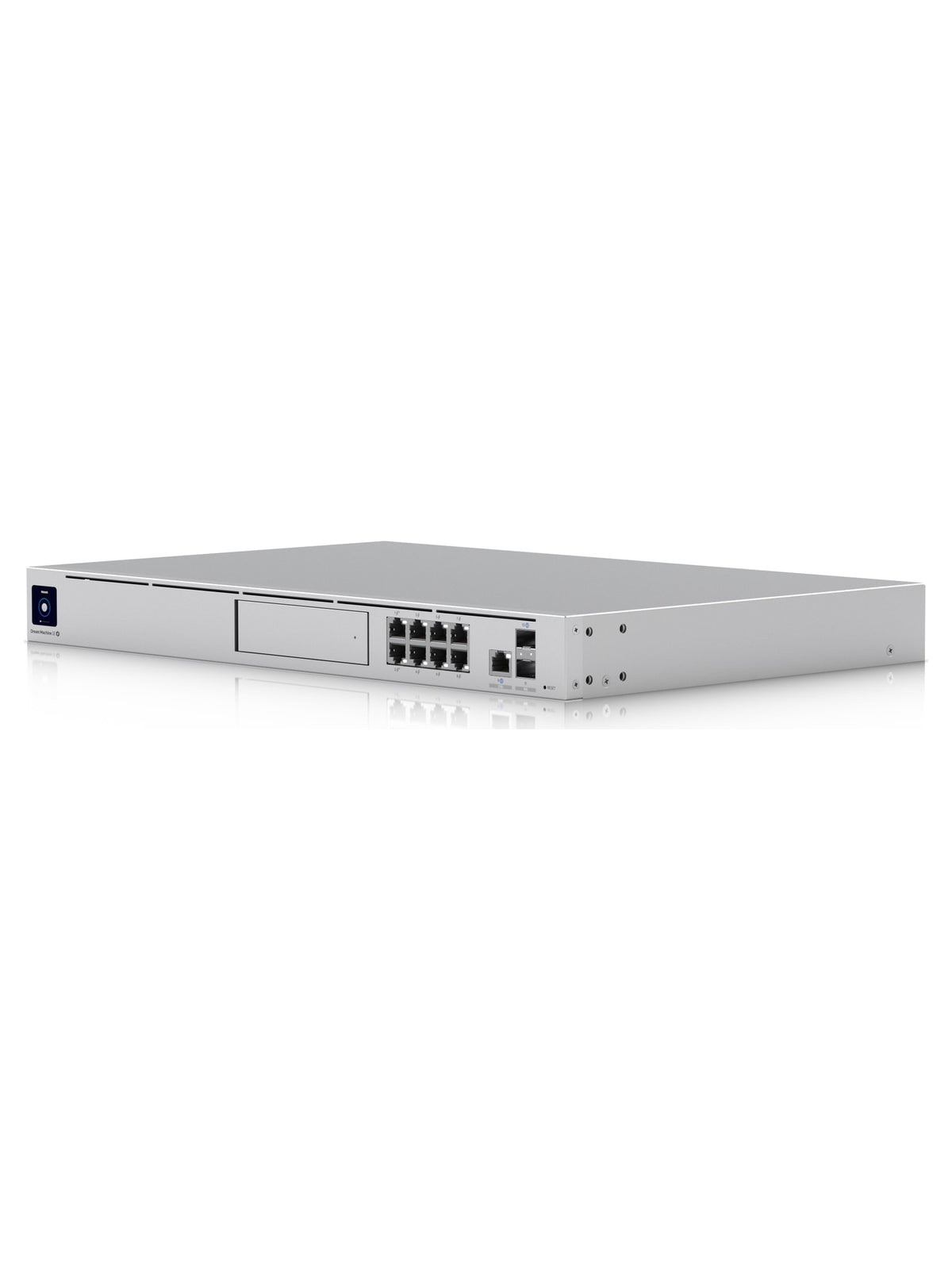

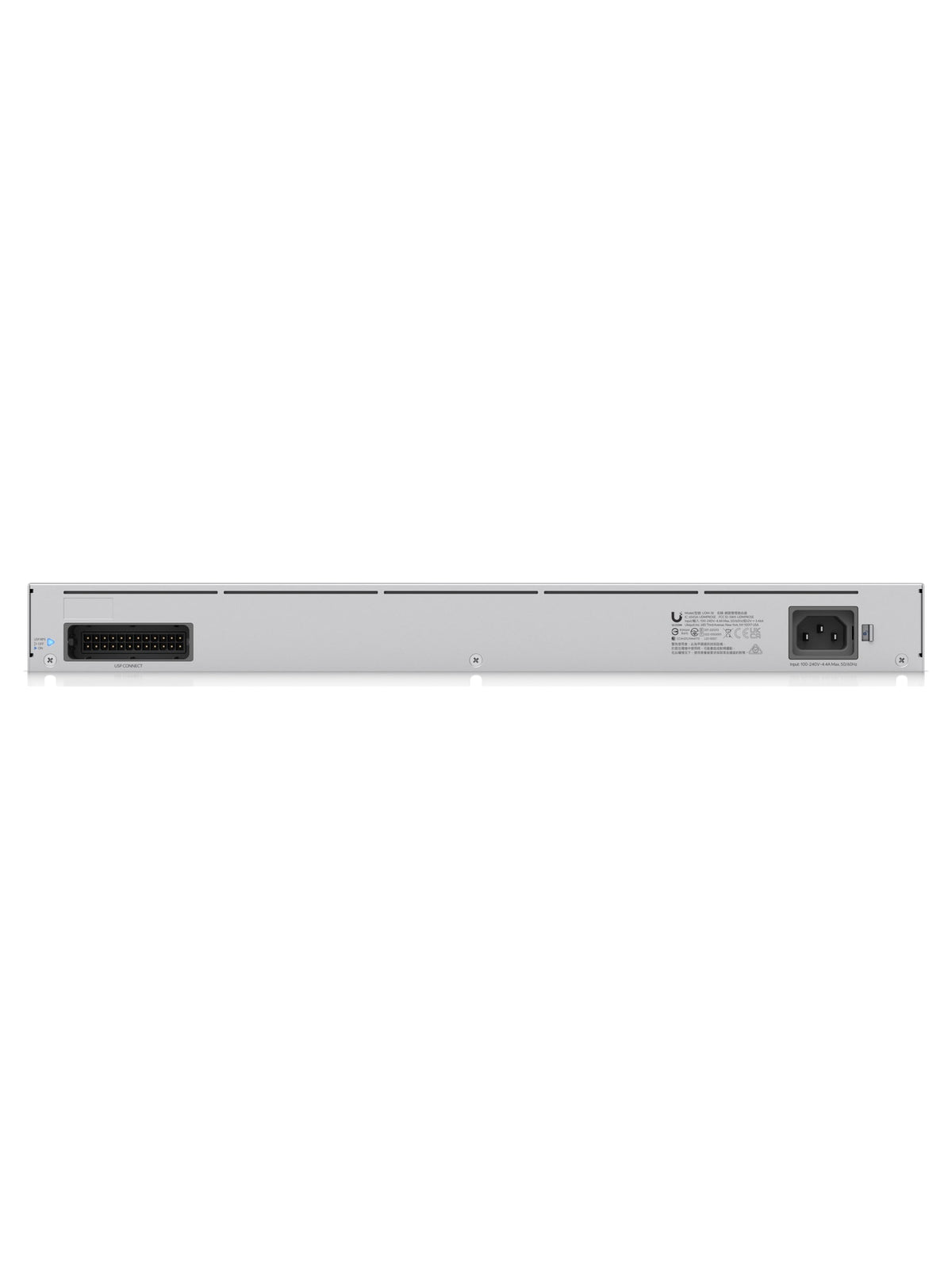

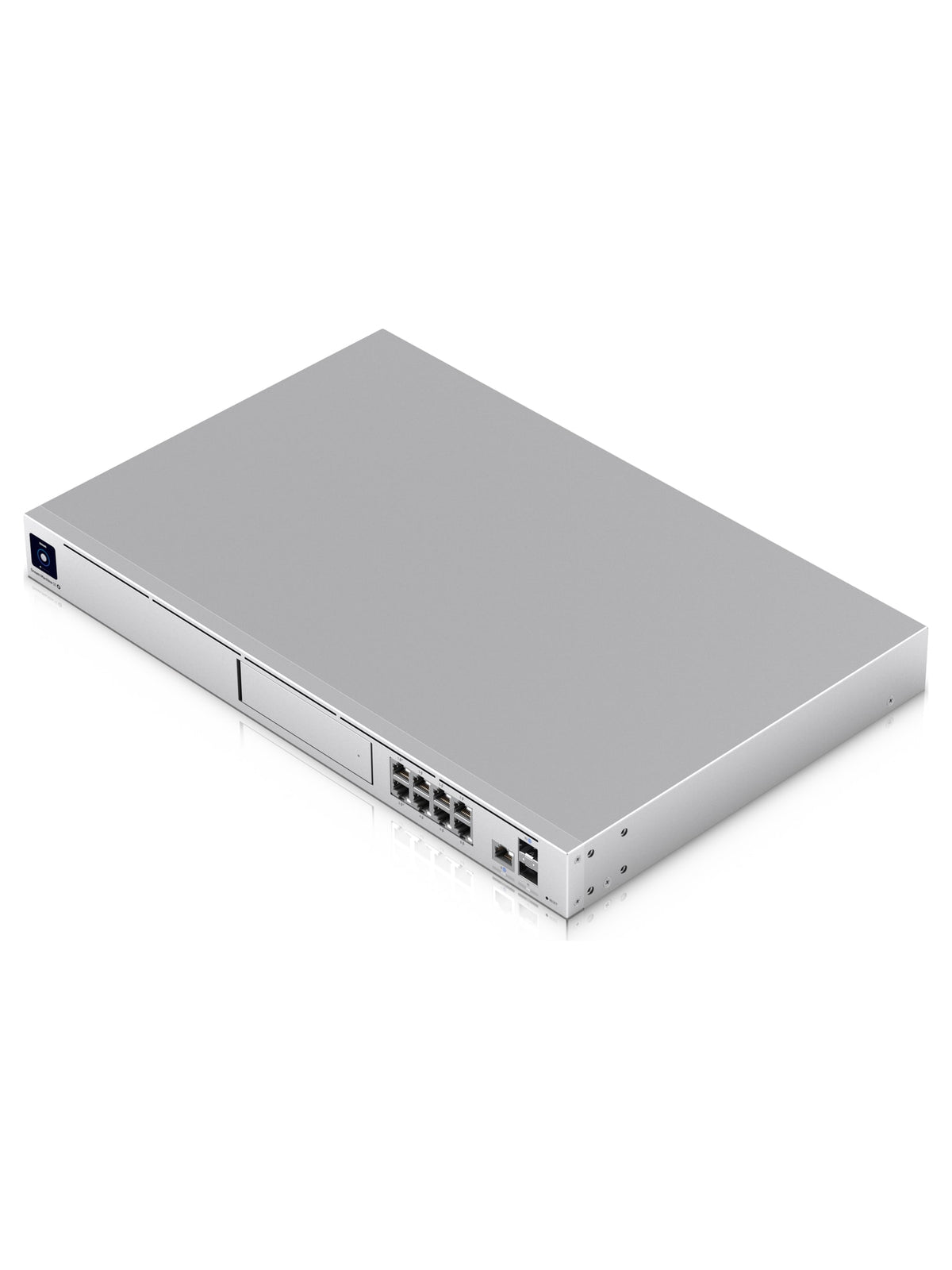

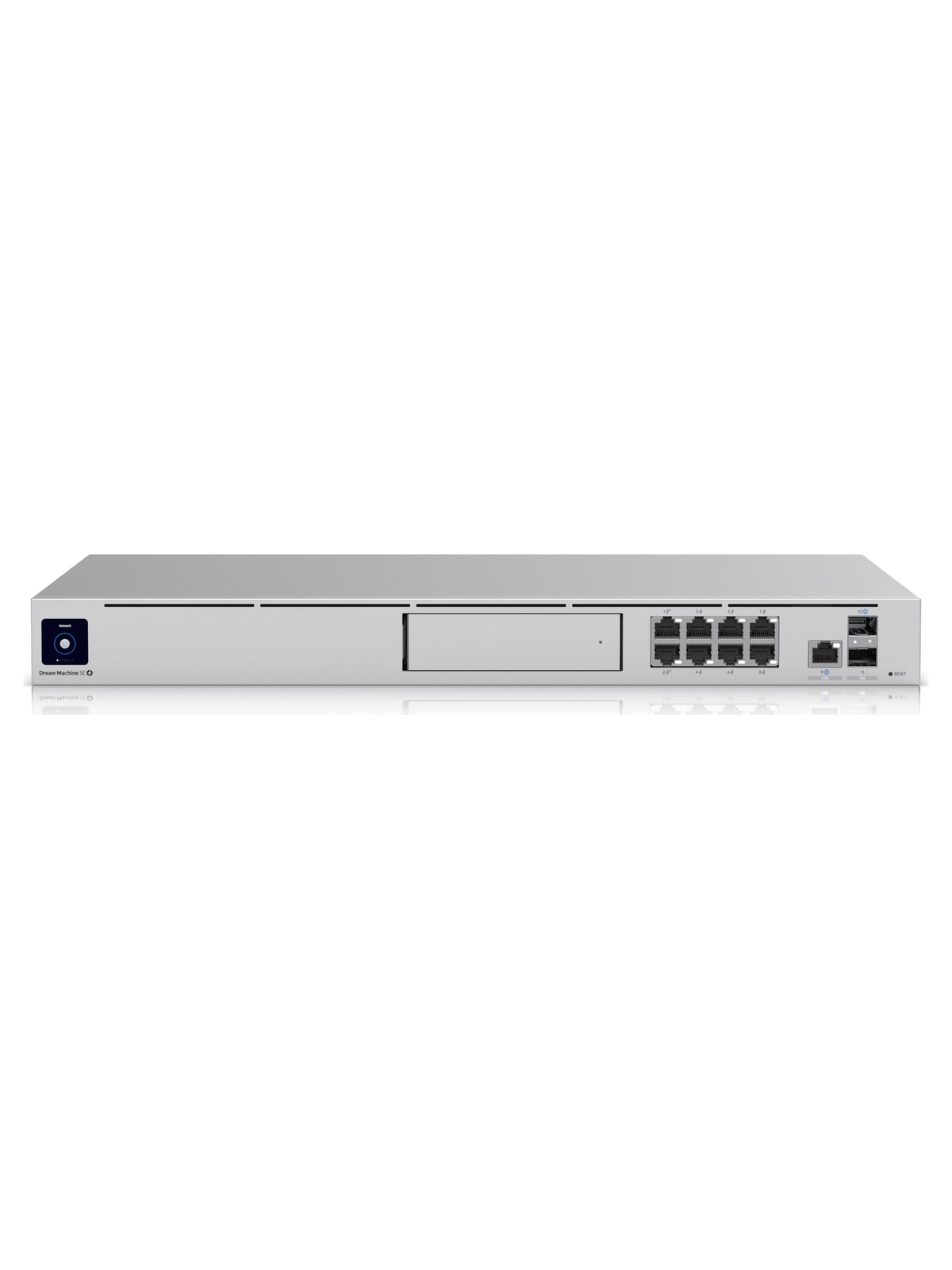

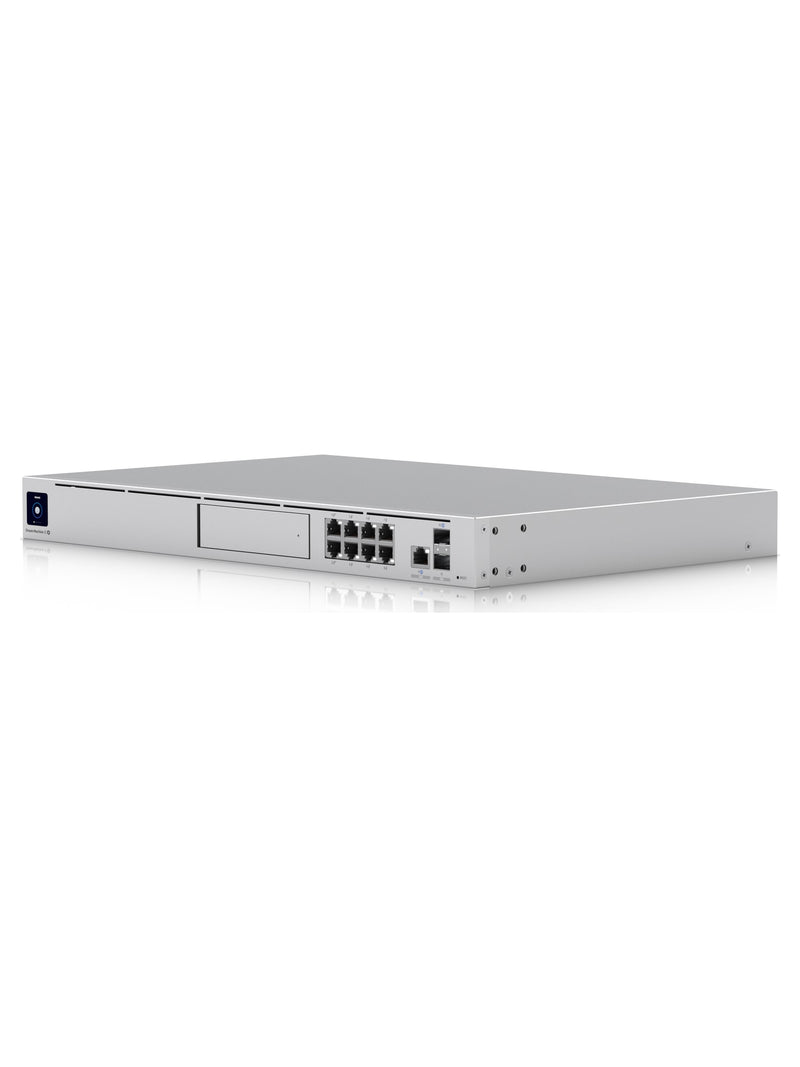

Ubiquiti UniFi Dream Machine Special Edition - 10G Cloud Gateway with PoE Switch
Rack-mount UniFi cloud gateway with 3.5 Gbps IDS/IPS routing, 2.5 GbE and 10G SFP+ WAN, 8-port GbE PoE switch (180W), a 3.5" NVR bay and 128 GB SSD.
Read MoreSpecs
Brand
Ubiquiti
Model
UDM-SE
Product Type
Cloud Gateway / Router
UniFi Applications
Network, Protect, Access, Talk, Connect
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Ubiquiti UniFi Dream Machine Special Edition - 10G Cloud Gateway with PoE Switch
The Ubiquiti UniFi Dream Machine Special Edition (UDM-SE) is a 1U rack-mount 10G cloud gateway with built-in PoE switching. It combines 3.5 Gbps IDS/IPS routing, 2.5 GbE and 10G SFP+ WAN ports, eight GbE ports with a 180W PoE budget and a 3.5" drive bay for UniFi Protect. It suits small and mid-size businesses that want a gateway, PoE switch and camera recorder in one unit for 100+ devices.
Main Specs
- Runs UniFi Network, Protect, Access, Talk and Connect
- IDS/IPS routing up to 3.5 Gbps
- Manages 100+ UniFi devices and 1,000+ clients
- (8) GbE RJ45 PoE/PoE+ ports, 180W PoE budget
- (1) 2.5 GbE RJ45 and (2) 10G SFP+ ports
- (1) 3.5" NVR HDD bay plus built-in 128 GB SSD
- Quad-core 1.7 GHz CPU, 4 GB RAM, 1.3" touchscreen
- 1U rack mount, DC backup with UniFi RPS
- Ideal for small and mid-size businesses wanting gateway, PoE and NVR in one
Main Characteristics
Brand
Ubiquiti
Model
UDM-SE
Product Type
Cloud Gateway / Router
UniFi Applications
Network, Protect, Access, Talk, Connect
Managed UniFi Devices
100+
Managed Cameras
(24) HD, (14) 2K, (8) 4K
Simultaneous Users
1,000+
IDS/IPS Throughput
3.5 Gbps
Default WAN Ports
(1) 10G SFP+, (1) 2.5 GbE RJ45
Max. WAN Port Count
8
1 GbE RJ45 Ports
8 (1G/100M/10M)
2.5 GbE RJ45 Ports
1 (2.5G/1G/100M/10M)
10G SFP+ Ports
2 (10G/1G)
PoE Budget
180W
Max. PoE per Port
PoE 15.4W, PoE+ 30W
NVR Storage
(1) 3.5" NVR HDD bay, Built-in 128 GB SSD
Processor
Quad-core ARM® Cortex®-A57 at 1.7 GHz
System Memory
4 GB
On-board Storage
16 GB eMMC, 128 GB SSD (Integrated)
Max. Power Consumption
50W (Excluding PoE Output)
Power Supply
AC/DC, internal, 240W
Display
1.3" touchscreen
Form Factor
Rack mount (1U)
Dimensions
442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
Weight
5 kg (10.9 lb)
Operating Temperature
-10 to 40° C (14 to 104° F)
