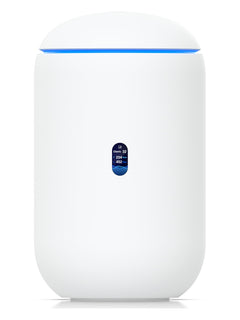

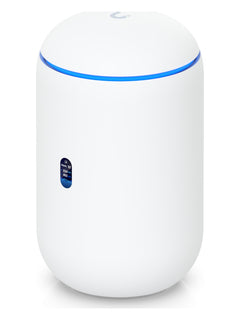

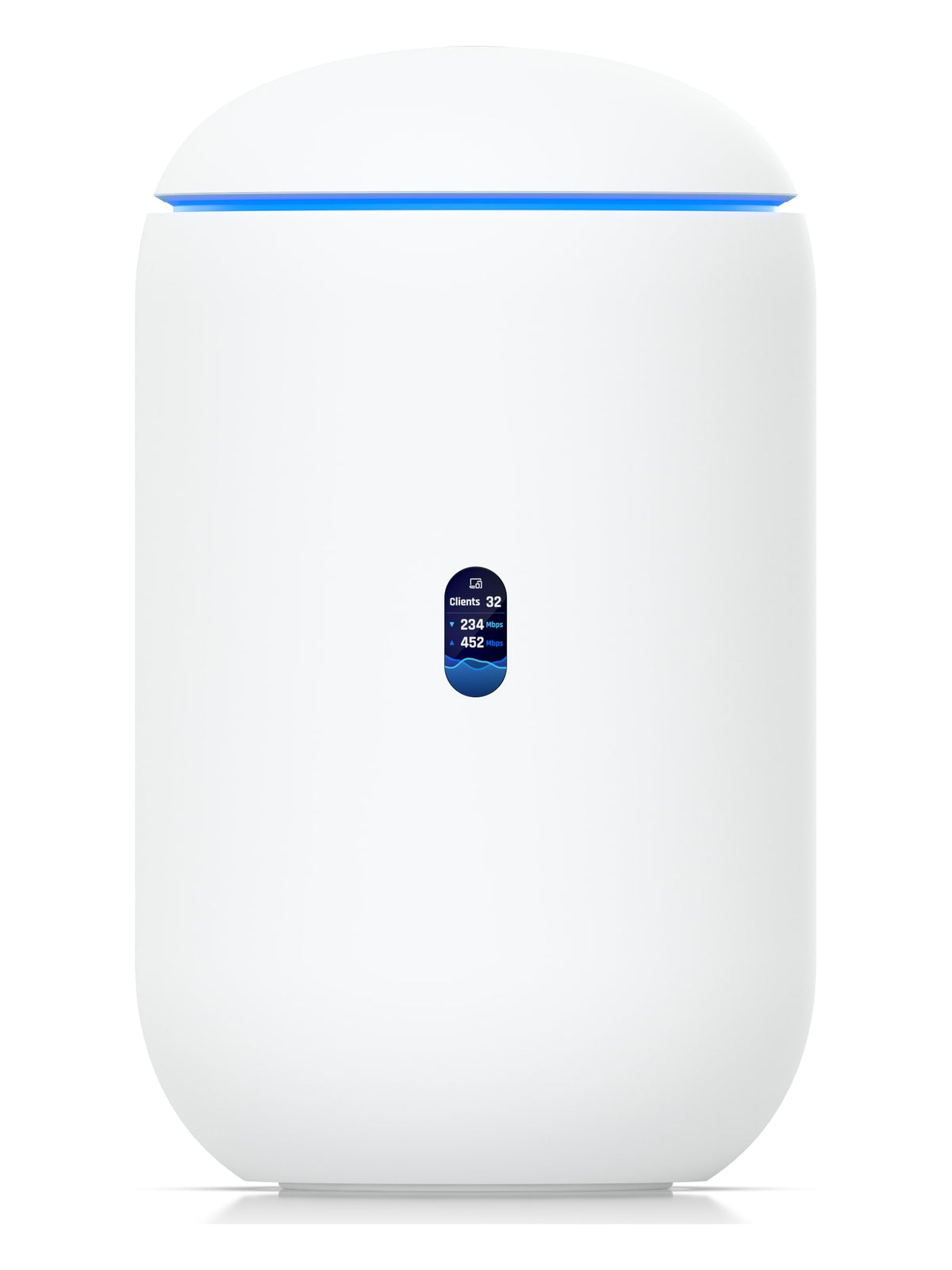

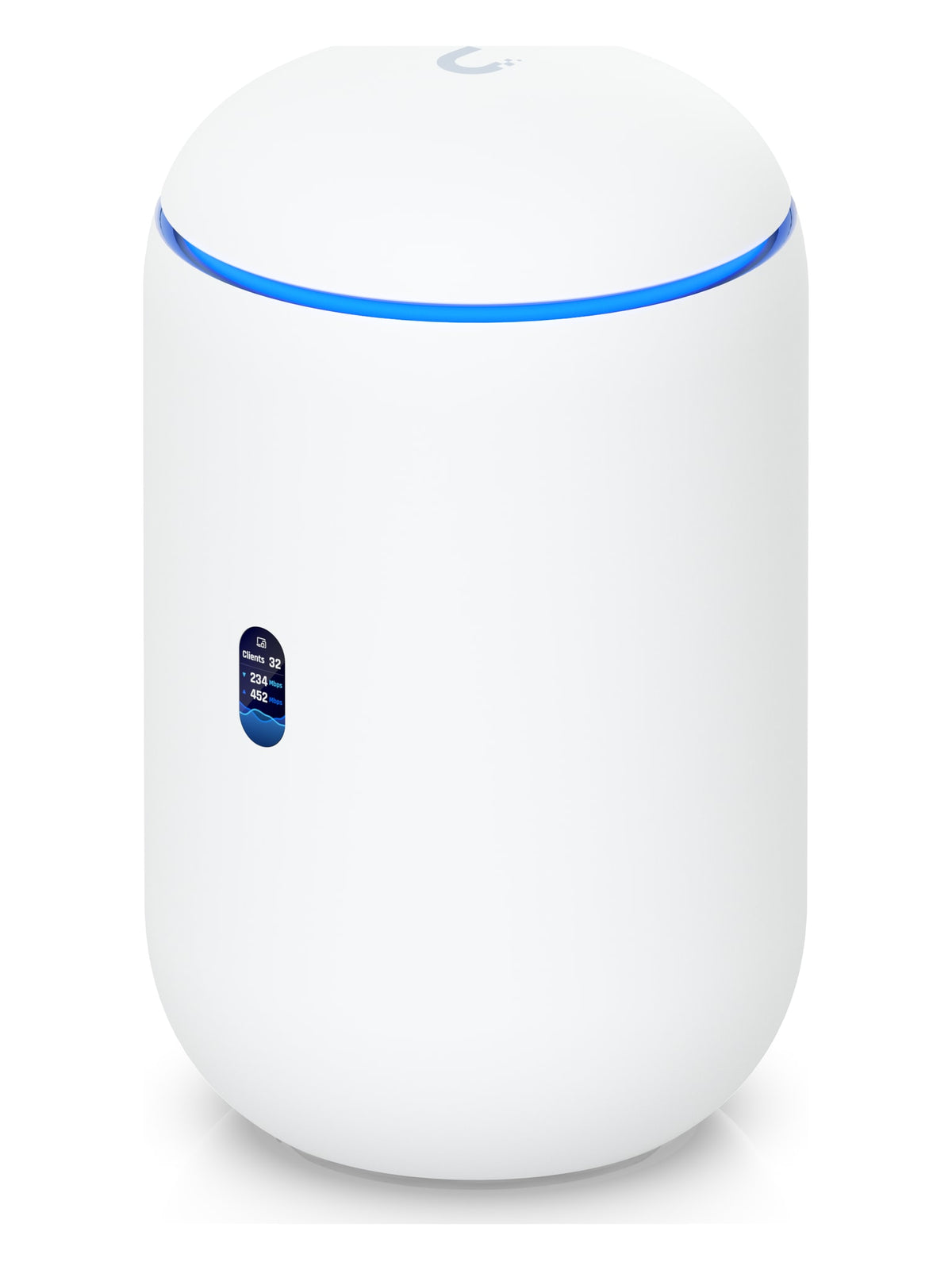

Ubiquiti UniFi Dream Router 7 - WiFi 7 Gateway with 10G SFP+
All-in-one gateway with a WiFi 7 access point, PoE switch and 10G SFP+ port
Read MoreSpecs
Brand
Ubiquiti
Model
UDR7
Product
Dream Router 7
Dimensions
⌀110 x 184.1 mm (⌀4.3 x 7.3")
- Regular price
- $360.00 USD
- Sale price
- $360.00 USD
- Regular price
-
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Ubiquiti UniFi Dream Router 7 - WiFi 7 Gateway with 10G SFP+
The Ubiquiti UniFi Dream Router 7 (UDR7) is an all-in-one gateway with a WiFi 7 access point, PoE switch and 10G SFP+ port. It runs the UniFi Network and Protect apps on board, so one unit can route, secure and cover your home or office with WiFi. It supports multi-WAN and fiber internet.
Main Specs
- Dimensions: ⌀110 x 184.1 mm (⌀4.3 x 7.3")
- Managed UniFi Devices: 30+
- Managed Cameras: (5) HD (2) 2K (1) 4K
- Simultaneous Users Connected: 300+
- Max. WAN Port Count: 4

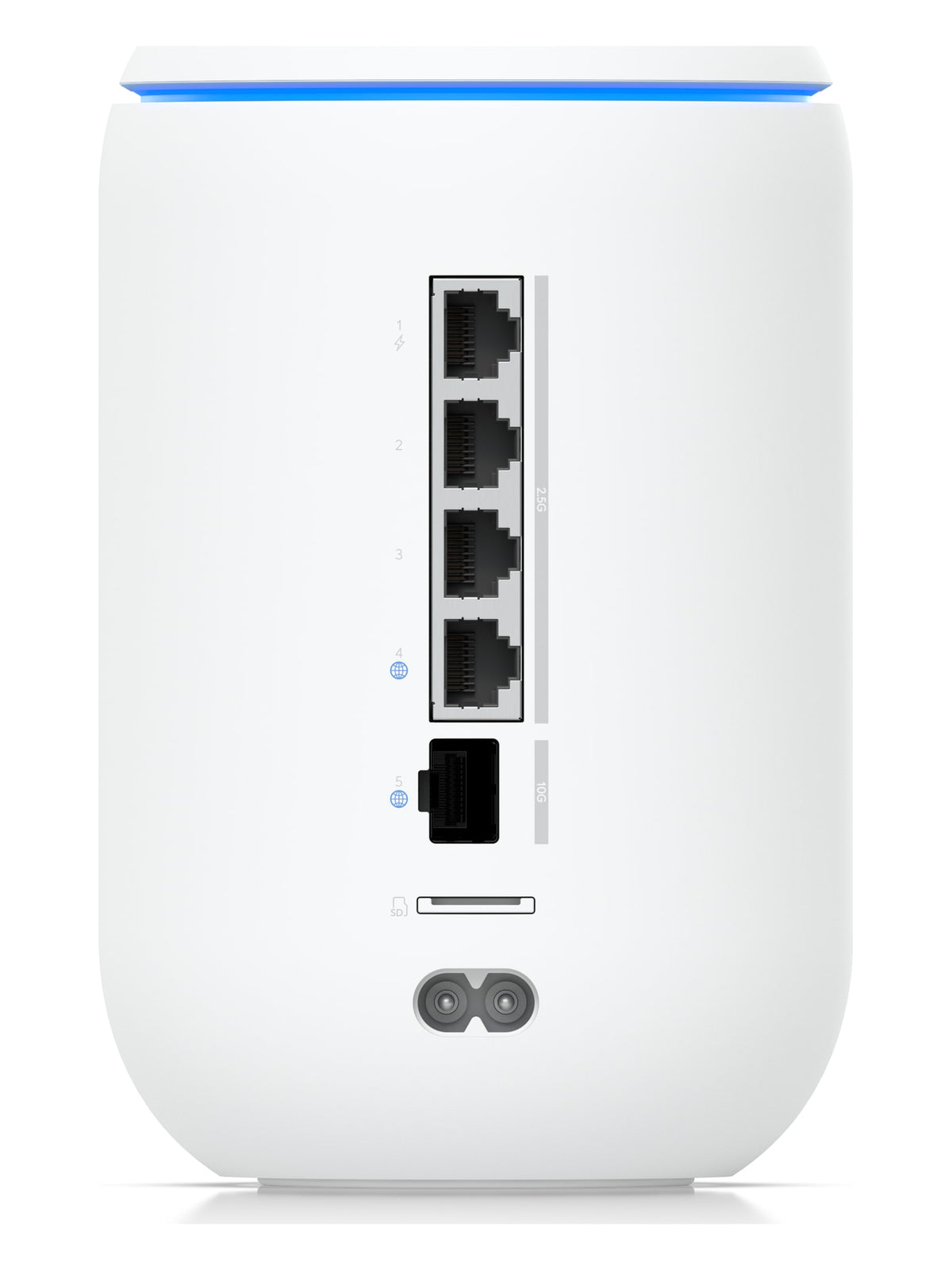

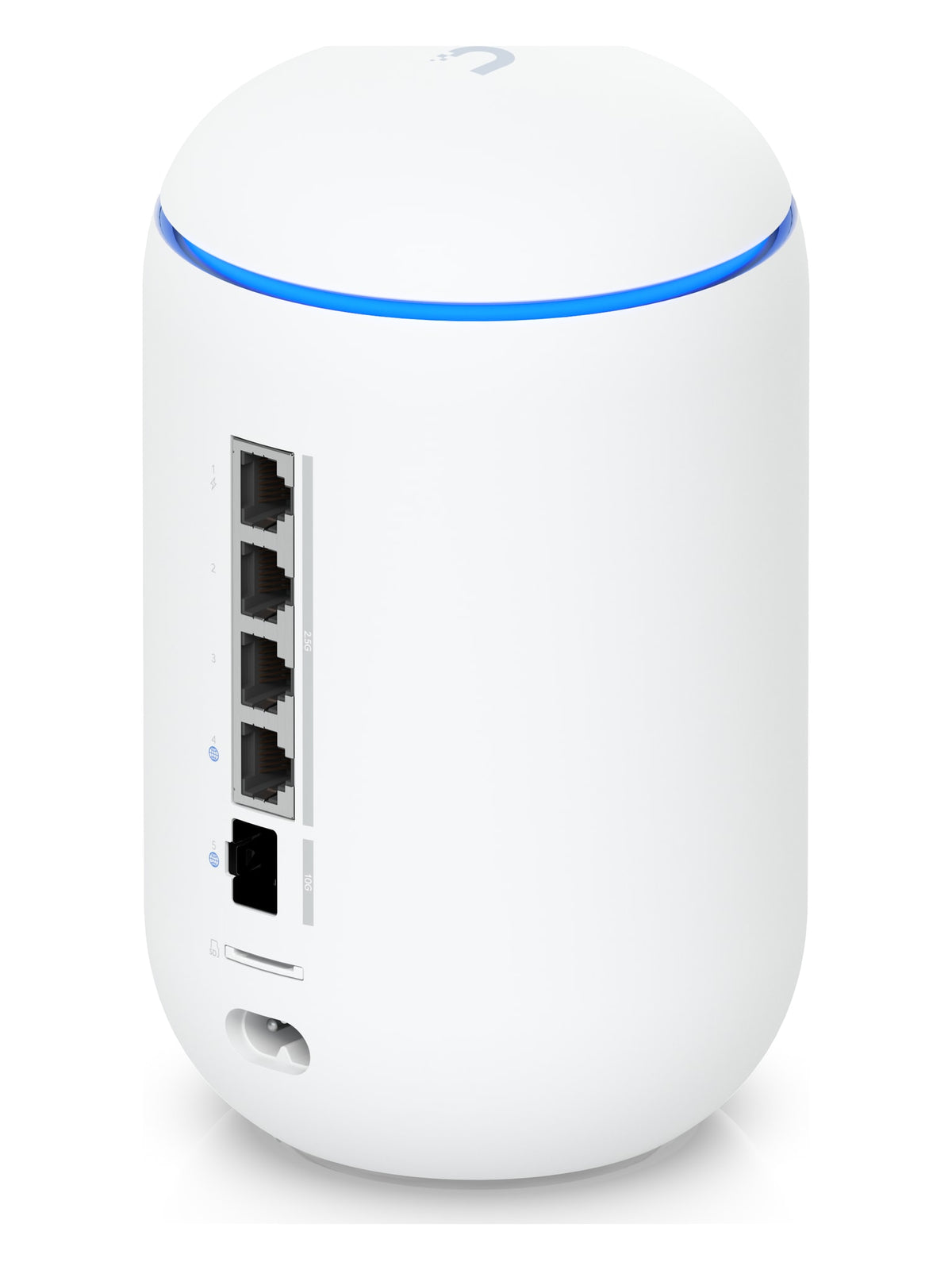

- Default WAN Ports: (1) 10G SFP+ (1) 2.5 GbE RJ45
- 2.5 GbE RJ45: 4 (1 PoE) (2.5G/1G/100M/10M)
- Max. Power Consumption: 26W (Excluding PoE output)
- Power Method: Universal AC input, 100–240V AC, 1.5A Max, 50/60 Hz
- Managed with the UniFi Network app, no licence fees
- Ideal for homes and small offices that want an all-in-one UniFi setup
Main Characteristics
Brand
Ubiquiti
Model
UDR7
Product
Dream Router 7
Dimensions
⌀110 x 184.1 mm (⌀4.3 x 7.3")
Managed UniFi Devices
30+
Managed Cameras
(5) HD (2) 2K (1) 4K
Simultaneous Users Connected
300+
Max. WAN Port Count
4
Default WAN Ports
(1) 10G SFP+ (1) 2.5 GbE RJ45
2.5 GbE RJ45
4 (1 PoE) (2.5G/1G/100M/10M)
10G SFP+
1 (10G/1G)
IDS/IPS Throughput
2.3 Gbps
Form Factor
Compact desktop
Coverage Area
160 m² (1,750 ft²)
IDS/IPS Signatures
20,000+ with CyberSecure
MAC Address Table Size
2,000
WiFi Standard
802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
6 GHz
24 dBm
5 GHz
26 dBm
2.4 GHz
23 dBm
Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Max. BSSIDs
4 per Radio
802.11be (WiFi 7)
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6/6E)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
NVR Storage
Pre-installed 64GB microSD for NVR
Expansion Slot
MicroSD Card, 64 GB pre-installed microSD
PoE Budget
15.4W
PoE
15.4W
Voltage Range PoE Mode
44-57V
Max. Power Consumption
26W (Excluding PoE output)
Power Method
Universal AC input, 100–240V AC, 1.5A Max, 50/60 Hz
Power Supply
AC/DC, Internal, 50W
Supported Voltage Range
100–240V AC
Heat Dissipation
89 BTU/hr (Excluding PoE Output)
Processor
Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory
3 GB
Weight
1.1 kg (2.4 lb)
Enclosure Material
Polycarbonate
LCM Display
0.96" status display
Management
Ethernet Bluetooth
Button
(1) Factory reset
ESD/EMP Protection
Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature
-10 to 40° C (14 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC, Anatel: 05650-25-08356
