Ubiquiti UniFi Gateway Fiber - 10G Gateway with 2.5GbE Switch
10G gateway with a built-in 2.5 GbE switch and 5 Gbps IDS/IPS routing
Read MoreSpecs
Brand
Ubiquiti
Model
UXG-FIBER
Product
Gateway Fiber
Dimensions
212.8 x 127.6 x 30 mm (8.4 x 5 x 1.2")
- Regular price
- $360.00 USD
- Sale price
- $360.00 USD
- Regular price
-
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Ubiquiti UniFi Gateway Fiber - 10G Gateway with 2.5GbE Switch
The Ubiquiti UniFi Gateway Fiber (UXG-FIBER) is a 10G gateway with a built-in 2.5 GbE switch and 5 Gbps IDS/IPS routing. It connects straight to fiber or multi-gig internet and secures your whole UniFi network with firewall, VPN and traffic insights. It runs the UniFi Network app on board.
Main Specs
- Dimensions: 212.8 x 127.6 x 30 mm (8.4 x 5 x 1.2")
- Max. WAN Port Count: 6

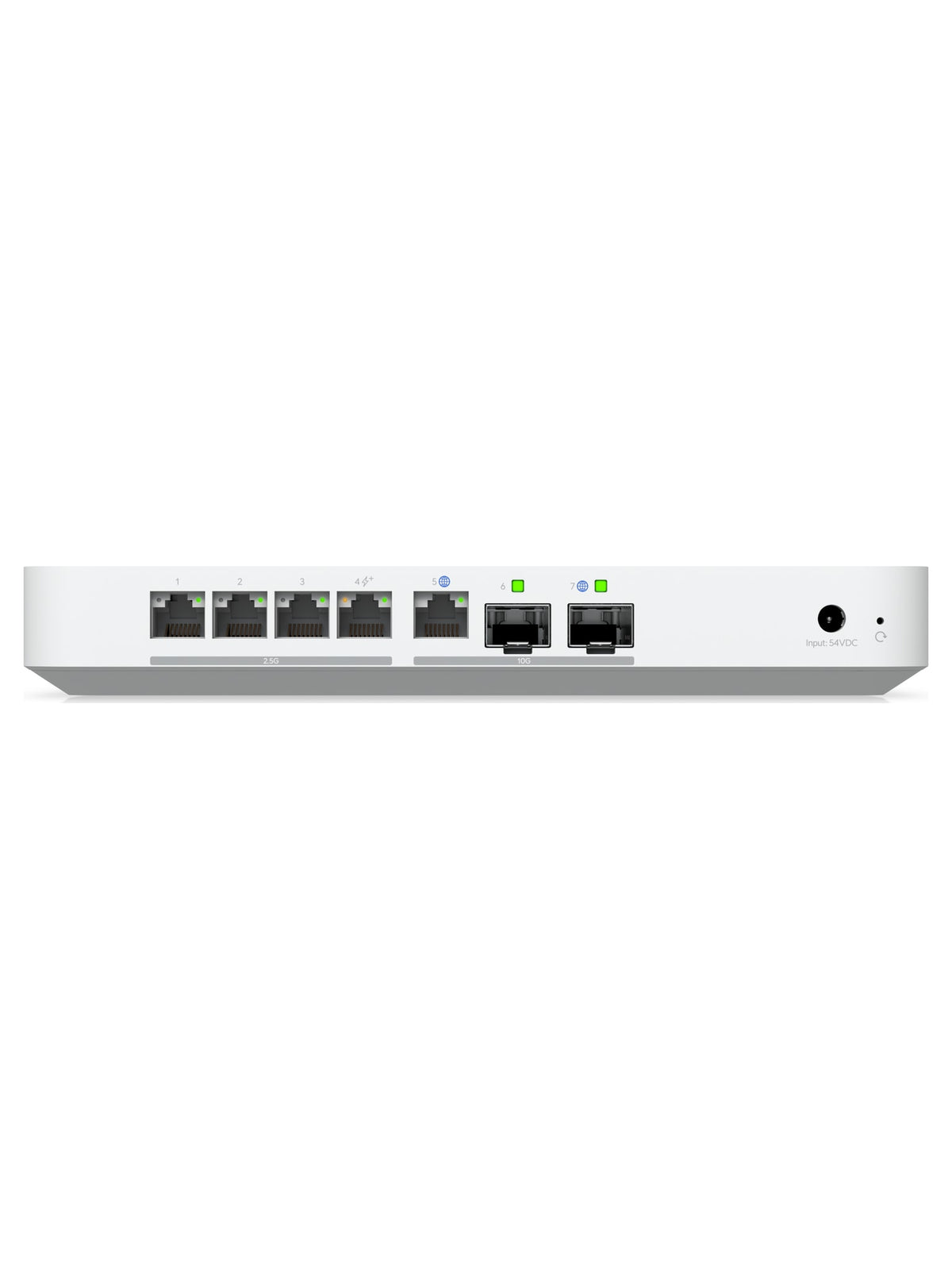

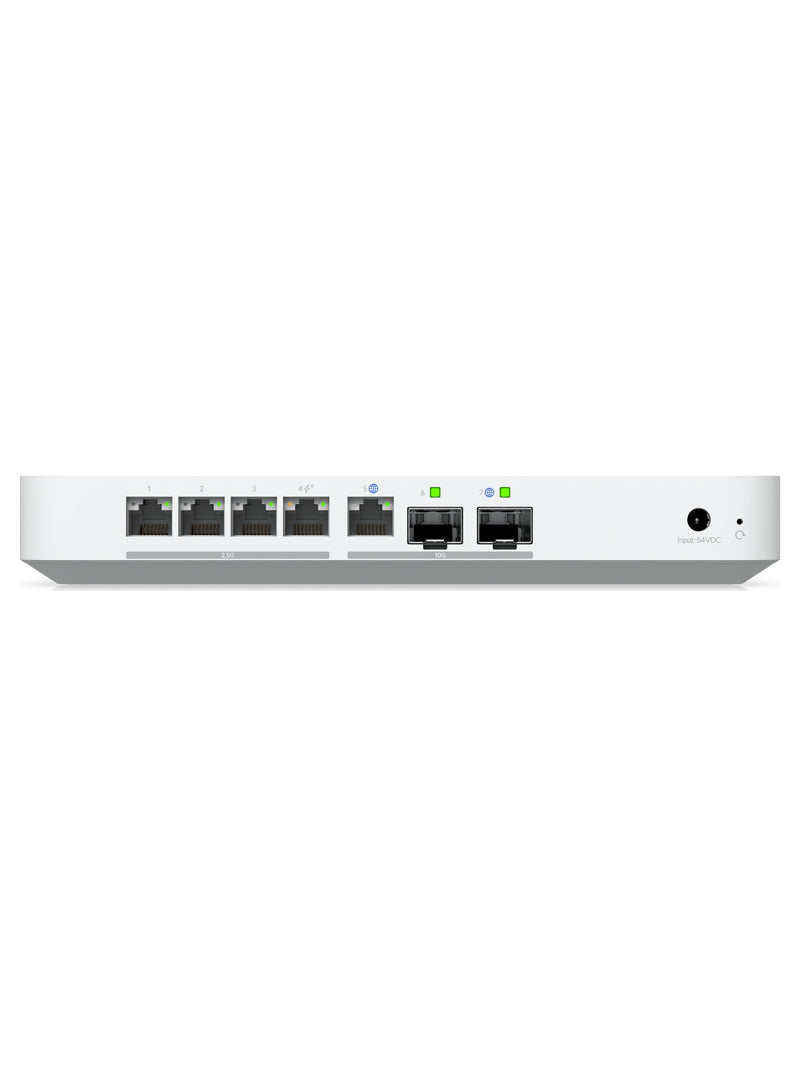

- Default WAN Ports: (1) 10G SFP+ (1) 10 GbE RJ45
- 2.5 GbE RJ45: 4 (2.5G/1G/100M/10M)
- 10 GbE RJ45: 1 (10G/2.5G/1G)
- 10G SFP+: 2 (10G/1G)
- IDS/IPS Throughput: 5 Gbps
- Max. Power Consumption: 25W (Excluding PoE output)
- Power Method: DC jack (54V DC/1.1A)
- Managed with the UniFi Network app, no licence fees
- Ideal for homes and offices with fiber or multi-gig internet
Main Characteristics
Brand
Ubiquiti
Model
UXG-FIBER
Product
Gateway Fiber
Dimensions
212.8 x 127.6 x 30 mm (8.4 x 5 x 1.2")
Max. WAN Port Count
6
Default WAN Ports
(1) 10G SFP+ (1) 10 GbE RJ45
2.5 GbE RJ45
4 (2.5G/1G/100M/10M)
10 GbE RJ45
1 (10G/2.5G/1G)
10G SFP+
2 (10G/1G)
IDS/IPS Throughput
5 Gbps
Form Factor
Compact desktop
IDS/IPS Signatures
55,000+ With CyberSecure
MAC Address Table Size
4,000
All Traffic Flows
Available when managed with a UniFi OS Server, CloudKey Enterprise, or Official UniFi Hosting.
PoE Budget
30W
PoE+
30W
Voltage Range PoE Mode
50–57V
Max. Power Consumption
25W (Excluding PoE output)
Power Method
DC jack (54V DC/1.1A)
Power Supply
54V DC/1.1A (Adapter included)
Supported Voltage Range
100–240V AC
Heat Dissipation
85 BTU/hr (Excluding PoE output)
Processor
Quad-core ARM® Cortex®-A73 at 2.2 GHz
System Memory
2 GB
Weight
605 g (1.3 lb)
Enclosure Material
Polycarbonate
Management
Ethernet Bluetooth
Button
(1) Factory reset
ESD/EMP Protection
Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC, Anatel: 04395-25-08356
