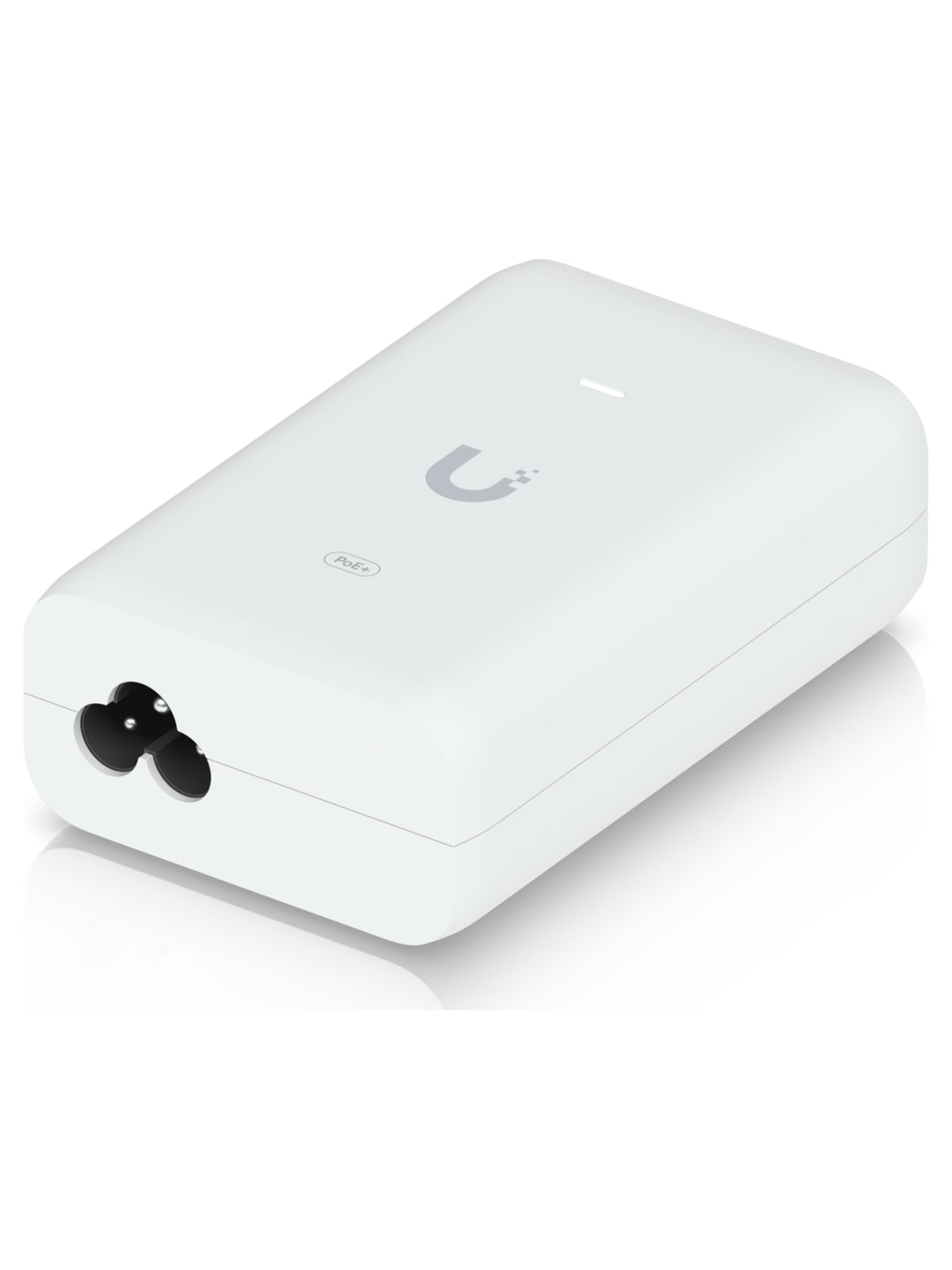

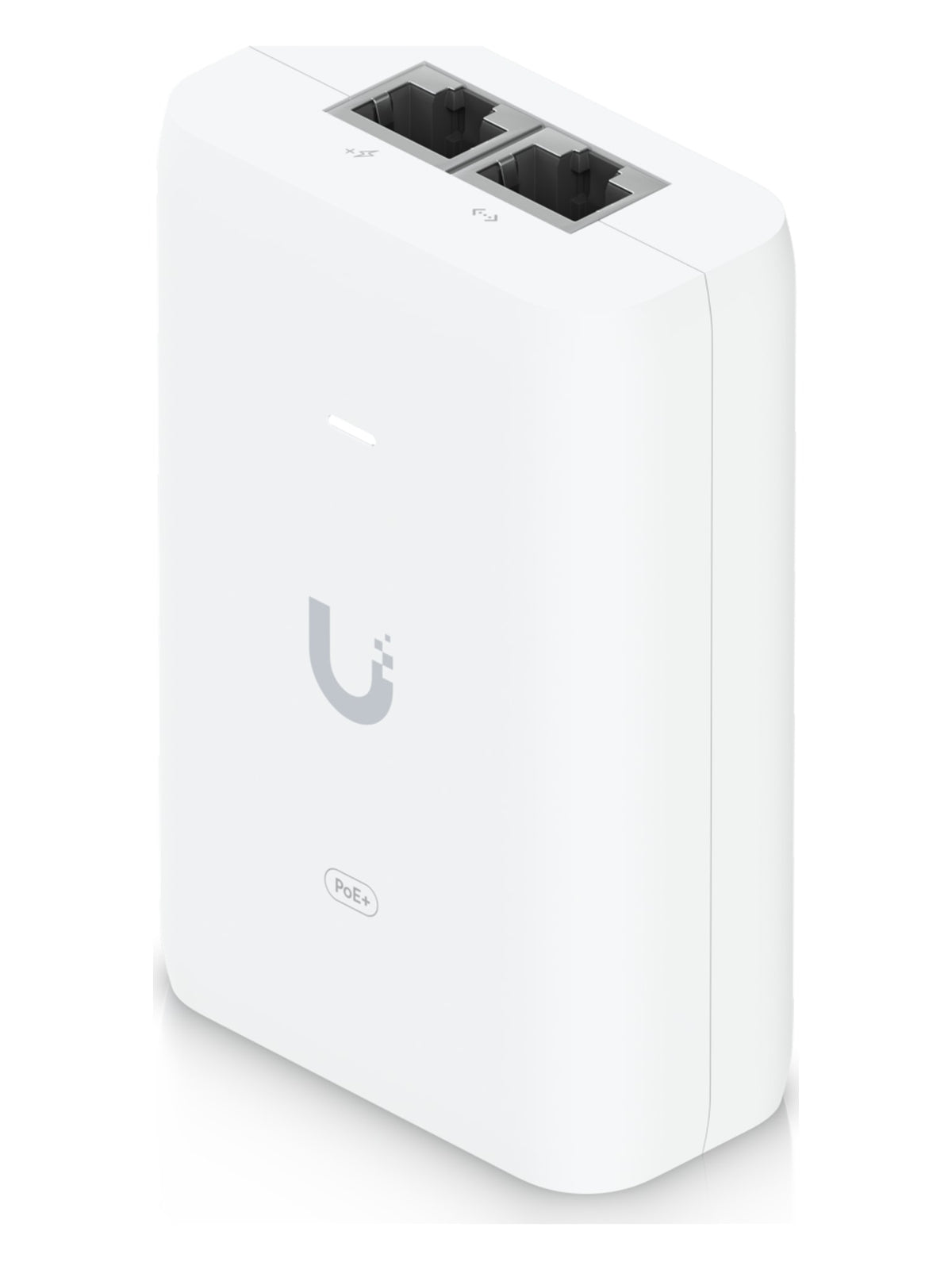

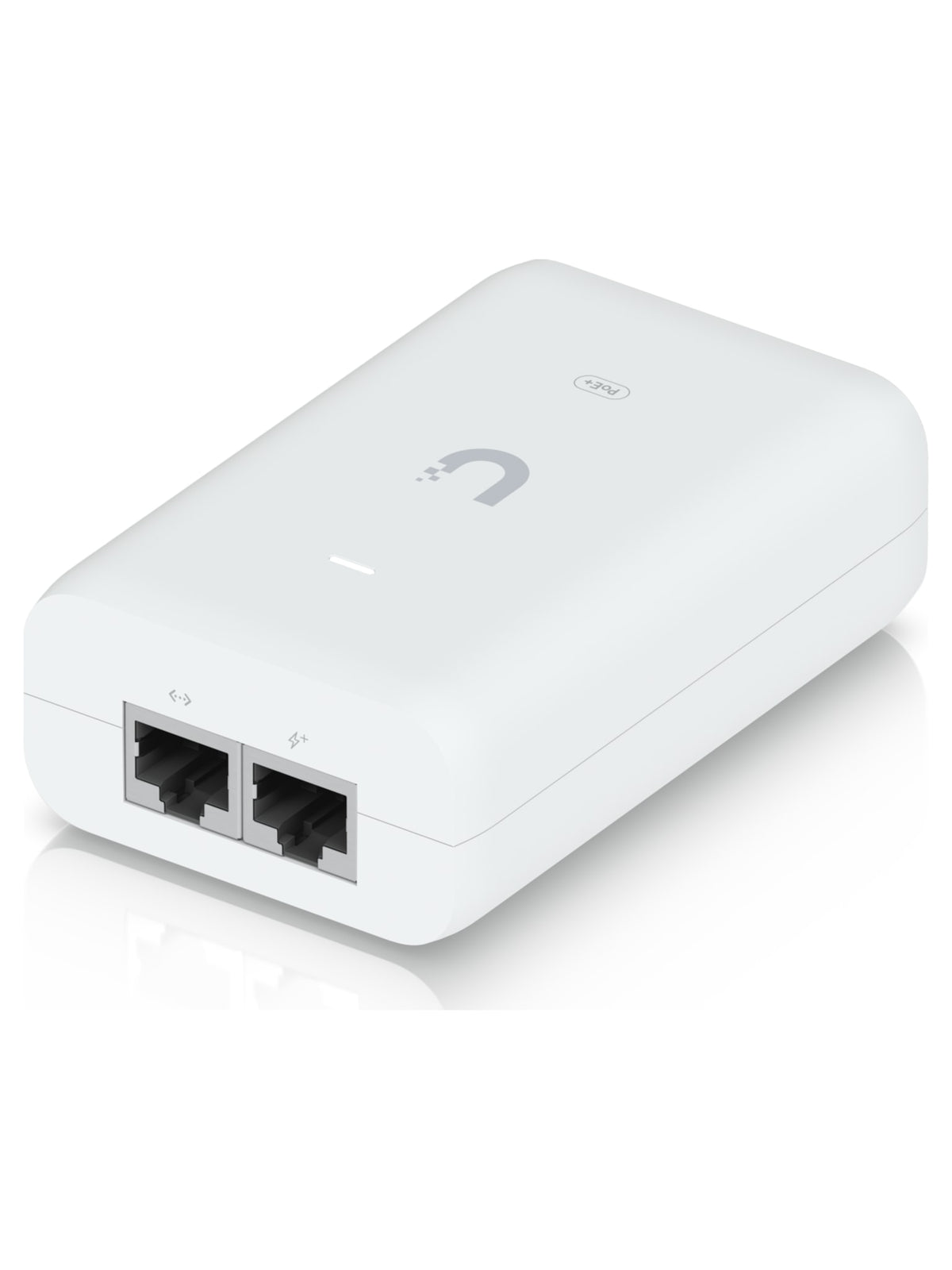

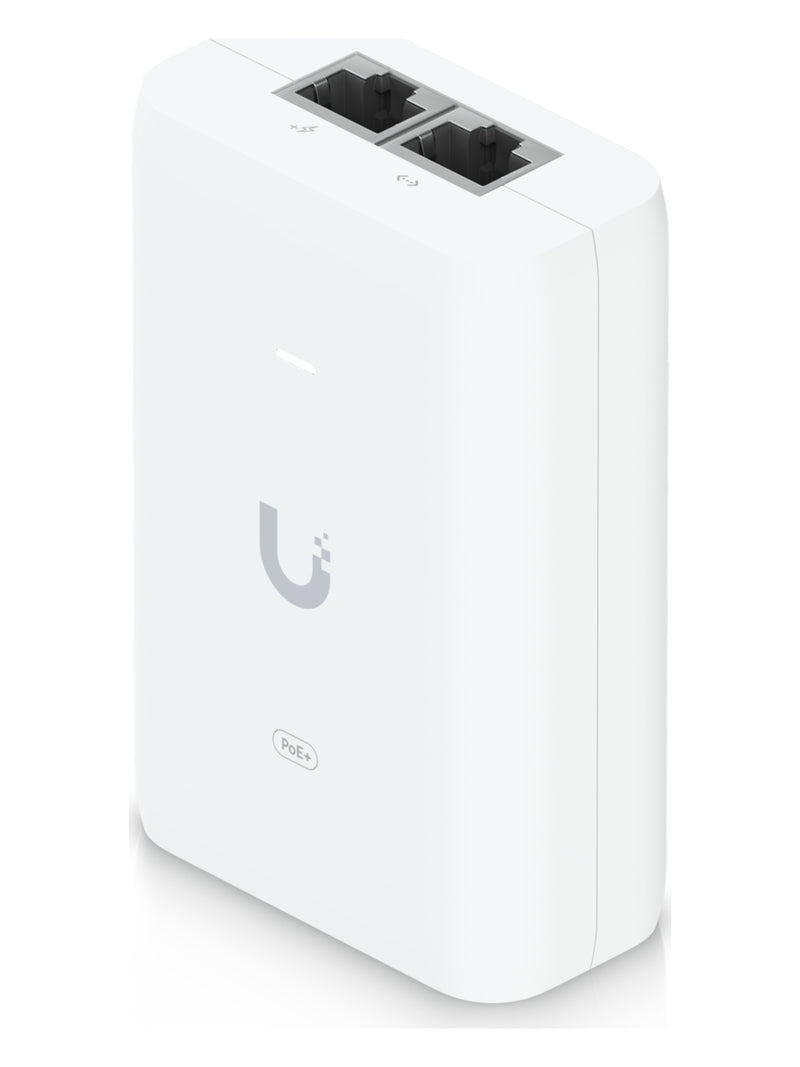

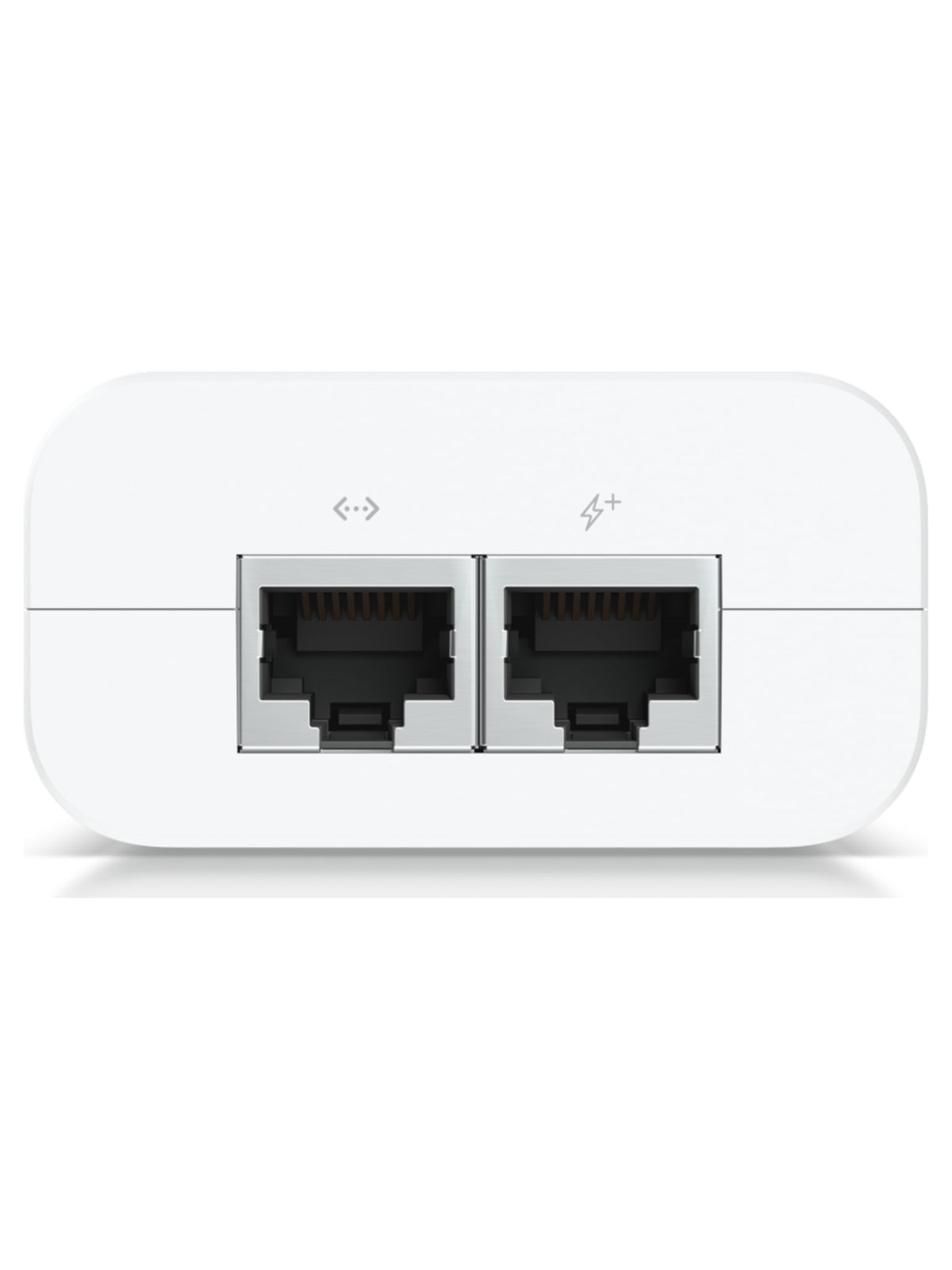

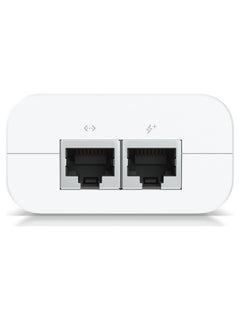

Ubiquiti UniFi PoE+ Adapter 30W (802.3at) - Gigabit
30W PoE+ adapter with a Gigabit LAN connection
Read MoreSpecs
Brand
Ubiquiti
Model
U-POE-AT-EU
Product
UniFi PoE+ Adapter (30W)
Dimensions
93 x 62 x 35 mm (3.7 x 2.4 x 1.4")
- Regular price
- $28.00 USD
- Sale price
- $28.00 USD
- Regular price
-
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Ubiquiti UniFi PoE+ Adapter 30W (802.3at) - Gigabit
The Ubiquiti UniFi PoE+ Adapter (30W) (U-POE-AT-EU) is a 30W PoE+ adapter with a Gigabit LAN connection. It powers one PoE+ device such as an access point or camera over the network cable while passing Gigabit data. It is a simple way to power a device when your switch has no PoE.
Main Specs
- Dimensions: 93 x 62 x 35 mm (3.7 x 2.4 x 1.4")
- Weight: 156 g (5.5 oz)
- Power Cable: Included
- Output Voltage: 48V DC @ 0.65A
- Rated Voltage: 100–240V AC at 50/60Hz
- 2-pair Powering: Pins 4, 5 (+) and 7, 8 (-)
- AC Connector: IEC-320 C6
- Ideal for powering UniFi access points and PoE+ cameras
Main Characteristics
Brand
Ubiquiti
Model
U-POE-AT-EU
Product
UniFi PoE+ Adapter (30W)
Dimensions
93 x 62 x 35 mm (3.7 x 2.4 x 1.4")
Weight
156 g (5.5 oz)
Power Cable
Included
Output Voltage
48V DC @ 0.65A
Rated Voltage
100–240V AC at 50/60Hz
2-pair Powering
Pins 4, 5 (+) and 7, 8 (-)
AC Connector
IEC-320 C6
Clamping Protection
11V Data, 60V power
Data In / PoE
RJ45 Shielded Socket
Input Current
0.75A Max.
Inrush Current
<100A peak at 26°C
Efficiency
87%
Switching Frequency
70 kHz Max.
Output Ripple
1% Max.
Line Regulation
≤ 3%
Load Regulation
≤ 5%
Max. Surge Discharge
1500A (8/20 μs) power
Peak Pulse Current
36A (10/1000 μs) data
Response Time
<1 ns
Shunt Capacitance
<5 pF data
Surge Protection
Difference and common mode
Ambient Storage Temperature
-30 to 70°C (-22 to 158° F)
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
10 to 95% noncondensing
Certifications
CE, FCC, IC, UL, CCC
