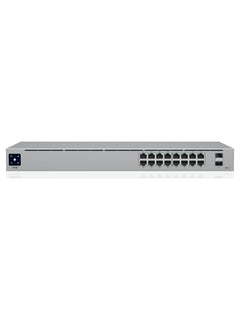

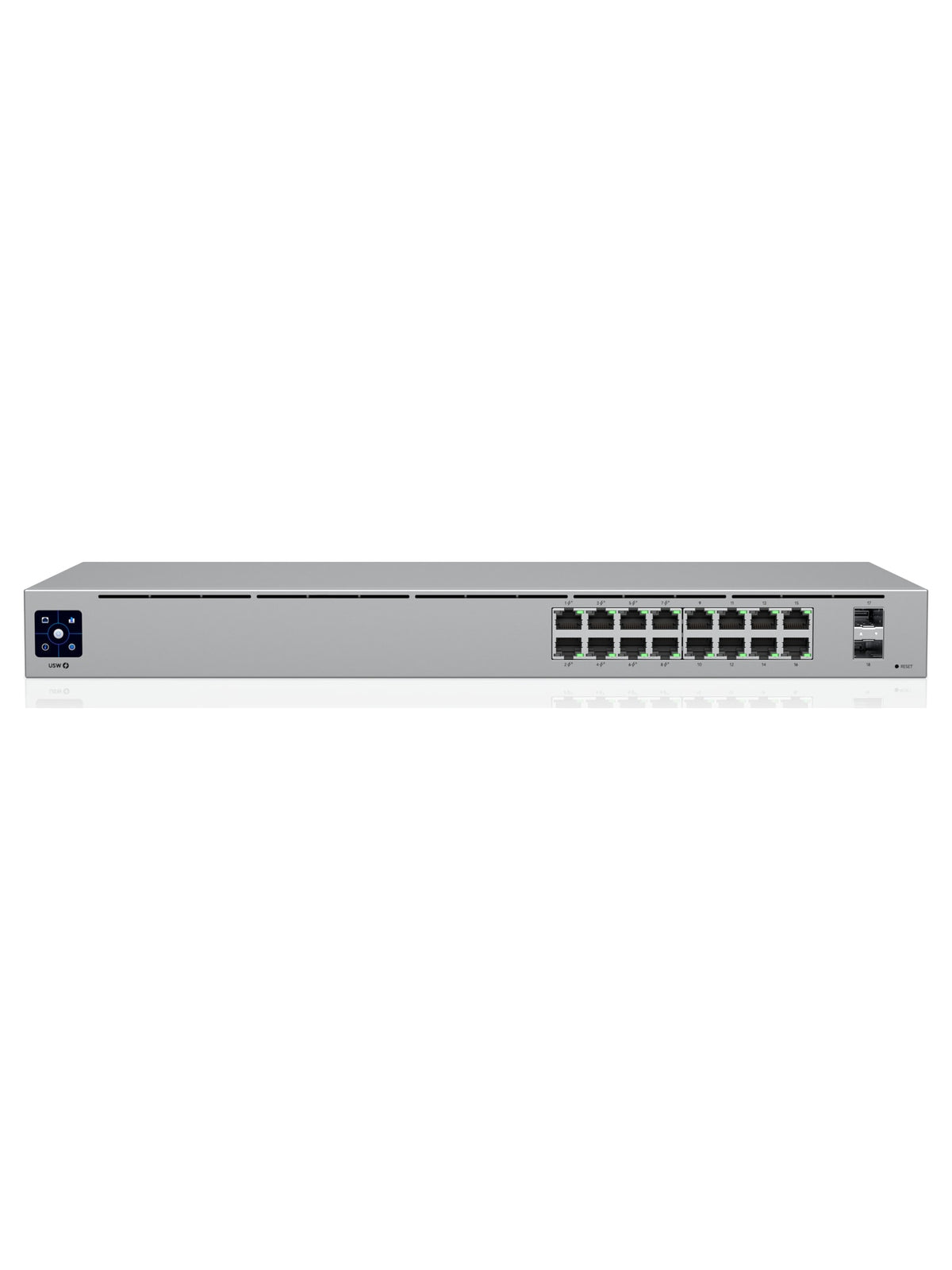

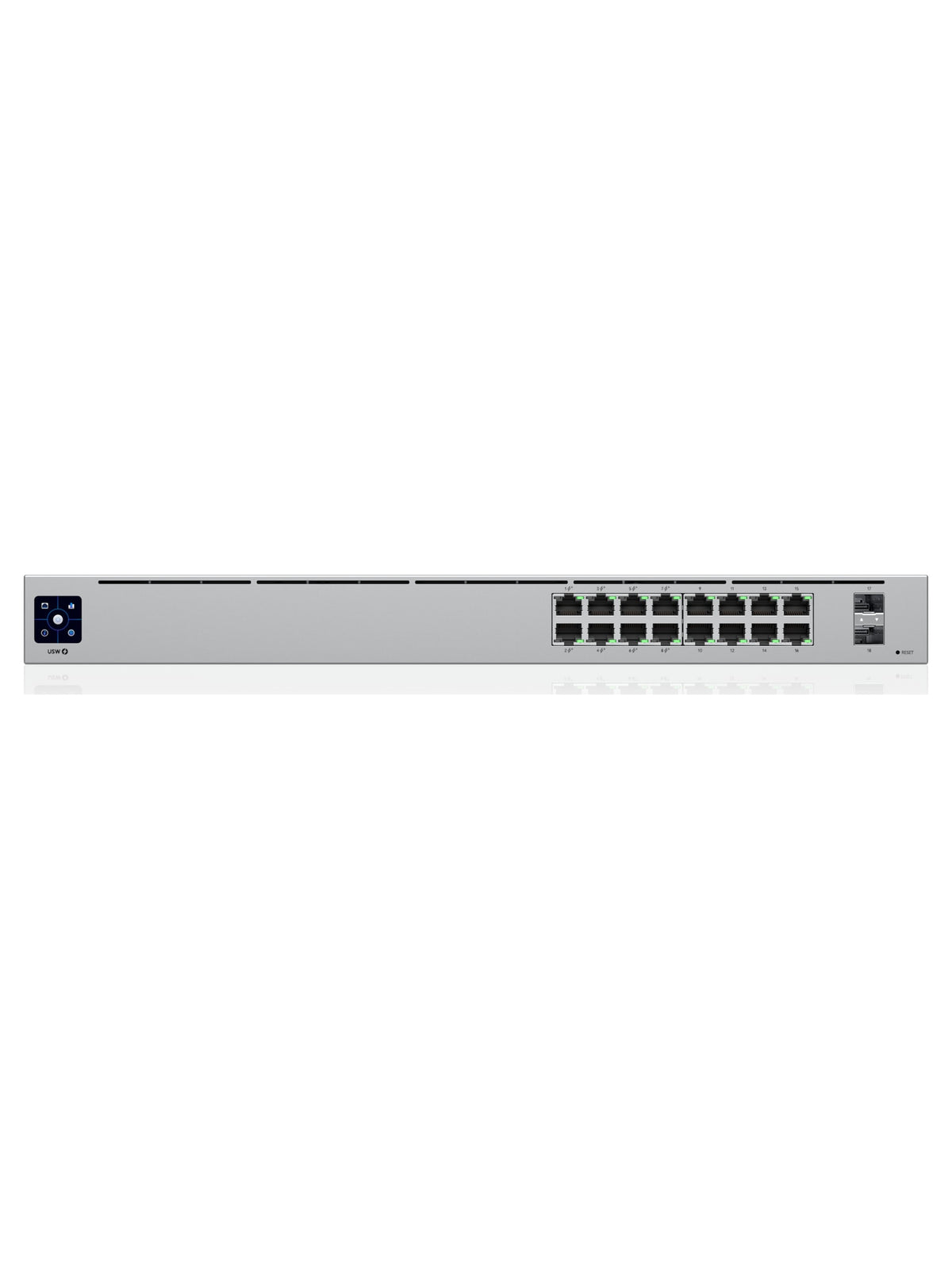

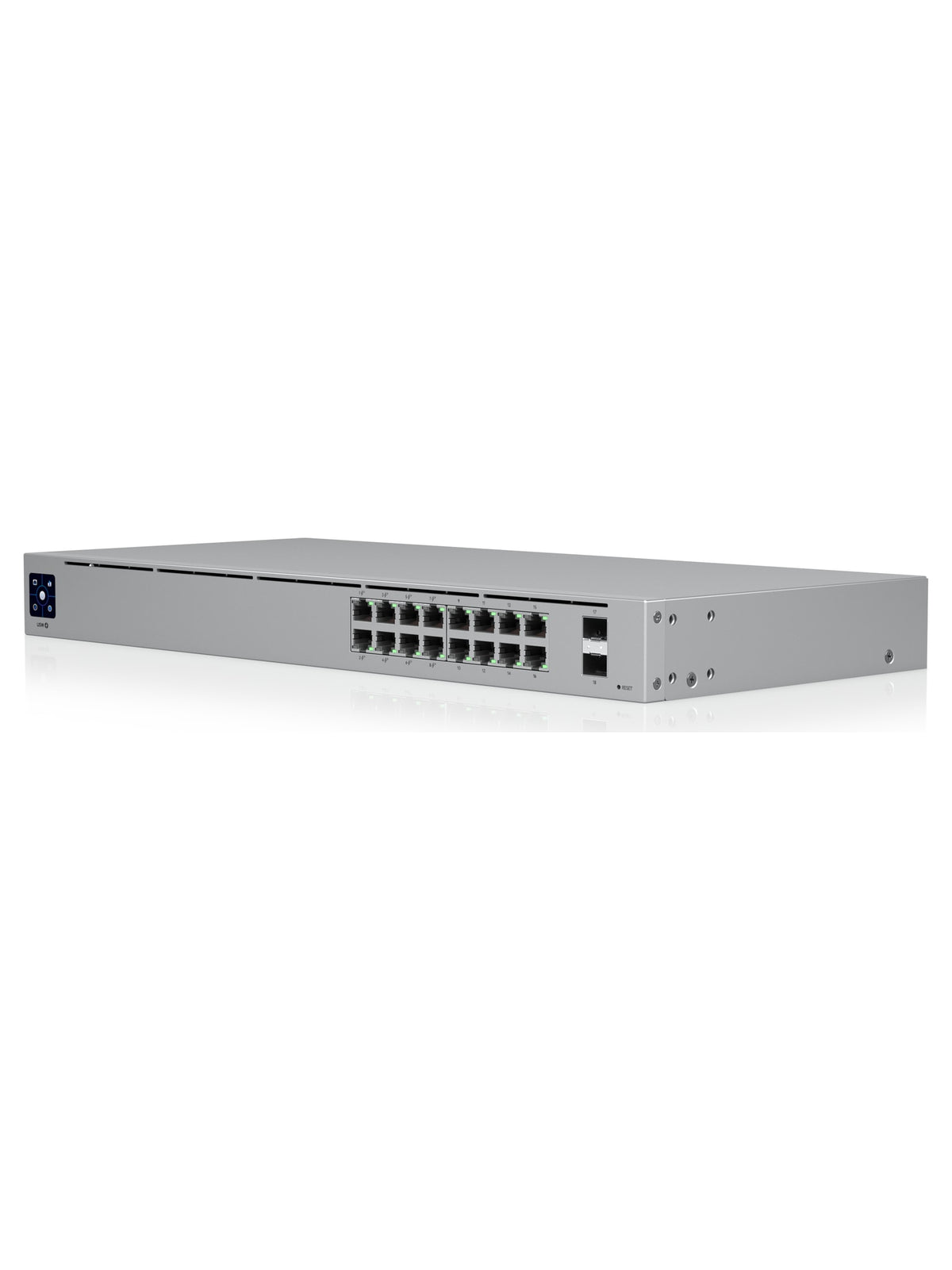

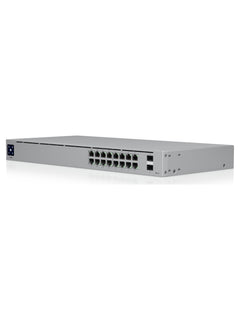

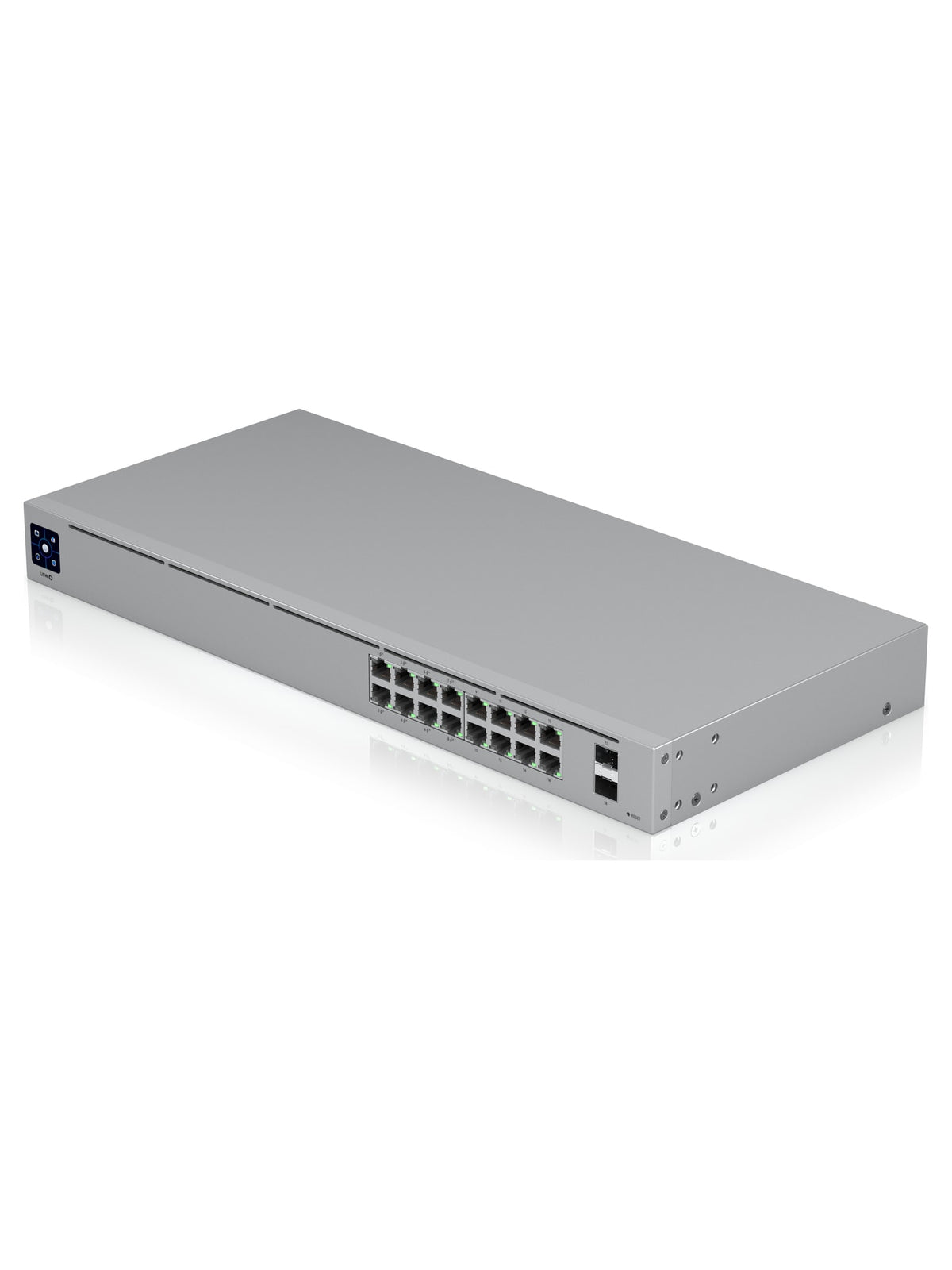

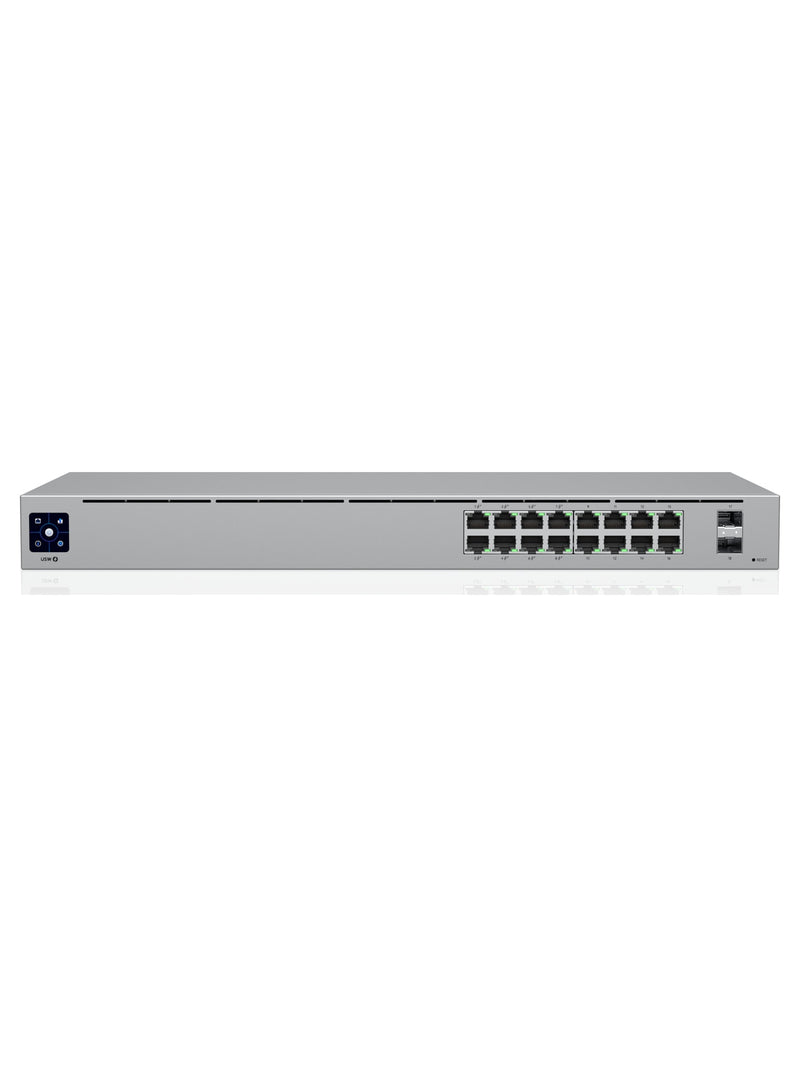

Ubiquiti UniFi Switch 16 PoE - 16-Port Gigabit Layer 2 Switch
16-port Gigabit Layer 2 switch with 8 PoE+ ports
Read MoreSpecs
Brand
Ubiquiti
Model
USW-16-POE
Product
Switch 16 PoE
Dimensions
442 x 200 x 44 mm (17.4 x 7.9 x 1.7")
- Regular price
- $460.00 USD
- Sale price
- $460.00 USD
- Regular price
-
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Ubiquiti UniFi Switch 16 PoE - 16-Port Gigabit Layer 2 Switch
The Ubiquiti UniFi Switch 16 PoE (USW-16-POE) is a 16-port Gigabit Layer 2 switch with 8 PoE+ ports. It powers access points and cameras on half of its ports and adds two SFP uplinks. It is rack-mountable and managed with the UniFi Network app.
Main Specs
- Dimensions: 442 x 200 x 44 mm (17.4 x 7.9 x 1.7")
- 1 GbE RJ45: 16 (8 PoE+) (1G/100M/10M)
- 1G SFP: 2 (1G)
- Max. PoE Output: Up to PoE+
- Total PoE Availability: 42W
- Form Factor: Rack mount (1U)
- Max. Power Consumption: 18W (Excluding PoE Output) 60W (Including PoE Output)
- Power Method: Universal input, 100–240V AC, 50/60 Hz
- Switching Capacity: 36 Gbps
- Managed with the UniFi Network app, no licence fees
- Ideal for offices and small businesses
Main Characteristics
Brand
Ubiquiti
Model
USW-16-POE
Product
Switch 16 PoE
Dimensions
442 x 200 x 44 mm (17.4 x 7.9 x 1.7")
1 GbE RJ45
16 (8 PoE+) (1G/100M/10M)
1G SFP
2 (1G)
Max. PoE Output
Up to PoE+
Total PoE Availability
42W
Form Factor
Rack mount (1U)
Switching Capacity
36 Gbps
Total Non-Blocking Throughput
18 Gbps
Forwarding Rate
27 Mpps
Supported VLANs
1,000
MAC Address Table Size
8,000
Packet Buffer Size
0.5 MB
IPv4
128
MAC
128
PoE+
32W
PoE
15.4W
Max. Power Consumption
18W (Excluding PoE Output) 60W (Including PoE Output)
Power Method
Universal input, 100–240V AC, 50/60 Hz
Power Input Method
AC input
Power Supply
AC/DC, internal, 60W
Supported Voltage Range
100–240V AC
Management
Ethernet AR
Heat Dissipation
61.4 BTU/hr
Weight
Without mounting brackets: 2.8 kg (6.2 lb) With mounting brackets 2.9 kg (6.4 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
400~1200 mm (15.7-47.2")
LCM Display
1.3" touchscreen
ESD Protection
Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC, Anatel: 00593-21-08356
