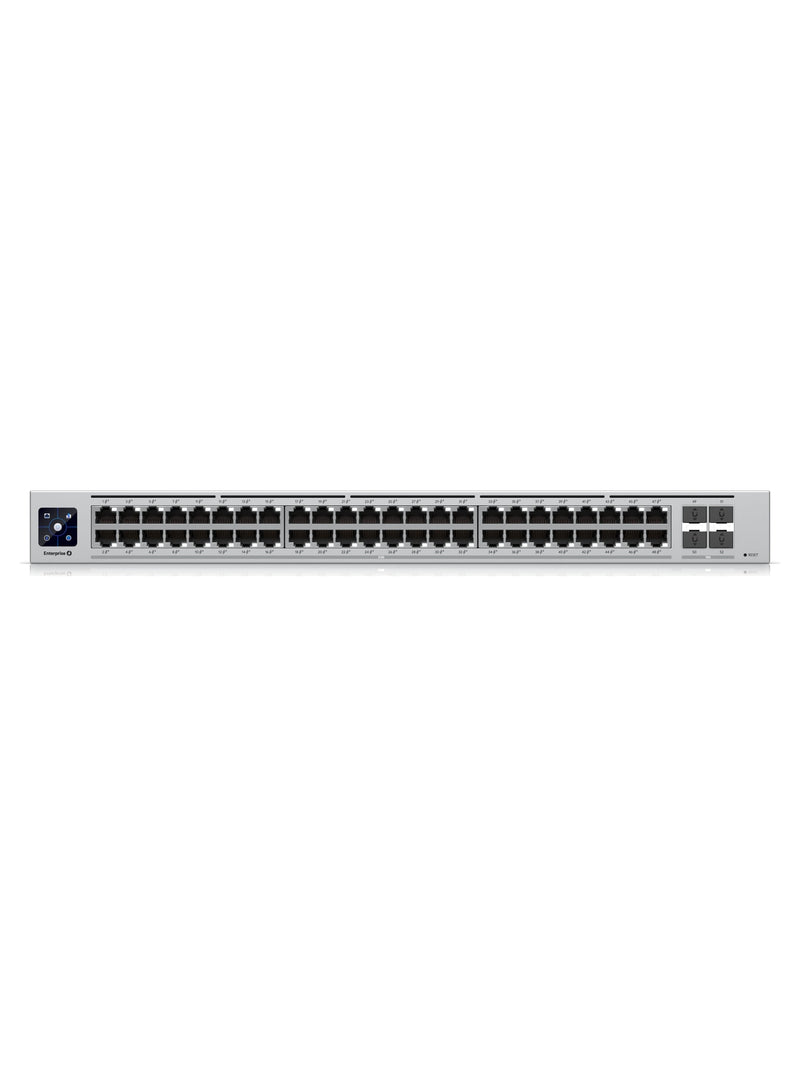

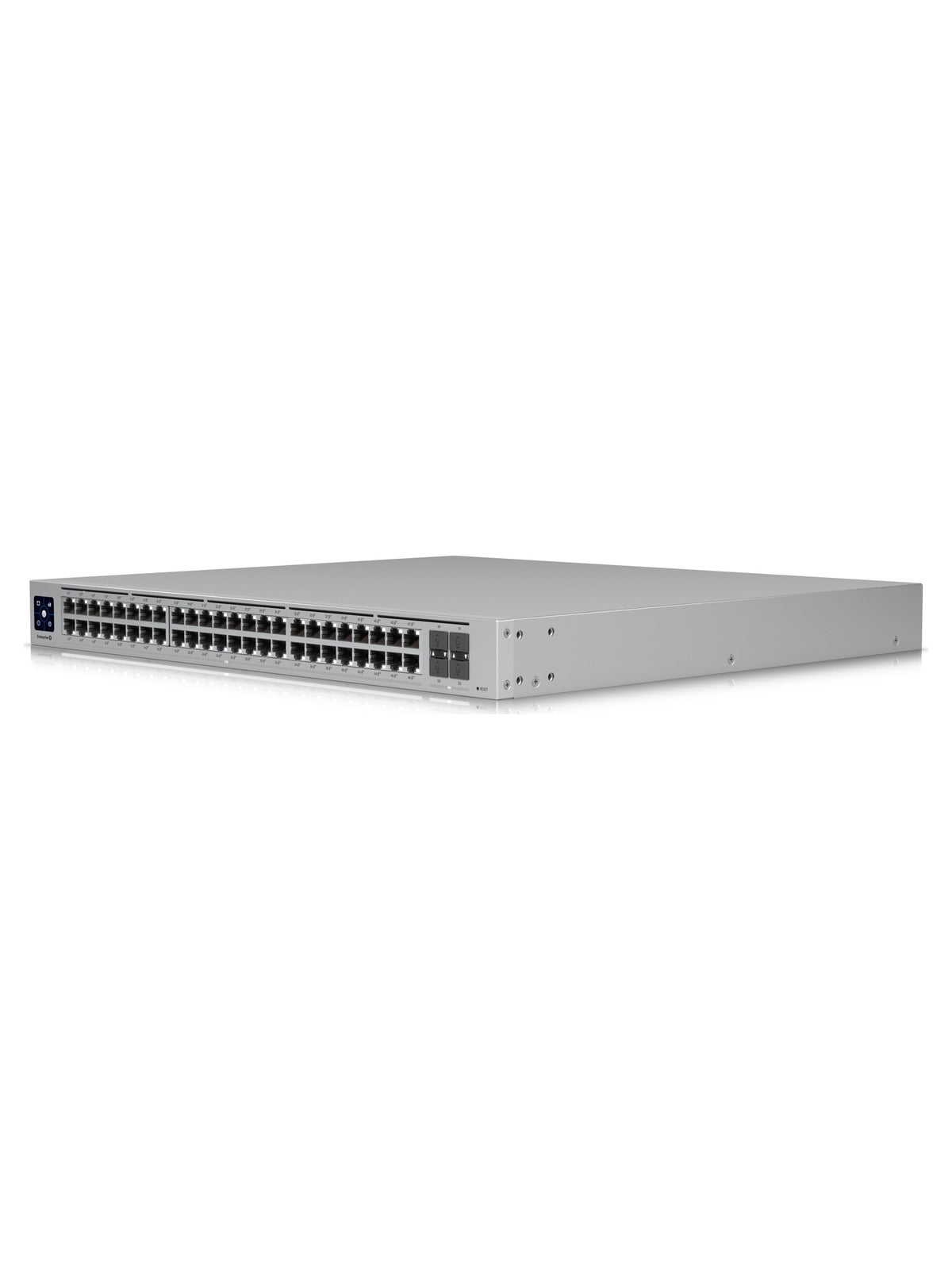

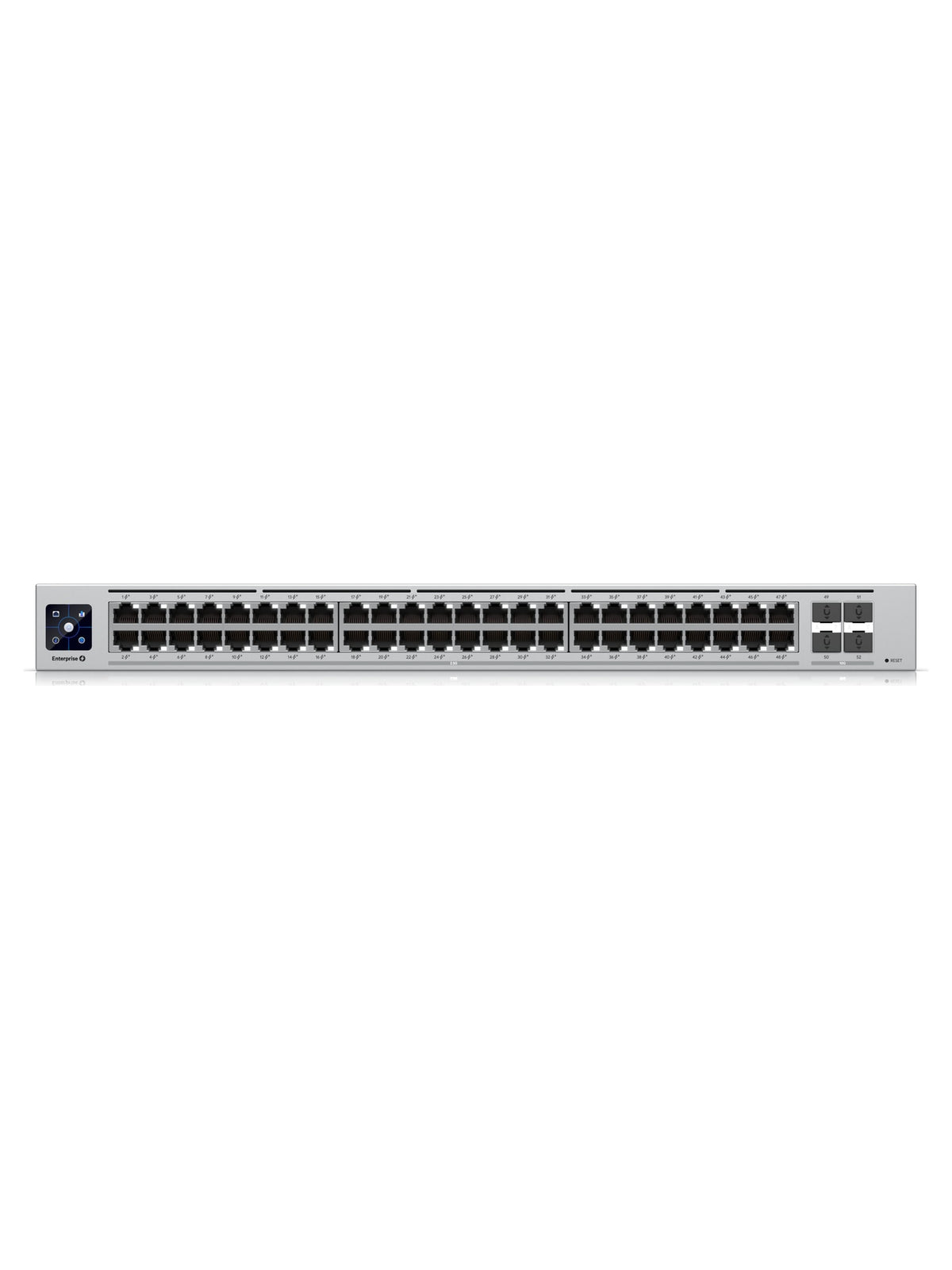

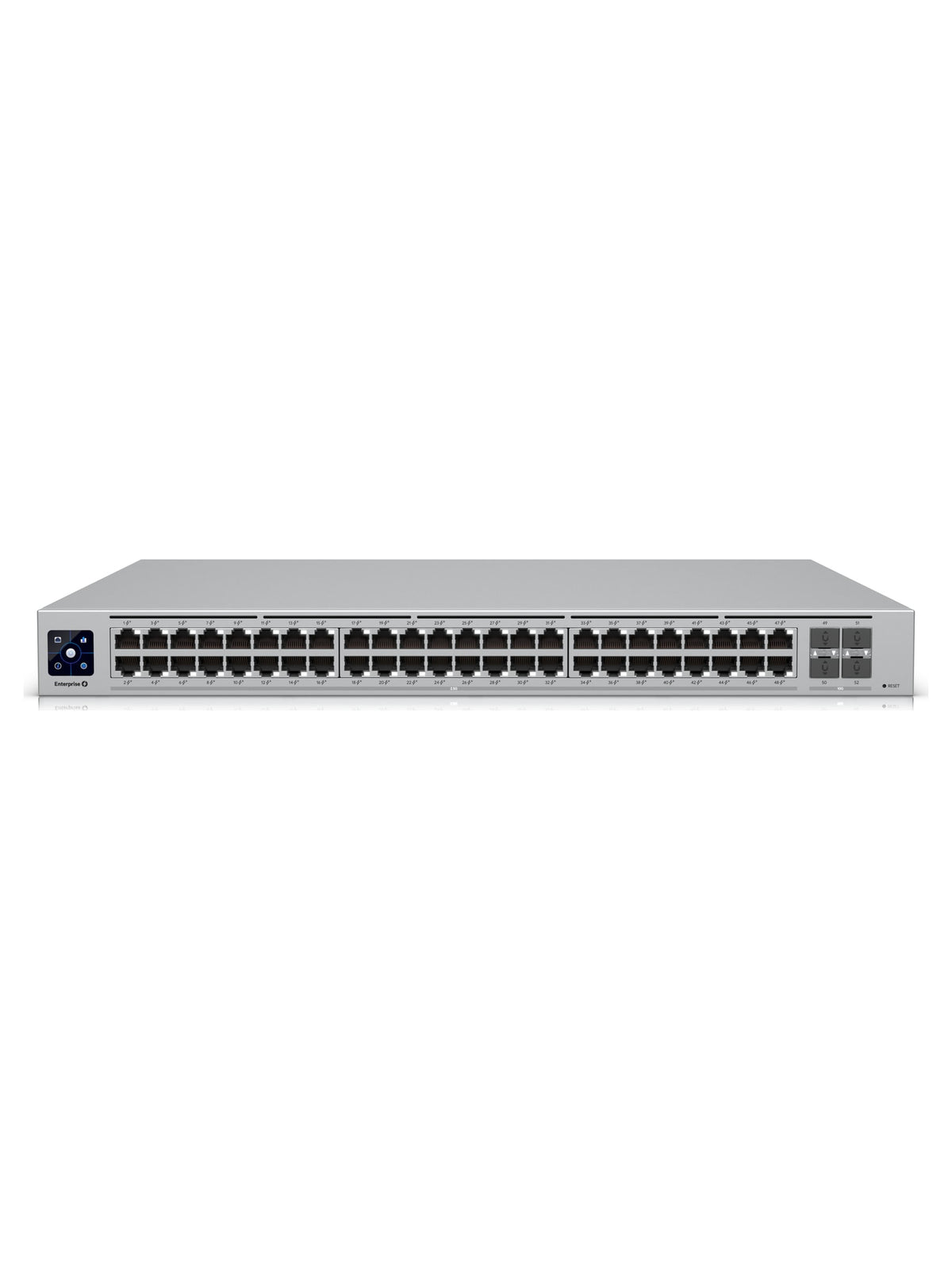

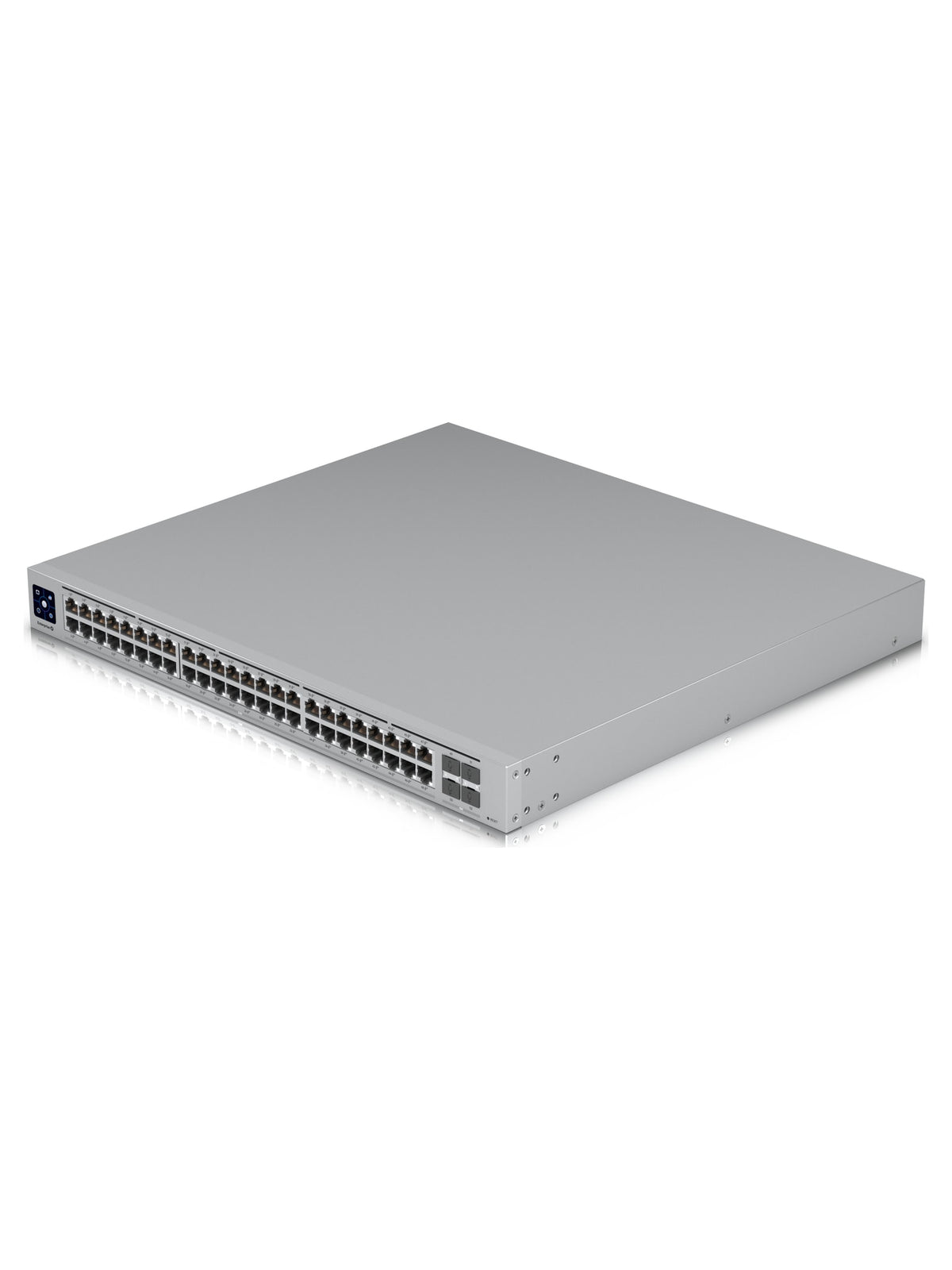

Ubiquiti UniFi Switch Enterprise 48 PoE - 2.5GbE Layer 3 Switch
48-port 2.5 GbE PoE+ Layer 3 switch with 720W of PoE power
Read MoreSpecs
Brand
Ubiquiti
Model
USW-ENTERPRISE-48-PO
Product
Switch Enterprise 48 PoE (Vintage)
Dimensions
442 x 400 x 44 mm (17.4 x 15.7 x 1.7")
- Regular price
- $1,815.00 USD
- Sale price
- $1,815.00 USD
- Regular price
-
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Ubiquiti UniFi Switch Enterprise 48 PoE - 2.5GbE Layer 3 Switch
The Ubiquiti UniFi Switch Enterprise 48 PoE (Vintage) (USW-ENTERPRISE-48-PO) is a 48-port 2.5 GbE PoE+ Layer 3 switch with 720W of PoE power. It adds four 10G SFP+ uplinks for multi-gig access points in a 1U rack design. It is managed with the UniFi Network app.
Main Specs
- Dimensions: 442 x 400 x 44 mm (17.4 x 15.7 x 1.7")
- 2.5 GbE RJ45: 48 (All PoE+) (2.5G/1G/100M/10M)
- 10G SFP+: 4 (10G/1G)
- Max. PoE Output: Up to PoE+
- Total PoE Availability: 720W
- Redundancy: DC Power Backup, With UniFi RPS
- Form Factor: Rack mount (1U)
- Max. Power Consumption: 150W (Excluding PoE Output) 870W (Including PoE Output)
- Power Method: (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
- Managed with the UniFi Network app, no licence fees
- Ideal for enterprise networks with multi-gig access points
Main Characteristics
Brand
Ubiquiti
Model
USW-ENTERPRISE-48-PO
Product
Switch Enterprise 48 PoE (Vintage)
Dimensions
442 x 400 x 44 mm (17.4 x 15.7 x 1.7")
2.5 GbE RJ45
48 (All PoE+) (2.5G/1G/100M/10M)
10G SFP+
4 (10G/1G)
Max. PoE Output
Up to PoE+
Total PoE Availability
720W
Redundancy
DC Power Backup, With UniFi RPS
Form Factor
Rack mount (1U)
Switching Capacity
160 Gbps
Total Non-Blocking Throughput
160 Gbps
Forwarding Rate
238 Mpps
Supported VLANs
1,000
MAC Address Table Size
32,000
IPv4 Static Routes
256
Packet Buffer Size
4 MB
IPv4
128
MAC
128
PoE+
32W
Max. Power Consumption
150W (Excluding PoE Output) 870W (Including PoE Output)
Power Method
(1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 870W
Supported Voltage Range
100–240V AC
Management
Ethernet AR
Heat Dissipation
511.8 BTU/hr (Excluding PoE Output)
Weight
Without mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
600 - 1,200 mm (23.6- 47.2" )
LCM Display
1.3" touchscreen
ESD Protection
Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC, Anatel: 05485-22-08356
