Ubiquiti UniFi Switch Pro 24 PoE - 24-Port Layer 3 Switch, 400W PoE

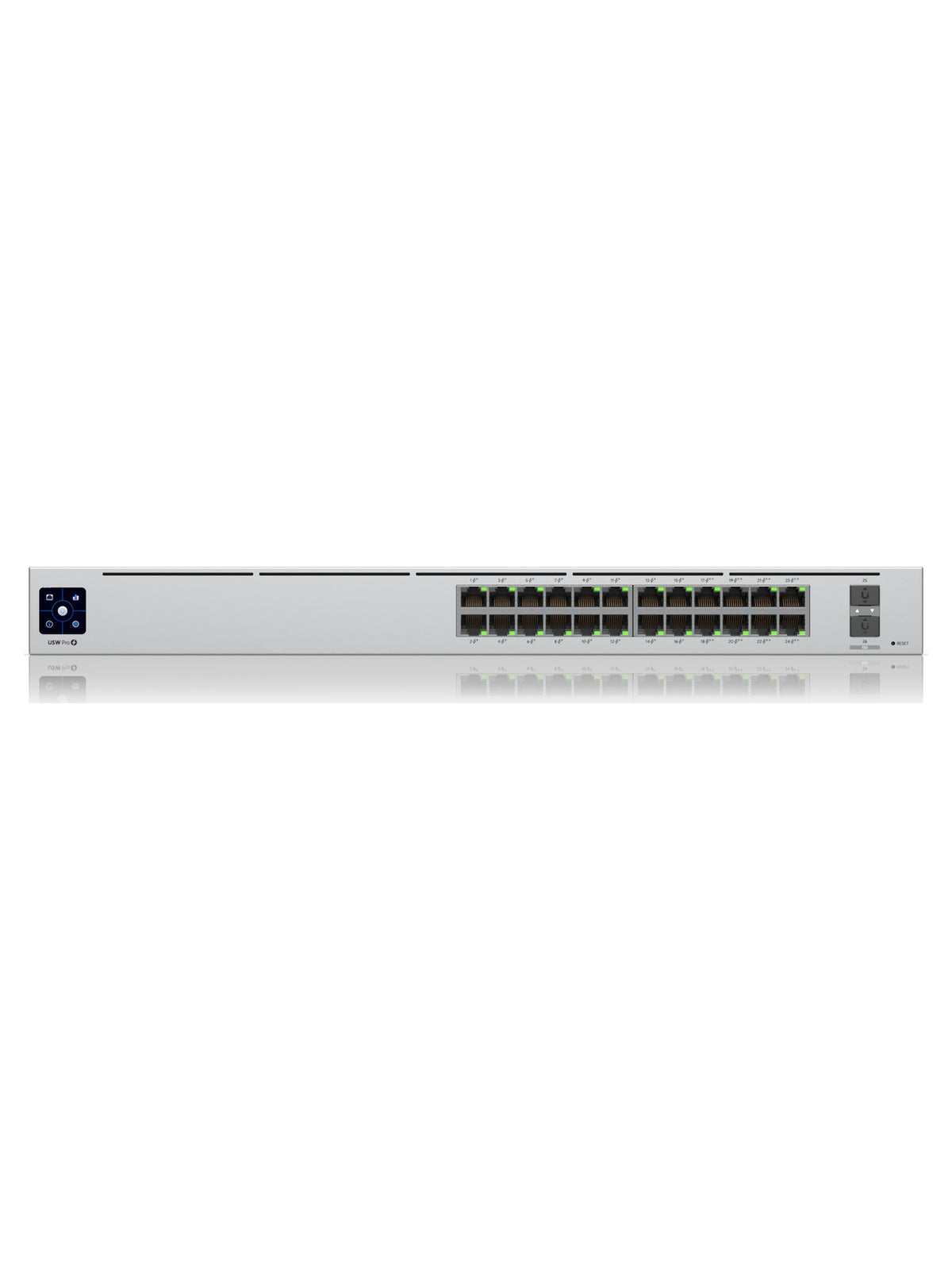

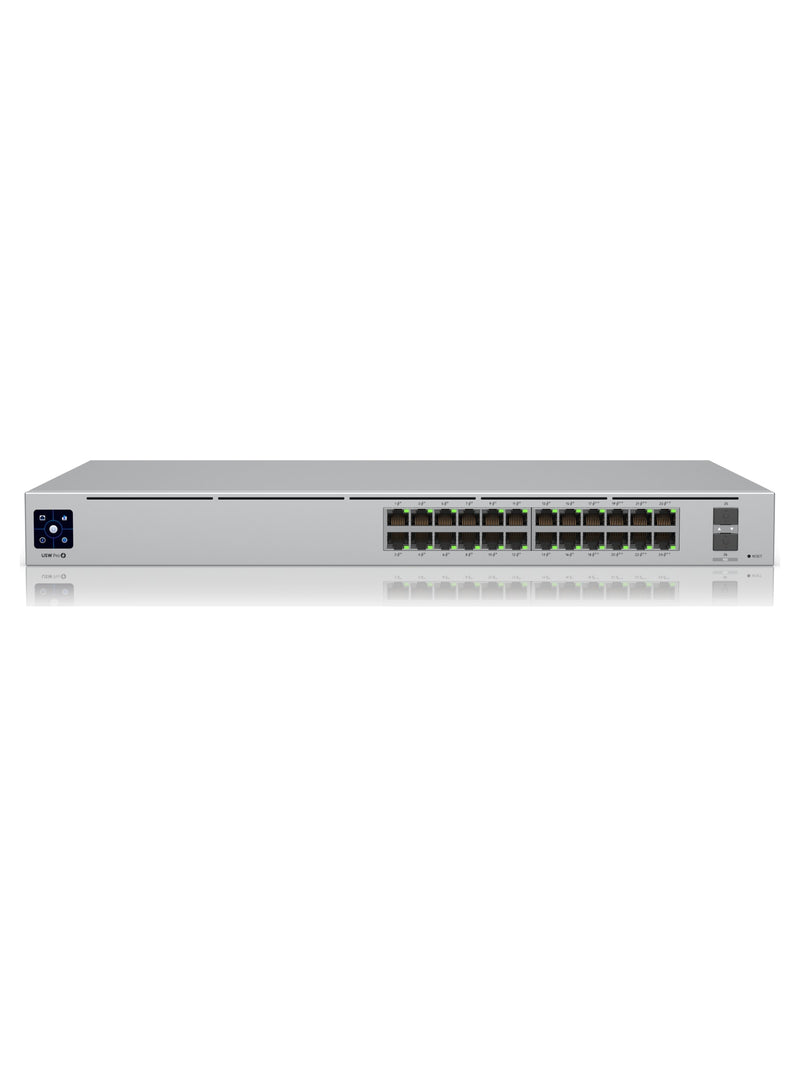

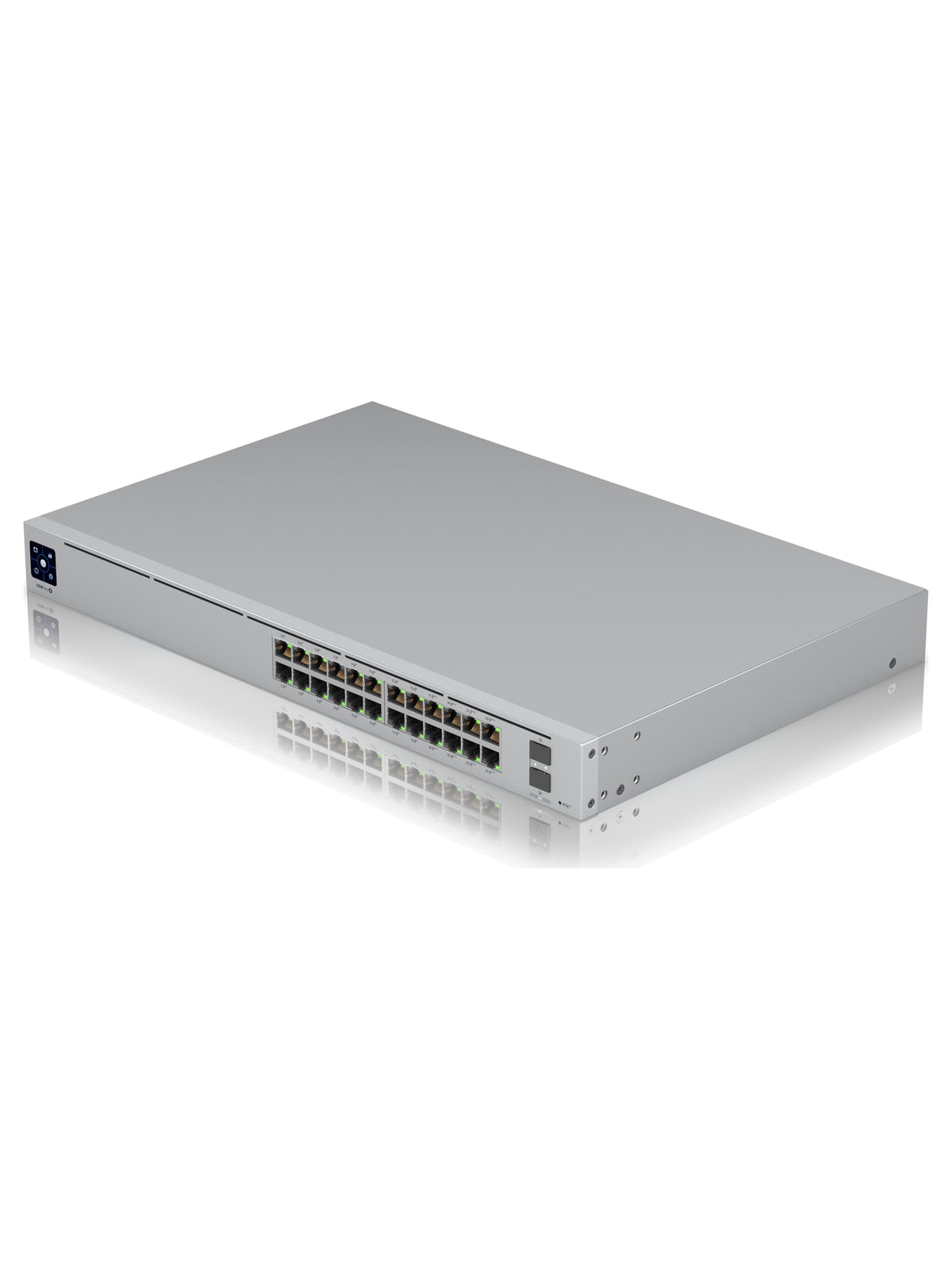

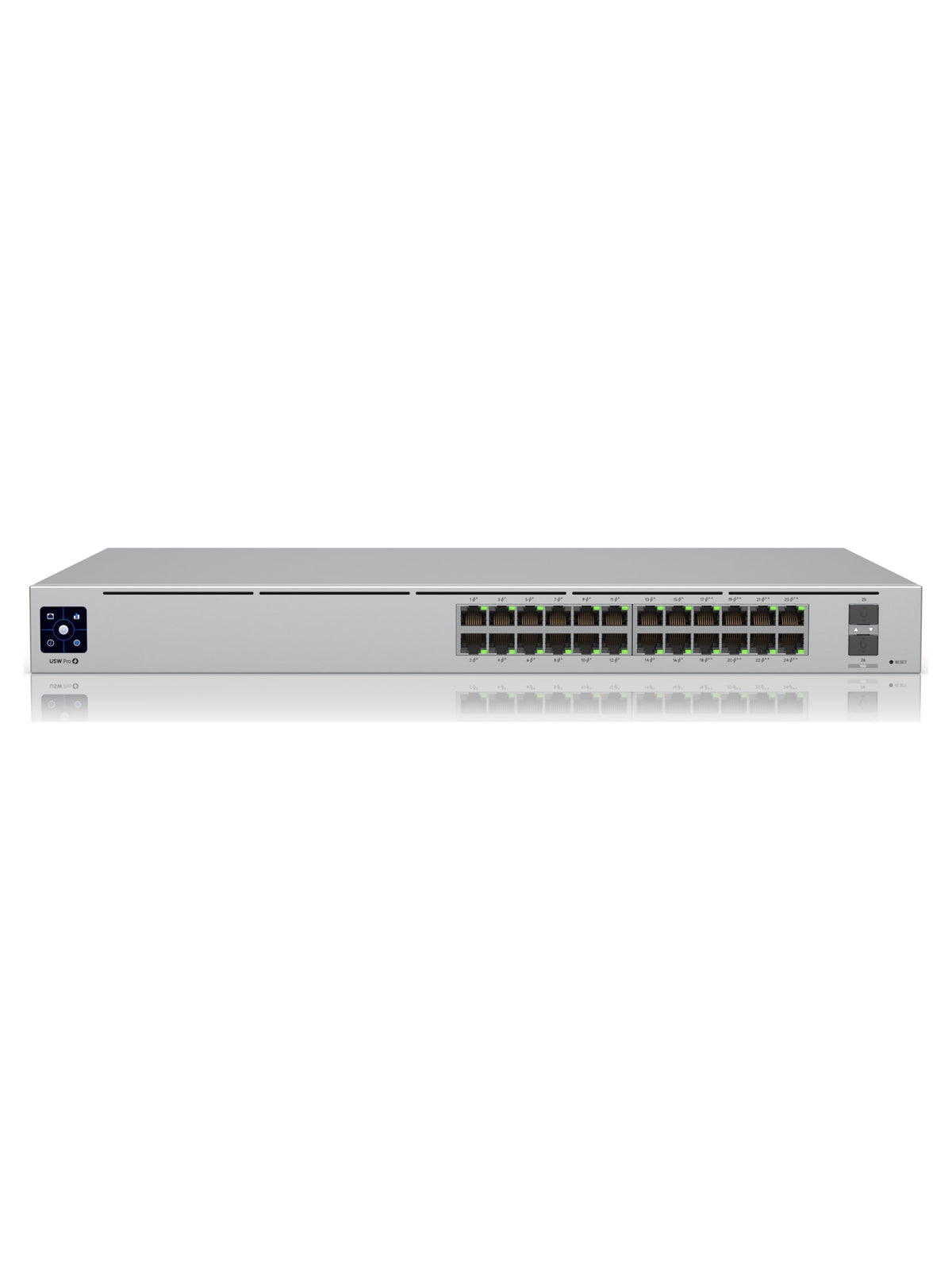

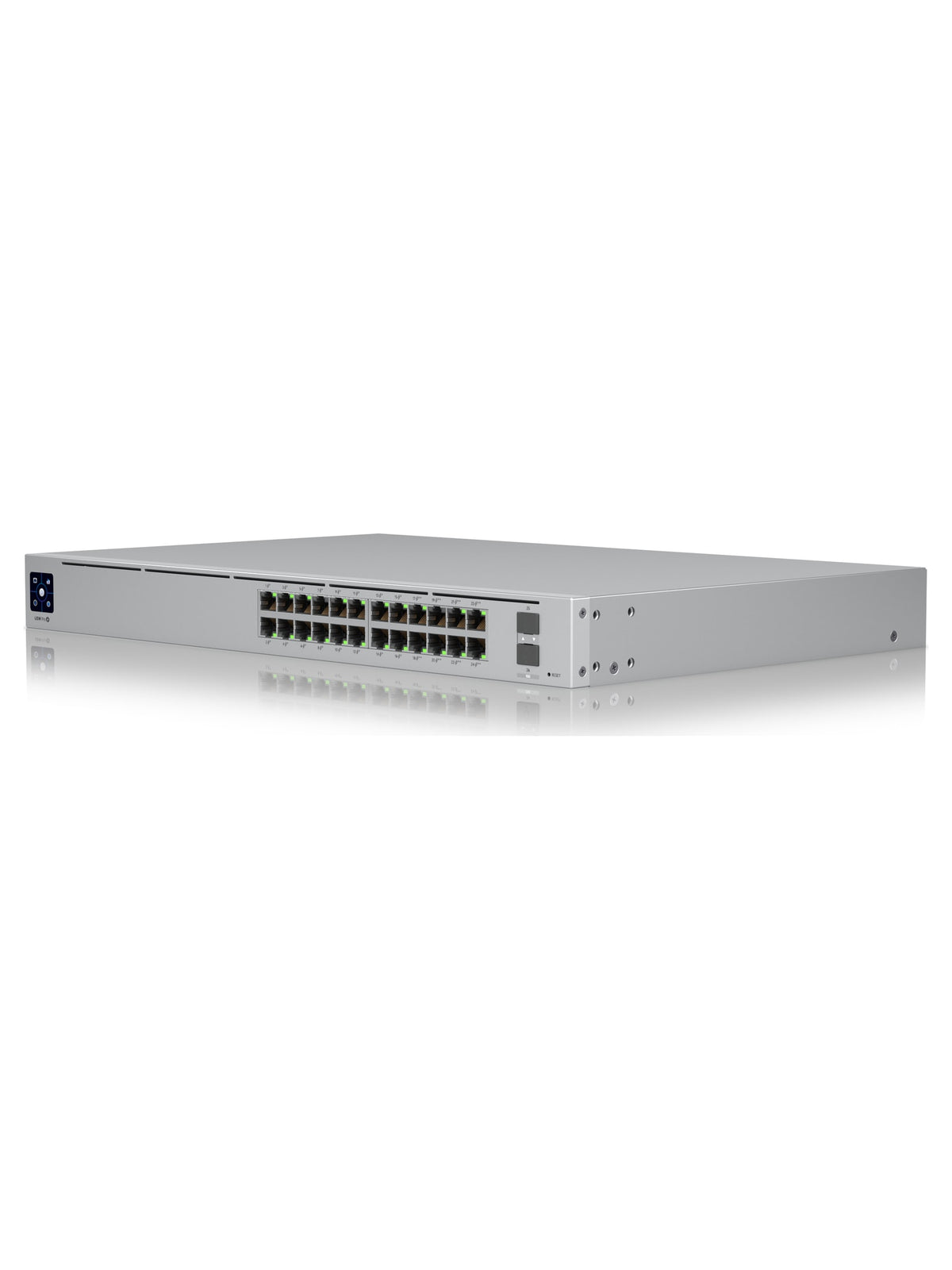

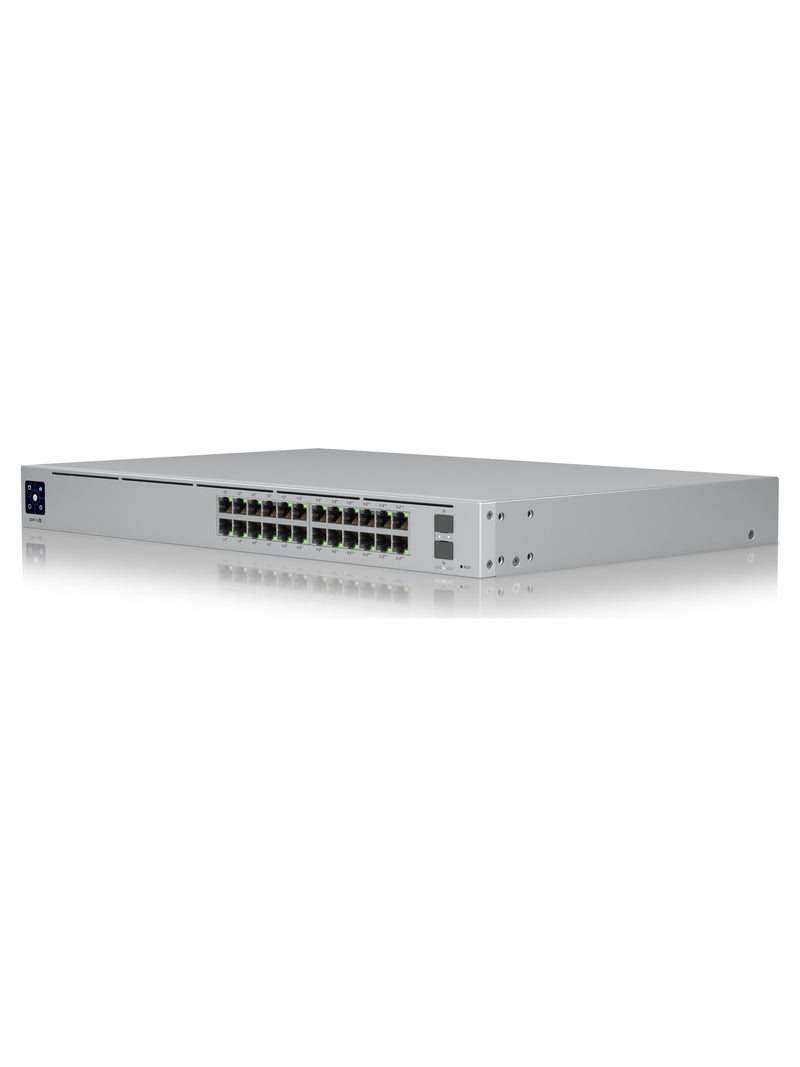

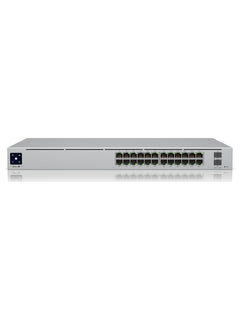

The Ubiquiti UniFi Switch Pro 24 PoE (USW-PRO-24-POE) is a 24-port Gigabit Layer 3 switch with PoE+ and PoE++ and 400W of PoE power. It adds two 10G SFP+ uplinks and near-silent cooling in a 1U rack design. It is managed with the UniFi Network app.
Main Specs
- Dimensions: 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
- 1 GbE RJ45: 24 (16 PoE+; 8 PoE++) (1G/100M/10M)
- 10G SFP+: 2 (10G/1G)
- Max. PoE Output: Up to PoE++
- Total PoE Availability: 400W
- Redundancy: DC Power Backup, With UniFi RPS
- Form Factor: Rack mount (1U)
- Max. Power Consumption: 50W (Excluding PoE Output) 450W (Including PoE Output)
- Power Method: (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
- Managed with the UniFi Network app, no licence fees
- Ideal for businesses with many access points and cameras
Main Characteristics
Brand
Ubiquiti
Model
USW-PRO-24-POE
Product
Switch Pro 24 PoE
Dimensions
442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
1 GbE RJ45
24 (16 PoE+; 8 PoE++) (1G/100M/10M)
10G SFP+
2 (10G/1G)
Max. PoE Output
Up to PoE++
Total PoE Availability
400W
Redundancy
DC Power Backup, With UniFi RPS
Form Factor
Rack mount (1U)
Switching Capacity
88 Gbps
Total Non-Blocking Throughput
44 Gbps
Forwarding Rate
65 Mpps
Supported VLANs
1,000
MAC Address Table Size
16,000
IPv4 Static Routes
2
Packet Buffer Size
2 MB
IPv4
128
MAC
128
PoE+
30W
PoE++
60W
PoE
15.4W
Max. Power Consumption
50W (Excluding PoE Output) 450W (Including PoE Output)
Power Method
(1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 450W
Supported Voltage Range
100–240V AC
Management
Ethernet AR
Heat Dissipation
170.6 BTU/hr (Excluding PoE Output)
Weight
Without mounting brackets: 4.3 kg (9.5 lb) With mounting brackets: 4.4 kg (9.7 lb)
Enclosure Material
SGCC steel
Supported Rack Depth
400~1200 mm (15.7-47.2")
LCM Display
1.3" touchscreen
ESD Protection
Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC, Anatel: 13790-20-08356
