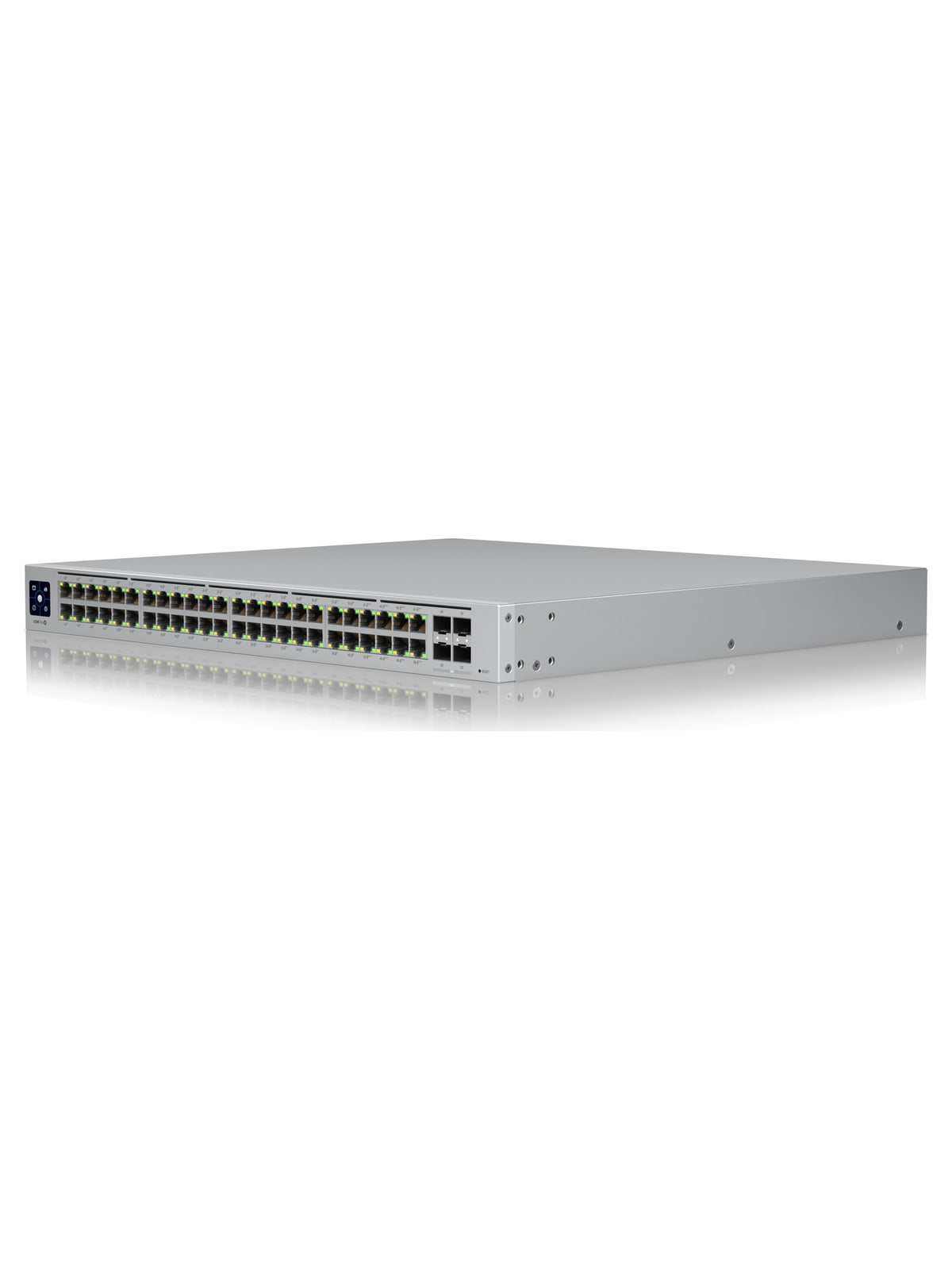

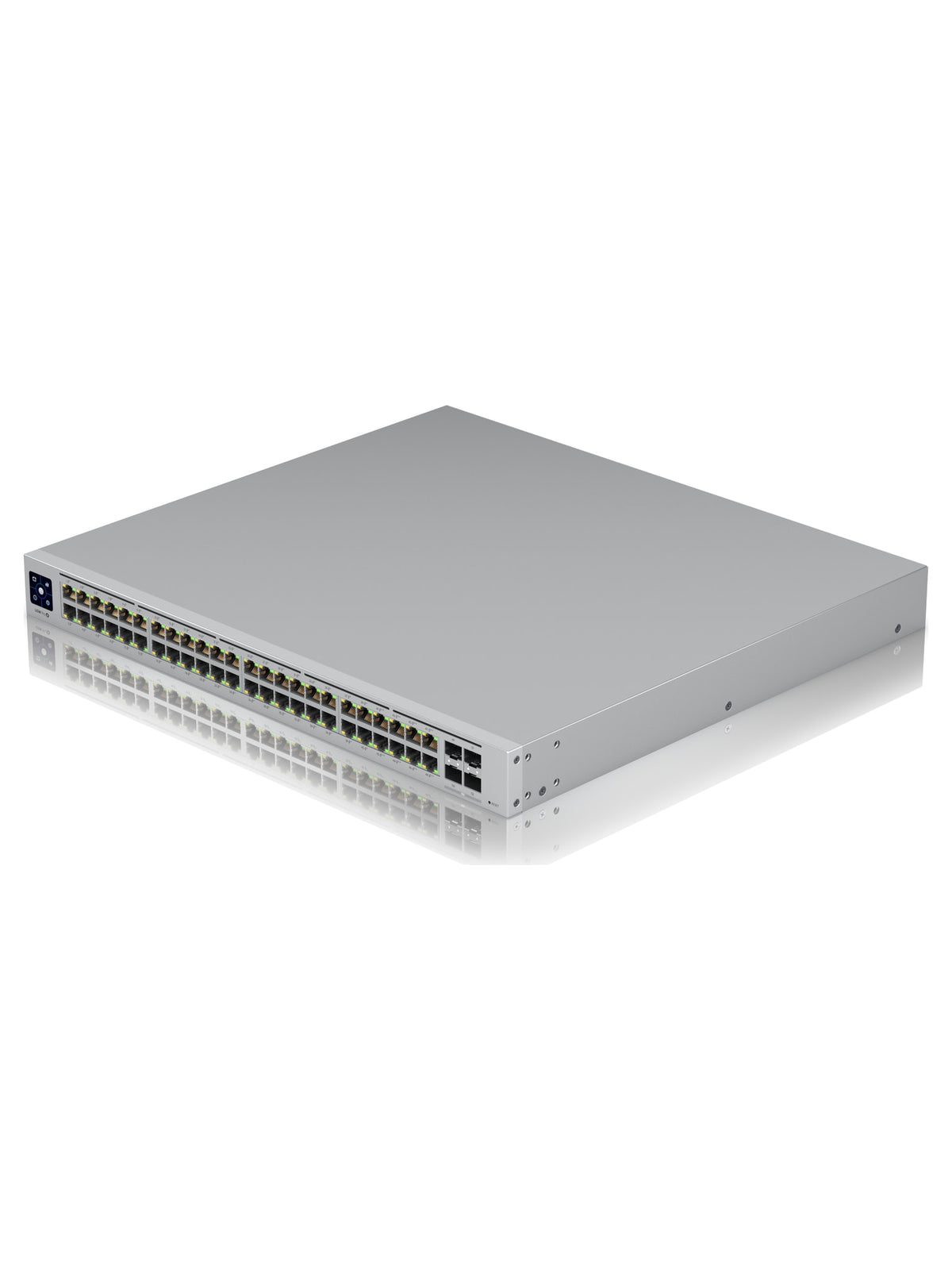

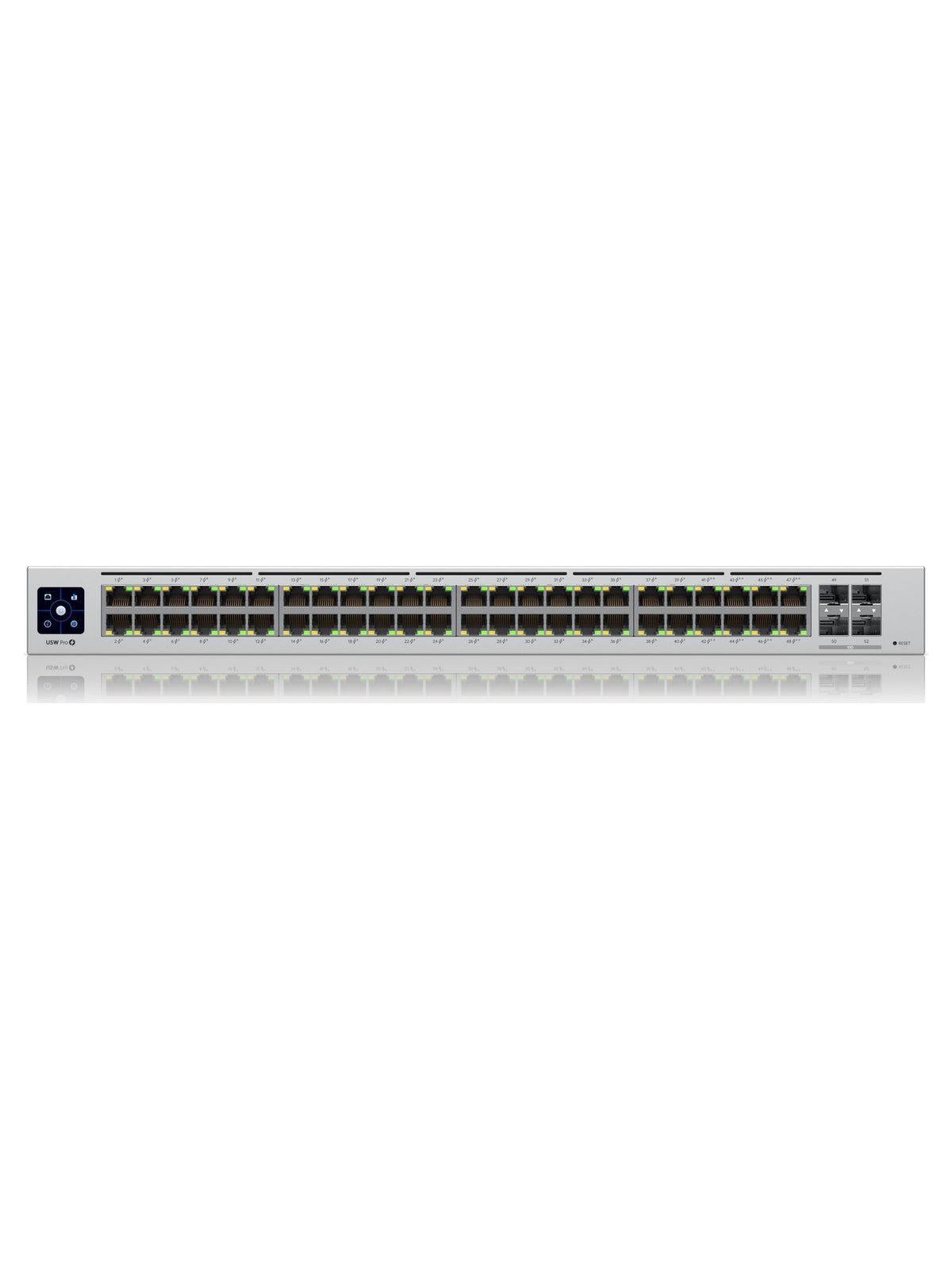

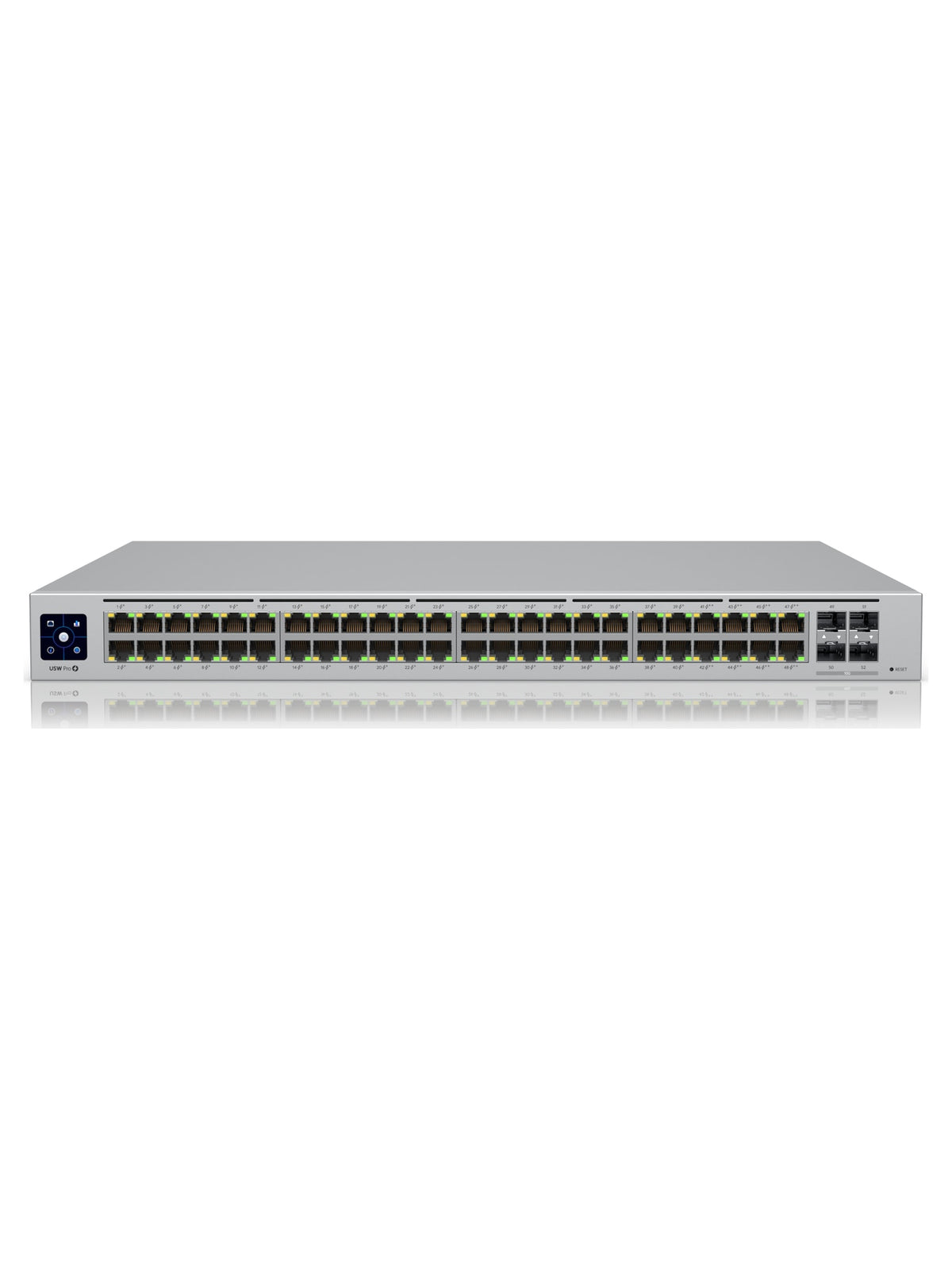

Ubiquiti UniFi Switch Pro 48 PoE - 48-Port Layer 3 Switch, 600W PoE
48-port Gigabit Layer 3 switch with PoE+ and PoE++ and 600W of PoE power
Read MoreSpecs
Brand
Ubiquiti
Model
USW-PRO-48-POE
Product
Switch Pro 48 PoE
Dimensions
442 x 400 x 44 mm (17.4 x 15.7 x 1.7")
- Regular price
- $1,650.00 USD
- Sale price
- $1,650.00 USD
- Regular price
-
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Ubiquiti UniFi Switch Pro 48 PoE - 48-Port Layer 3 Switch, 600W PoE
The Ubiquiti UniFi Switch Pro 48 PoE (USW-PRO-48-POE) is a 48-port Gigabit Layer 3 switch with PoE+ and PoE++ and 600W of PoE power. It adds four 10G SFP+ uplinks and near-silent cooling in a 1U rack design. It is managed with the UniFi Network app.
Main Specs
- Dimensions: 442 x 400 x 44 mm (17.4 x 15.7 x 1.7")
- 1 GbE RJ45: 48 (40 PoE+; 8 PoE++) (1G/100M/10M)
- 10G SFP+: 4 (10G/1G)
- Max. PoE Output: Up to PoE++
- Total PoE Availability: 600W
- Redundancy: DC Power Backup, With UniFi RPS
- Form Factor: Rack mount (1U)
- Max. Power Consumption: 60W (Excluding PoE Output) 660W (Including PoE Output)
- Power Method: (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
- Managed with the UniFi Network app, no licence fees
- Ideal for large business networks
Main Characteristics
Brand
Ubiquiti
Model
USW-PRO-48-POE
Product
Switch Pro 48 PoE
Dimensions
442 x 400 x 44 mm (17.4 x 15.7 x 1.7")
1 GbE RJ45
48 (40 PoE+; 8 PoE++) (1G/100M/10M)
10G SFP+
4 (10G/1G)
Max. PoE Output
Up to PoE++
Total PoE Availability
600W
Redundancy
DC Power Backup, With UniFi RPS
Form Factor
Rack mount (1U)
Switching Capacity
176 Gbps
Total Non-Blocking Throughput
88 Gbps
Forwarding Rate
131 Mpps
Supported VLANs
1,000
MAC Address Table Size
16,000
IPv4 Static Routes
256
Packet Buffer Size
4 MB
IPv4
128
MAC
128
PoE+
32W
PoE++
60W
PoE
15.4W
Max. Power Consumption
60W (Excluding PoE Output) 660W (Including PoE Output)
Power Method
(1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 660W
Supported Voltage Range
100–240V AC
Management
Ethernet AR
Heat Dissipation
204.7 BTU/hr (Excluding PoE Output)
Weight
Without mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
400~1200 mm (15.7-47.2")
LCM Display
1.3" touchscreen
ESD Protection
Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC, Anatel: 13790-20-08356
