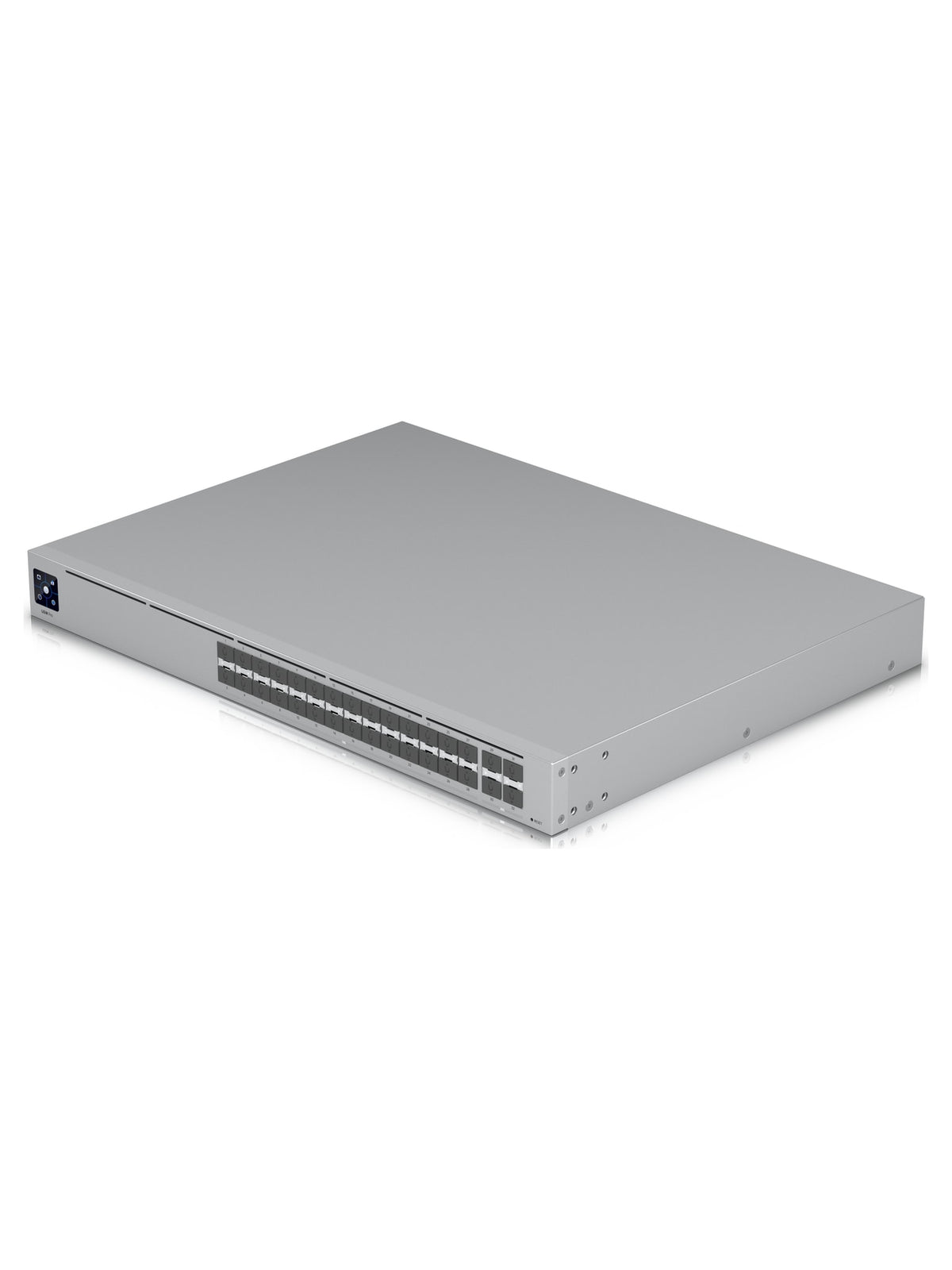

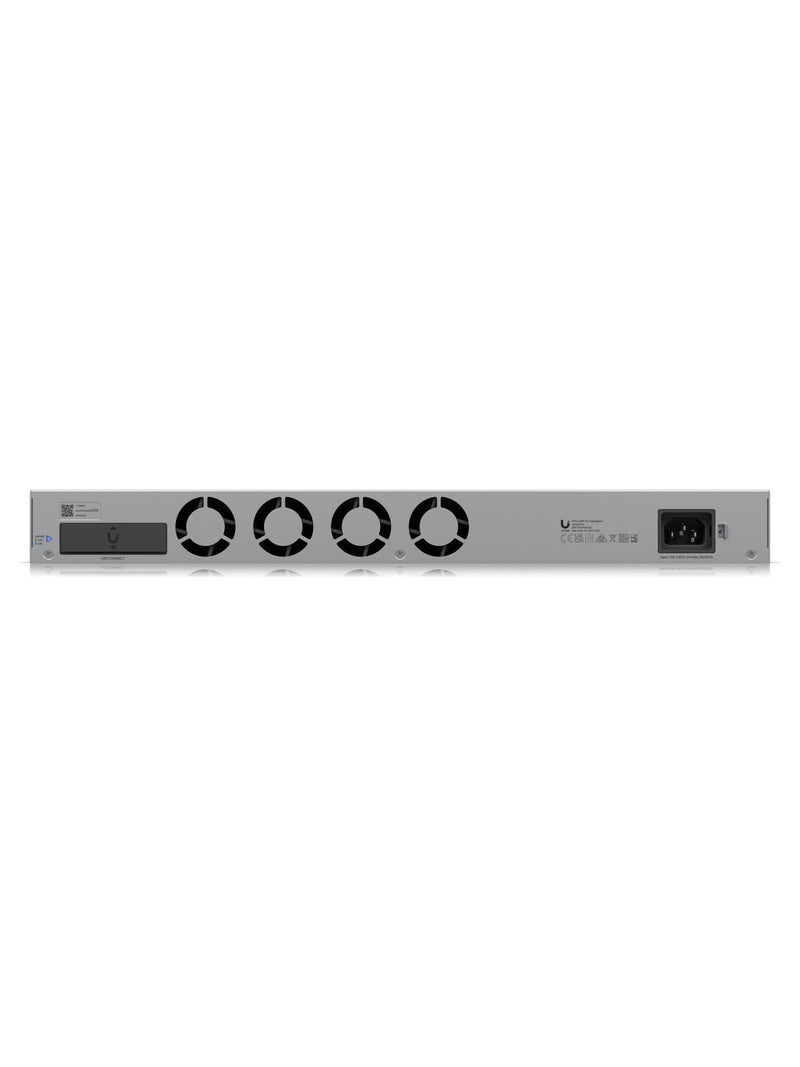

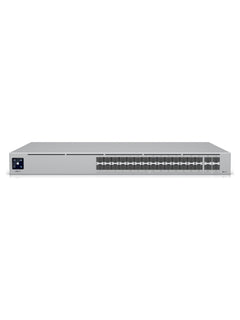

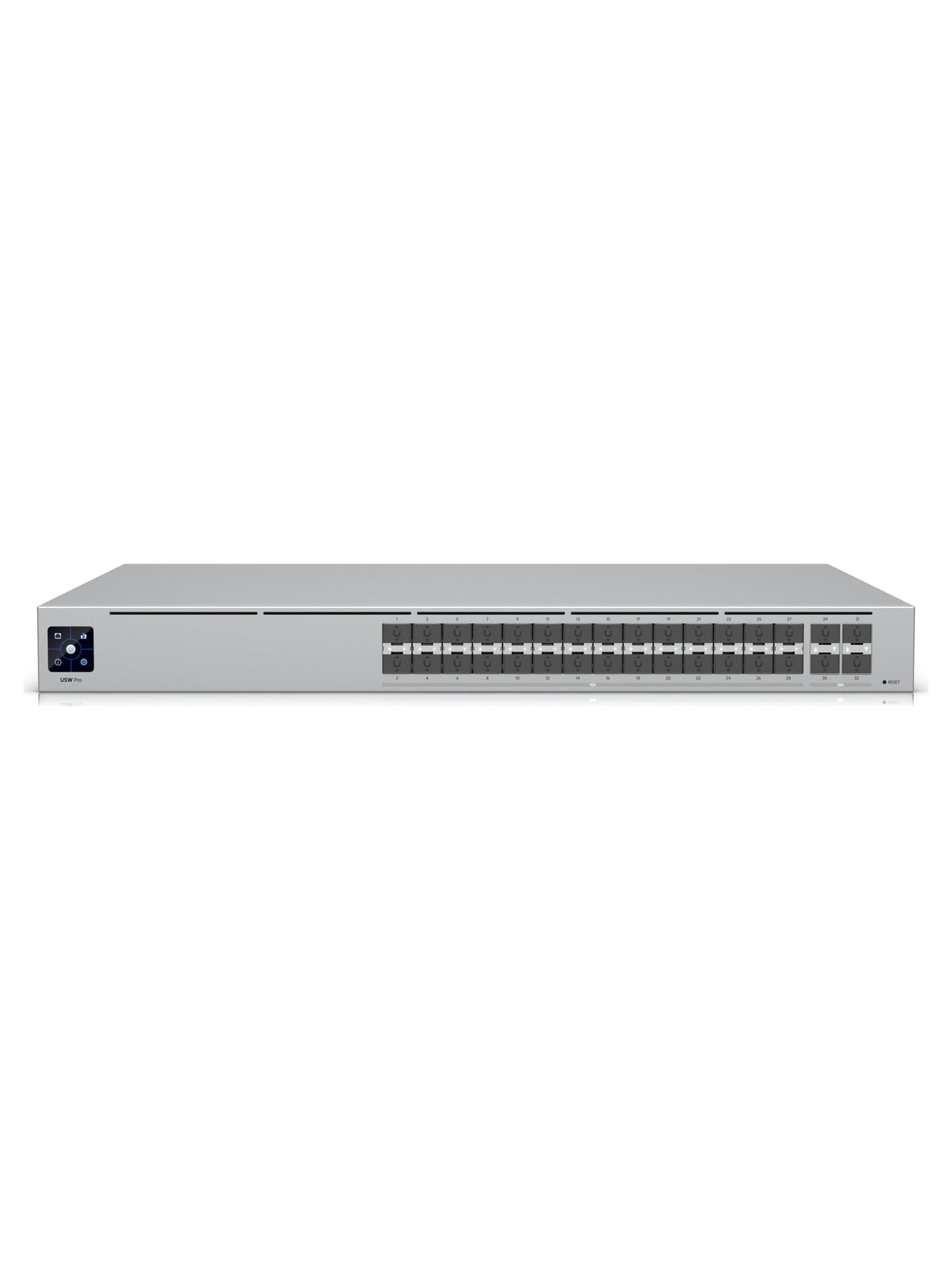

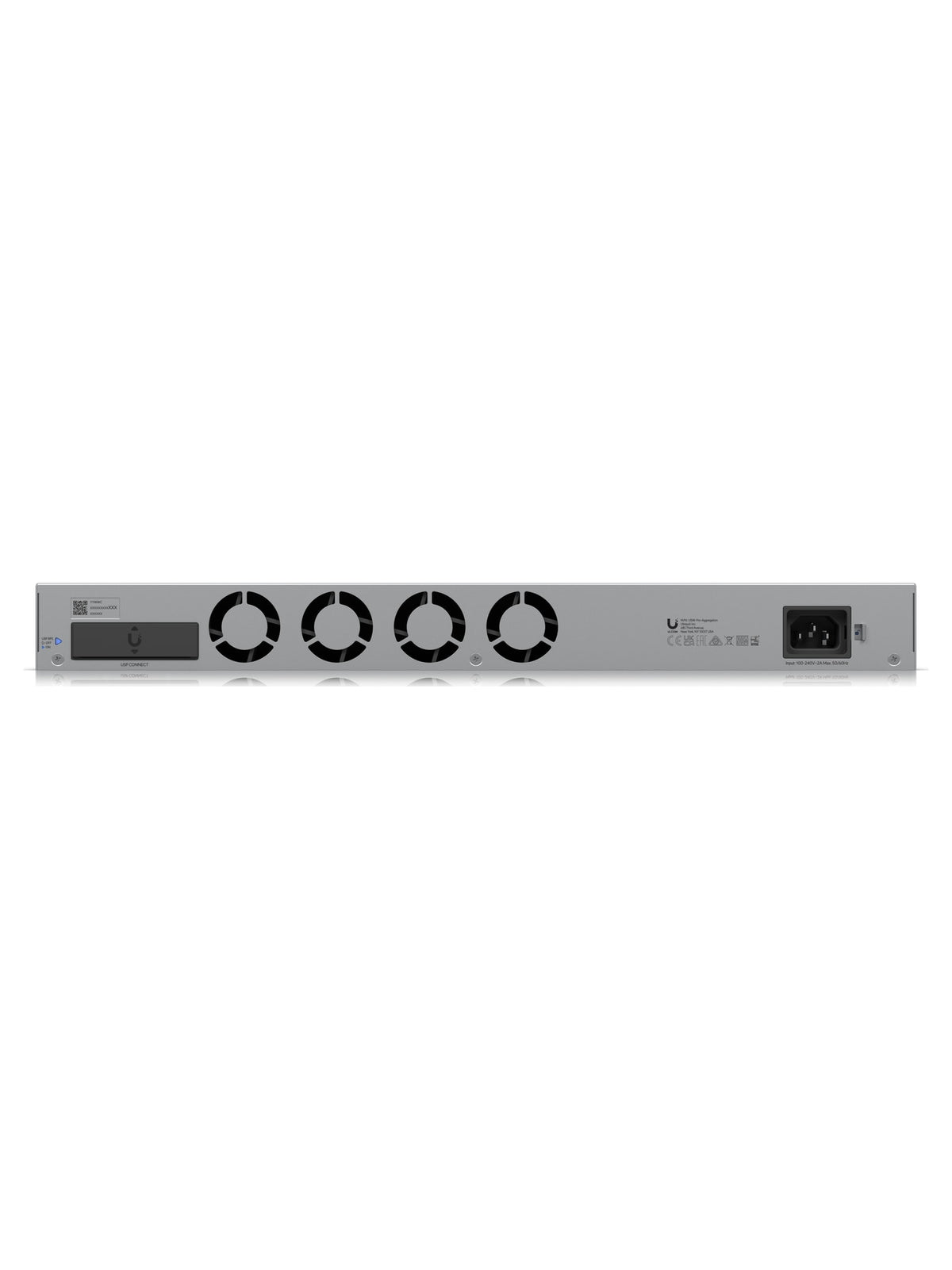

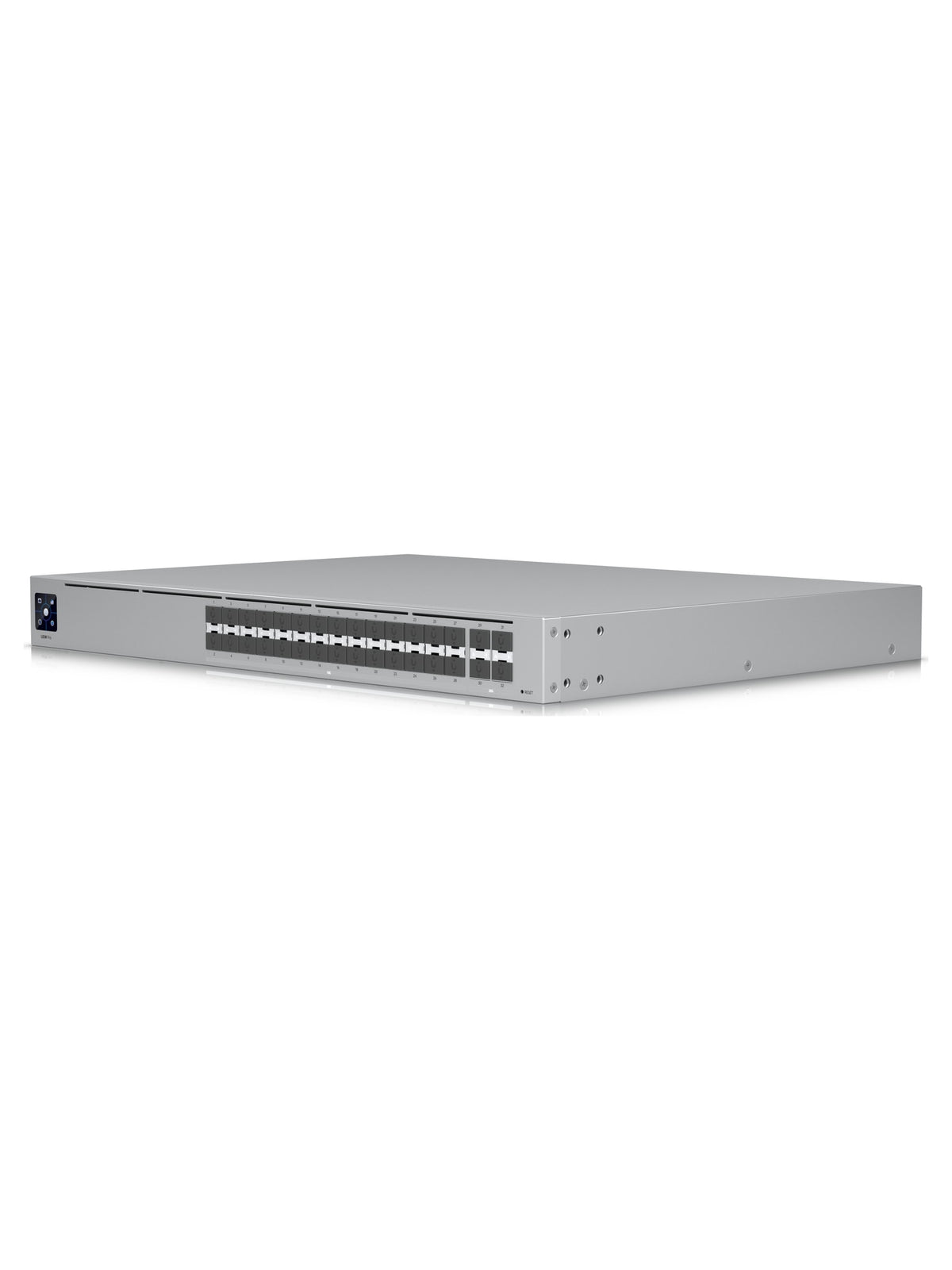

Ubiquiti UniFi Switch Pro Aggregation - 28x 10G SFP+, 4x 25G SFP28 Layer 3 Switch
Layer 3 aggregation switch with 28 10G SFP+ and 4 25G SFP28 ports, 760 Gbps switching capacity, 1U rack mount, touchscreen and DC backup support.
Read MoreSpecs
Brand
Ubiquiti
Model
USW-Pro-Aggregation
Product Type
Managed Network Switch
10G SFP+ Ports
28 (10G/1G)
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3β5 Business Days)
15
Standard delivery with in-store pickup, 3β5 business days.
Express 1β2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1β2 business days.
Ubiquiti UniFi Switch Pro Aggregation - 28x 10G SFP+, 4x 25G SFP28 Layer 3 Switch
The Ubiquiti UniFi Switch Pro Aggregation (now listed by Ubiquiti as Switch Hi-Capacity Aggregation) is a 32-port Layer 3 fiber switch. It offers 28 10G SFP+ ports and four 25G SFP28 ports with 760 Gbps of switching capacity in a 1U rack design with optional DC backup through UniFi RPS. It suits server rooms and network cores that link many switches, servers and storage over 10G and 25G.
Main Specs
- (28) 10G SFP+ ports
- (4) 25G SFP28 ports
- 760 Gbps switching capacity, 380 Gbps non-blocking
- Layer 3 switching
- 100W max. power consumption, internal PSU
- DC power backup with UniFi RPS
- 1U rack mount with 1.3" touchscreen
- Managed with the UniFi Network app
- Ideal for server rooms and 10G / 25G network cores
Main Characteristics
Brand
Ubiquiti
Model
USW-Pro-Aggregation
Product Type
Managed Network Switch
10G SFP+ Ports
28 (10G/1G)
25G SFP28 Ports
4 (25G/10G/1G)
Layer 3
Yes
Switching Capacity
760 Gbps
Non-Blocking Throughput
380 Gbps
Forwarding Rate
565 Mpps
MAC Address Table
32,000
Redundancy
DC Power Backup, with UniFi RPS
Power Supply
AC/DC, internal, 100W
Max. Power Consumption
100W
Form Factor
Rack mount (1U)
Display
1.3" touchscreen
Dimensions
442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
Weight
Without mounting brackets: 4.6 kg (10.1 lb), With mounting brackets: 4.7 kg (10.4 lb)
Operating Temperature
-5 to 40Β° C (23 to 104Β° F)
