Ubiquiti UniFi Switch Pro Max 16 PoE - 2.5GbE Layer 3 Etherlighting Switch, 180W

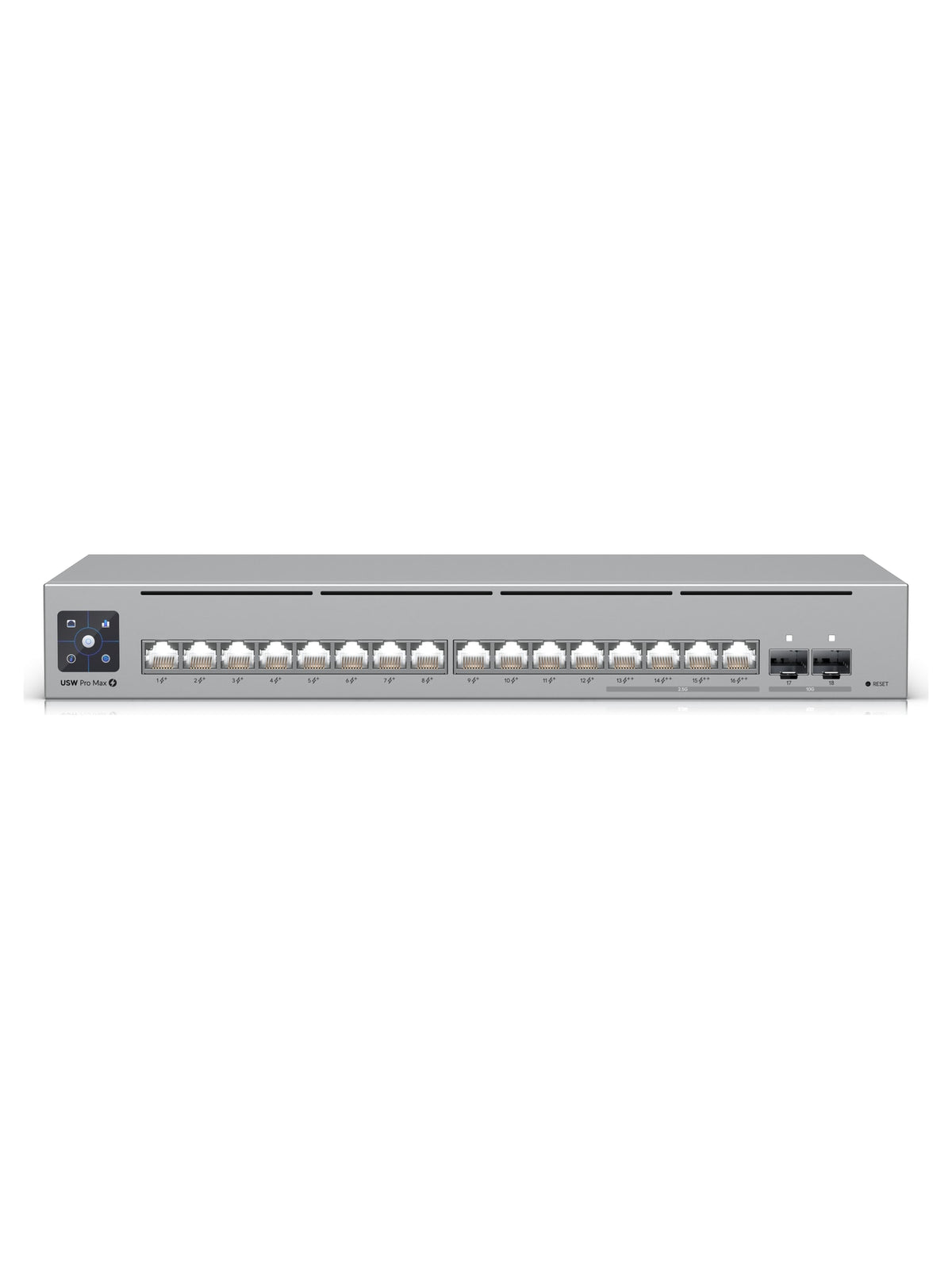

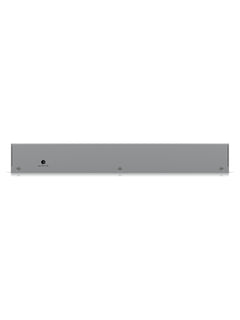

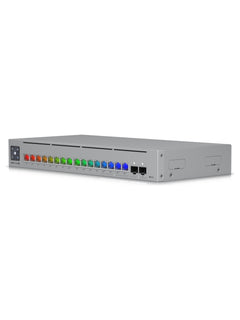

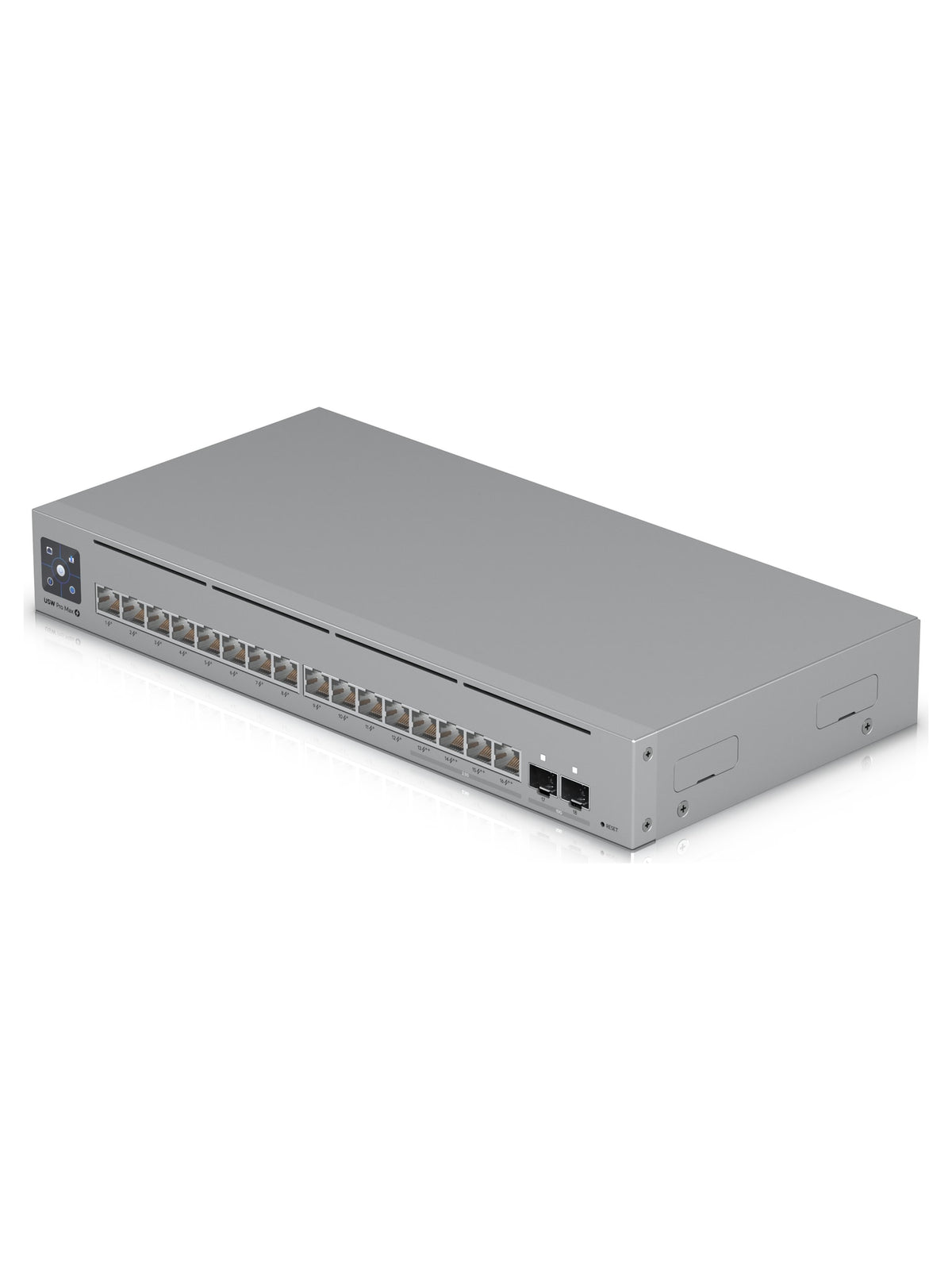

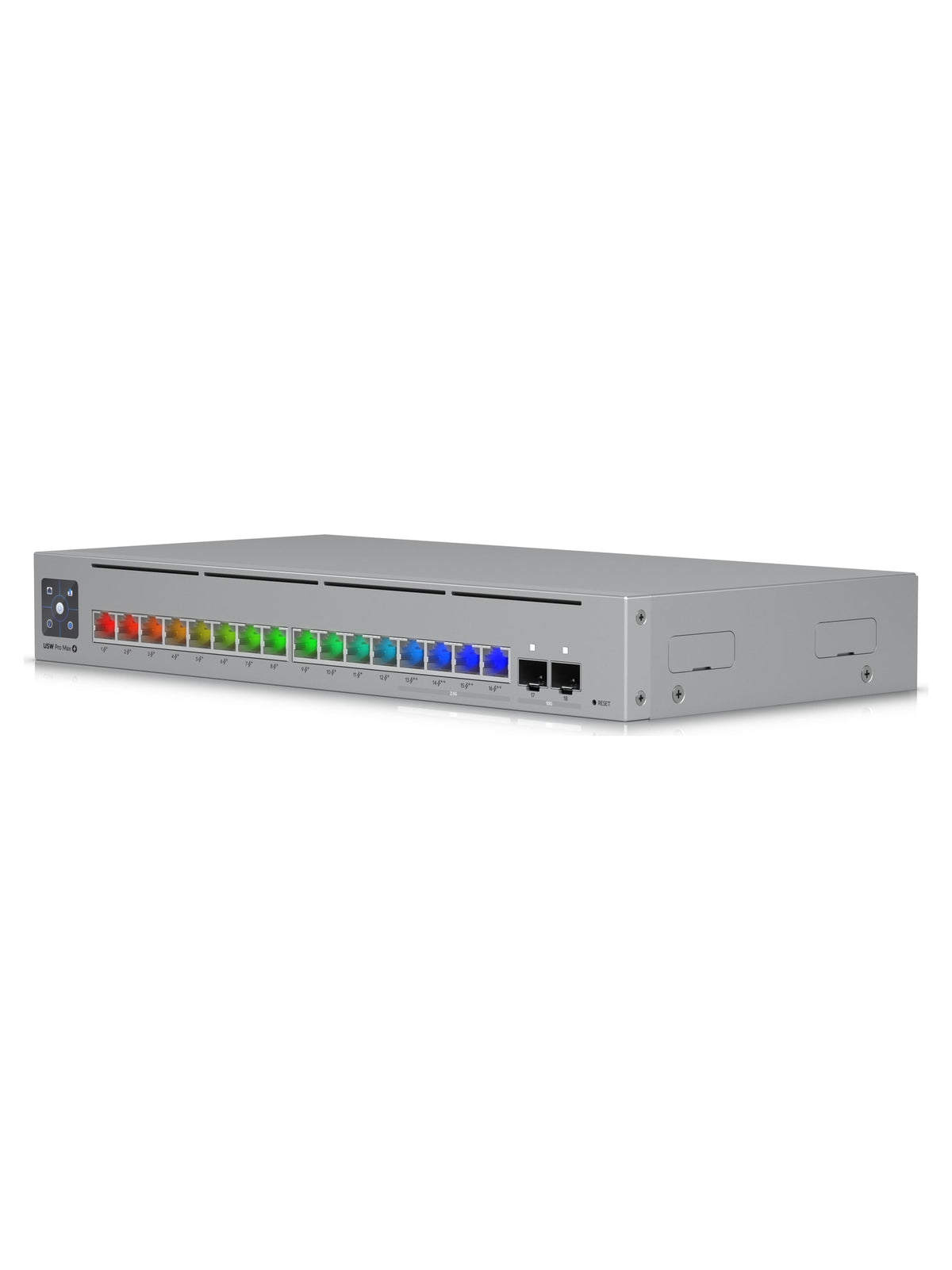

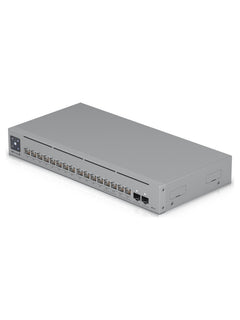

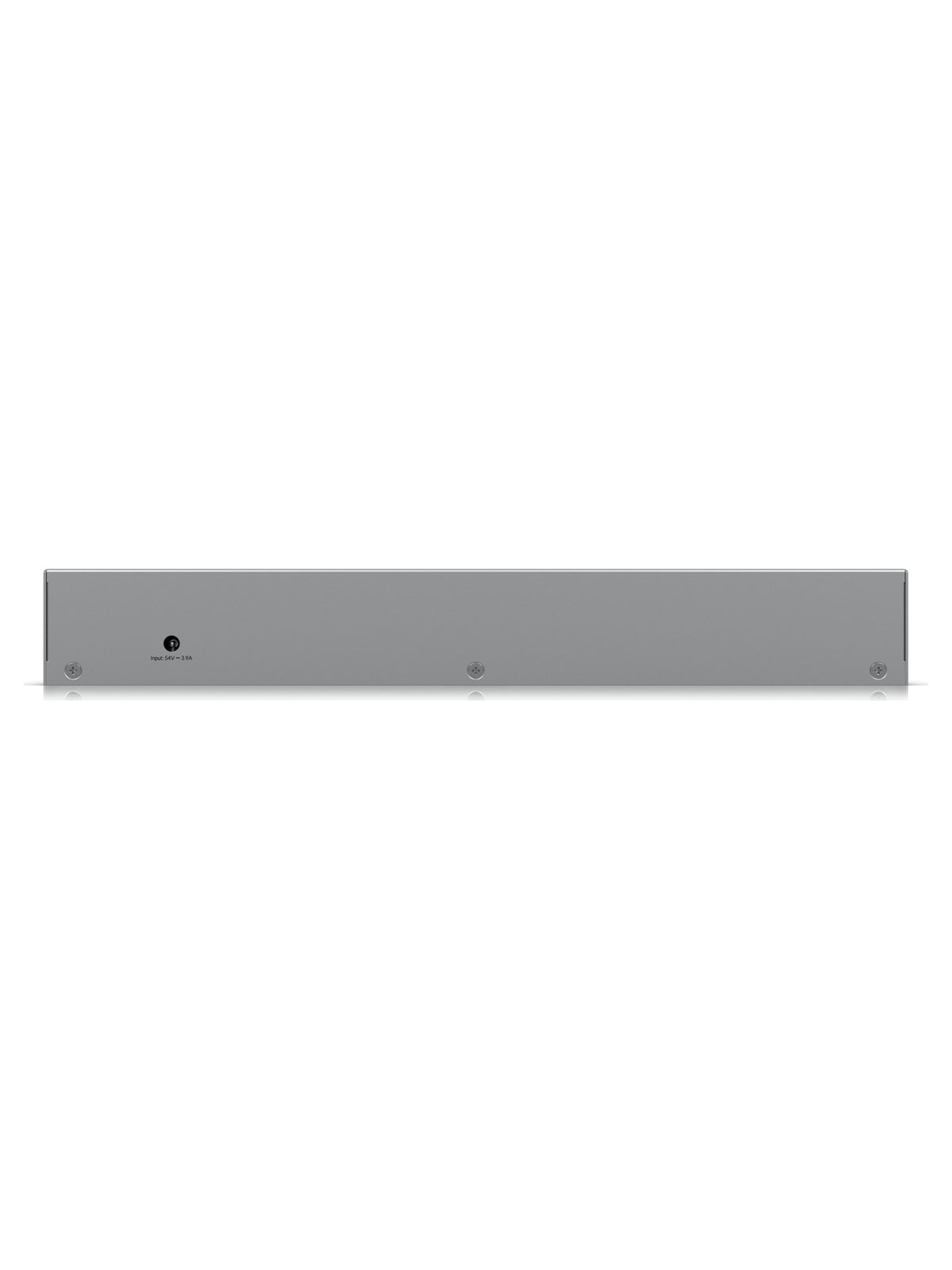

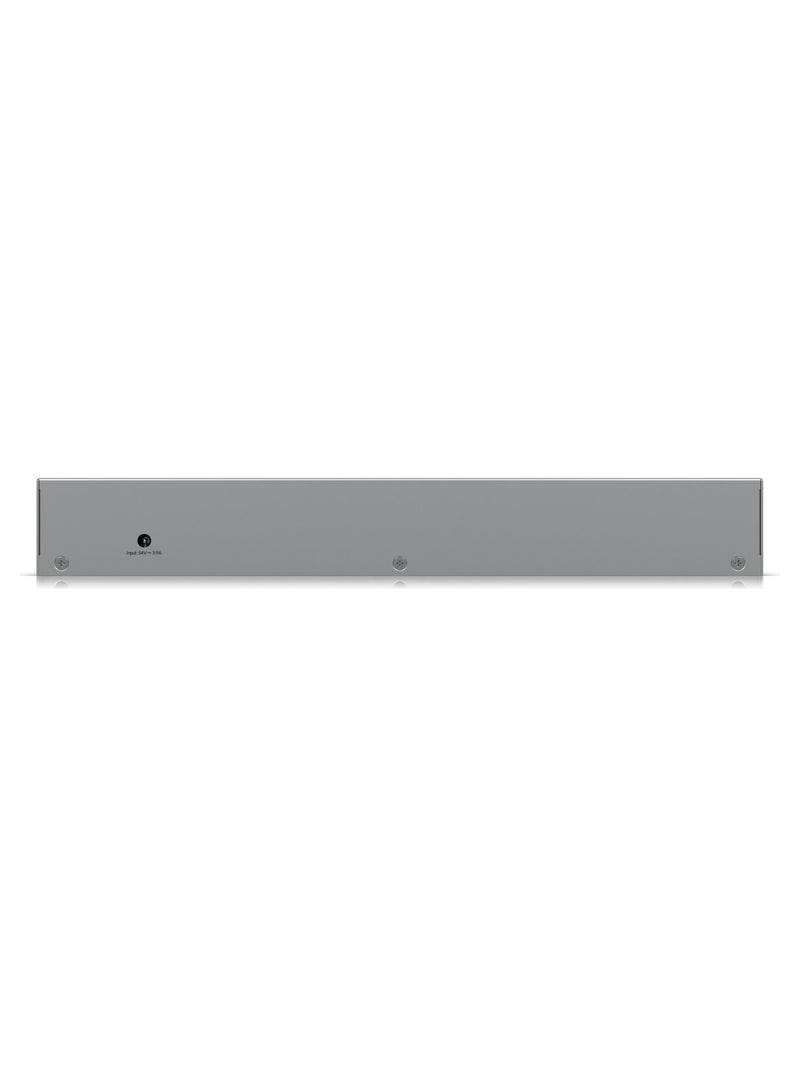

The Ubiquiti UniFi Switch Pro Max 16 PoE is a 16-port Layer 3 Etherlighting switch that mixes Gigabit and 2.5 GbE PoE ports. It has 12 GbE PoE+ ports, four 2.5 GbE PoE++ ports and two 10G SFP+ uplinks, sharing a 180W PoE budget, and it mounts on a desk, a wall or in a rack. It suits offices and shops moving to WiFi 7 that need a compact multi-gig PoE switch.
Main Specs
- (12) GbE RJ45 ports, all PoE+
- (4) 2.5 GbE RJ45 ports, all PoE++ (up to 60W)
- (2) 10G SFP+ uplink ports
- 180W total PoE availability
- Layer 3 switching with Etherlighting port LEDs
- 84 Gbps switching capacity
- Desktop, wall or 1U rack (rack kit sold separately), 1.3" touchscreen
- Managed with the UniFi Network app
- Ideal for offices and shops moving to WiFi 7
Main Characteristics
Brand
Ubiquiti
Model
USW-Pro-Max-16-PoE
Product Type
Managed Network Switch
1 GbE RJ45 Ports
12 (All PoE+) (1G/100M/10M)
2.5 GbE RJ45 Ports
4 (All PoE++) (2.5G/1G/100M/10M)
10G SFP+ Ports
2 (10G/1G)
Max. PoE Output
Up to PoE++
Total PoE Availability
180W
Max. PoE per Port
PoE 15.4W, PoE+ 32W, PoE++ 60W
Layer 3
Yes
Etherlighting
Yes
Switching Capacity
84 Gbps
Non-Blocking Throughput
42 Gbps
Power Supply
AC/DC, external, 210W
Max. Power Consumption
25W (Excluding PoE Output), 210W (Including PoE Output)
Form Factor
Rack mount (1U), desktop, wall, 1U rack-mounting requires add-on Rack Mount accessory
Display
1.3" touchscreen
Dimensions
325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")
Weight
2.1 kg (4.6 lb)
Operating Temperature
-5 to 40Β° C (23 to 104Β° F)
