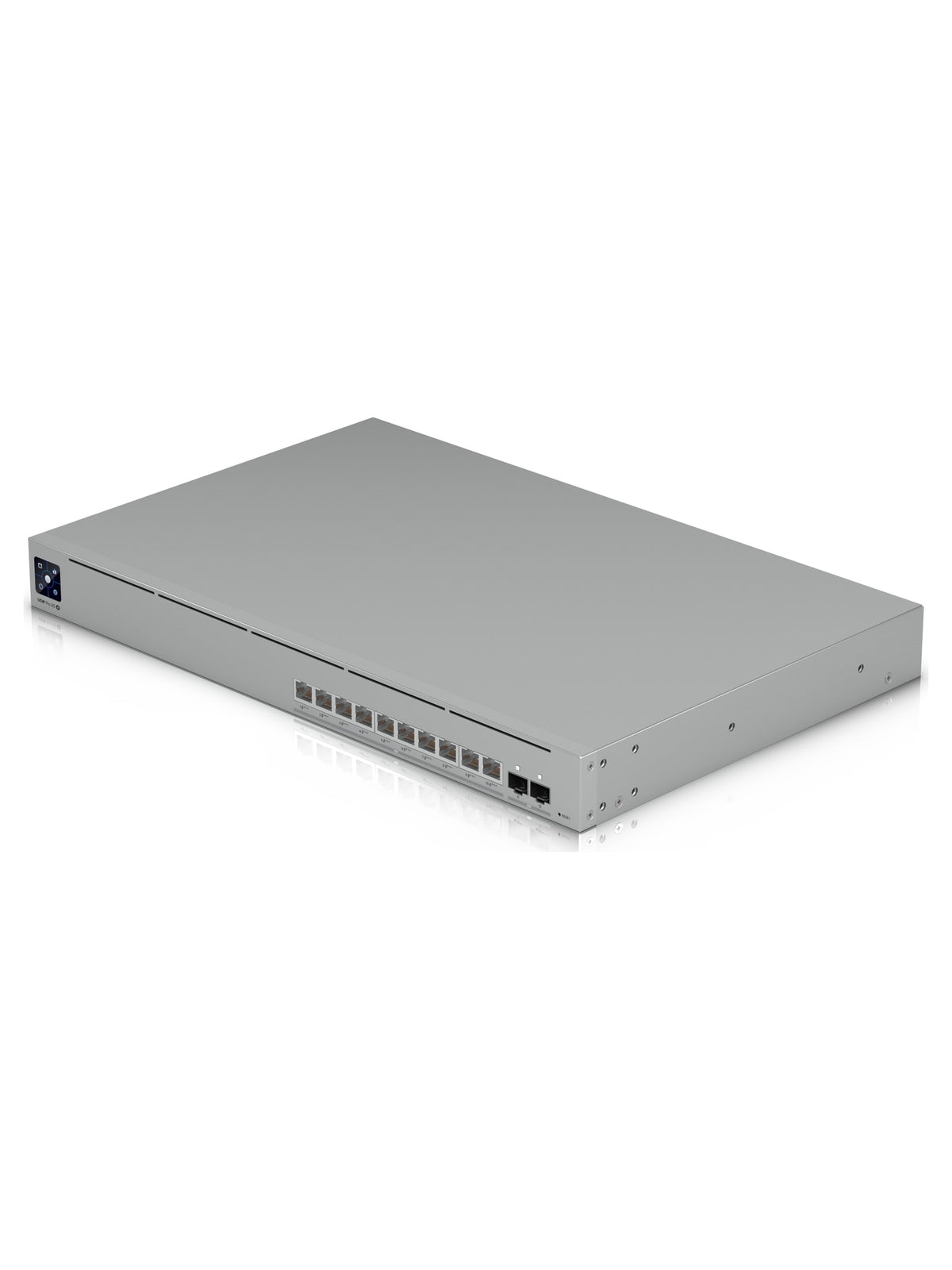

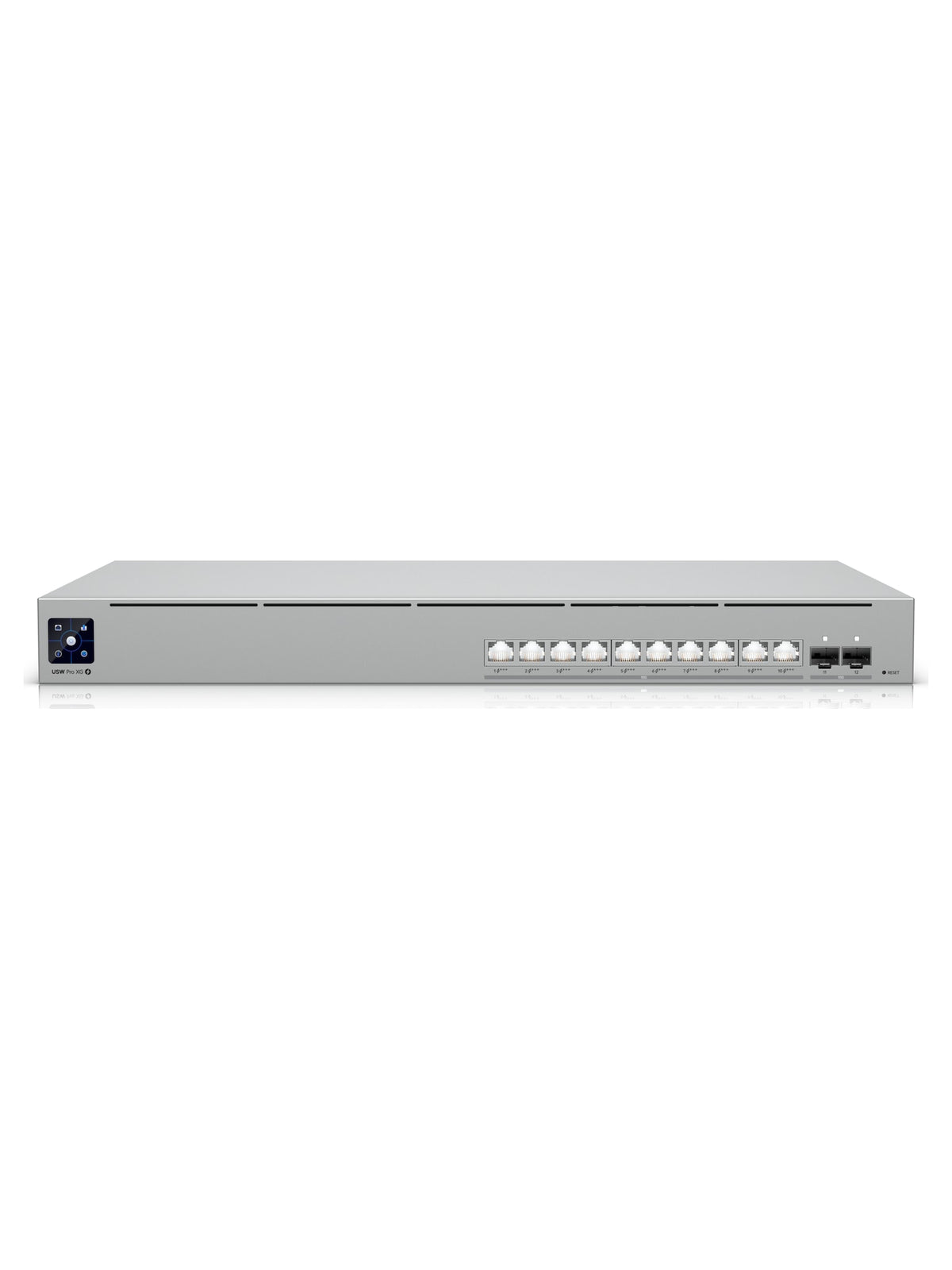

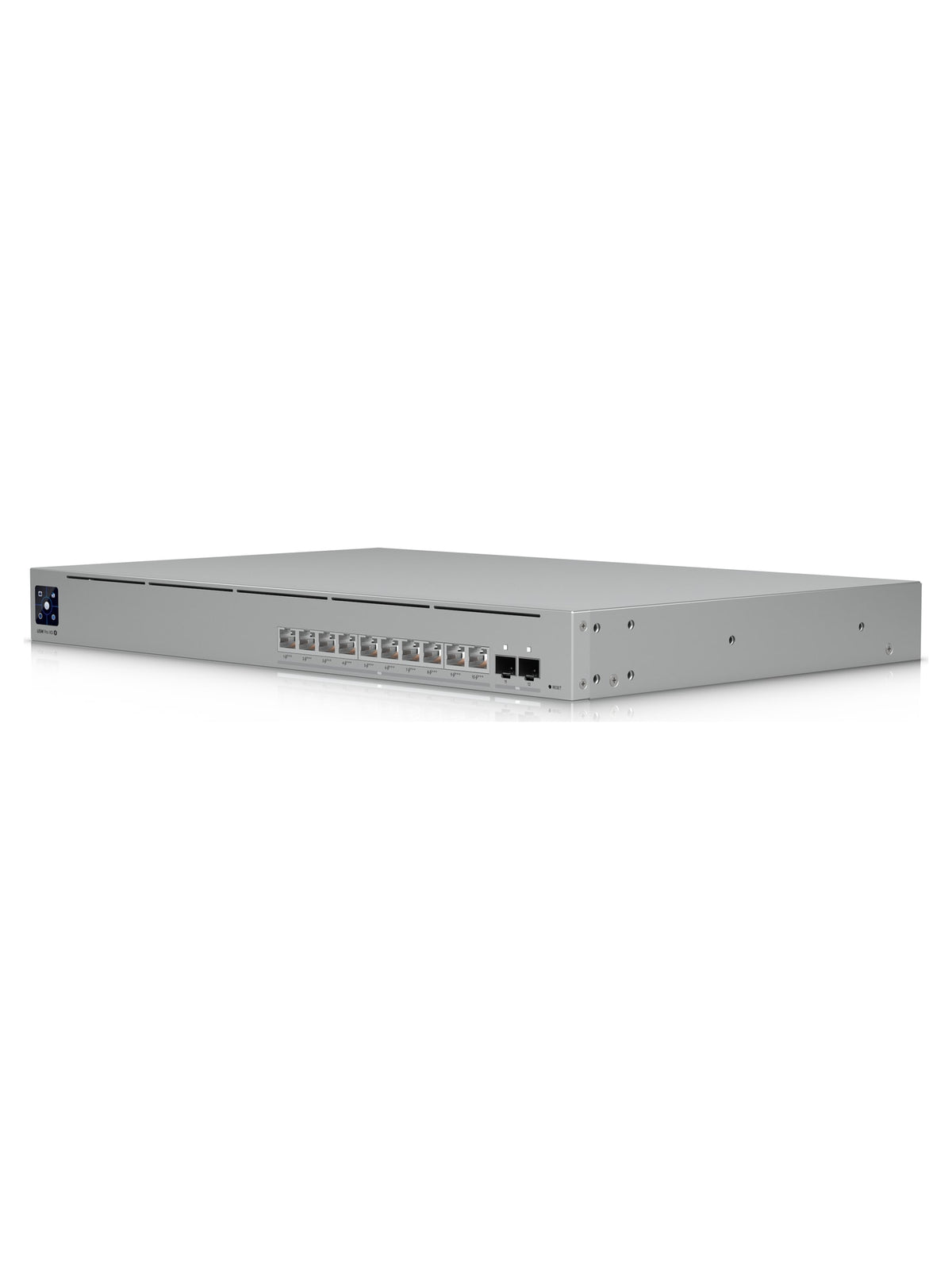

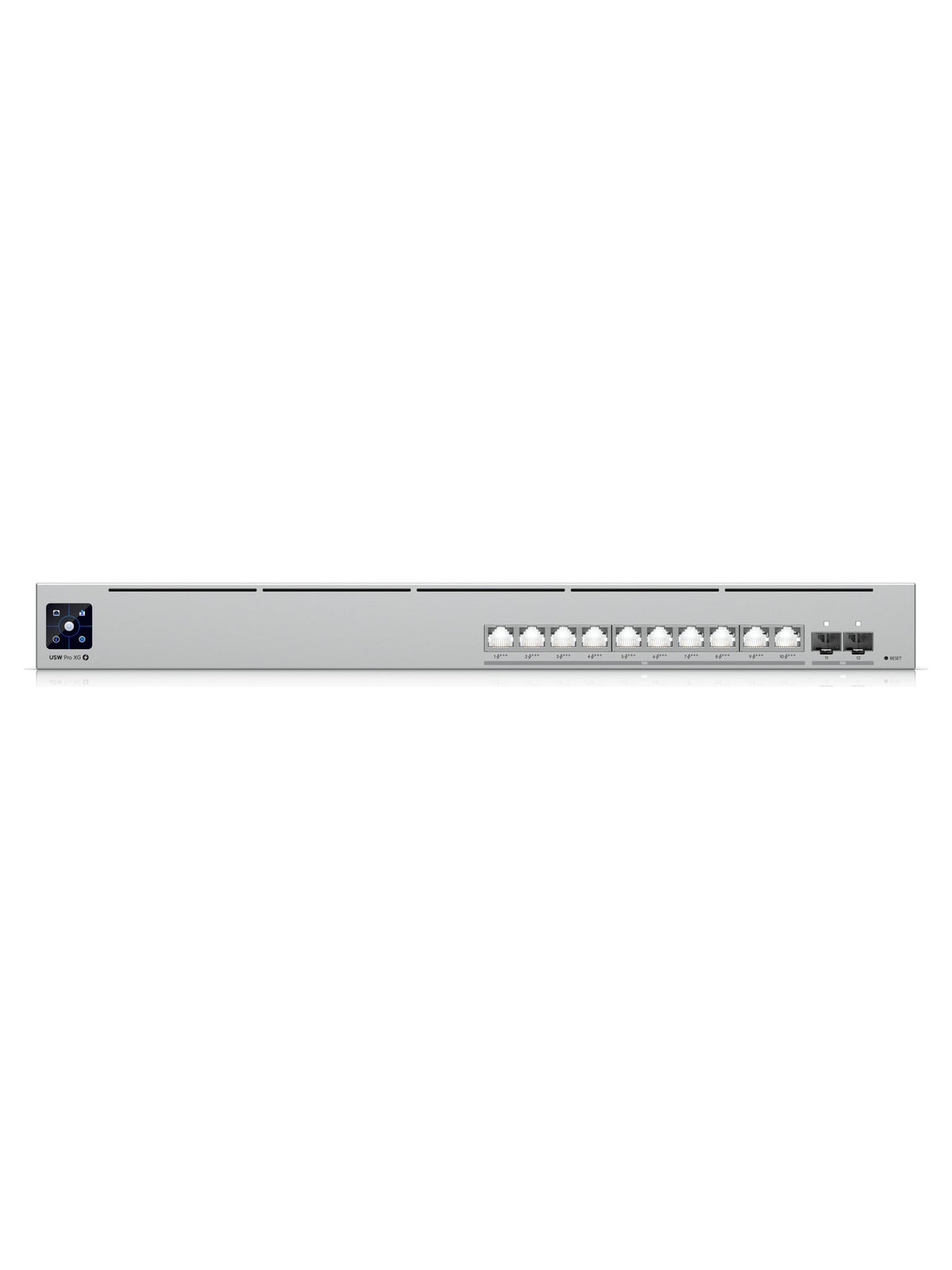

Ubiquiti UniFi Switch Pro XG 10 PoE - 10-Port 10GbE PoE+++ Layer 3 Switch
10-port 10 GbE PoE+++ Layer 3 switch with 400W of PoE power
Read MoreSpecs
Brand
Ubiquiti
Model
USW-PRO-XG-10-POE
Product
Switch Pro XG 10 PoE
Dimensions
442.4 x 285 x 44 mm (17.4 x 11.2 x 1.7")
- Regular price
- $1,085.00 USD
- Sale price
- $1,085.00 USD
- Regular price
-
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Ubiquiti UniFi Switch Pro XG 10 PoE - 10-Port 10GbE PoE+++ Layer 3 Switch
The Ubiquiti UniFi Switch Pro XG 10 PoE (USW-PRO-XG-10-POE) is a 10-port 10 GbE PoE+++ Layer 3 switch with 400W of PoE power. It powers the fastest WiFi 7 access points and adds SFP+ uplinks and Etherlighting in a 1U rack design. It is managed with the UniFi Network app.
Main Specs
- Dimensions: 442.4 x 285 x 44 mm (17.4 x 11.2 x 1.7")
- 10 GbE RJ45: 10 (All PoE+++) (10G/5G/2.5G/1G/100M)
- 10G SFP+: 2 (10G/1G)
- Max. PoE Output: Up to PoE+++, 802.3bt Type 4, Class 8
- Total PoE Availability: 400W
- Redundancy: DC Power Backup, With UniFi RPS
- Form Factor: Rack mount (1U)
- Max. Power Consumption: 65W (Excluding PoE output) 520W (Including PoE output)
- Power Method: (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
- Managed with the UniFi Network app, no licence fees
- Ideal for high-performance WiFi 7 and multi-gig networks
Main Characteristics
Brand
Ubiquiti
Model
USW-PRO-XG-10-POE
Product
Switch Pro XG 10 PoE
Dimensions
442.4 x 285 x 44 mm (17.4 x 11.2 x 1.7")
10 GbE RJ45
10 (All PoE+++) (10G/5G/2.5G/1G/100M)
10G SFP+
2 (10G/1G)
Max. PoE Output
Up to PoE+++, 802.3bt Type 4, Class 8
Total PoE Availability
400W
Redundancy
DC Power Backup, With UniFi RPS
Form Factor
Rack mount (1U)
Switching Capacity
240 Gbps
Total Non-Blocking Throughput
120 Gbps
Forwarding Rate
179 Mpps
Supported VLANs
1,000
MAC Address Table Size
32,000
IPv4 Static Routes
256
Packet Buffer Size
2 MB
IPv4
128
MAC
128
PoE+++
90W
PoE
15.4W
PoE+
30W
PoE++
60W
Max. Power Consumption
65W (Excluding PoE output) 520W (Including PoE output)
Power Method
(1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 550W
Supported Voltage Range
100–240V AC
Management
Ethernet AR
Weight
Without mounting brackets: 4.6 kg (10.14 lb) With mounting brackets: 4.7 kg (10.36 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
400~1200 mm (15.7-47.2"")
LCM Display
1.3" touchscreen
ESD Protection
Air: ± 30kV, contact: ± 30kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC, Anatel: 05660-25-08356
