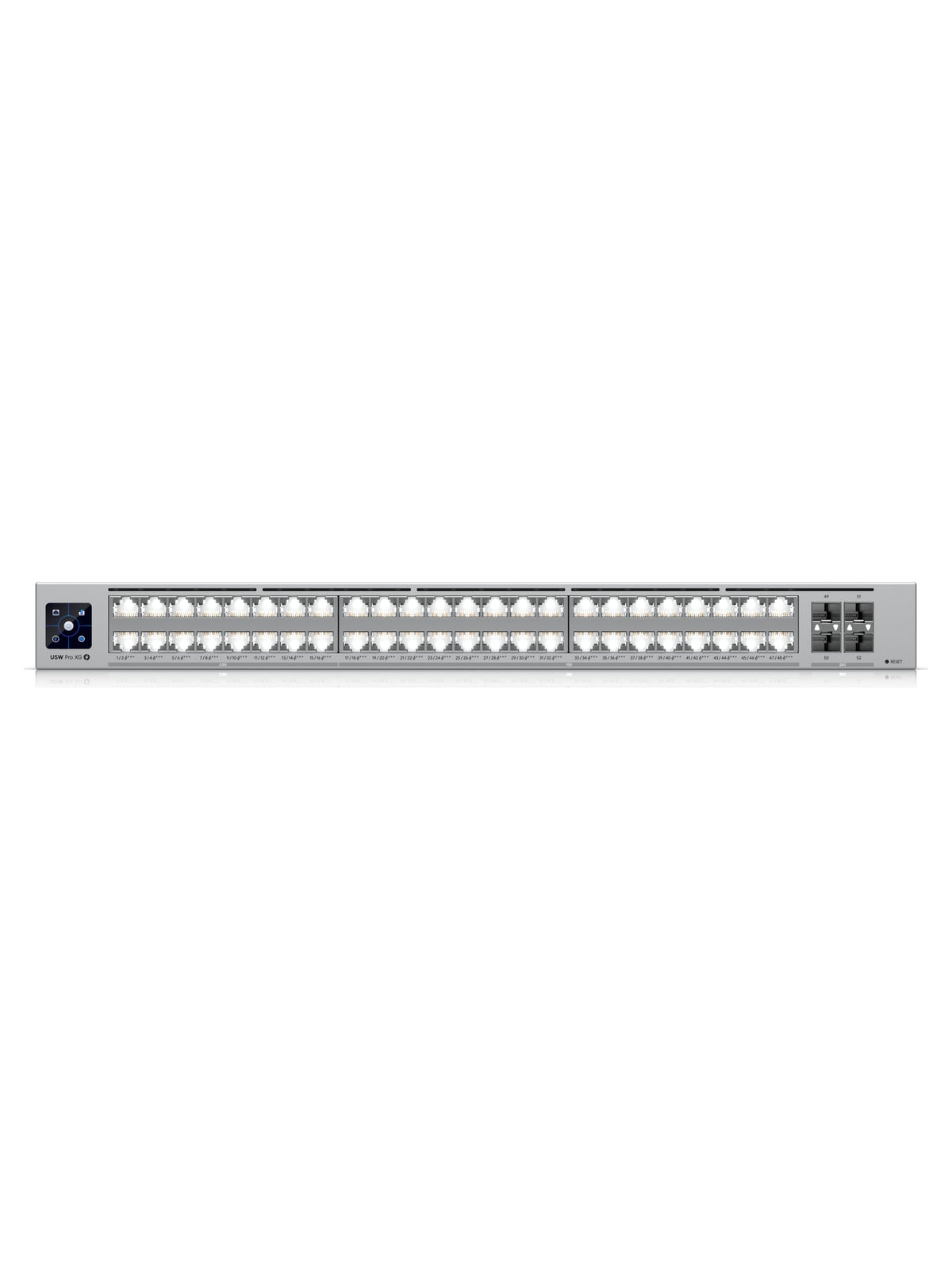

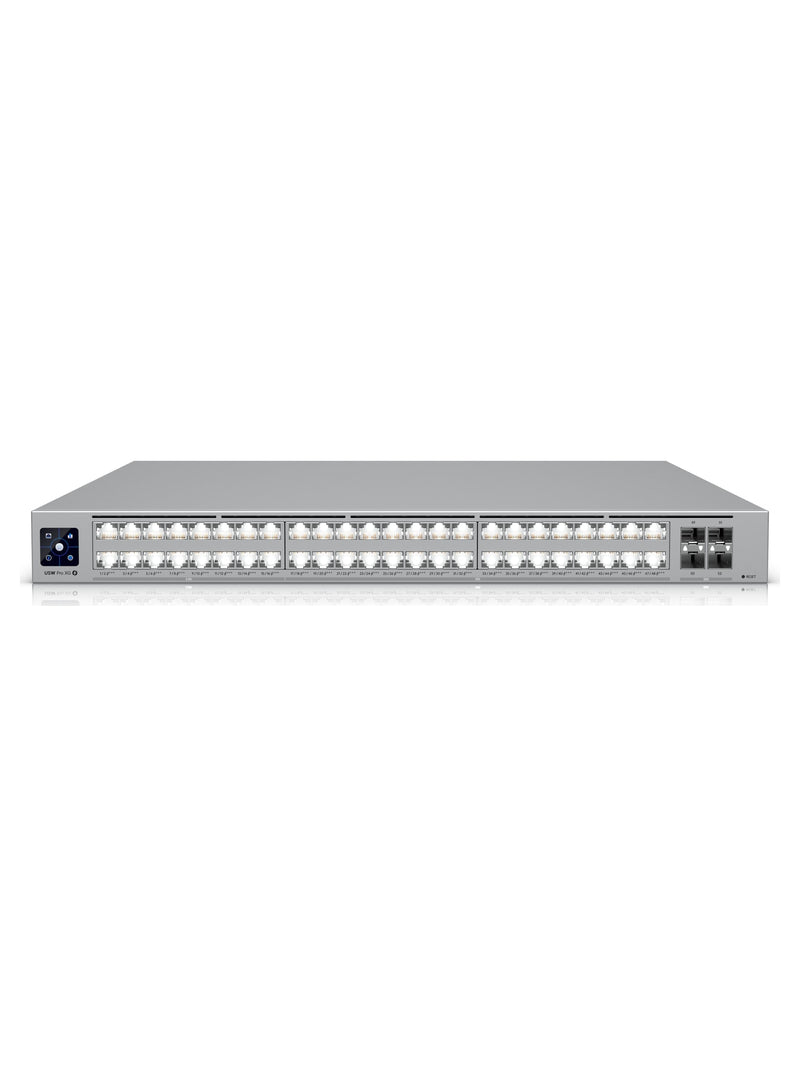

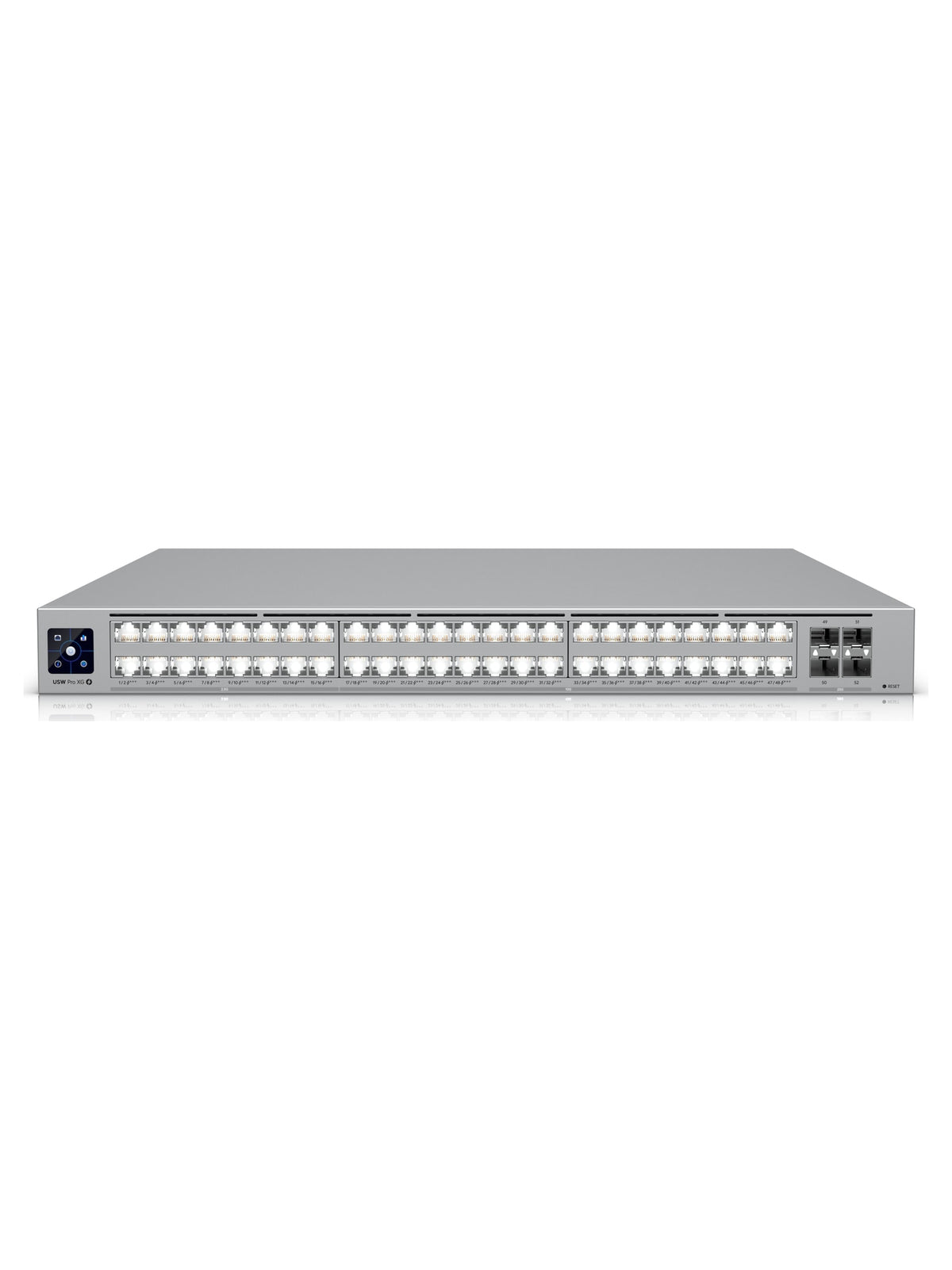

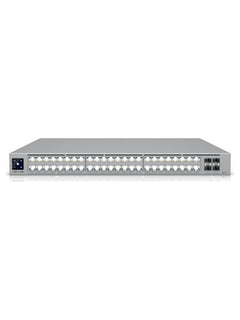

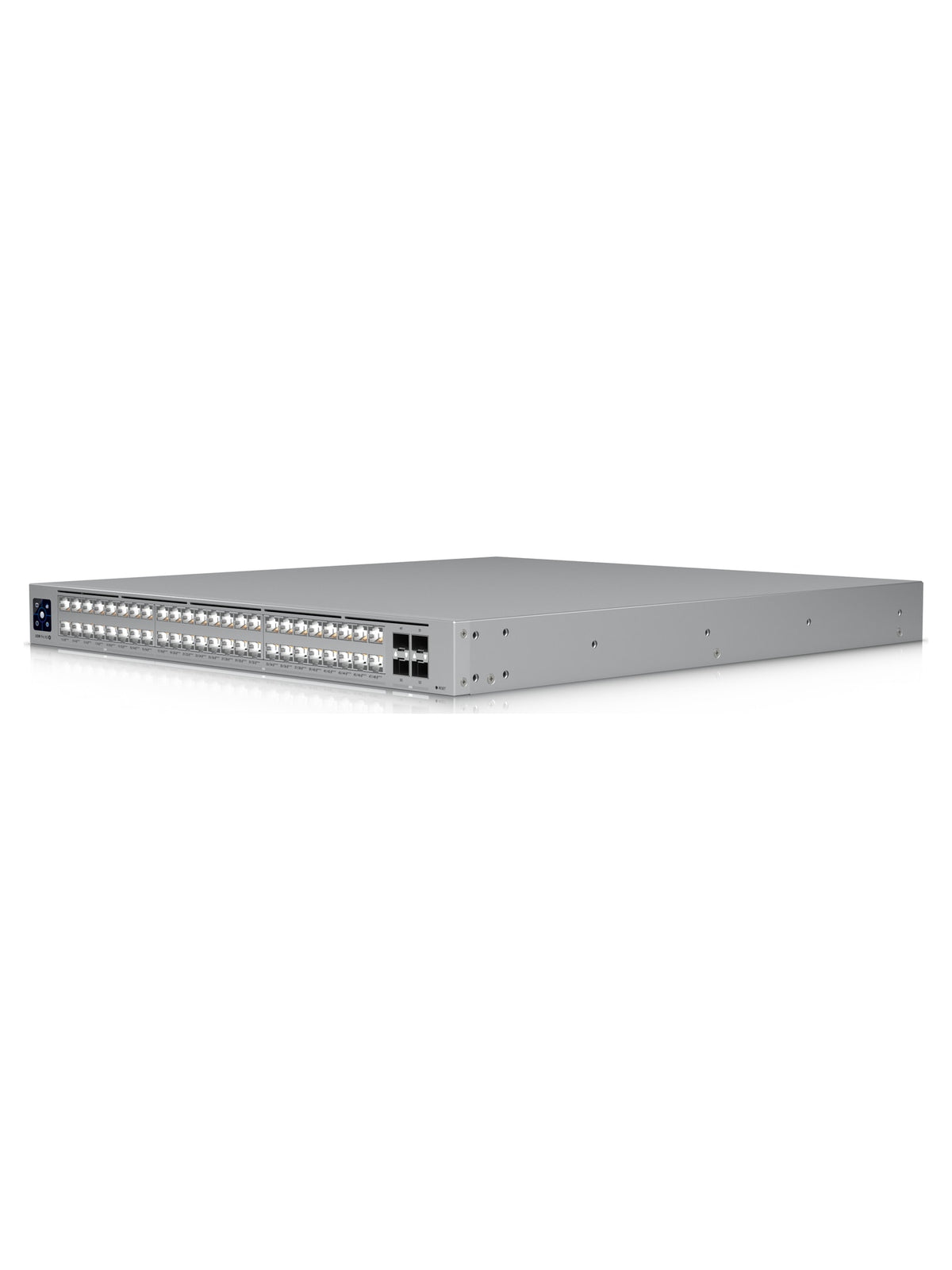

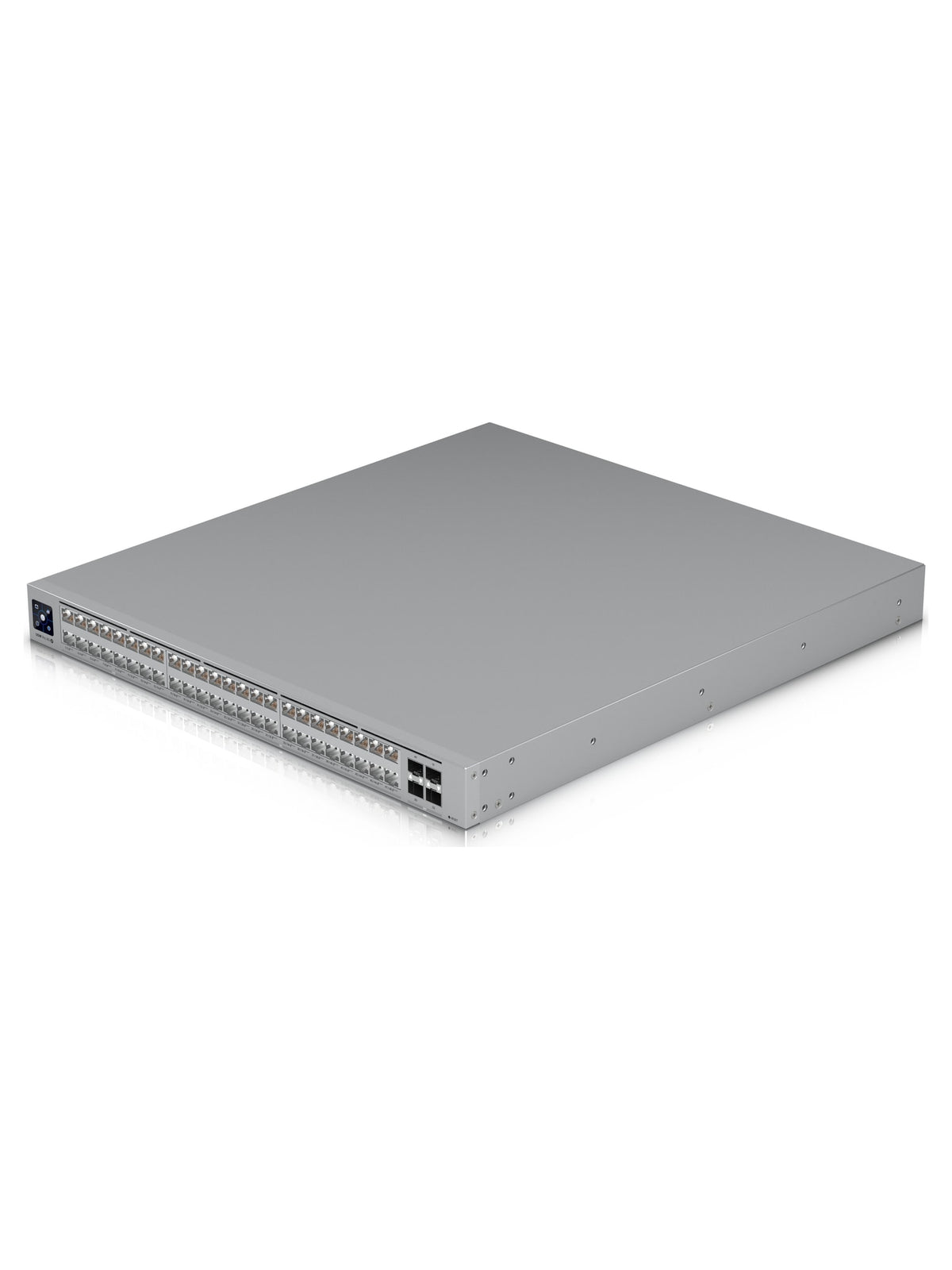

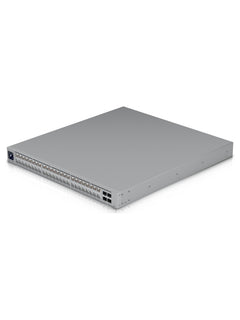

Ubiquiti UniFi Switch Pro XG 48 PoE - 48-Port 2.5G / 10G PoE+++ Layer 3 Switch
48-port multi-gig Layer 3 switch with 2.5G and 10G PoE+++ ports
Read MoreSpecs
Brand
Ubiquiti
Model
USW-PRO-XG-48-POE
Product
Switch Pro XG 48 PoE
Dimensions
442 x 480 x 44 mm (17.4 x 18.9 x 1.7")
- Regular price
- $3,335.00 USD
- Sale price
- $3,335.00 USD
- Regular price
-
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Ubiquiti UniFi Switch Pro XG 48 PoE - 48-Port 2.5G / 10G PoE+++ Layer 3 Switch
The Ubiquiti UniFi Switch Pro XG 48 PoE (USW-PRO-XG-48-POE) is a 48-port multi-gig Layer 3 switch with 2.5G and 10G PoE+++ ports. It adds 25G SFP28 uplinks and Etherlighting for large deployments in a 1U rack design. It is managed with the UniFi Network app.
Main Specs
- Dimensions: 442 x 480 x 44 mm (17.4 x 18.9 x 1.7")
- 2.5 GbE RJ45: 16 (All PoE+++) (2.5G/1G/100M/10M), 10/100M half-duplex not supported
- 10 GbE RJ45: 32 (All PoE+++) (10G/5G/2.5G/1G/100M/10M), 10/100M half-duplex not supported
- 25G SFP28: 4 (25G/10G/1G)
- Max. PoE Output: Up to PoE+++, 802.3bt Type 4, Class 8
- Total PoE Availability: 200-240V AC: 1080W 100-120V AC: 972W
- Redundancy: DC Power Backup, With UniFi RPS
- Max. Power Consumption: 200W (Excluding PoE Output) 200-240V: 1,280W / 100-120V AC: 1,172W (Including PoE Output)
- Power Method: (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
- Managed with the UniFi Network app, no licence fees
- Ideal for large enterprise and campus networks
Main Characteristics
Brand
Ubiquiti
Model
USW-PRO-XG-48-POE
Product
Switch Pro XG 48 PoE
Dimensions
442 x 480 x 44 mm (17.4 x 18.9 x 1.7")
2.5 GbE RJ45
16 (All PoE+++) (2.5G/1G/100M/10M), 10/100M half-duplex not supported
10 GbE RJ45
32 (All PoE+++) (10G/5G/2.5G/1G/100M/10M), 10/100M half-duplex not supported
25G SFP28
4 (25G/10G/1G)
Max. PoE Output
Up to PoE+++, 802.3bt Type 4, Class 8
Total PoE Availability
200-240V AC: 1080W 100-120V AC: 972W
Redundancy
DC Power Backup, With UniFi RPS
Form Factor
Rack mount (1U)
Switching Capacity
920 Gbps
Total Non-Blocking Throughput
460 Gbps
Forwarding Rate
684 Mpps
Supported VLANs
1,000
MAC Address Table Size
32,000
IPv4 Static Routes
512
Packet Buffer Size
8 MB
IPv4
256
MAC
256
PoE+++
90W
PoE
15.4W
PoE+
30W
PoE++
60W
Max. Power Consumption
200W (Excluding PoE Output) 200-240V: 1,280W / 100-120V AC: 1,172W (Including PoE Output)
Power Method
(1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 1,350W
Supported Voltage Range
100–240V AC
Management
Ethernet AR
Weight
Without mounting brackets: 8.7 kg (19.2 lb) With mounting brackets: 8.8 kg (19.4 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
482.6 mm (19") four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42”)
LCM Display
1.3" touchscreen
ESD Protection
Air: ± 30kV, contact: ± 20kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC, Anatel: 04322-25-08356
