Ubiquiti UniFi Switch Ultra 210W - 8-Port Gigabit PoE+ Switch
Compact 8-port Gigabit Layer 2 switch with 7 PoE+ outputs, a PoE++ input port and an included 210W adapter, for desk, wall or magnetic mounting.
Read MoreSpecs
Brand
Ubiquiti
Model
USW-Ultra-210W
Product Type
Managed Network Switch
1 GbE RJ45 Ports
8 (7 PoE+; 1 PoE++ input) (1G/100M/10M), PoE input is supported for switch operation, with PoE+/PoE++ input or AC power required for PoE output
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3β5 Business Days)
15
Standard delivery with in-store pickup, 3β5 business days.
Express 1β2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1β2 business days.
Ubiquiti UniFi Switch Ultra 210W - 8-Port Gigabit PoE+ Switch

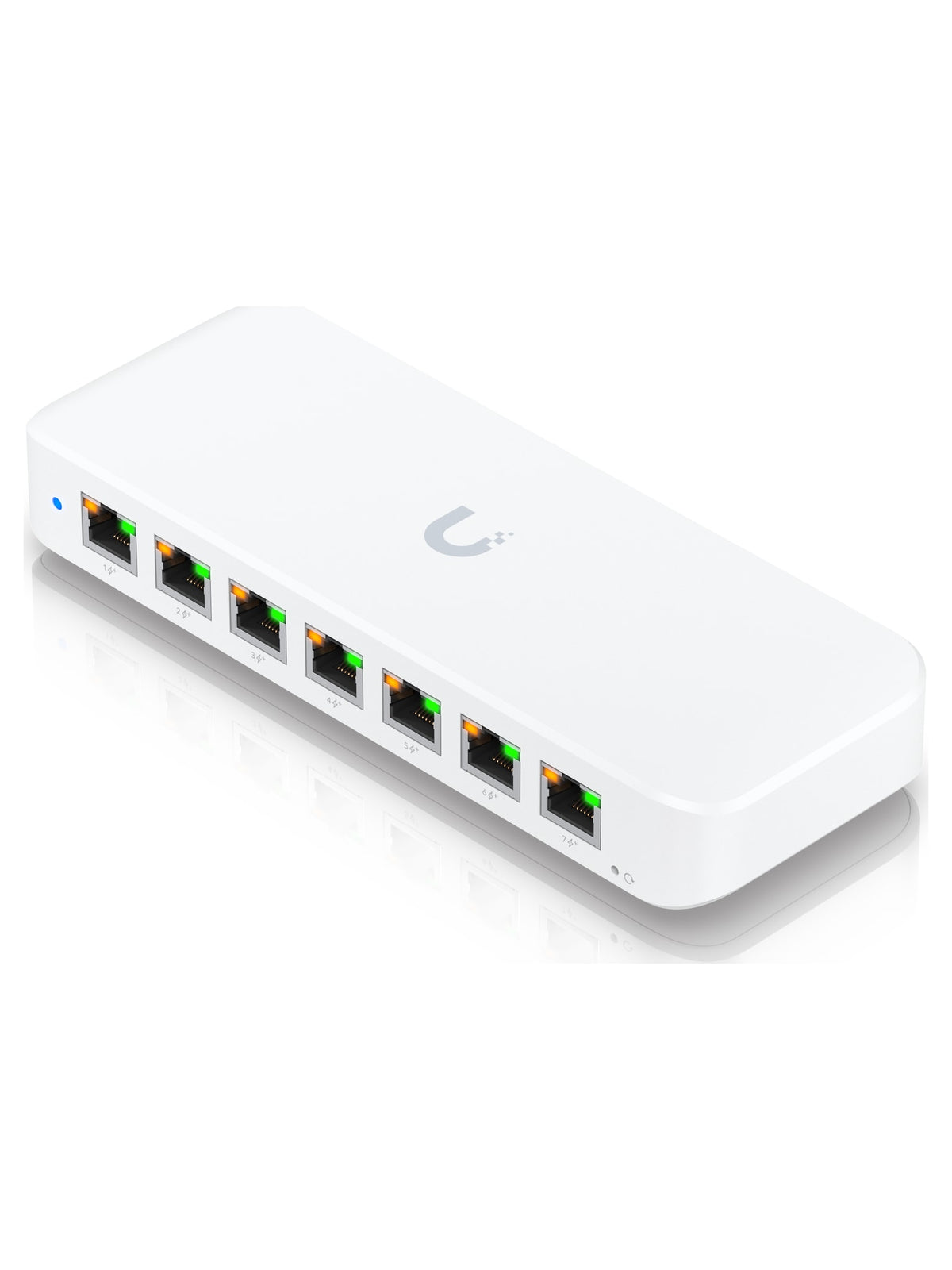

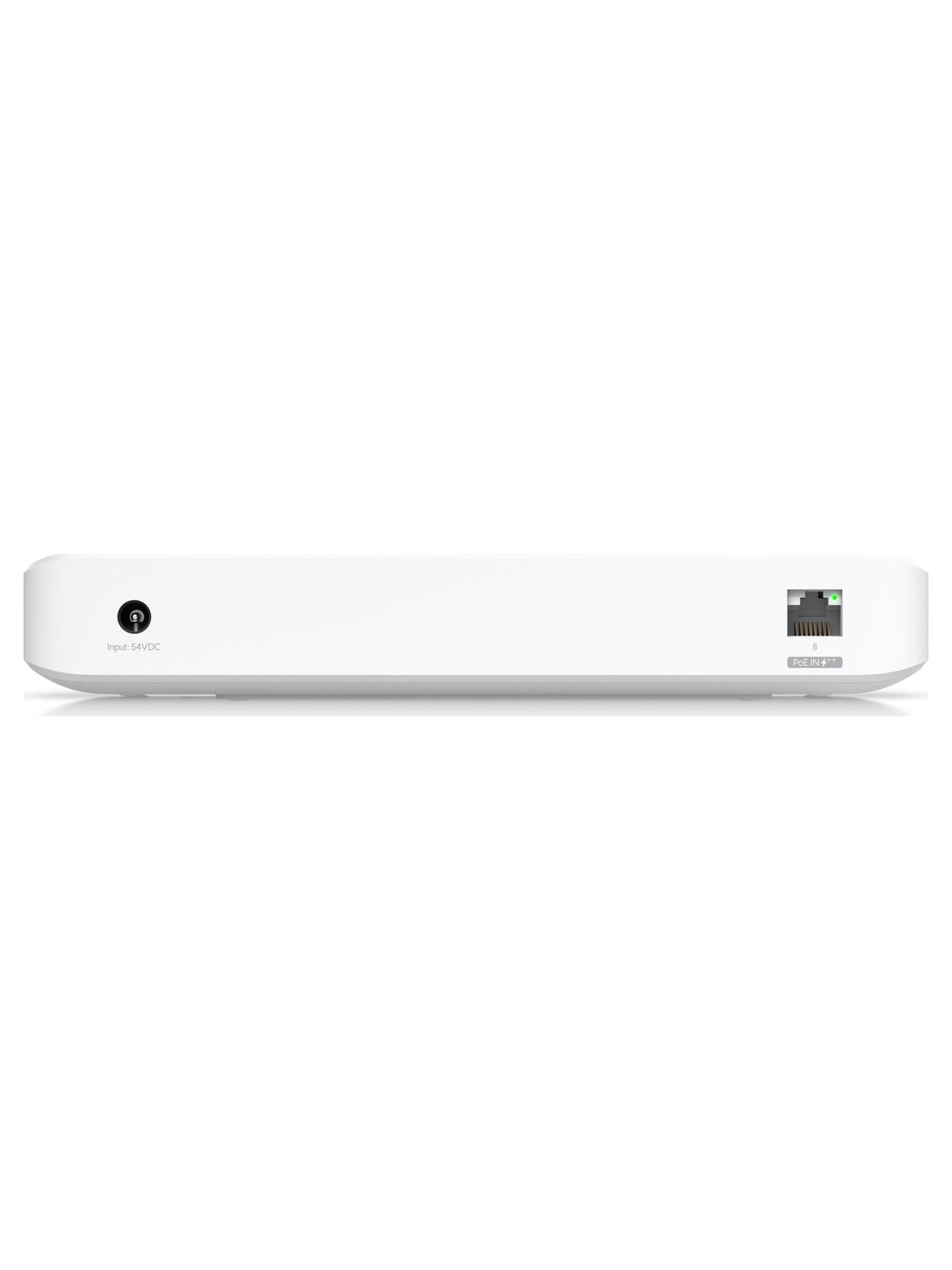

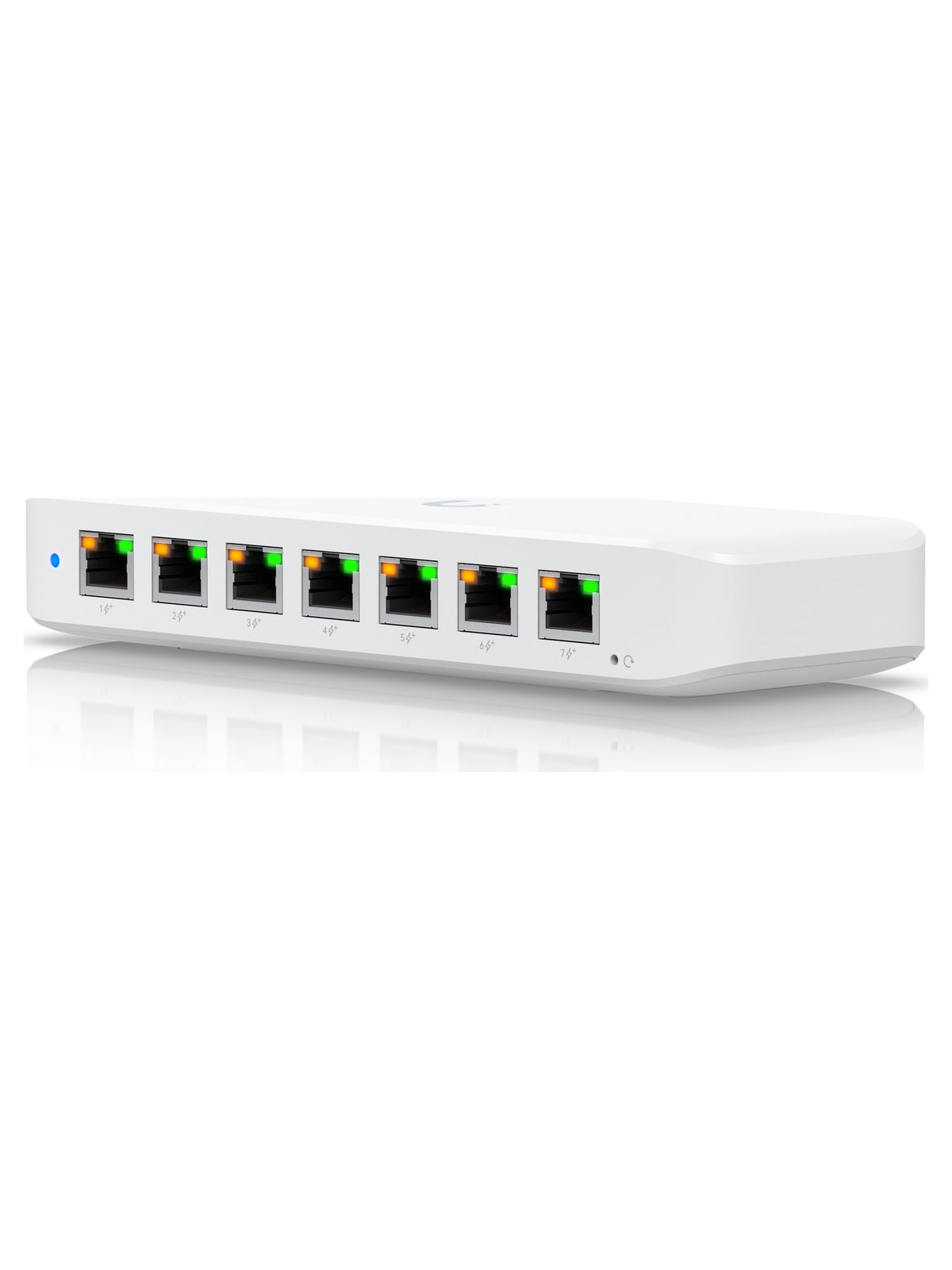

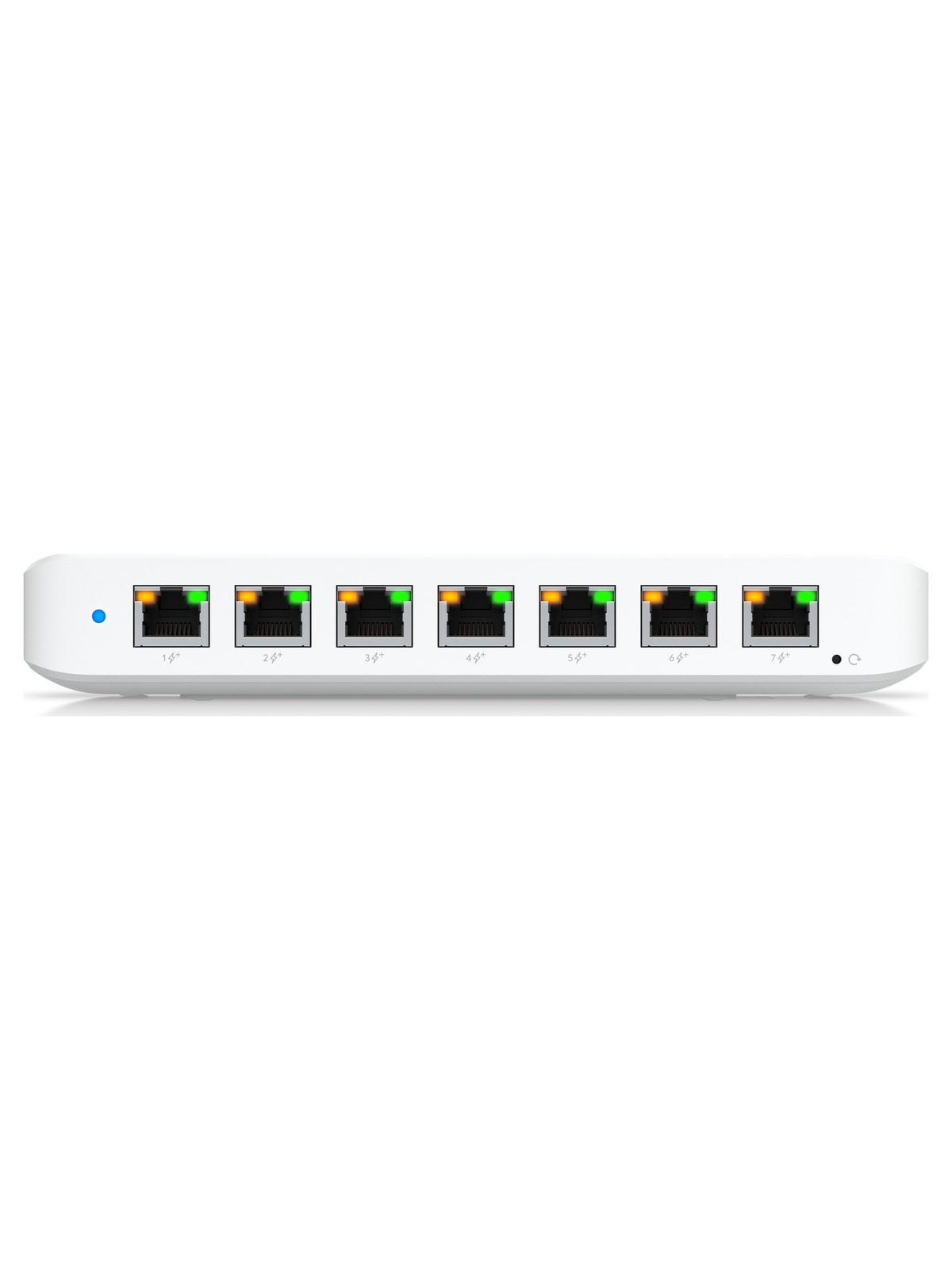

The Ubiquiti UniFi Switch Ultra 210W is a compact eight-port Gigabit Layer 2 switch with seven PoE+ ports. It comes with a 210W power adapter for up to 202W of PoE output, and it can also be powered through its PoE++ input port. It suits small offices, shops and homes that need to power access points and cameras from a small switch on a desk or wall.
Main Specs
- (8) GbE RJ45 ports: 7 PoE+ outputs, 1 PoE++ input
- Up to 202W PoE output with the included 210W adapter
- Up to 30W per PoE+ port
- Layer 2 managed switching
- 16 Gbps switching capacity
- Powered by the 210W adapter or PoE++ input
- Desktop, wall or magnetic mounting
- Managed with the UniFi Network app
- Ideal for small offices, shops and homes powering access points and cameras
Main Characteristics
Brand
Ubiquiti
Model
USW-Ultra-210W
Product Type
Managed Network Switch
1 GbE RJ45 Ports
8 (7 PoE+; 1 PoE++ input) (1G/100M/10M), PoE input is supported for switch operation, with PoE+/PoE++ input or AC power required for PoE output
Max. PoE Output
Up to PoE+
Total PoE Availability
PoE++ input: 42W, PoE+ input: 16W, 60W PoE adapter input: 42W, 60W AC adapter input: 52W, 210W AC adapter input: 202W, at 45Β° C (113Β° F) operating temperature. Reduced to 161W (230V) or 121W (115V) at 60Β° C (140Β° F)
Max. PoE per Port
30W
Layer
Layer 2
Switching Capacity
16 Gbps
Non-Blocking Throughput
8 Gbps
Power Method
(1) AC/DC adapter (Included), (1) PoE++
Power Supply
AC/DC, external, 210W
Max. Power Consumption
9W (Excluding PoE Output) with PoE input, 8W (Excluding PoE Output) with adapter input, 210W (Including PoE Output) with 210W AC adapter input
Form Factor
Compact desktop, wall, magnetic
Dimensions
203 x 76 x 33 mm (8 x 3 x 1.3")
Weight
Device: 320 g (11.3 oz), Wall mount: 45 g (1.6 oz), Adapter: 770 g (1.7 lb)
Operating Temperature
PoE++ input: -30 to 60Β° C (-22 to 140Β° F), 210W AC adapter input: -20 to 60Β° C (-4 to 140Β° F)
