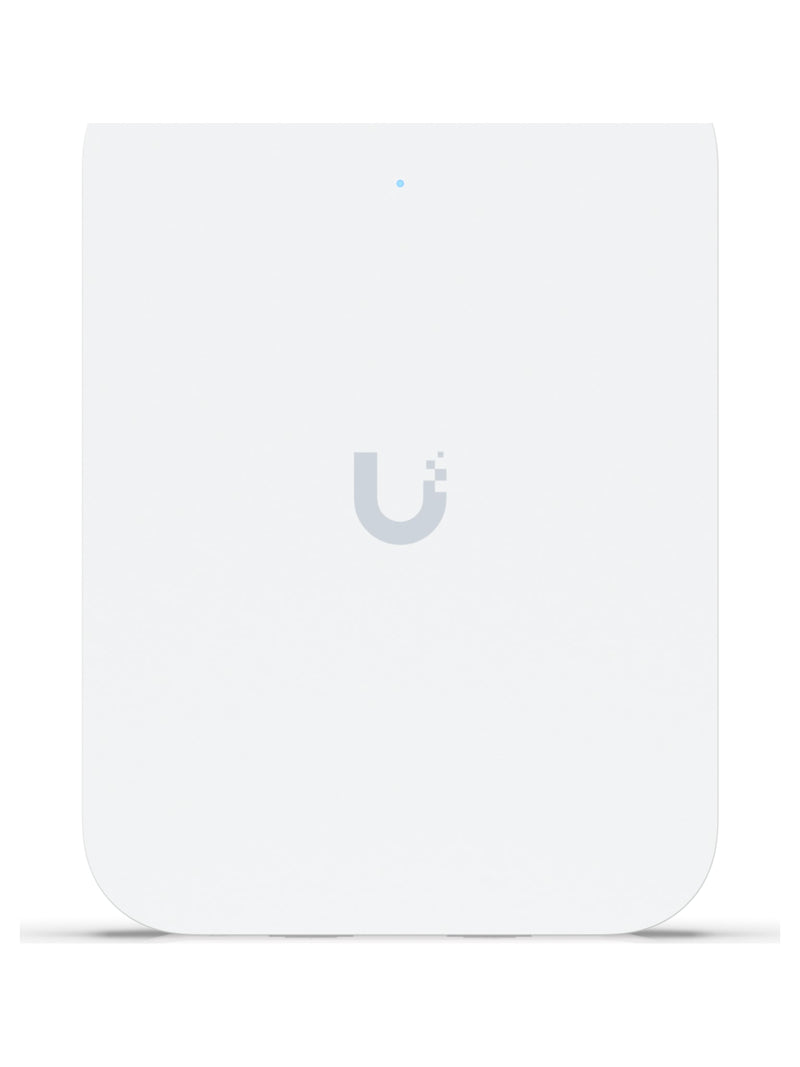

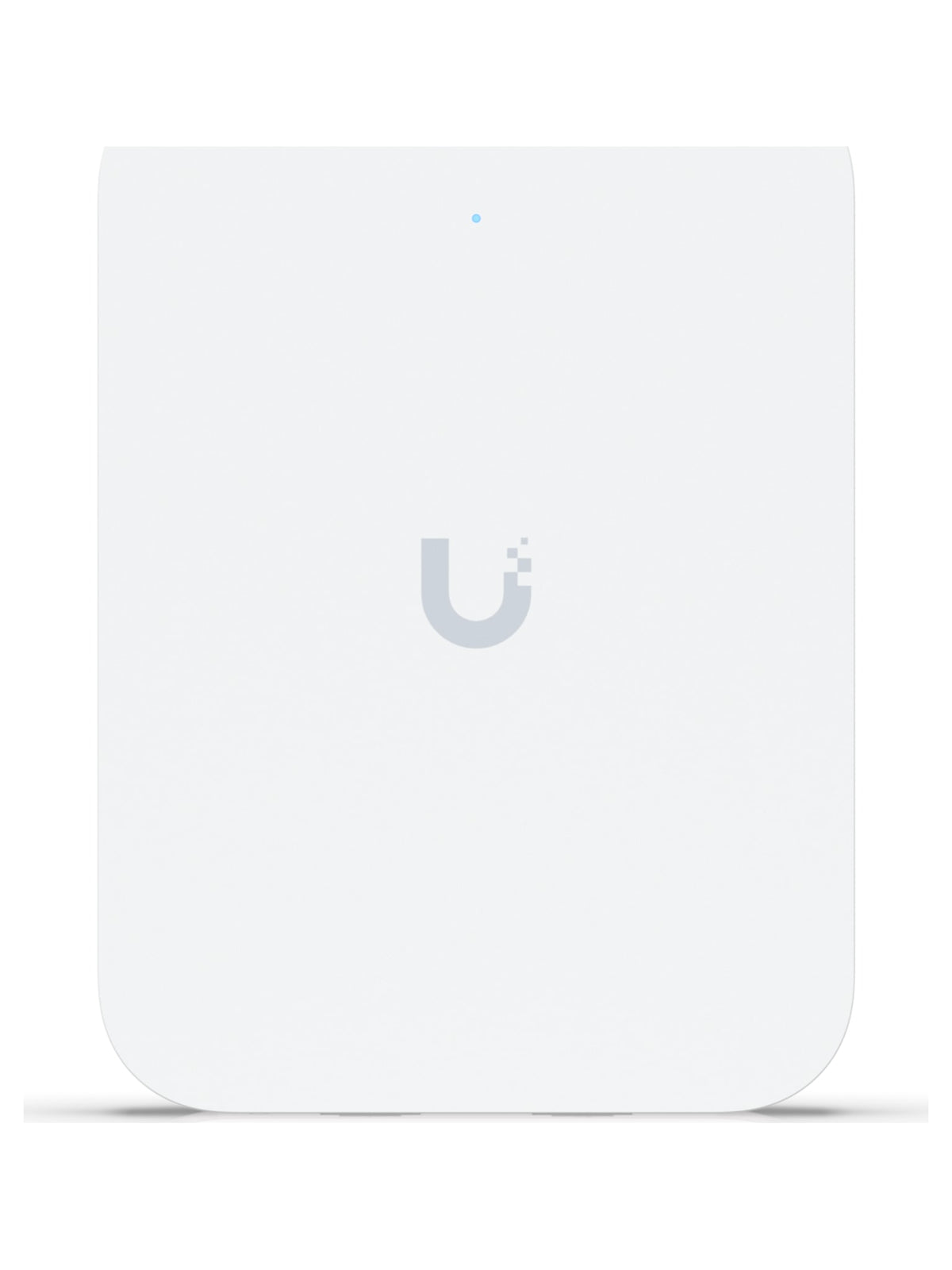

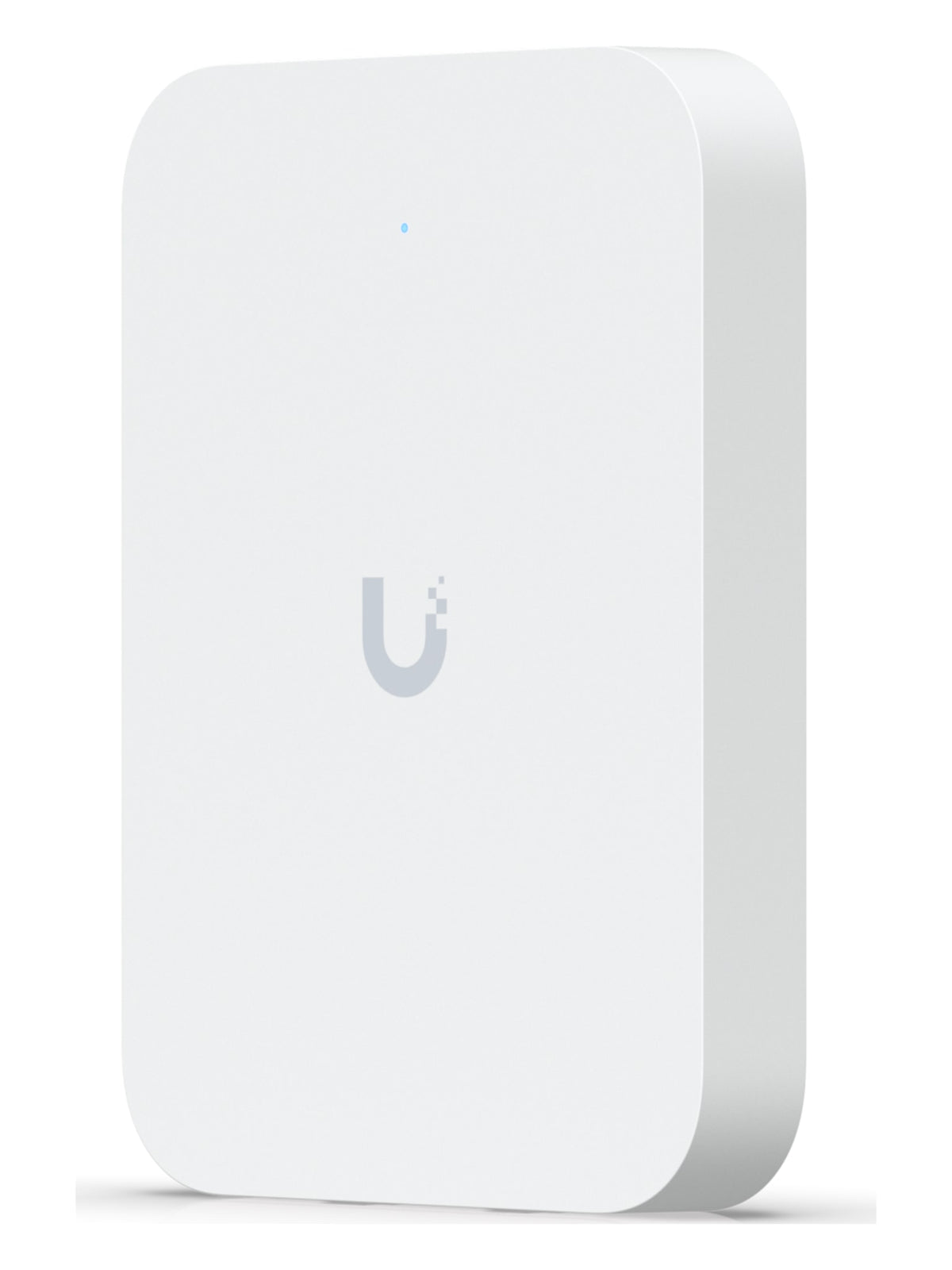

Ubiquiti UniFi U7 In-Wall WiFi 7 Access Point - 2.5GbE Built-In Switch
Wall-mounted WiFi 7 access point with 4 spatial streams, a built-in 2.5 GbE switch with PoE output, 200+ clients and up to 4.3 Gbps on 5 GHz.
Read MoreSpecs
Brand
Ubiquiti
Model
U7-IW
Product Type
In-Wall WiFi 7 Access Point
WiFi Standard
WiFi 7
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.

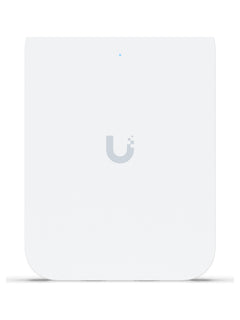

Ubiquiti UniFi U7 In-Wall WiFi 7 Access Point - 2.5GbE Built-In Switch
The Ubiquiti UniFi U7 In-Wall is a wall-mounted WiFi 7 access point with 4 spatial streams and an integrated 2.5 GbE switch. It has three 2.5 GbE ports, one of which passes PoE on to a phone, TV box or camera, and it covers about 115 m² for 200+ clients. It is made for hotel rooms, dorms, apartments and offices where both WiFi and wired ports are needed in the room.
Main Specs
- WiFi 7, 4 spatial streams (2x2 5 GHz, 2x2 2.4 GHz)
- Up to 4.3 Gbps on 5 GHz and 688 Mbps on 2.4 GHz
- Coverage up to 115 m² (1,250 ft²), 200+ clients

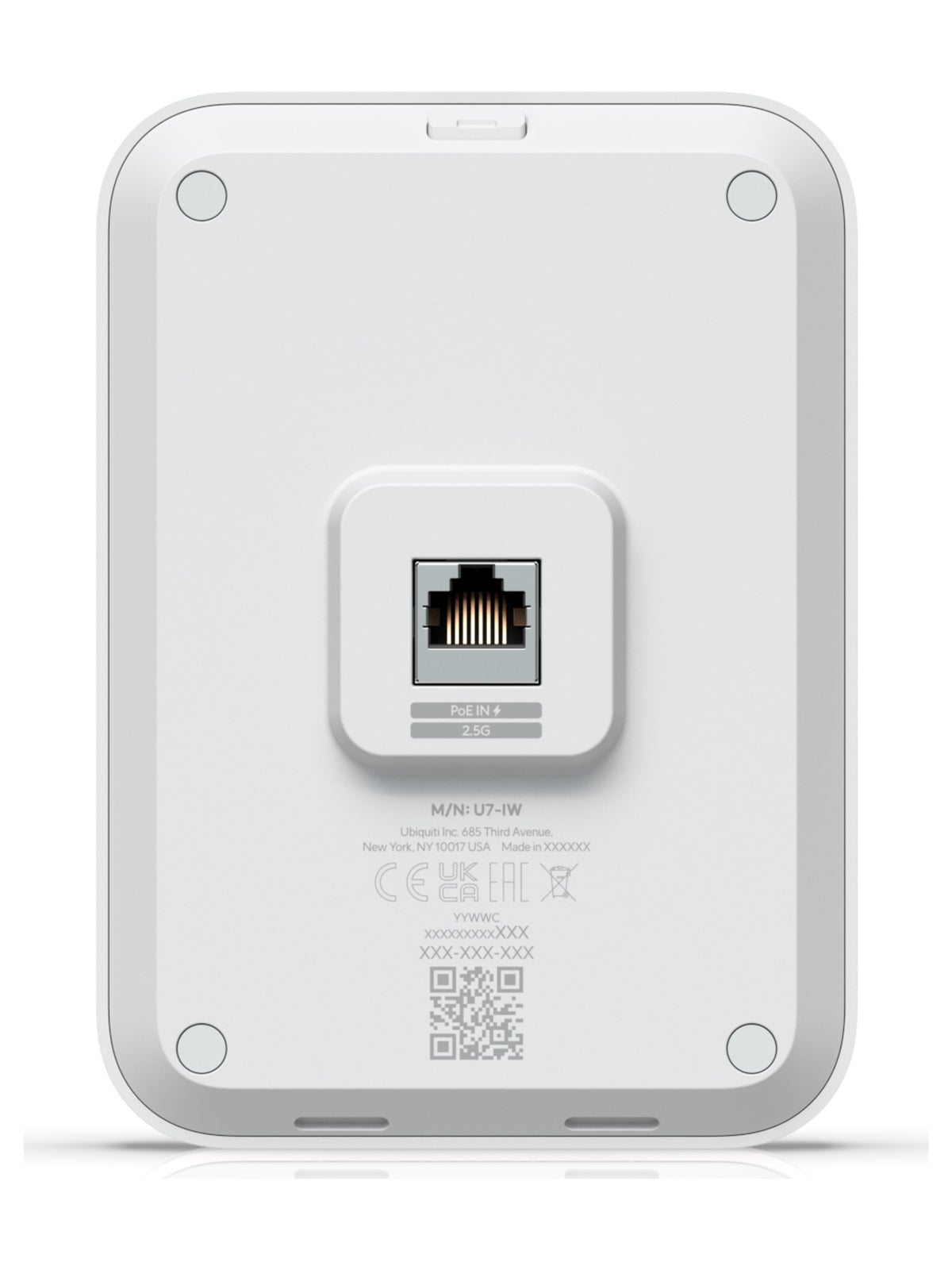

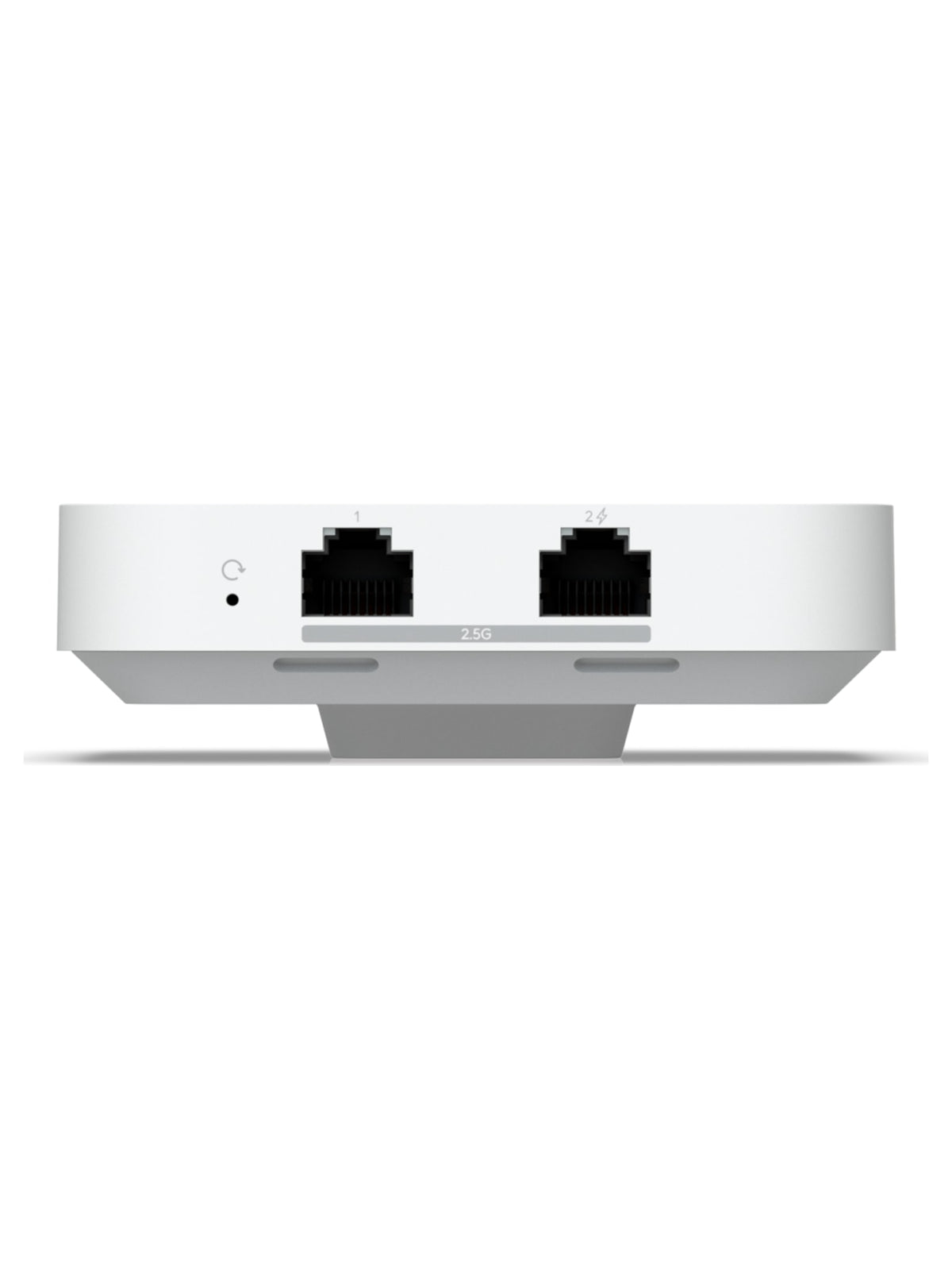

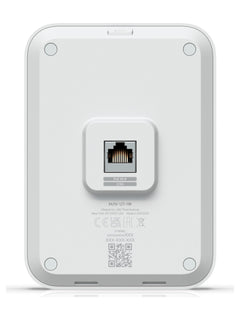

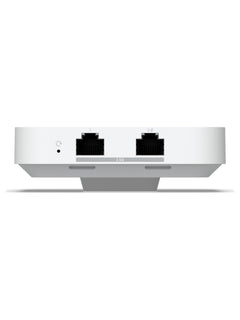

- (3) 2.5 GbE RJ45 ports with built-in switch
- (1) PoE+ input and (1) PoE output port
- PoE powered (PoE+ required for PoE output)
- Wall mounting (metal wall mount included)
- Managed with the UniFi Network app, no licence fees
- Ideal for hotel rooms, apartments, dorms and offices
Main Characteristics
Brand
Ubiquiti
Model
U7-IW
Product Type
In-Wall WiFi 7 Access Point
WiFi Standard
WiFi 7
Spatial Streams
4
MIMO 5 GHz
2 x 2 (DL/UL MU-MIMO)
MIMO 2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate 5 GHz
4.3 Gbps (BW240), depends on regulatory region
Max. Data Rate 2.4 GHz
688 Mbps (BW40)
Coverage Area
115 m² (1,250 ft²)
Max. Client Count
200+
Uplink
2.5 GbE
Networking Interface
(3) 2.5 GbE RJ45 ports
Built-In Switch
(1) PoE+ input and, (1) PoE output
Power Method
PoE, PoE+ (Required for PoE output)
Max. Power Consumption
13W (Excluding PoE output)
Mounting
Wall (Metal Wall Mount Included)
Dimensions
137 x 98.7 x 30.2 mm (5.4 x 3.9 x 1.2")
Weight
400 g (14.1 oz)
Operating Temperature
-30 to 40° C (-22 to 104° F)
Certifications
CE, FCC, IC, SRRC, Anatel: 03909-25-08356
