Ubiquiti UniFi U7 Long-Range WiFi 7 Ceiling Access Point
Ceiling-mounted WiFi 7 access point built for long range, with 5 spatial streams
Read MoreSpecs
Brand
Ubiquiti
Model
U7-LR
Product
Access Point U7 Long-Range
Dimensions
⌀175.7 x 43 mm (⌀6.9 x 1.7")
- Regular price
- $220.00 USD
- Sale price
- $220.00 USD
- Regular price
-
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Ubiquiti UniFi U7 Long-Range WiFi 7 Ceiling Access Point

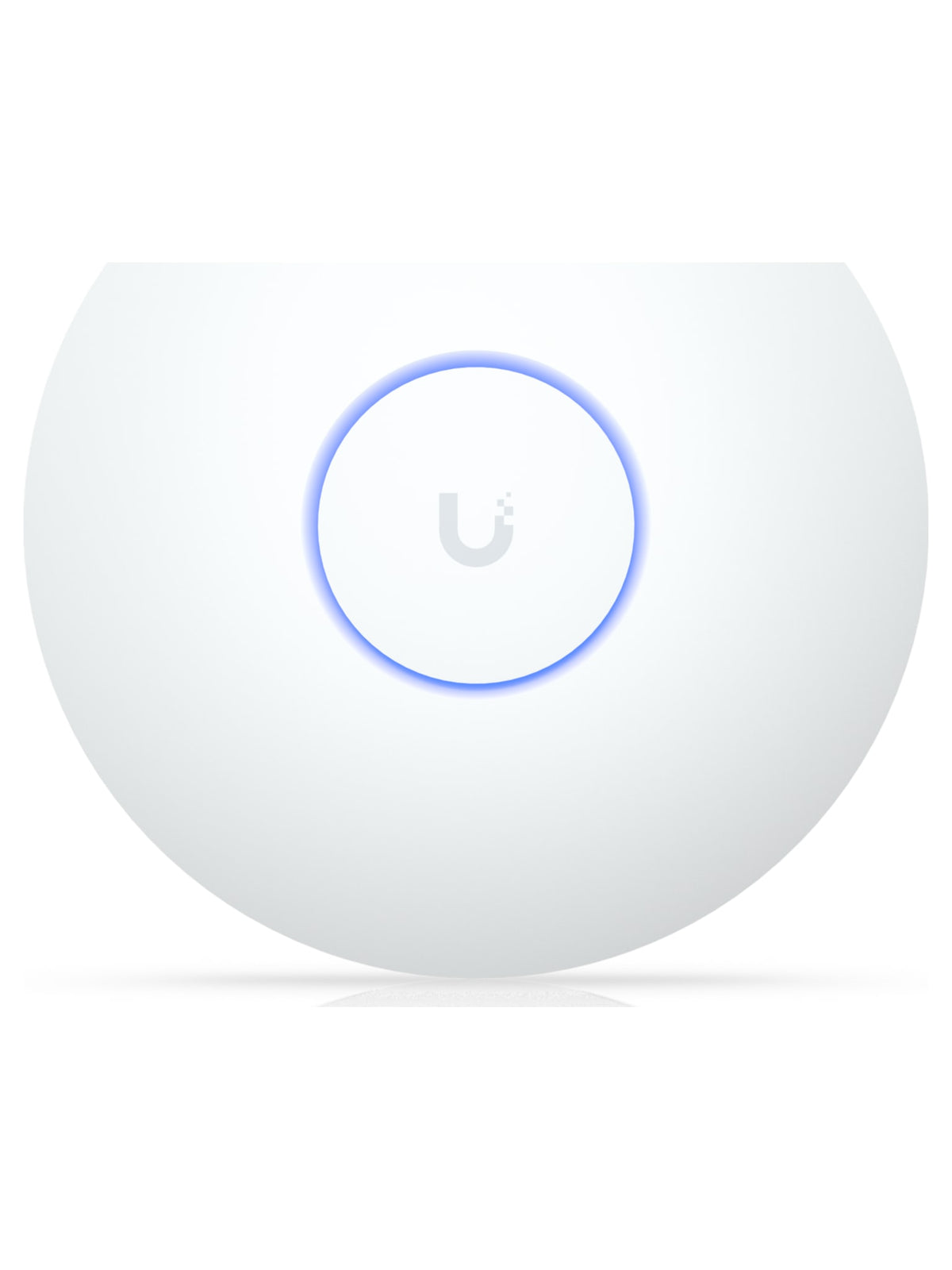

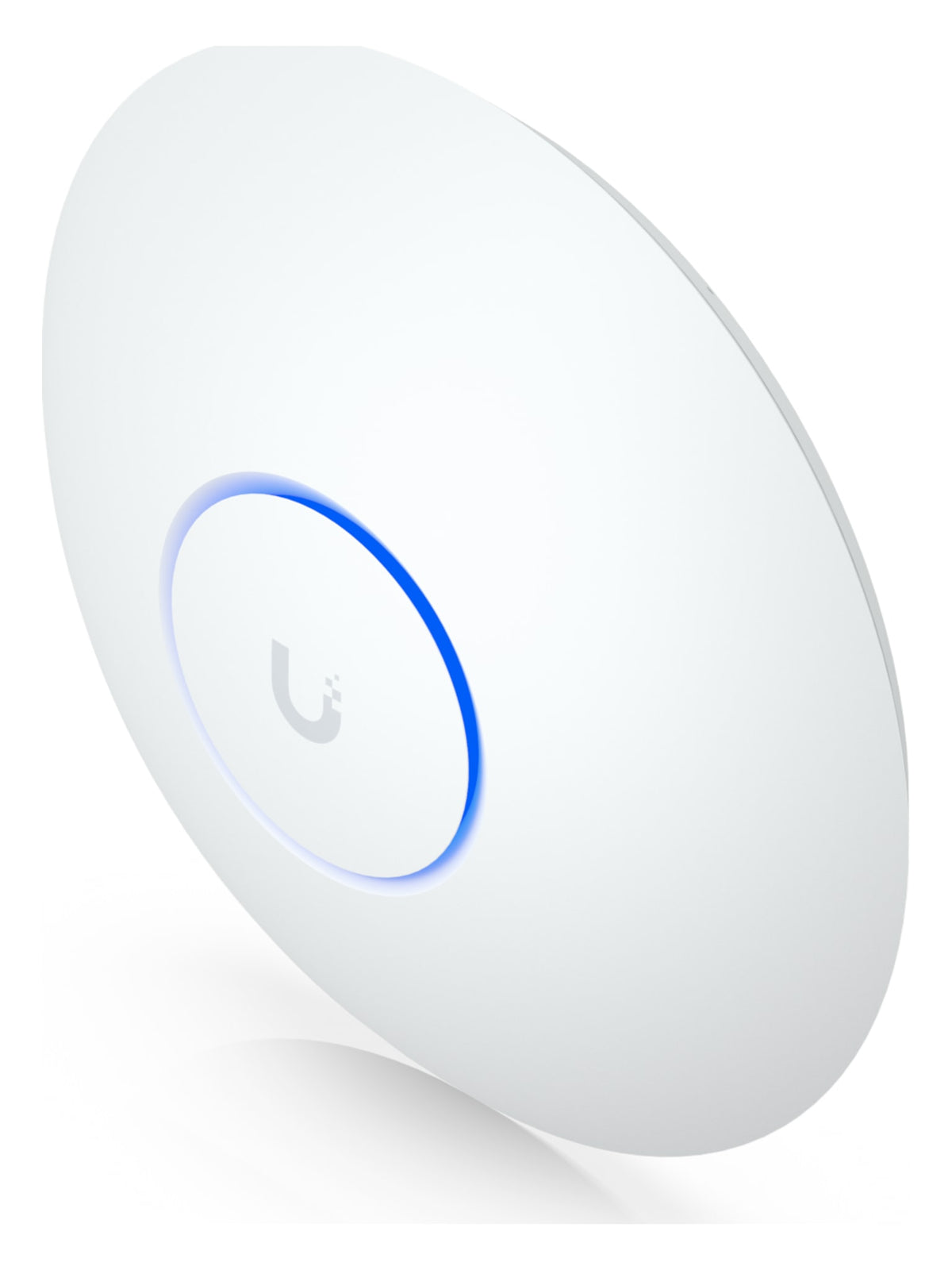

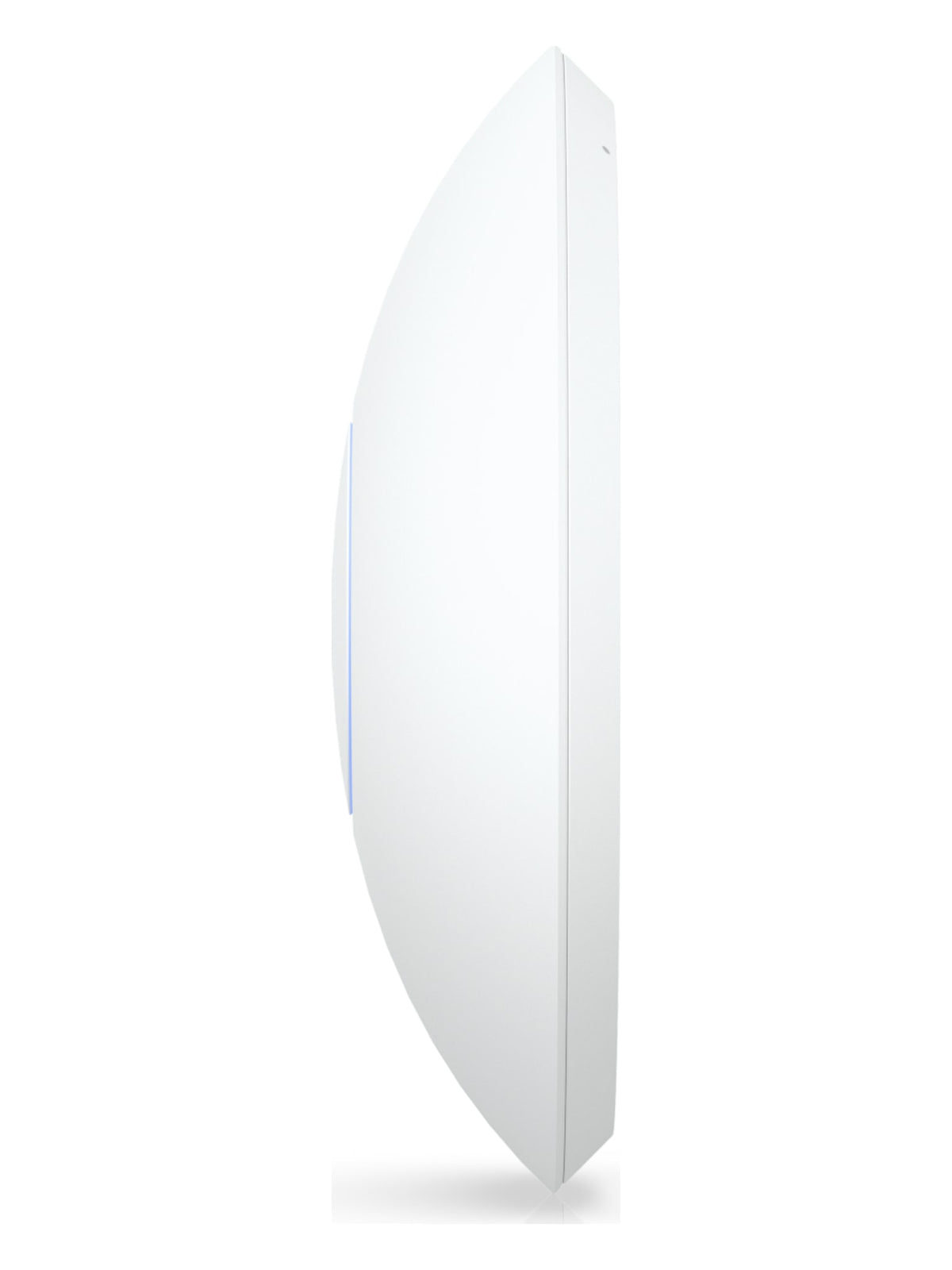

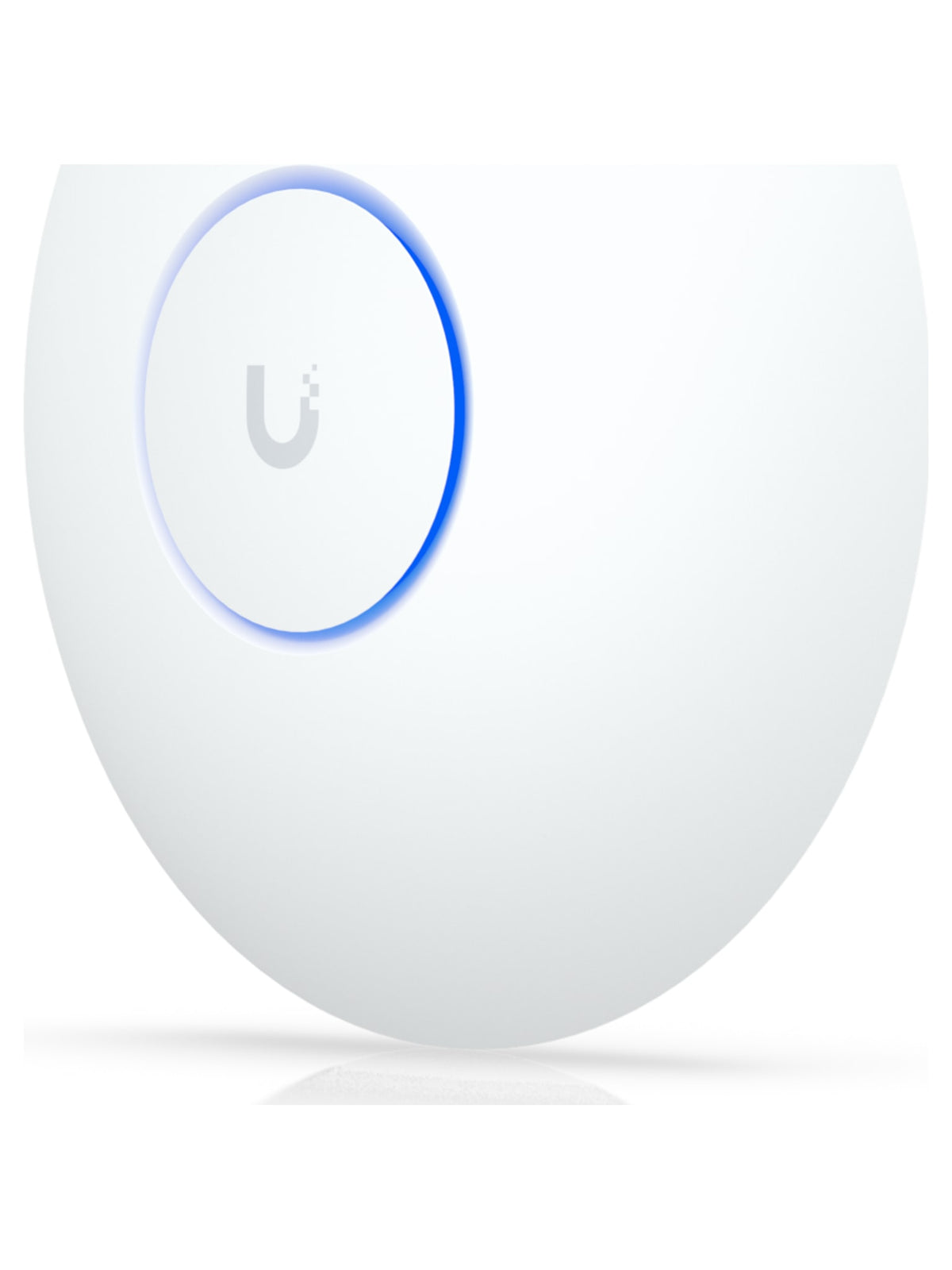

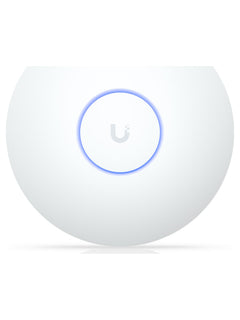

The Ubiquiti UniFi U7 Long-Range (U7-LR) is a ceiling-mounted WiFi 7 access point built for long range, with 5 spatial streams. It covers large areas with fewer access points, with a 2.5 GbE uplink and PoE+ power. It is managed with the free UniFi Network app with no licence fees.
Main Specs
- Dimensions: ⌀175.7 x 43 mm (⌀6.9 x 1.7")
- WiFi Standard: WiFi 7
- Spatial Streams: 5
- Coverage Area: 160 m² (1,750 ft²)
- Max. Client Count: 300+
- Uplink: 2.5 GbE
- Mounting: Ceiling, Wall (Plastic Mounting Plate included)
- Max. Power Consumption: 14W
- Networking Interface: (1) 2.5 GbE RJ45 port
- Managed with the UniFi Network app, no licence fees
- Ideal for large homes, warehouses and open-plan offices
Main Characteristics
Brand
Ubiquiti
Model
U7-LR
Product
Access Point U7 Long-Range
Dimensions
⌀175.7 x 43 mm (⌀6.9 x 1.7")
WiFi Standard
WiFi 7
Spatial Streams
5
Coverage Area
160 m² (1,750 ft²)
Max. Client Count
300+
Uplink
2.5 GbE
Mounting
Ceiling, Wall (Plastic Mounting Plate included)
Power Method
PoE
5 GHz
27 dBm
2.4 GHz
26 dBm
802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160)
802.11ax (WiFi 6)
7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160)
802.11n
6.5 Mbps to 450 Mbps (MCS0 - MCS23 , HT 20/40)
Max. Power Consumption
14W
Supported Voltage Range
42.5–57V DC
Networking Interface
(1) 2.5 GbE RJ45 port
Weight
448 g (15.8 oz)
Management
Ethernet
Enclosure Material
Polycarbonate, aluminum alloy
Mount Material
Polycarbonate, galvanized steel (SGCC)
System
White/Blue
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)
Ambient Operating Temperature
-30 to 50° C (-22 to 122° F)
Ambient Operating Humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC, SRRC, Anatel: 04071-25-08356
