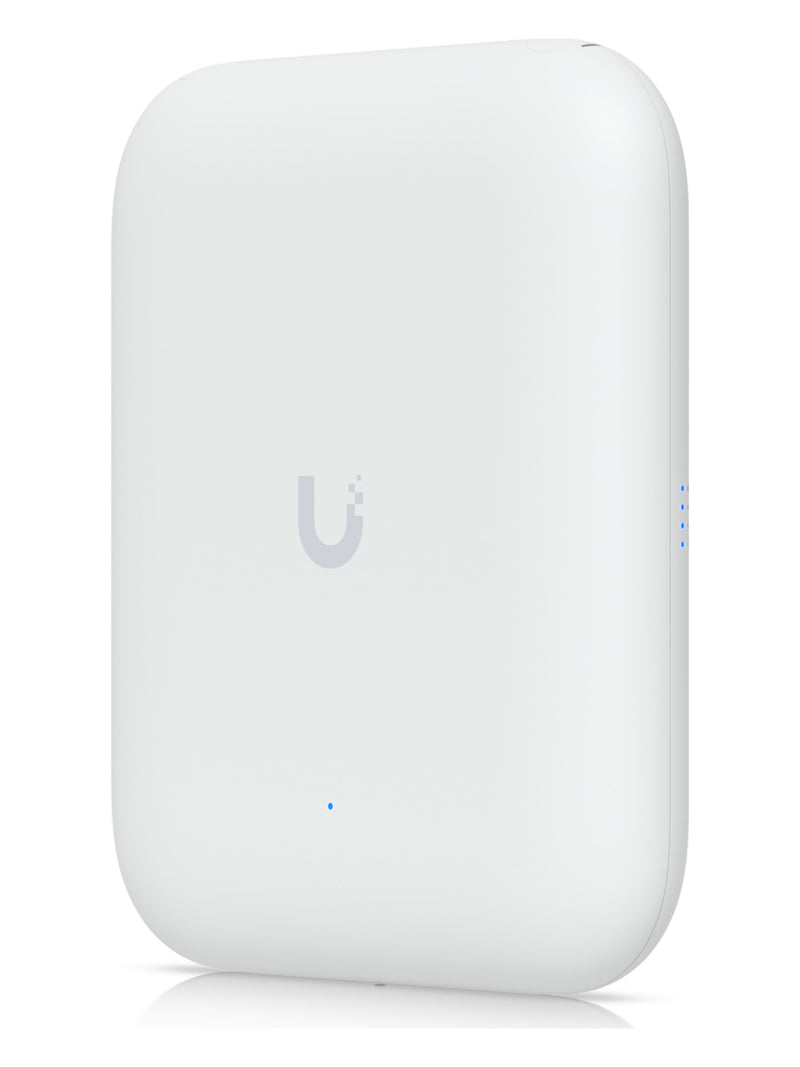

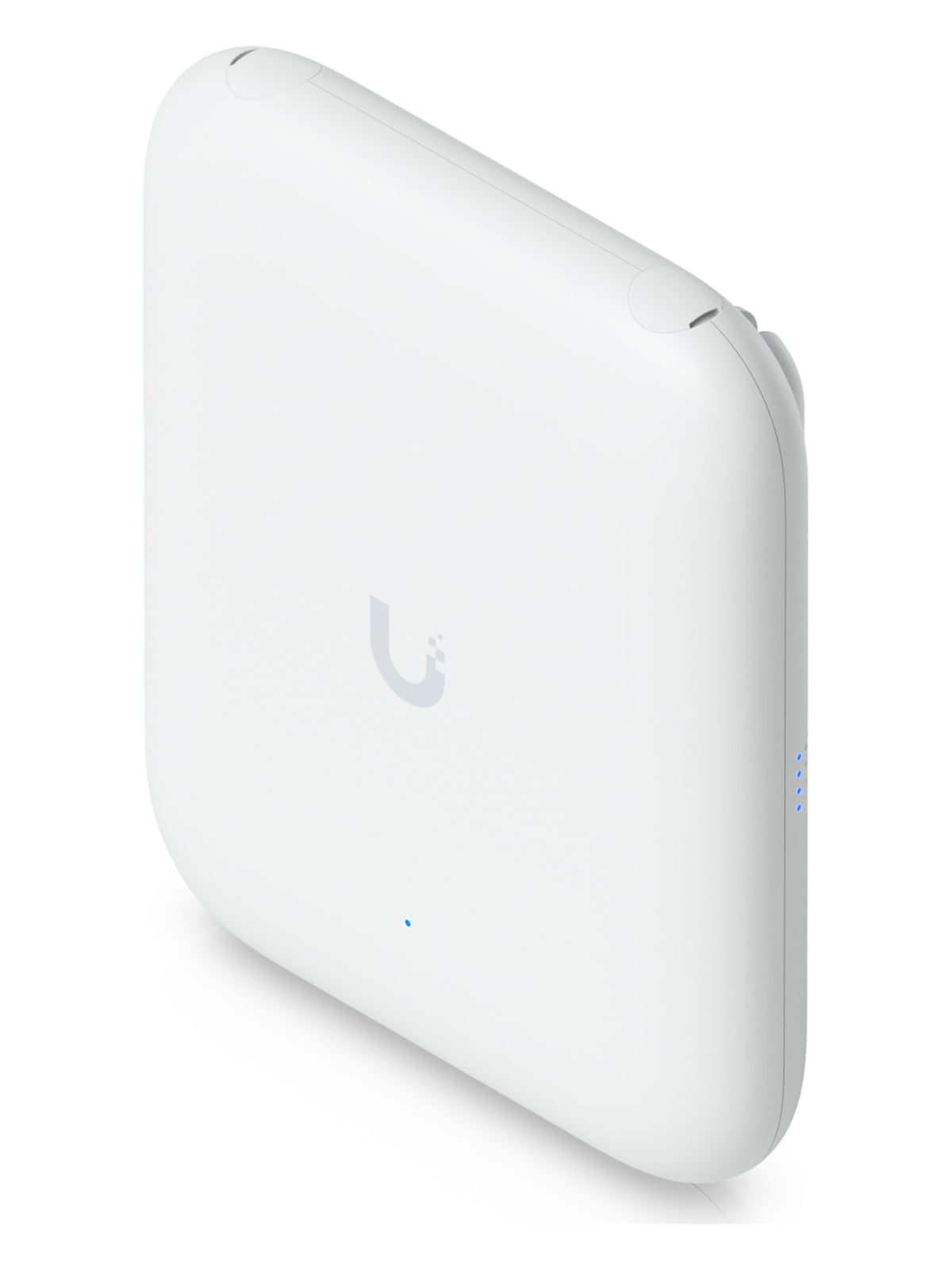

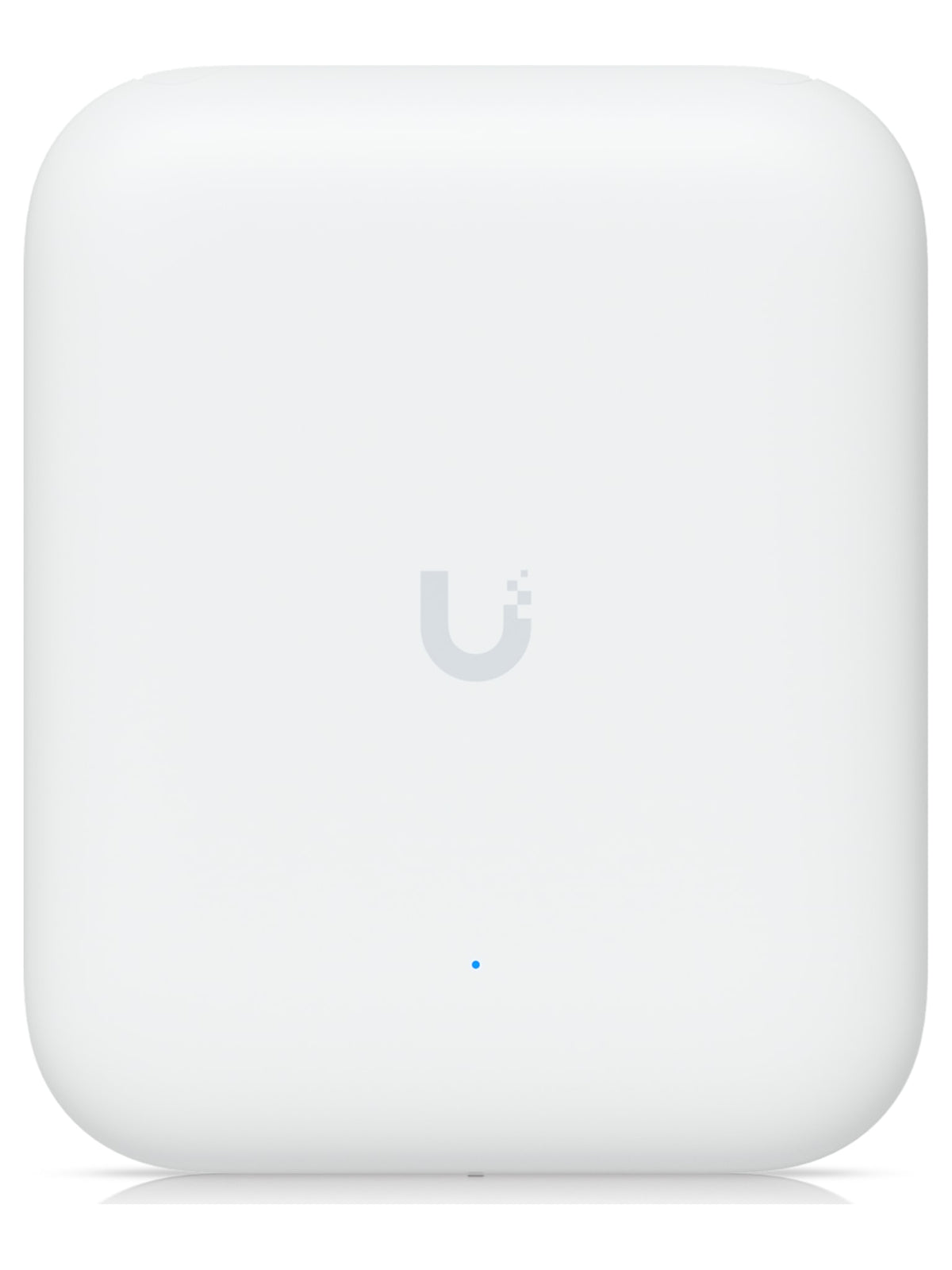

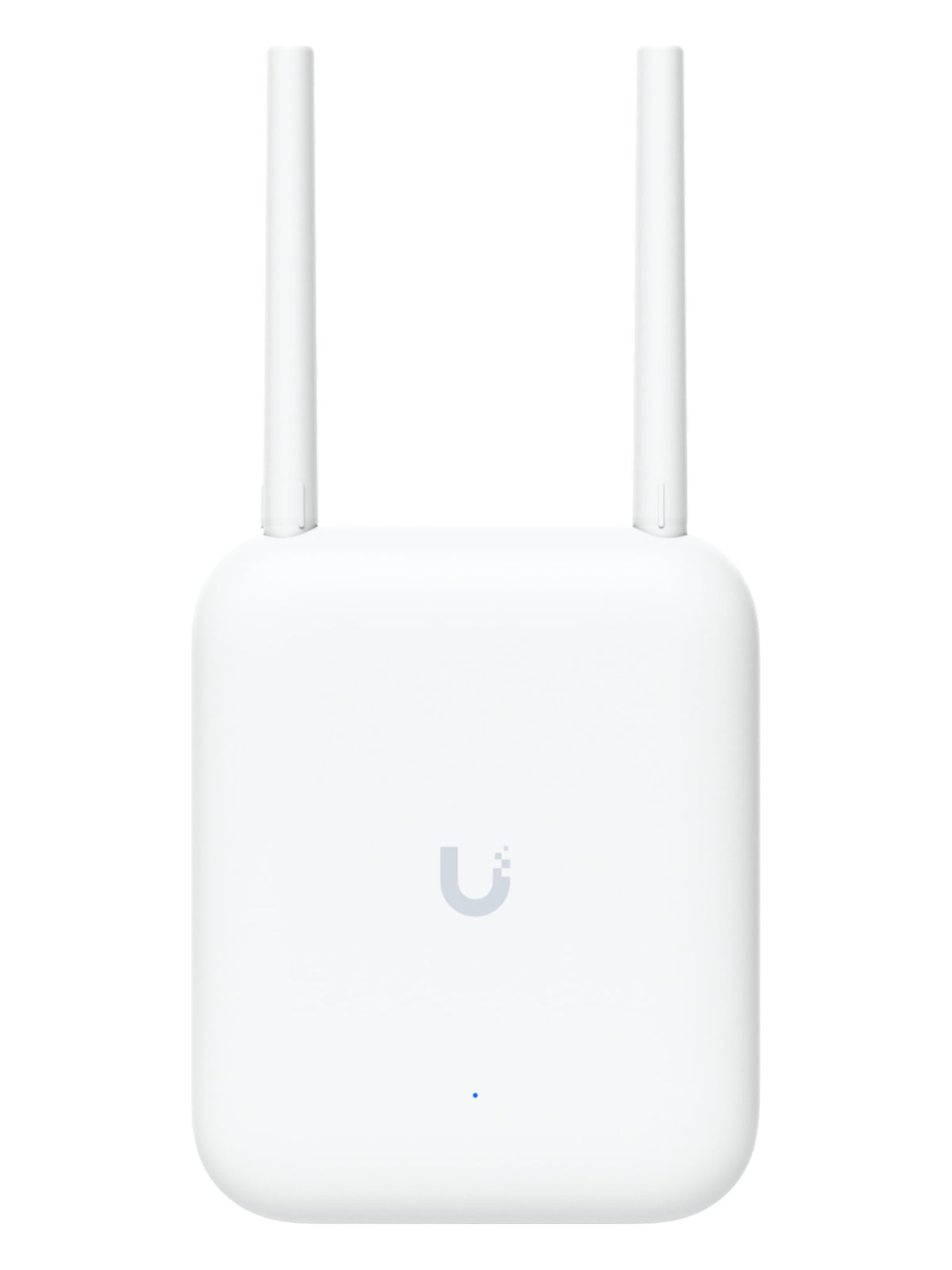

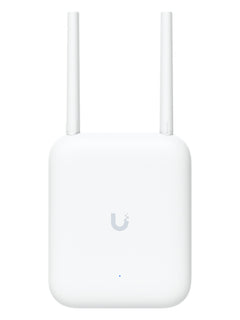

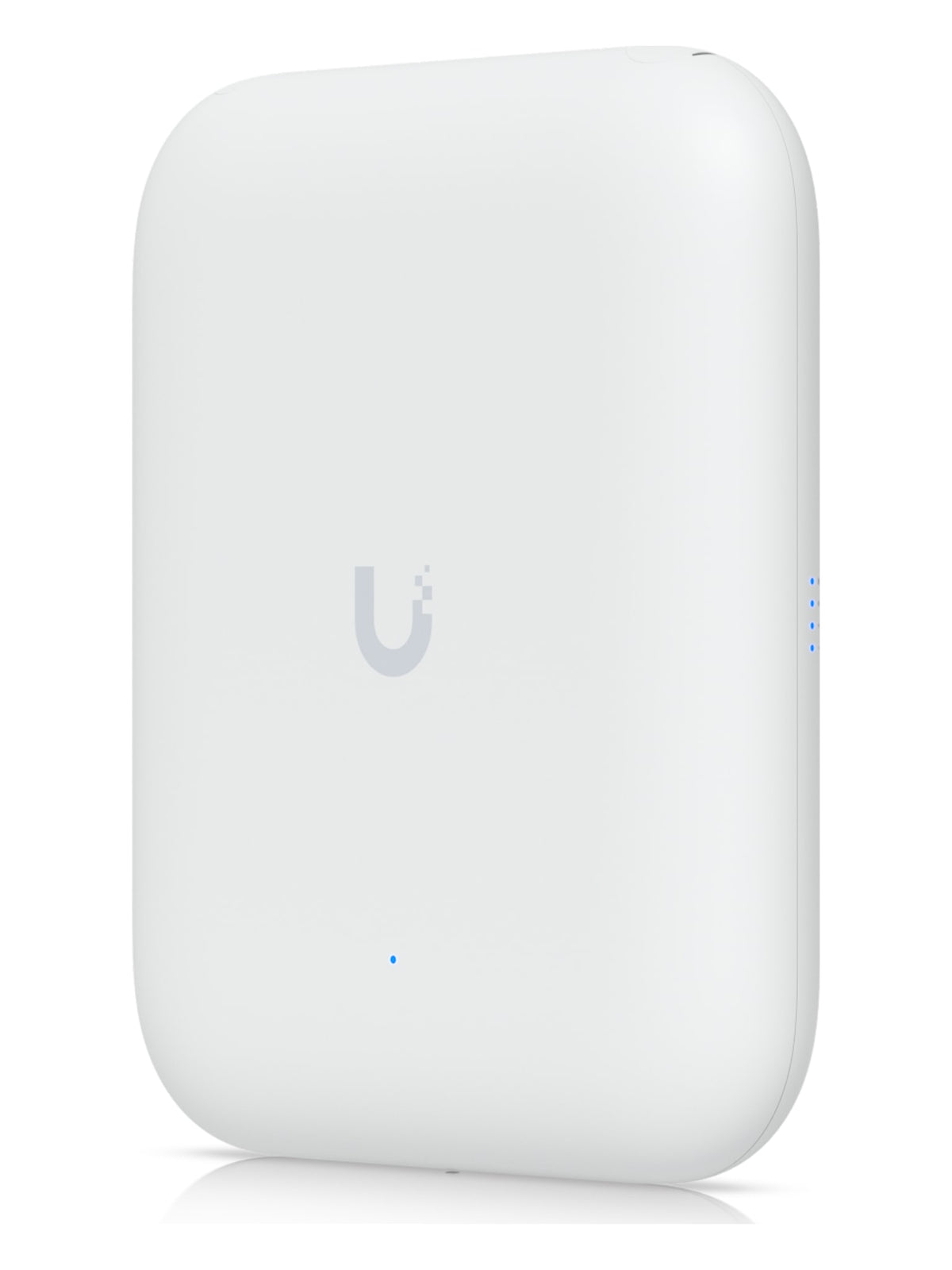

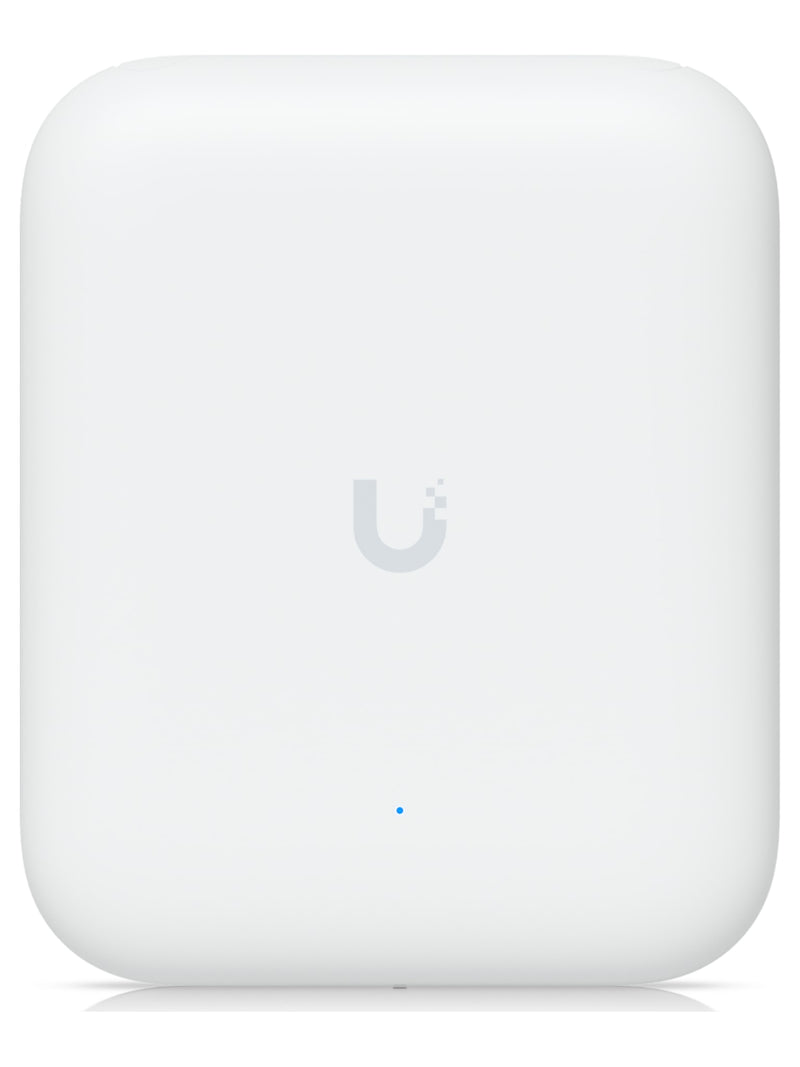

Ubiquiti UniFi U7 Outdoor WiFi 7 Access Point - Weatherproof
All-weather WiFi 7 access point with 4 spatial streams and a built-in directional antenna
Read MoreSpecs
Brand
Ubiquiti
Model
U7-Outdoor
Product
Access Point U7 Outdoor
Dimensions
170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1")
- Regular price
- $430.00 USD
- Sale price
- $430.00 USD
- Regular price
-
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Ubiquiti UniFi U7 Outdoor WiFi 7 Access Point - Weatherproof
The Ubiquiti UniFi U7 Outdoor (U7-Outdoor) is an all-weather WiFi 7 access point with 4 spatial streams and a built-in directional antenna. It is built for walls, poles and courtyards with a weatherproof enclosure, a 2.5 GbE uplink and PoE power. It is managed with the free UniFi Network app alongside your other UniFi devices.
Main Specs
- Dimensions: 170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1")
- WiFi Standard: WiFi 7
- Spatial Streams: 4
- Coverage Area: 465 m² (5,000 ft²)
- Max. Client Count: 250+
- Uplink: 2.5 GbE
- Mounting: Wall, Pole (Mounts Included)
- Max. Power Consumption: 19W
- Networking Interface: (1) 1/2.5 GbE RJ45 port
- Managed with the UniFi Network app, no licence fees
- Ideal for outdoor areas, gardens, parking lots and campuses
Main Characteristics
Brand
Ubiquiti
Model
U7-Outdoor
Product
Access Point U7 Outdoor
Dimensions
170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1")
WiFi Standard
WiFi 7
Spatial Streams
4
Coverage Area
465 m² (5,000 ft²)
Max. Client Count
250+
Uplink
2.5 GbE
Mounting
Wall, Pole (Mounts Included)
Weatherproofing
IPX6
Power Method
PoE+
5 GHz
45°
2.4 GHz
90°
Max. BSSIDs
8 per Radio
802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Max. Power Consumption
19W
Supported Voltage Range
42.5–57V DC
Networking Interface
(1) 1/2.5 GbE RJ45 port
Weight
1.2 kg (2.6 lb)
Wind Loading
74.6 N at 200 km/h (16.8 lbf at 125 mph)
Pole Mount Diameter
1–2.36" (25–60 mm)
Antennas
(1) Directional internal antenna (2) External omni antennas (2) RP-SMA connectors for external antenna
Management
Ethernet
Enclosure Material
UV-stabilized polycarbonate, aluminum alloy
Mount Material
Polycarbonate, SGCC steel
System
(1) Power: White/Blue (1) System: White/Blue (4) Mesh Signal: Blue
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
Operating Frequency
US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHz, For worldwide, it depends on the regulatory region
Ambient Operating Temperature
-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC, Anatel: 08999-24-08356
