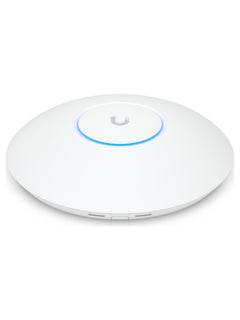

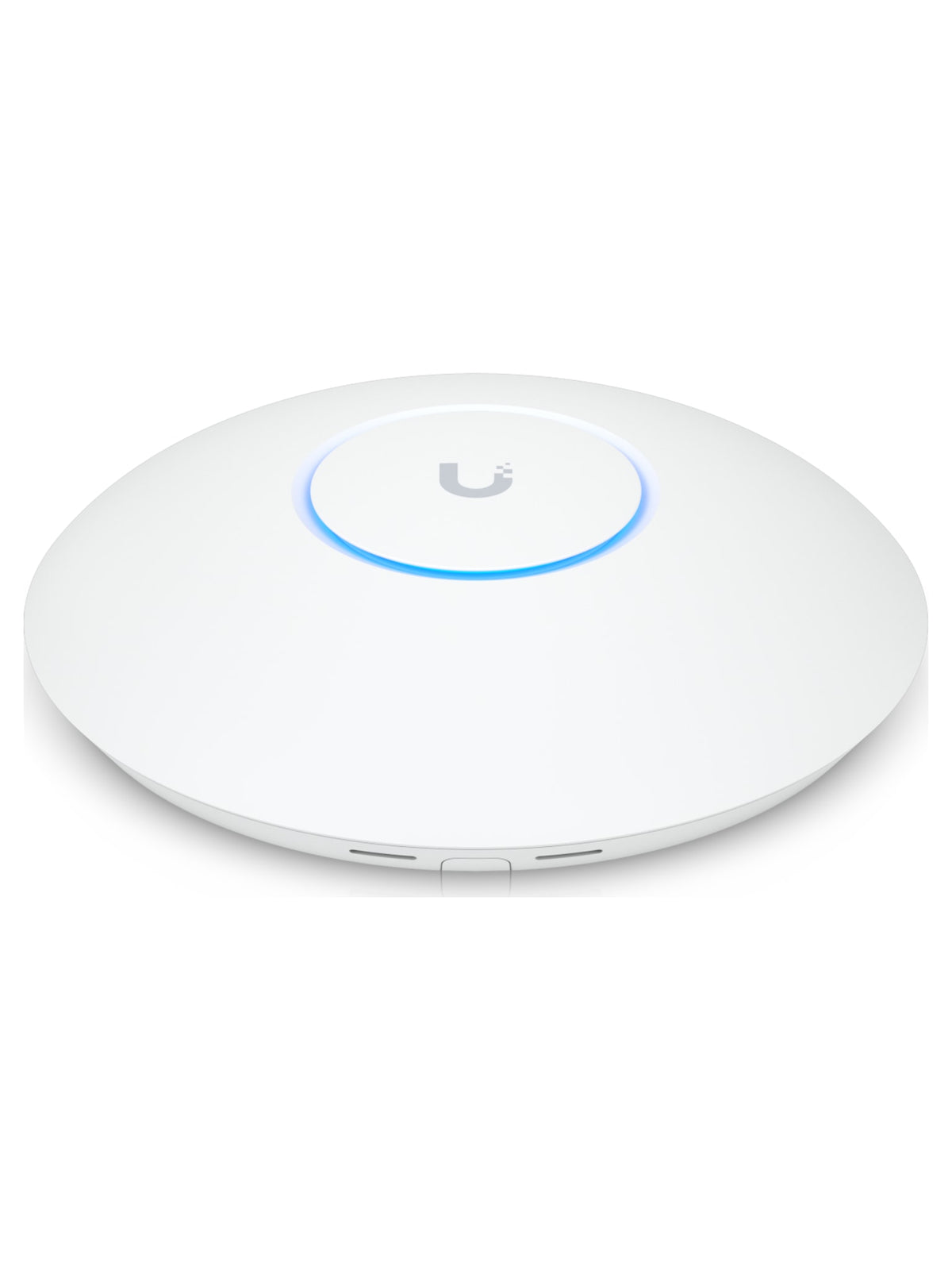

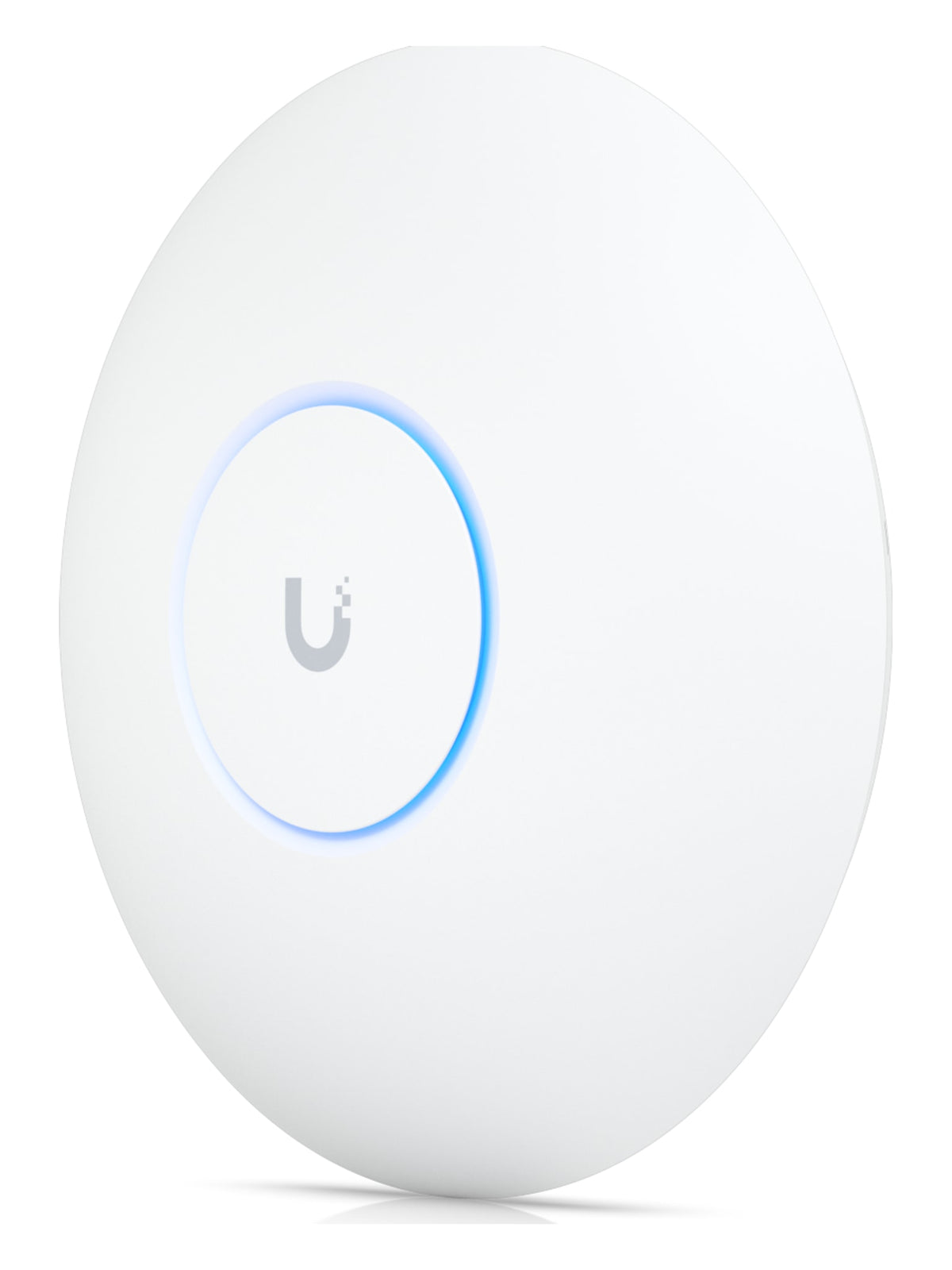

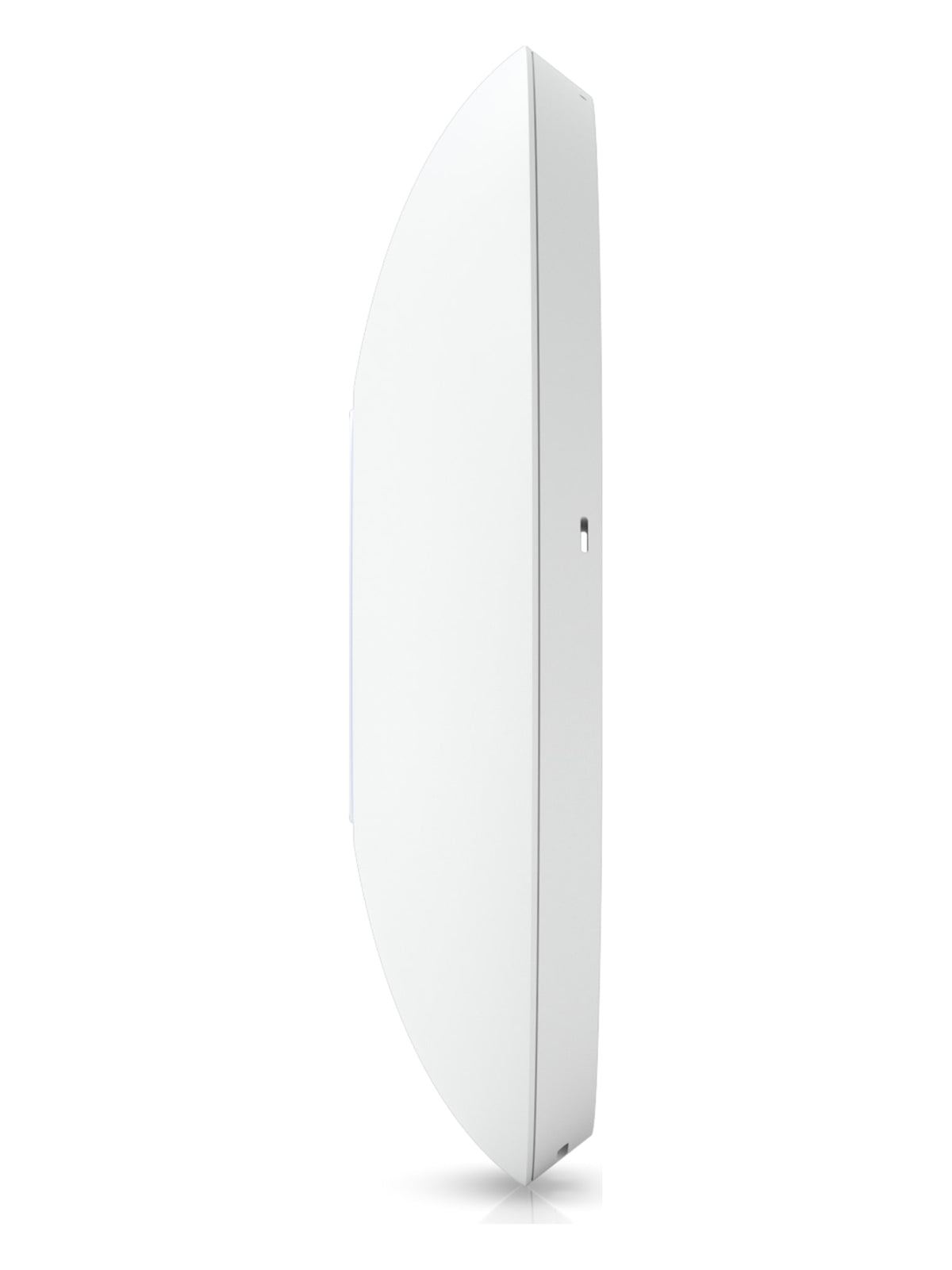

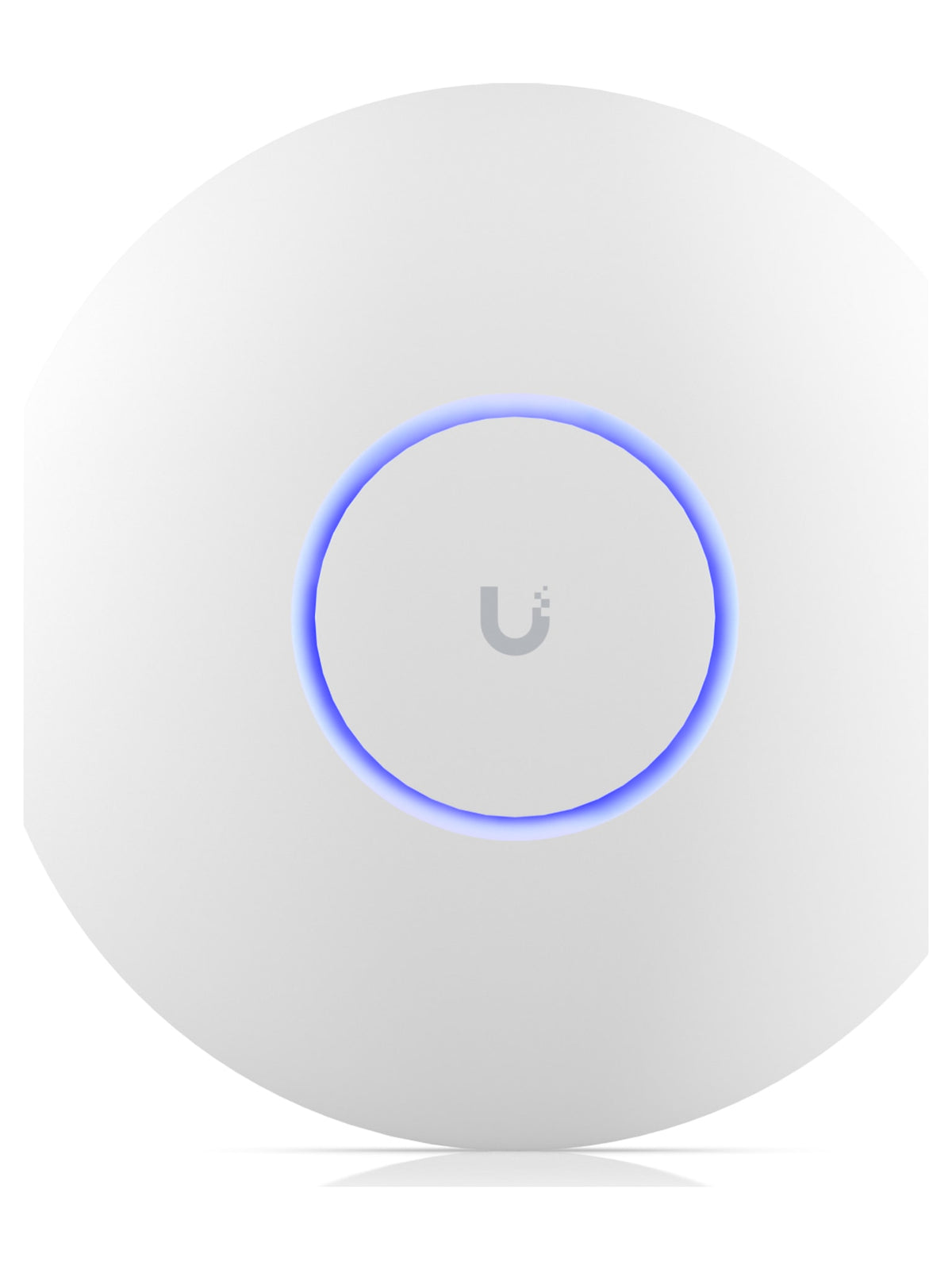

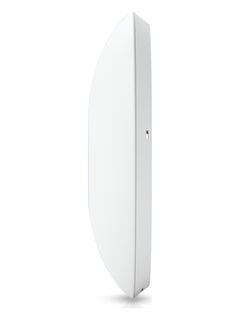

Ubiquiti UniFi U7 Pro Max WiFi 7 Ceiling Access Point - 6 GHz, 2.5GbE
The Ubiquiti UniFi U7 Pro Max is a ceiling-mounted WiFi 7 access point with 8 spatial streams and 6 GHz support. It adds a dedicated spectral scanning engine for interference-free WiFi and serves 500+ clients over about 160 m² from a 2.5 GbE PoE+ uplink. It suits busy offices, hotels, schools and large homes that need top WiFi 7 capacity managed from the UniFi Network app.
Main Specs
- WiFi 7 with 6 GHz support, 8 spatial streams
- Up to 5.8 Gbps on 6 GHz, 8.6 Gbps on 5 GHz and 688 Mbps on 2.4 GHz
- Coverage up to 160 m² (1,750 ft²), 500+ clients
- (1) 1/2.5 GbE RJ45 uplink
- PoE+ powered, 25W max. power consumption
- Dedicated spectral scanning and zero-wait DFS
- Ceiling or wall mounting (Pro Mount included)
- Managed with the UniFi Network app, no licence fees
- Ideal for busy offices, hotels, schools and large homes
Main Characteristics
Brand
Ubiquiti
Model
U7-Pro-Max
Product Type
Ceiling WiFi 7 Access Point
WiFi Standard
WiFi 7, with 6 GHz support
Spatial Streams
8
MIMO 6 GHz
2 x 2 (DL/UL MU-MIMO)
MIMO 5 GHz
4 x 4 (DL/UL MU-MIMO)
MIMO 2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate 6 GHz
5.8 Gbps (BW320)
Max. Data Rate 5 GHz
8.6 Gbps (BW240)
Max. Data Rate 2.4 GHz
688 Mbps (BW40)
Coverage Area
160 m² (1,750 ft²)
Max. Client Count
500+
Uplink
2.5 GbE
Networking Interface

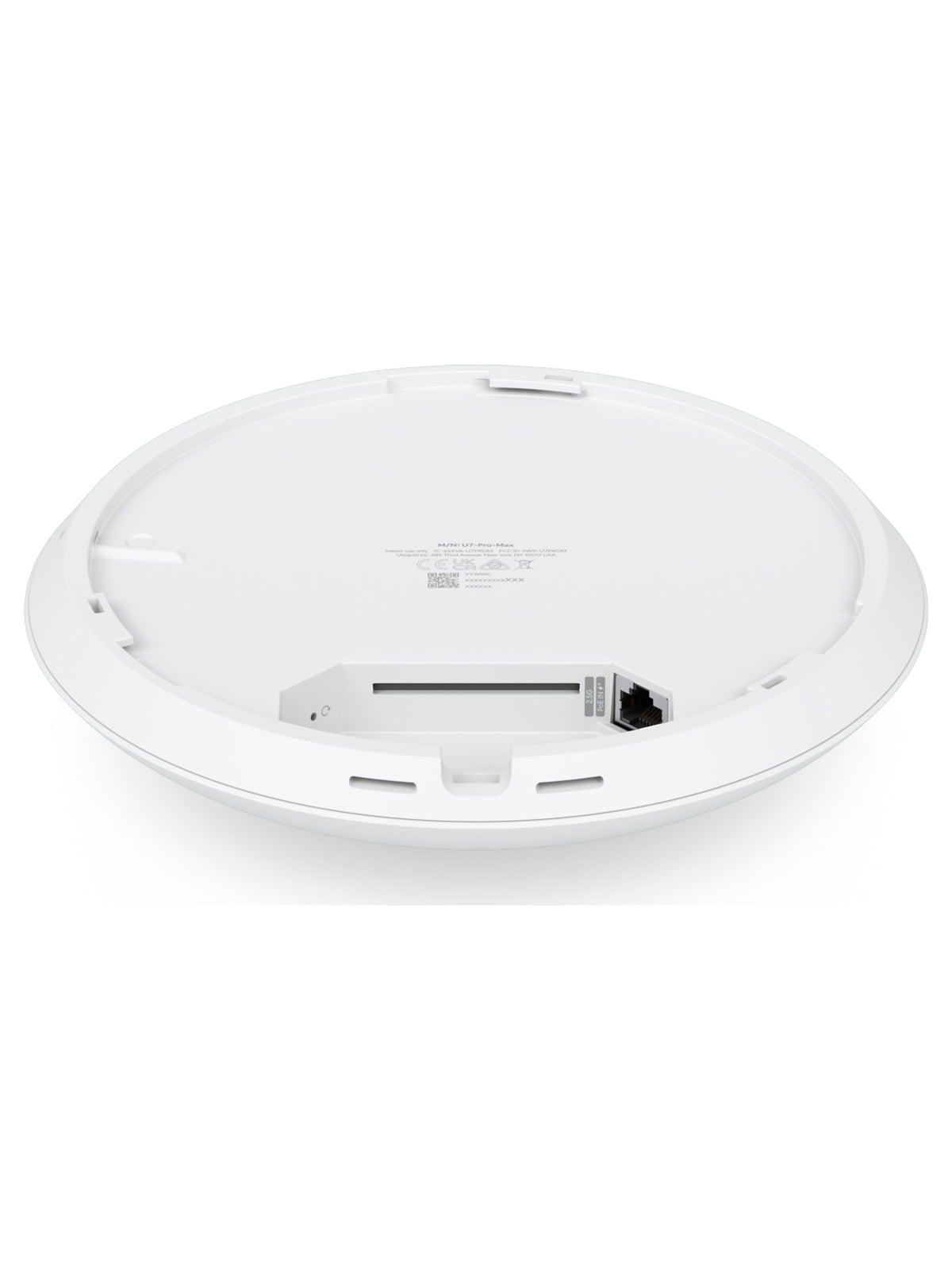

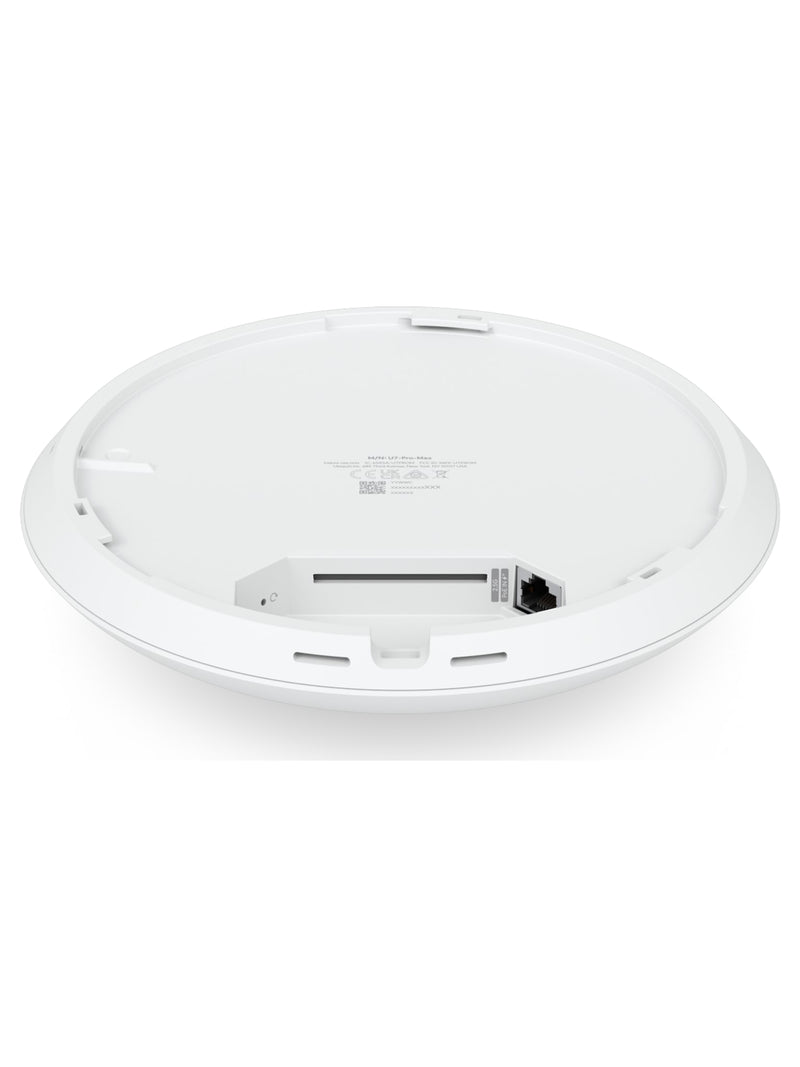

(1) 1/2.5 GbE RJ45 port
Power Method
PoE+
Max. Power Consumption
25W
Mounting
Ceiling, Wall (Pro Mount Included)
Dimensions
⌀206 x 46 mm (⌀8.1 x 1.8")
Weight
680 g (1.5 lb)
Operating Temperature
-30 to 50° C (-22 to 122° F)
Certifications
CE, FCC, IC, Anatel: 08959-24-08356
